FJ80L-GNPES (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

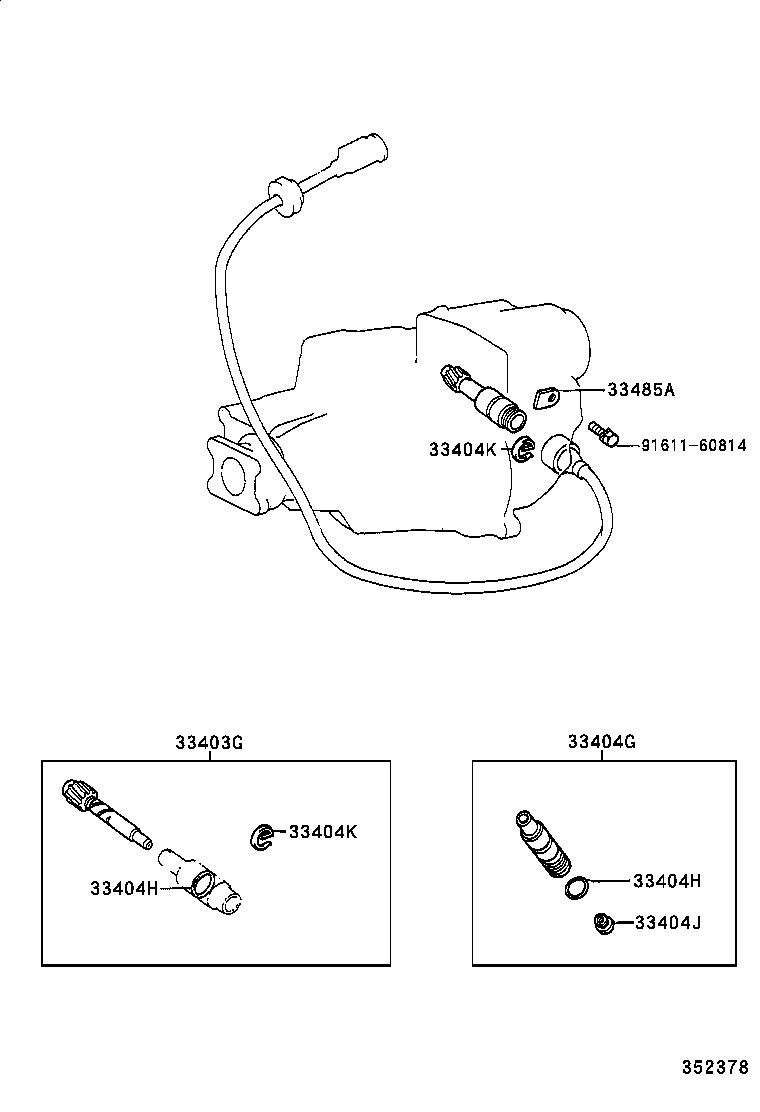

(9001-9201)4FC
Click highlighted areas on diagram
A440F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||

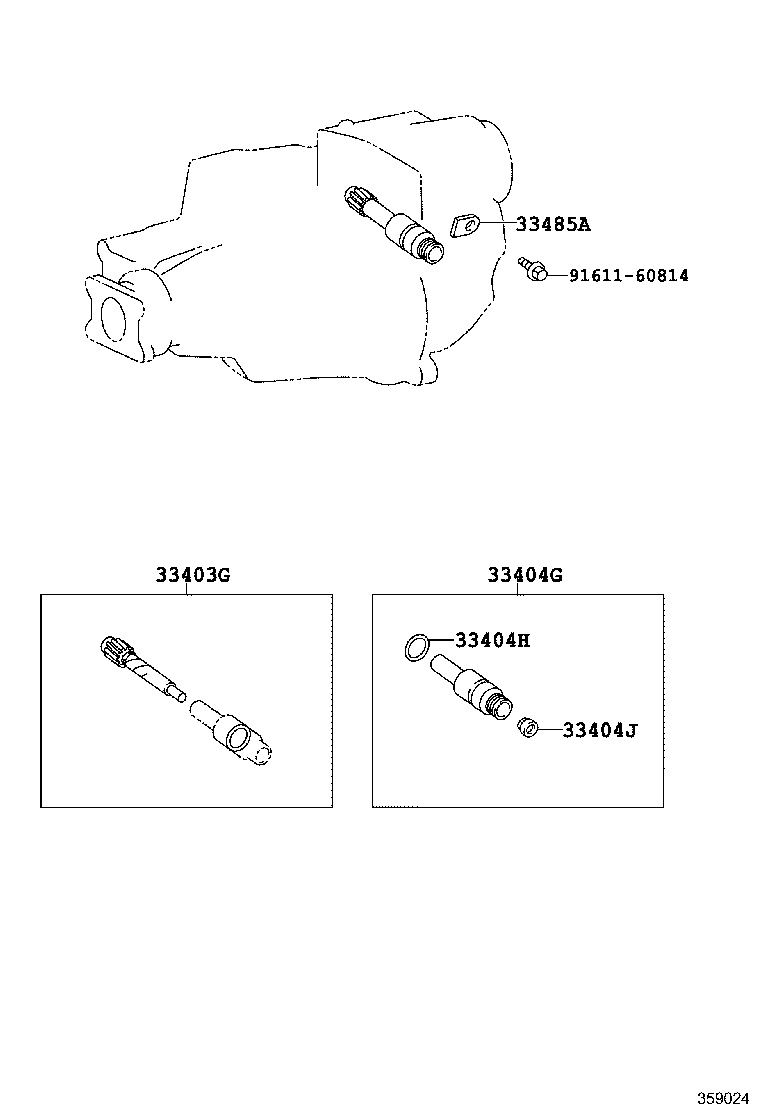

(9001- )4FC
Click highlighted areas on diagram
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33403-69225 |
FJ80,HDJ80,HZJ80..4FC N=31,MARK 31:12 |
1 | ||
| 33403-69275 |
FJ80,HDJ80,HZJ80..LHD..4FC N=33,MARK 33:13 |
1 | ||
| 33403-69245 |
FJ80,HDJ80,HZJ80..4FC N=33,MARK 33:12 |
1 | ||
| 33403-69235 |
FJ80..4FC..GX..GCC;FJ80,HDJ80,HZJ80..4FC..GEN N=32,MARK 32:12 |
1 | ||
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-22010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
