FJ80L-GNPES (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

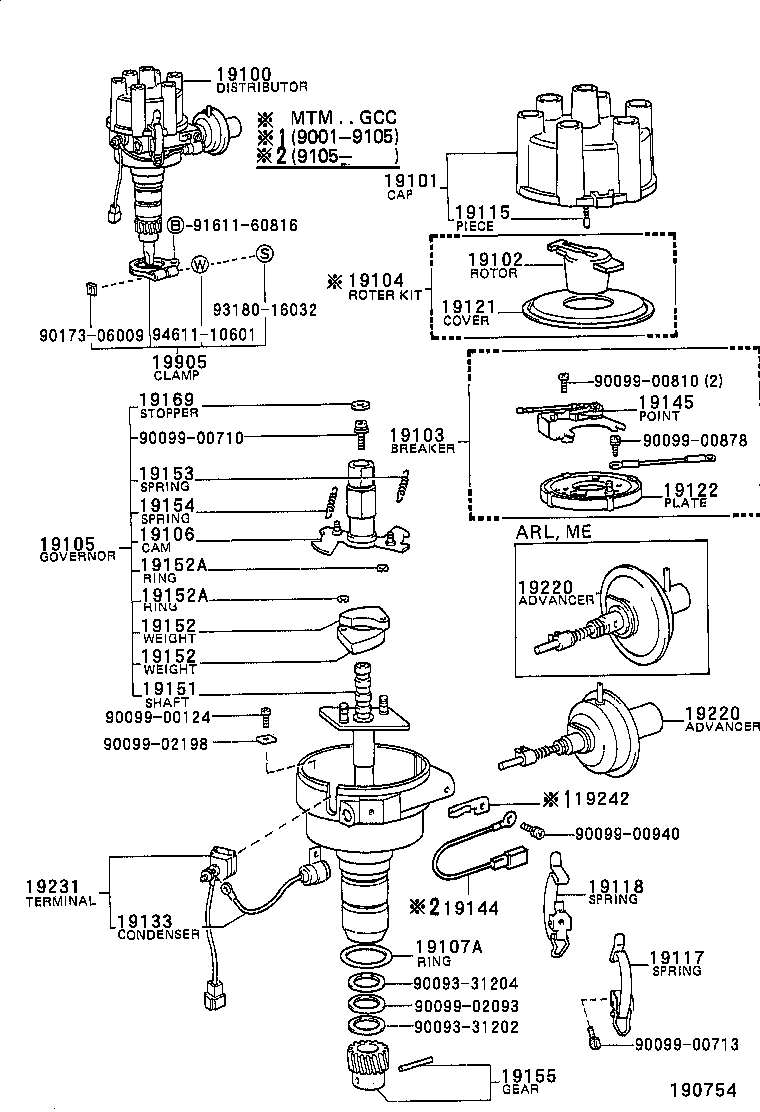

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19104 19105 19106 19107A 19115 19117 19118 19121 19122 19133 19144 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19231 19242 19905 9009331202 9009331204 9009900124 9009900710 9009900713 9009900810 9009900878 9009900940 9009902093 9009902198 9017306009 9161160816 9318016032 9461110601
Part # Description Qty Price
Common parts
90093-31202
90093-31204
90099-00124
90099-00710
90099-00713
90099-00810
90099-00878
90099-00940
90099-02093
90099-02198
90173-06009
91611-60816
93180-16032
94611-10601

(9001-9208)3F

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19104 19105 19106 19107A 19115 19117 19118 19121 19122 19133 19144 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19220 19231 19242 19905 9009331202 9009331204 9009900124 9009900710 9009900713 9009900810 9009900878 9009900940 9009902093 9009902198 9017306009 9161160816 9318016032 9461110601
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-61180

3F..FJ80..GEN;3F..FJ80..5F..GCC

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-45060

3F..FJ80

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-61023

3F..FJ80

 1
19104 - ROTOR KIT
19104-61181

3F..FJ80..ARL,GEN;3F..FJ80..5F..GCC

 1
19105 - GOVERNOR SUB-ASSY
19105-61160

3F..FJ80..GEN;3F..FJ80..5F..GCC

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-41110

3F..FJ80..GCC,GEN

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

3F#..FJ80

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3F#..FJ80

 1
19117 - SPRING, DISTRIBUTOR CAP, A
19117-60080

3F..FJ80

 1
19118 - SPRING, DISTRIBUTOR CAP, B
19118-60070

3F..FJ80

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-61023

3F..FJ80

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52050

3F..FJ80

 1
19145 - POINT, DISTRIBUTOR
19145-26060

3F..FJ80

 1
19151 - SHAFT, GOVERNOR
19151-61160

3F..FJ80

 1
19152 - WEIGHT, GOVERNOR
19152-63010

3F..FJ80

 2
19152 - WEIGHT, GOVERNOR
19152-63010

3F..FJ80

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

1FZF,3F..FJ80,FZJ80

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

1FZF,3F..FJ80,FZJ80

 2
19153 - SPRING, GOVERNOR, A
19153-61160

3F..FJ80..GEN;3F..FJ80..5F..GCC

 1
19154 - SPRING, GOVERNOR, B
19154-61160

3F..FJ80..GEN;3F..FJ80..5F..GCC

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-60040

3F..FJ80

 1
19169 - STOPPER, CAM GREASE
19169-63011

1FZF,3F..FJ80,FZJ80

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-61160

3F..FJ80..ARL,GEN;3F..FJ80..5F..GCC

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-61160

3F..FJ80..ARL,GEN;3F..FJ80..5F..GCC

 1
19231 - TERMINAL, DISTRIBUTOR
19132-61023

3F..FJ80

 1
19242 - CLAMP, CORD
19242-26250

3F..FJ80

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19905-40010

3F..FJ80

 1
Common parts
90093-31202
90093-31204
90099-00124
90099-00710
90099-00713
90099-00810
90099-00878
90099-00940
90099-02093
90099-02198
90173-06009
91611-60816
93180-16032
94611-10601
