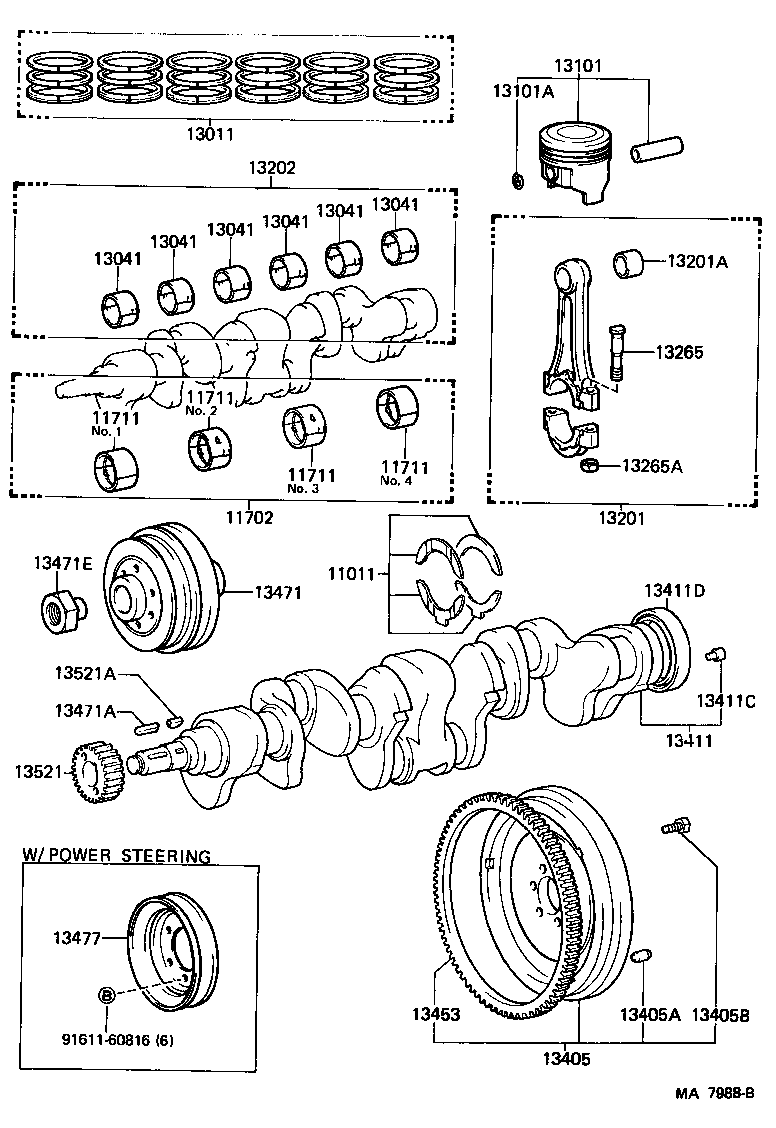

FJ80L-GNPES (1990)
Toyota Land Cruiser
(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-61010 |
3F#..FJ80 O/S 0.125 |
1 | ||
| 11013-61010 |
3F#..FJ80 O/S 0.250 |
1 | ||
| 11011-61010 |
3F#..FJ80 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-61010 |
3F#..FJ80 U/S 0.25 |
1 | ||
| 11705-61010 |
3F#..FJ80 U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13017-61062 |
3F#..FJ80 O/S 1.50 |
1 | ||
| 13015-61062 |
3F#..FJ80 O/S 1.00 |
1 | ||
| 13011-61062 |
3F#..FJ80 STD |
1 | ||
| 13013-61062 |
3F#..FJ80 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13107-61032 |
3F#..FJ80 O/S 1.50 |
6 | ||
| 13101-6103201 |
3F#..FJ80 STD,MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13105-61032 |
3F#..FJ80 O/S 1.00 |
6 | ||
| 13101-6103202 |
3F#..FJ80 STD,MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13103-61032 |
3F#..FJ80 O/S 0.50 |
6 | ||
| 13101-6103203 |
3F#..FJ80 STD,MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25002 |
3F#..FJ80 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-38011 |
3F#..FJ80 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73072 |
3F#..FJ80 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-61020 |
3F#..FJ80 U/S 0.50 |
1 | ||
| 13204-61020 |
3F#..FJ80 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-39025 |
3F#..FJ80 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10198 |
3F#..FJ80 |
12 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-61023 |
3F#..FJ80 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90241-10017 |
3F#..FJ80 |
1 | ||
| 13411D - SEAL, OIL(FOR CRANKSHAFT) | ||||
| 90311-99005 |
3F#..FJ80 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-61030 |
3F#..FJ80 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90281-07004 |
3F#..FJ80 |
1 | ||
| 13471E - NUT(FOR CRANKSHAFT PULLEY) | ||||
| 90179-22010 |
3F#..FJ80 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 13471-61010 |
3F#..FJ80 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-61010 |
3F#..FJ80 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
3F#..FJ80 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-61010 |
3F#..FJ80 O/S 0.125 |
1 | ||
| 11013-61010 |
3F#..FJ80 O/S 0.250 |
1 | ||
| 11011-61010 |
3F#..FJ80 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-61010 |
3F#..FJ80 U/S 0.25 |
1 | ||
| 11705-61010 |
3F#..FJ80 U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6101002 |
3F#..FJ80 MARK 2,NO.2,REFER R/M |
1 | ||
| 11071-6101003 |
3F#..FJ80 MARK 3,NO.2,REFER R/M |
1 | ||
| 11071-6101004 |
3F#..FJ80 MARK 4,NO.2,REFER R/M |
1 | ||
| 11071-6101001 |
3F#..FJ80 MARK 1,NO.2,REFER R/M |
1 | ||
| 11072-6101002 |
3F#..FJ80 MARK 2,NO.3,REFER R/M |
1 | ||
| 11072-6101005 |
3F#..FJ80 MARK 5,NO.3,REFER R/M |
1 | ||
| 11072-6101003 |
3F#..FJ80 MARK 3,NO.3,REFER R/M |
1 | ||
| 11073-6101004 |
3F#..FJ80 MARK 4,NO.4,REFER R/M |
1 | ||
| 11072-6101001 |
3F#..FJ80 MARK 1,NO.3,REFER R/M |
1 | ||
| 11071-6101005 |
3F#..FJ80 MARK 5,NO.2,REFER R/M |
1 | ||
| 11073-6101002 |
3F#..FJ80 MARK 2,NO.4,REFER R/M |
1 | ||
| 11073-6101005 |
3F#..FJ80 MARK 5,NO.4,REFER R/M |
1 | ||
| 11701-6101001 |
3F#..FJ80 MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6101003 |
3F#..FJ80 MARK 3,NO.1,REFER R/M |
1 | ||
| 11072-6101004 |
3F#..FJ80 MARK 4,NO.3,REFER R/M |
1 | ||
| 11701-6101002 |
3F#..FJ80 MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6101005 |
3F#..FJ80 MARK 5,NO.1,REFER R/M |
1 | ||
| 11073-6101003 |
3F#..FJ80 MARK 3,NO.4,REFER R/M |
1 | ||
| 11073-6101001 |
3F#..FJ80 MARK 1,NO.4,REFER R/M |
1 | ||
| 11701-6101004 |
3F#..FJ80 MARK 4,NO.1,REFER R/M |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13017-61062 |
3F#..FJ80 O/S 1.50 |
1 | ||
| 13015-61062 |
3F#..FJ80 O/S 1.00 |
1 | ||
| 13011-61062 |
3F#..FJ80 STD |
1 | ||
| 13013-61062 |
3F#..FJ80 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-35020A0 |
3F#..FJ80 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13041-35020B0 |
3F#..FJ80 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13041-35020C0 |
3F#..FJ80 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13107-61032 |
3F#..FJ80 O/S 1.50 |
6 | ||
| 13101-6103201 |
3F#..FJ80 STD,MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13105-61032 |
3F#..FJ80 O/S 1.00 |
6 | ||
| 13101-6103202 |
3F#..FJ80 STD,MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13103-61032 |
3F#..FJ80 O/S 0.50 |
6 | ||
| 13101-6103203 |
3F#..FJ80 STD,MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25002 |
3F#..FJ80 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-38011 |
3F#..FJ80 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73072 |
3F#..FJ80 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-61020 |
3F#..FJ80 U/S 0.50 |
1 | ||
| 13204-61020 |
3F#..FJ80 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-39025 |
3F#..FJ80 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10198 |
3F#..FJ80 |
12 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-61023 |
3F#..FJ80 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90241-10017 |
3F#..FJ80 |
1 | ||
| 13411D - SEAL, OIL(FOR CRANKSHAFT) | ||||
| 90311-99005 |
3F#..FJ80 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-61030 |
3F#..FJ80 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90281-07004 |
3F#..FJ80 |
1 | ||
| 13471E - NUT(FOR CRANKSHAFT PULLEY) | ||||
| 90179-22010 |
3F#..FJ80 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 13471-61010 |
3F#..FJ80 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-61010 |
3F#..FJ80 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
3F#..FJ80 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
