FJ80L-GNMNS (1990)
Toyota Land Cruiser

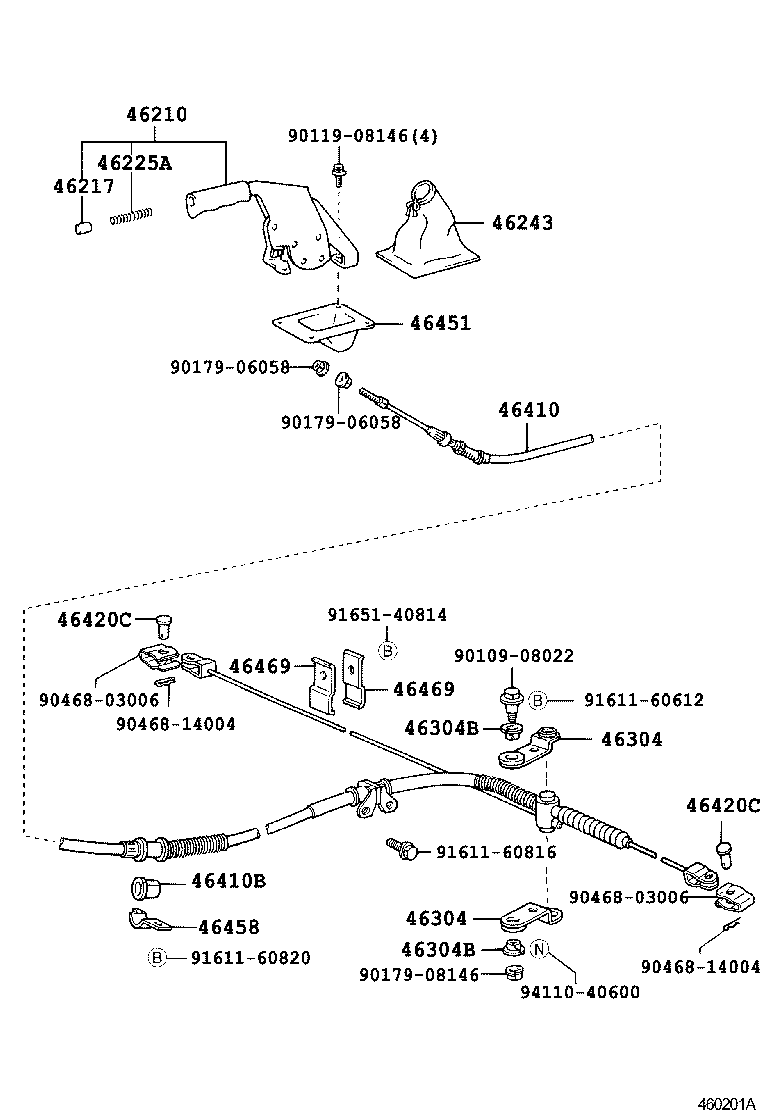

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-6009103 |
FJ80,HDJ80,HZJ80..GCC,GEN BLUSH GRAY,TRIM1# |
1 | ||
| 46210-6009006 |
FJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46210-6009003 |
FJ80,HDJ80,HZJ80..GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46210-6009106 |
FJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-6009103 |
FJ80,HDJ80,HZJ80..GCC,GEN BLUSH GRAY,TRIM1# |
1 | ||
| 46210-6009006 |
FJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46210-6009003 |
FJ80,HDJ80,HZJ80..GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46210-6009106 |
FJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002046 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46217-2002053 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10138 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-6004003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUEISH GRAY,TRIM1# |
1 | ||
| 46243-6004006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 90385-12012 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 90385-12012 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60340 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
1 | ||
| 46410-60420 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 46410-60430 |
FJ80,FZJ80,HDJ80,HZJ80..LHD W(FULL FLOATING AXLE) |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-60100 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 46469-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90109-08206 | ||||
| 90109-08244 | ||||
| 90119-08146 | ||||
| 90119-08701 | ||||
| 90179-06058 | ||||
| 90179-06161 | ||||
| 90179-06299 | ||||
| 90179-08141 | ||||
| 90468-03006 | ||||
| 90468-14004 | ||||
| 90468-14033 | ||||
| 90949-01614 | ||||
| 90949-01615 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-60814 | ||||
| 91651-B0814 | ||||
| 94110-40800 | ||||
| 94130-00802 | ||||
(9001-9201)FJ80..LHD..4FC,5F..LUB..GX..GEN
VENEZUELA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-6009103 |
FJ80,HDJ80,HZJ80..GCC,GEN BLUSH GRAY,TRIM1# |
1 | ||
| 46210-6009006 |
FJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46210-6009003 |
FJ80,HDJ80,HZJ80..GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46210-6009106 |
FJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002046 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN SABLE,TRIM4# |
1 | ||
| 46217-2002053 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10138 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-6004003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUEISH GRAY,TRIM1# |
1 | ||
| 46243-6004006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 90385-12012 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 90385-12012 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60340 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
1 | ||
| 46410-60420 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 46410-60430 |
FJ80,FZJ80,HDJ80,HZJ80..LHD W(FULL FLOATING AXLE) |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-17158 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-60100 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30020 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 46469-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FJ80..LHD..(4FC,5F)..LUB..GX..GEN VENEZUELA SPEC |
2 | ||
| 46469-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90109-08022 | ||||
| 90119-08146 | ||||
| 90179-06058 | ||||
| 90179-08146 | ||||
| 90468-03006 | ||||
| 90468-14004 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40814 | ||||
| 94110-40600 | ||||
ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12020 | ||||
| 90179-12118 | ||||
| 91611-60820 | ||||
| 94130-60600 | ||||
