FJ80L-GCMRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )3F

Click highlighted areas on diagram

diagram 12311 1231951010 1231951010 1231951010 12361 12364 12371 12511 9011912068 9011912068 9017912090 9017912090 9017912090 9017912090 9017912090 9162961225
Part # Description Qty Price
Common parts
12319-51010
90119-12068
90179-12090
91629-61225

(9001-9208)3F#

Click highlighted areas on diagram

diagram 12311 12361 12362 12371 12511 1601 16630 9010510256 9011912068 9011912068 9017912090 9017912090 9017912090 9017912090 9017912090 9020112208 9020112208 9020112208 91511B1025 9165961225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-61090

3F#..FJ80

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61050

3F#..FJ80

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-61010

3F#..FJ80

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61050

1FZF,3F..FJ80,FZJ80..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-61031

3F..FJ80

 1
Common parts
90105-10256
90119-12068
90179-12090
90201-12208
91511-B1025
91659-61225
Linked diagrams
1601

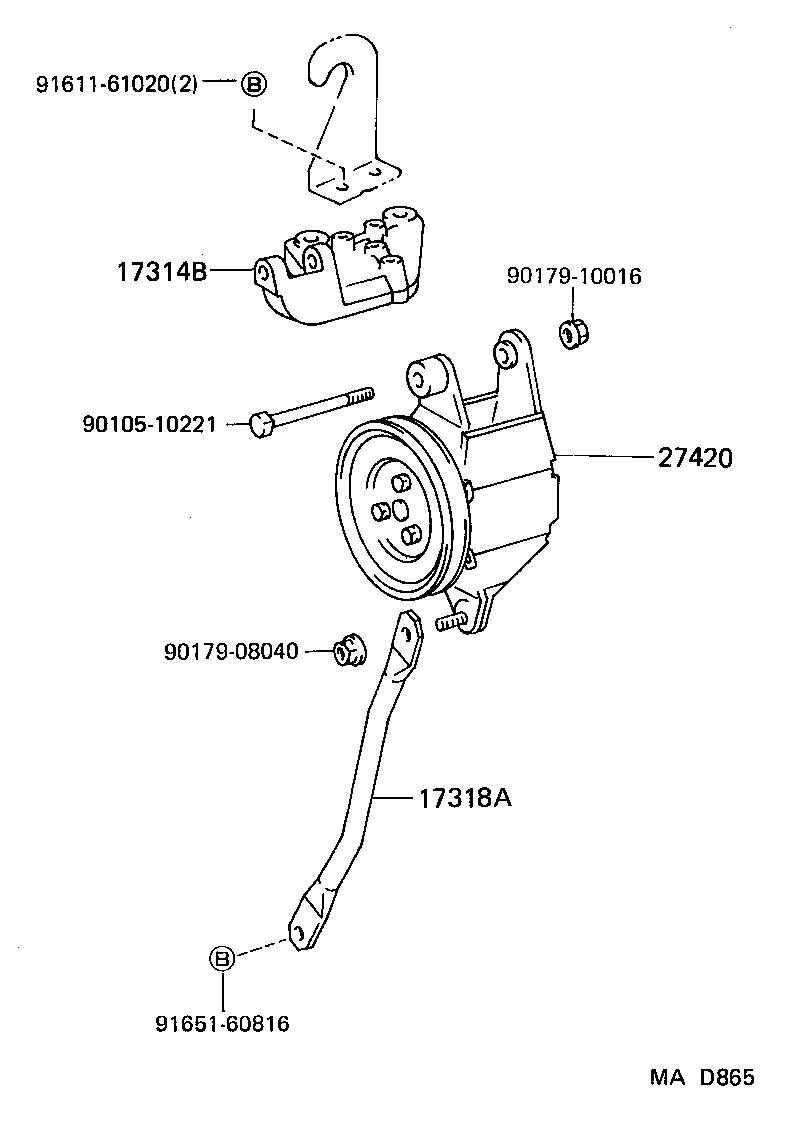

(9001-9208)3F

Click highlighted areas on diagram

W(12V-80A IC ALT)&W(DUAL AIR CON)

diagram 17314B 17318A 27420 9010510221 9017908040 9017910016 9161161020 9165160816
Part # Description Qty Price
Common parts
90105-10221
90179-08040
90179-10016
91611-61020
91651-60816
