FJ80L-GCMESV (1990)
Toyota Land Cruiser
(9001-9604)3F..GCC,GEN,SA
12V 45A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45110 | ||||
| 28387-34022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
(9001-9604)3F..GCC,GEN,SA
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-34022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
(9001-9604)3F
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||
(9001-9201)3F..GCC,GEN
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

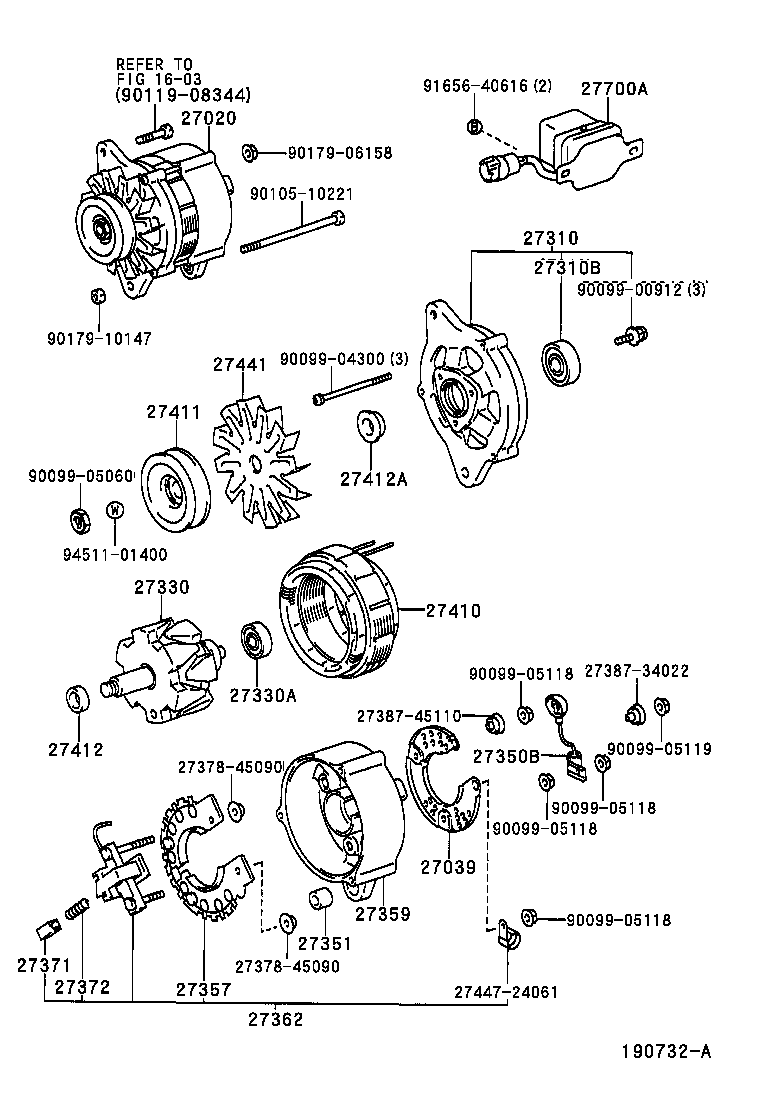

| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ80 12V 65A |
1 | ||
| 27020-61034 |
3F..FJ80..GCC,GEN 12V 50A |
1 | ||
| 27060-61090 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-61034 |
3F..FJ80..GCC,GEN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72070 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27310-26101 |
3F..FJ80..GCC,GEN |
1 | ||
| 27310-38061 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 90099-10110 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 90099-10125 |
3F..FJ80..GCC,GEN |
4 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ80..GCC,GEN |
1 | ||
| 27330-72070 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F#..FJ80 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F#..FJ80 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F#..FJ80 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56310 |
3F..FJ80..GCC,GEN |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27359-61034 |
3F..FJ80..GCC,GEN |
1 | ||
| 27359-24100 |
3F..FJ80..GCC,GEN |
1 | ||
| 27359-61190 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15022 |
3F..FJ80..GCC,GEN |
1 | ||
| 27362-72080 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27362-72070 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F#..FJ80 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F#..FJ80 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27410-41080 |
3F..FJ80..GCC,GEN |
1 | ||
| 27410-72070 |
3F..FJ80..GX,VX W(DUAL AIR CONDITIONER) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
3F..FJ80..GCC,GEN |
1 | ||
| 27411-61190 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27411-61210 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-15150 |
3F..FJ80 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ80 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34111 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27441-45050 |
3F..FJ80..VX..GCC W(DUAL AIR CONDITIONER) |
1 | ||
| 27441-34030 |
3F..FJ80..GCC,GEN |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F..FJ80..(GX,VX)..(GCC,GEN) 12V80A |
1 | ||
| 27700-15020 |
3F..FJ80..GCC,GEN |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-34022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 91656-40616 | ||||
| 94511-01400 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9001-9201)3F
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ80 12V 65A |
1 | ||
| 27020-61034 |
3F..FJ80..GCC,GEN 12V 50A |
1 | ||
| 27060-61090 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72070 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27310-26101 |
3F..FJ80..GCC,GEN |
1 | ||
| 27310-38061 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 90099-10110 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 90099-10125 |
3F..FJ80..GCC,GEN |
4 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ80..GCC,GEN |
1 | ||
| 27330-72070 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F#..FJ80 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F#..FJ80 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F#..FJ80 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27359-61034 |
3F..FJ80..GCC,GEN |
1 | ||
| 27359-24100 |
3F..FJ80..GCC,GEN |
1 | ||
| 27359-61190 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15022 |
3F..FJ80..GCC,GEN |
1 | ||
| 27362-72080 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27362-72070 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F#..FJ80 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F#..FJ80 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27410-41080 |
3F..FJ80..GCC,GEN |
1 | ||
| 27410-72070 |
3F..FJ80..GX,VX W(DUAL AIR CONDITIONER) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
3F..FJ80..GCC,GEN |
1 | ||
| 27411-61190 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27411-61210 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-15150 |
3F..FJ80 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ80 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34111 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27441-45050 |
3F..FJ80..VX..GCC W(DUAL AIR CONDITIONER) |
1 | ||
| 27441-34030 |
3F..FJ80..GCC,GEN |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F..FJ80..(GX,VX)..(GCC,GEN) 12V80A |
1 | ||
| 27700-15020 |
3F..FJ80..GCC,GEN |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45110 | ||||
| 27387-61061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9001-9208)3F#
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ80 12V 65A |
1 | ||
| 27020-61034 |
3F..FJ80..GCC,GEN 12V 50A |
1 | ||
| 27060-61090 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
3F#..FJ80..GX,VX |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72070 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27310-26101 |
3F..FJ80..GCC,GEN |
1 | ||
| 27310-38061 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 90099-10110 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 90099-10125 |
3F..FJ80..GCC,GEN |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-45010 |
3F#..FJ80..(GX,VX)..(ARL,GCC) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ80..GCC,GEN |
1 | ||
| 27330-72070 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F#..FJ80 |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
3F#..FJ80..GX,VX |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F#..FJ80 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F#..FJ80 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27359-61034 |
3F..FJ80..GCC,GEN |
1 | ||
| 27359-24100 |
3F..FJ80..GCC,GEN |
1 | ||
| 27359-61190 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15022 |
3F..FJ80..GCC,GEN |
1 | ||
| 27362-72080 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27362-72070 |
3F..FJ80..GX,VX 12V 80A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F#..FJ80 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F#..FJ80 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27410-41080 |
3F..FJ80..GCC,GEN |
1 | ||
| 27410-72070 |
3F..FJ80..GX,VX W(DUAL AIR CONDITIONER) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
3F..FJ80..GCC,GEN |
1 | ||
| 27411-61190 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27411-61210 |
3F..FJ80..VX..GCC 12V 80A |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ80 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34111 |
3F..FJ80..GCC,GEN 12V 65A |
1 | ||
| 27441-45050 |
3F..FJ80..VX..GCC W(DUAL AIR CONDITIONER) |
1 | ||
| 27441-34030 |
3F..FJ80..GCC,GEN |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F..FJ80..(GX,VX)..(GCC,GEN) 12V80A |
1 | ||
| 27700-15020 |
3F..FJ80..GCC,GEN |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00862 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||
| Linked diagrams | ||||
| 1603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
