FJ80L-GCKRS (1990)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-20010 | ||||
| 88569-20130 | ||||
| 88569-30270 | ||||
| 88569-30660 | ||||
| 88569-60050 | ||||
| 88569-60070 | ||||
| 88688-60320 | ||||
| 88688-60440 | ||||
| 90091-00585 | ||||
| 90091-08585 | ||||
| 90099-04106 | ||||
| 90099-04107 | ||||
| 90099-04109 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 93319-15008 | ||||

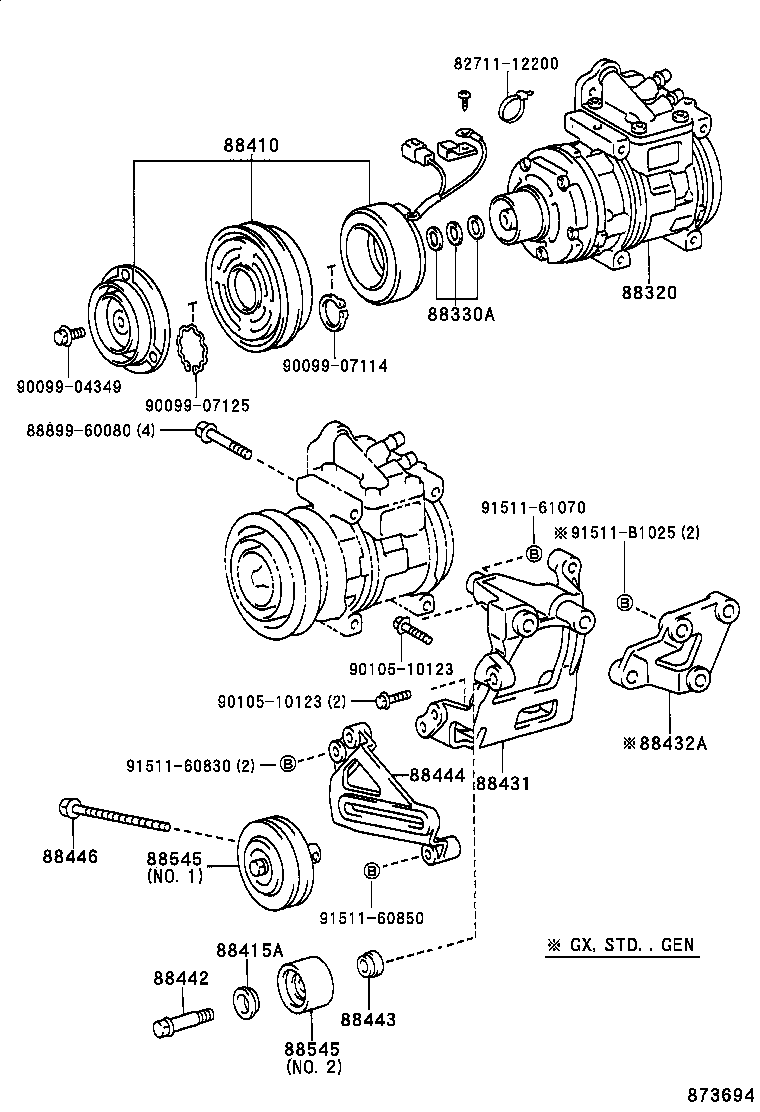

ILLUST NO. 1 OF 2(9001-9208)FJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60370 |
FJ80..ARL,GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-60190 |
FJ80 |
1 | ||
| 88415A - COVER, DUST | ||||
| 88415-36050 |
FJ80..GX,VX;FJ80..STD..(GCC,GEN) |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60130 |
FJ80..(ARL,GEN)..CBR |
1 | ||
| 88431-60131 |
FJ80..GEN |
1 | ||
| 88432A - ATTACHMENT, COMPRESSOR | ||||
| 88437-60270 |
FJ80..(GX,STD)..GEN |
1 | ||
| 88442 - SHAFT, IDLE PULLEY | ||||
| 88442-36010 |
FJ80..GX,VX;FJ80..STD..(GCC,GEN) |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
FJ80..GX,VX;FJ80..STD..(GCC,GEN) |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60030 |
HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,HDJ80..GX,VX;FJ80..STD..(GCC,GEN) |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-12160 |
FJ80..GX,VX;FJ80..STD..(GCC,GEN) NO.1 |
1 | ||
| 88440-36100 |
FJ80..GX,VX;FJ80..STD..(GCC,GEN) NO.2 |
1 | ||
| 88440-36100 |
FJ80..(GX,VX)..CBR;FJ80..STD..(GCC,GEN) |
1 | ||
| 88440-12160 |
FJ80..(GX,STD)..(ARL,GEN) |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-12160 |
FJ80..GX,VX;FJ80..STD..(GCC,GEN) NO.1 |
1 | ||
| 88440-36100 |
FJ80..GX,VX;FJ80..STD..(GCC,GEN) NO.2 |
1 | ||
| 88440-36100 |
FJ80..(GX,VX)..CBR;FJ80..STD..(GCC,GEN) |
1 | ||
| 88440-12160 |
FJ80..(GX,STD)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88899-60080 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-10123 | ||||
| 91511-60830 | ||||
| 91511-60850 | ||||
| 91511-61070 | ||||
| 91511-B1025 | ||||

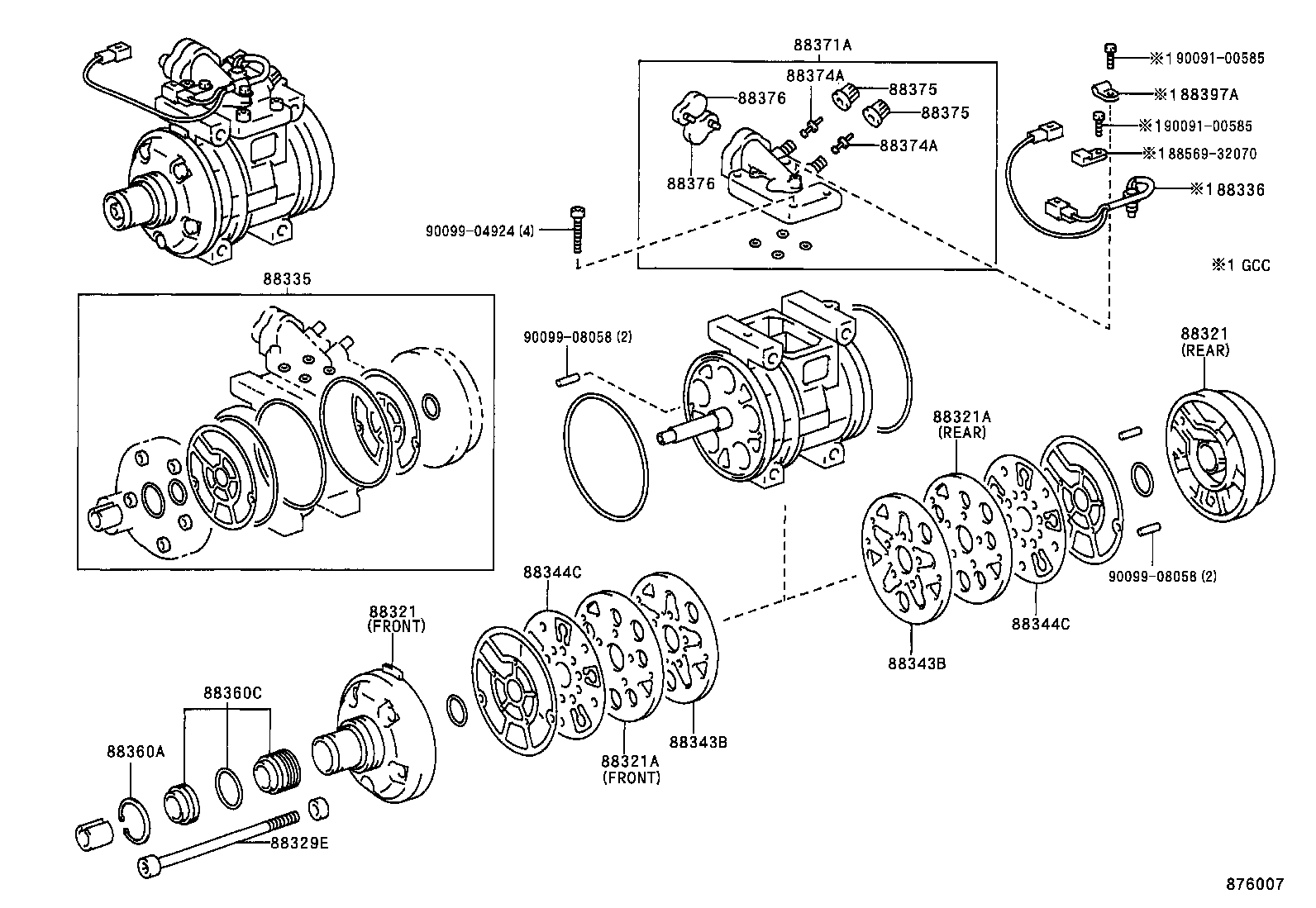

ILLUST NO. 2 OF 2(9001- )FJ80,FZJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
HZJ80;FJ80,HDJ80..ARL,GEN REAR |
1 | ||
| 88321-14021 |
HZJ80;FJ80,HDJ80..ARL,GEN FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
HZJ80;FJ80,HDJ80..ARL,GEN REAR |
1 | ||
| 88321-14021 |
HZJ80;FJ80,HDJ80..ARL,GEN FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14021 |
HZJ80..GCC;FJ80..ARL,GEN FRONT |
1 | ||
| 88342-14021 |
HZJ80..GCC;FJ80..ARL,GEN REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14021 |
HZJ80..GCC;FJ80..ARL,GEN FRONT |
1 | ||
| 88342-14021 |
HZJ80..GCC;FJ80..ARL,GEN REAR |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04958 |
HZJ80..GCC;FJ80..ARL,GEN |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
HZJ80;FJ80,HDJ80..ARL,GEN |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
HZJ80;FJ80,HDJ80..ARL,GEN |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
HZJ80;FJ80,HDJ80..ARL,GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14021 |
HZJ80..GCC;FJ80..ARL,GEN |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14021 |
HZJ80..GCC;FJ80..ARL,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
FZJ80..GCC;FJ80,HDJ80,HZJ80 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
FZJ80..GCC;FJ80,HDJ80,HZJ80 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-26151 |
FJ80..ARL,GEN |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
FJ80,HDJ80,HZJ80 DISCHARGE |
1 | ||
| 88375-30270 |
FJ80,HDJ80,HZJ80 SUCTION |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
FJ80,HDJ80,HZJ80 DISCHARGE |
1 | ||
| 88375-30270 |
FJ80,HDJ80,HZJ80 SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ80,HDJ80;HZJ80..ARL,GEN SUCTION |
1 | ||
| 88376-22020 |
FJ80,HDJ80,HZJ80 DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ80,HDJ80;HZJ80..ARL,GEN SUCTION |
1 | ||
| 88376-22020 |
FJ80,HDJ80,HZJ80 DISCHARGE |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
