FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00

Click highlighted areas on diagram

MAKER OPTION

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 88479 8868890K01 8868890K01 8868890K04 8868890K06 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871860510 8871860520 8871890K04 8871890K27 88723B 88891A 8889560010 8889560010 9009120618 9009901520 9009932128 9011906100 9011906100 9011906336 9011906336 9011906429 9017906032 9017906274 91611B0835 9165140616 9165140616 9165140616 91651F0610 91651F0616
Part # Description Qty Price
Common parts
88467-14050
88467-22060
88688-90K01
88688-90K04
88688-90K06
88718-60510
88718-60520
88718-90K04
88718-90K27
88895-60010
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91611-B0835
91651-40616
91651-F0610
91651-F0616

ILLUST NO. 1 OF 4(9001- )GX,STD

Click highlighted areas on diagram

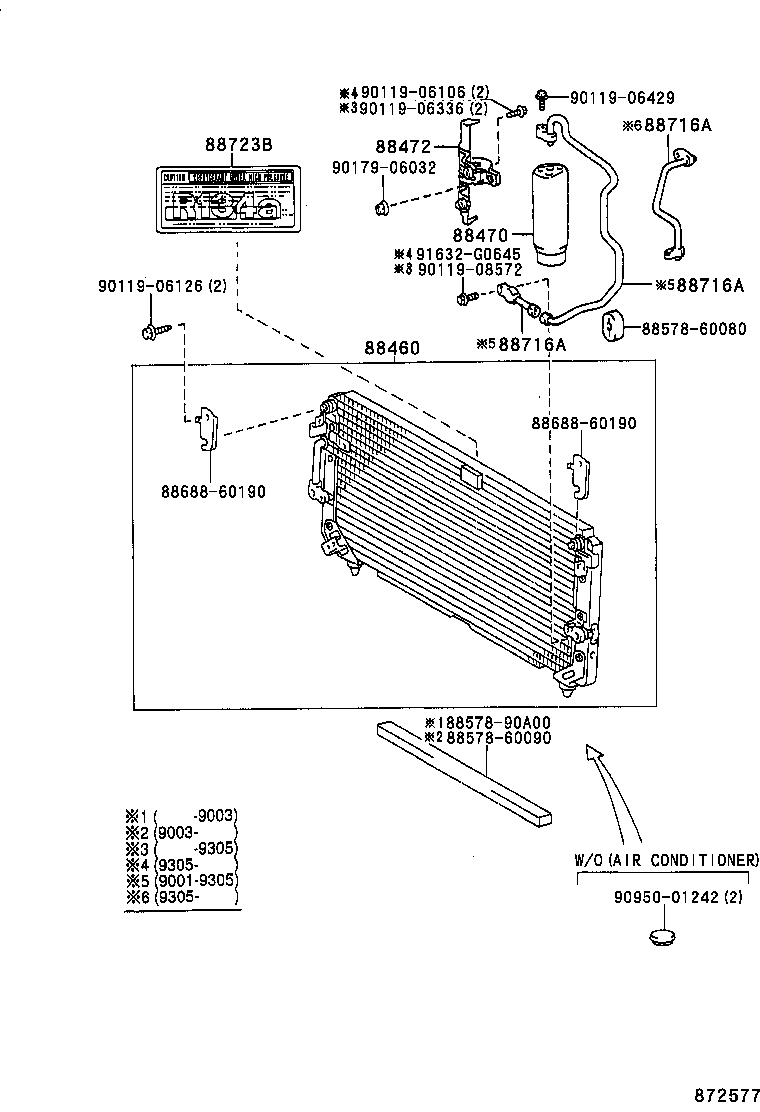

CONDENSOR---SINGLE(MAKER OPT)

diagram 88460 88470 88472 8857860080 8857860090 8857890A00 8868860190 8868860190 88716A 88716A 88716A 88723B 9011906106 9011906126 9011906336 9011906429 9011908572 9017906032 9095001242 91632G0645
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60060

FZJ80..GEN;HDJ80,HZJ80;FJ80..STD,VX;FJ80..GX..(ARL,GEN);FZJ80..(STD,VX)..GCC

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

HZJ80..STD;FJ80..STD..GEN;FJ80..(STD,VX)..(ARL,GCC)..CBR

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60060

FJ80,FZJ80..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)..(GCC,GEN)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290

HDJ80..VX;FJ80,HZJ80..GCC,GEN;FJ80,HZJ80..STD..ARL

RECEIVER SIDE

 1
88716-60730

FJ80,FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2)

CONDENSER SIDE

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290

HDJ80..VX;FJ80,HZJ80..GCC,GEN;FJ80,HZJ80..STD..ARL

RECEIVER SIDE

 1
88716-60730

FJ80,FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2)

CONDENSER SIDE

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290

HDJ80..VX;FJ80,HZJ80..GCC,GEN;FJ80,HZJ80..STD..ARL

RECEIVER SIDE

 1
88716-60730

FJ80,FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2)

CONDENSER SIDE

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-30030

FZJ80..STD..GEN;FJ80..LHD..4F..STD;FJ80..RHD..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)..(GCC,GEN)

 1
Common parts
88578-60080
88578-60090
88578-90A00
88688-60190
90119-06106
90119-06126
90119-06336
90119-06429
90119-08572
90179-06032
90950-01242
91632-G0645

ILLUST NO. 2 OF 4(9001-9201)FJ80..LHD

Click highlighted areas on diagram

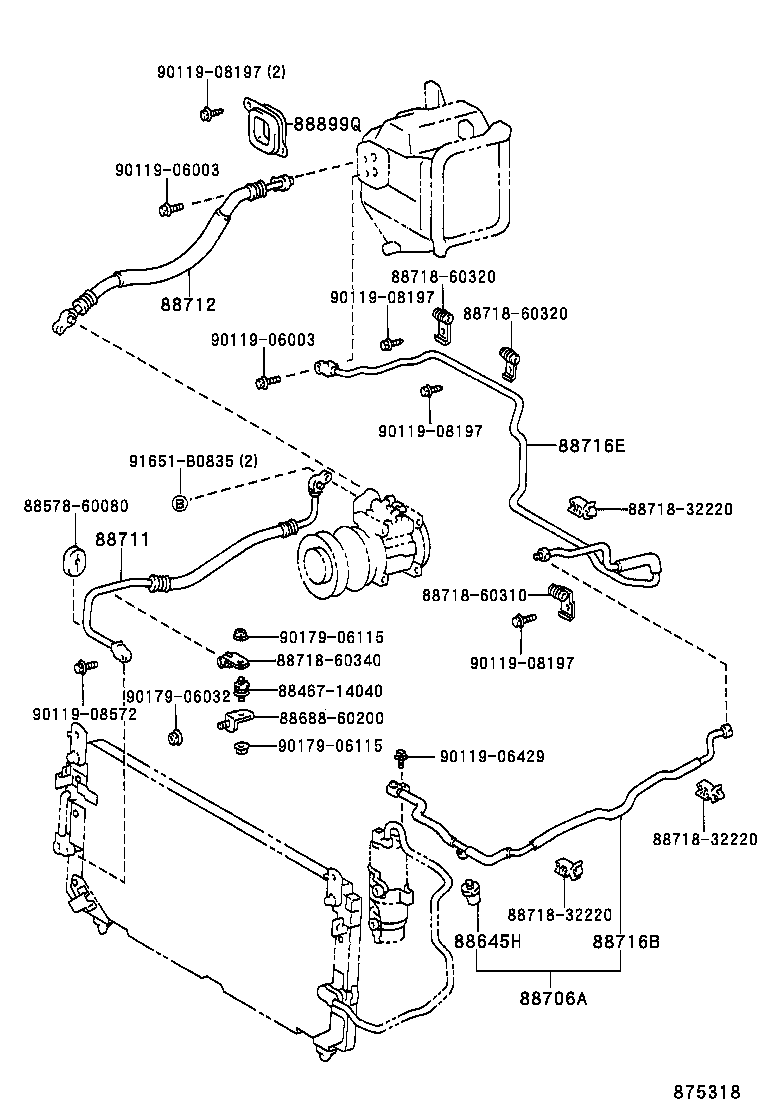

FRONT PIPING---SINGLE

diagram 8846714040 8857860080 88645H 8868860200 88706A 88711 88712 88716B 88716E 8871832220 8871832220 8871832220 8871860310 8871860320 8871860320 8871860340 88899Q 9011906003 9011906003 9011906429 9011908197 9011908197 9011908197 9011908197 9011908572 9017906032 9017906115 9017906115 91651B0835
Part # Description Qty Price
88645H - SWITCH, PRESSURE NO.1
88645-60020

FJ80..GX,VX;HDJ80..VX..ARL;HZJ80..RHD..GEN;FJ80..STD..(GCC,GEN)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60120

FJ80..(ARL,GEN)..CBR

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60160

FJ80..(STD,VX)..GCC;FJ80..LHD..STD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60310

FJ80,FZJ80..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60020

FJ80,FZJ80..(STD,VX)..GCC;FJ80,FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)

 1
88899Q - PLATE, COVER
88899-60050

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
Common parts
88467-14040
88578-60080
88688-60200
88718-32220
88718-60310
88718-60320
88718-60340
90119-06003
90119-06429
90119-08197
90119-08572
90179-06032
90179-06115
91651-B0835

ILLUST NO. 2 OF 4(9001-9201)FJ80..LHD

Click highlighted areas on diagram

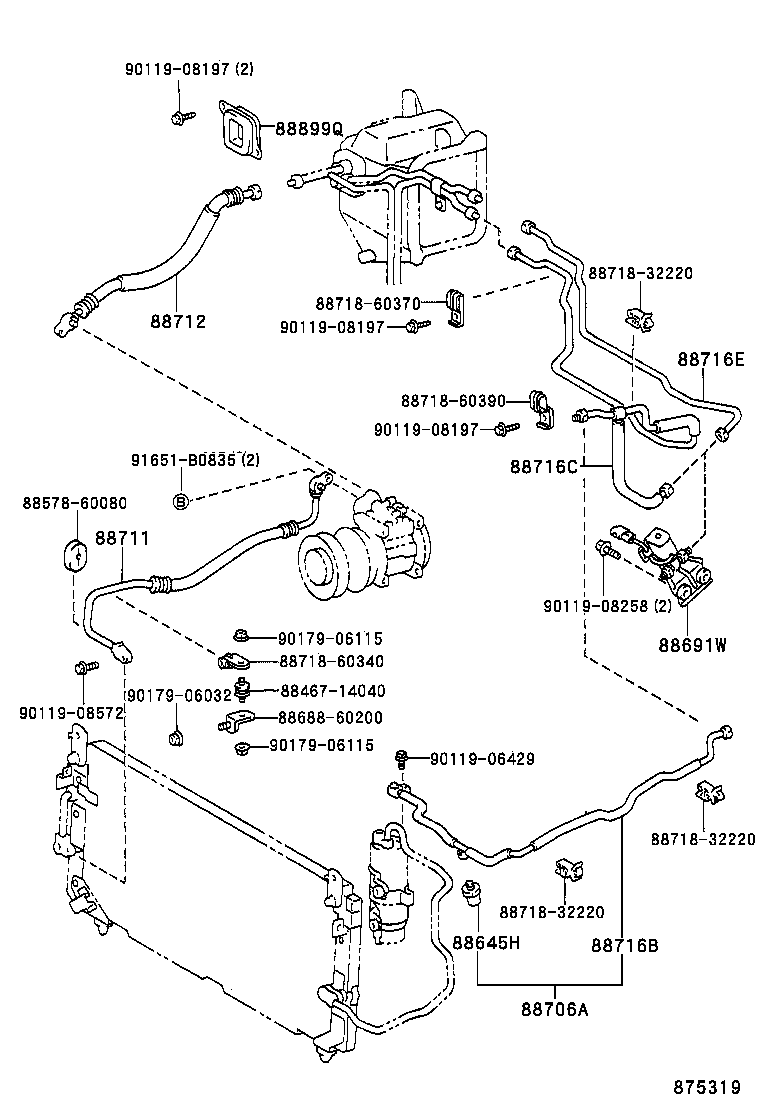

FRONT PIPING---DUAL

diagram 8846714040 8857860080 88645H 8868860200 88691W 88706A 88711 88712 88716B 88716C 88716E 8871832220 8871832220 8871832220 8871860340 8871860370 8871860390 88899Q 9011906429 9011908197 9011908197 9011908197 9011908258 9011908572 9017906032 9017906115 9017906115 91651B0835
Part # Description Qty Price
88645H - SWITCH, PRESSURE NO.1
88645-60020

FJ80..GX,VX;HDJ80..VX..ARL;HZJ80..RHD..GEN;FJ80..STD..(GCC,GEN)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60120

FJ80..(ARL,GEN)..CBR

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60160

FJ80..(STD,VX)..GCC;FJ80..LHD..STD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60310

FJ80,FZJ80..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60020

FJ80,FZJ80..(STD,VX)..GCC;FJ80,FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)

 1
88899Q - PLATE, COVER
88899-60050

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
Common parts
88467-14040
88578-60080
88688-60200
88718-32220
88718-60340
88718-60370
88718-60390
90119-06429
90119-08197
90119-08258
90119-08572
90179-06032
90179-06115
91651-B0835
