FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )FJ80 ; (9001- )FZJ80..5F ; (9001-)FZJ80..4FC..GX,VX

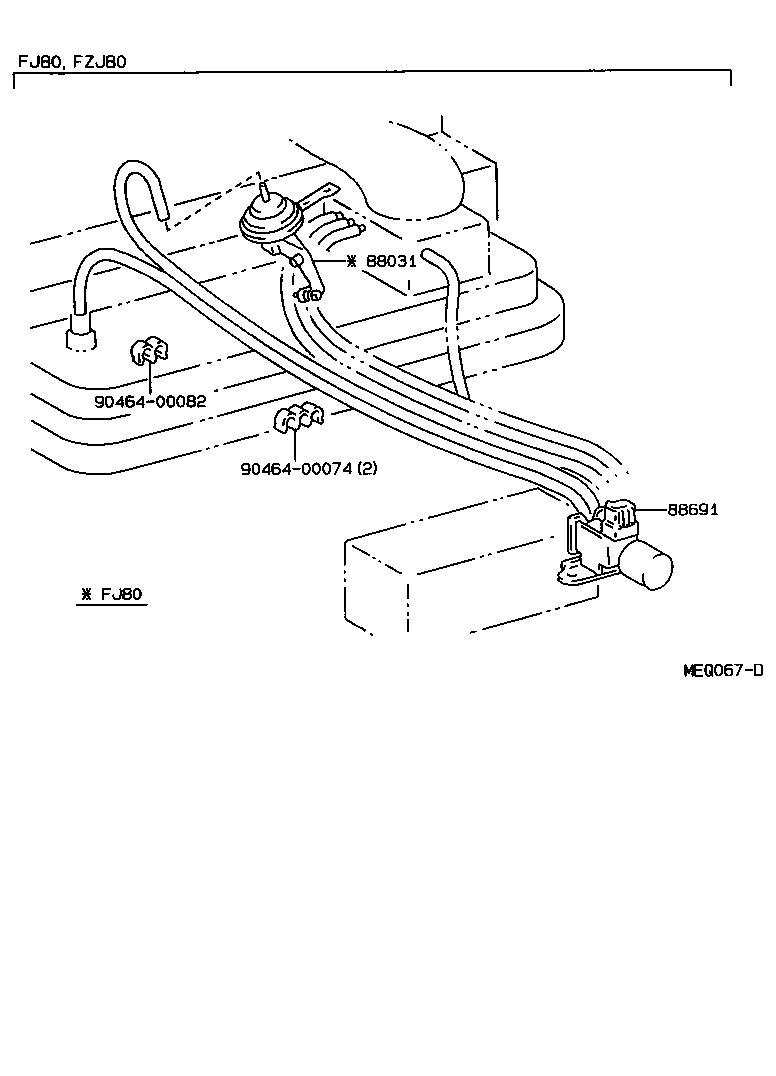

Click highlighted areas on diagram

diagram 88031 88691 9046400074 9046400082
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-60020

FJ80..CBR

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-60030

FJ80..CBR

 1
Common parts
90464-00074
90464-00082
