8716 - HEATING & AIR CONDITIONING - WATER PIPING

FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992

Engine 3F

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9001-9208)FJ80

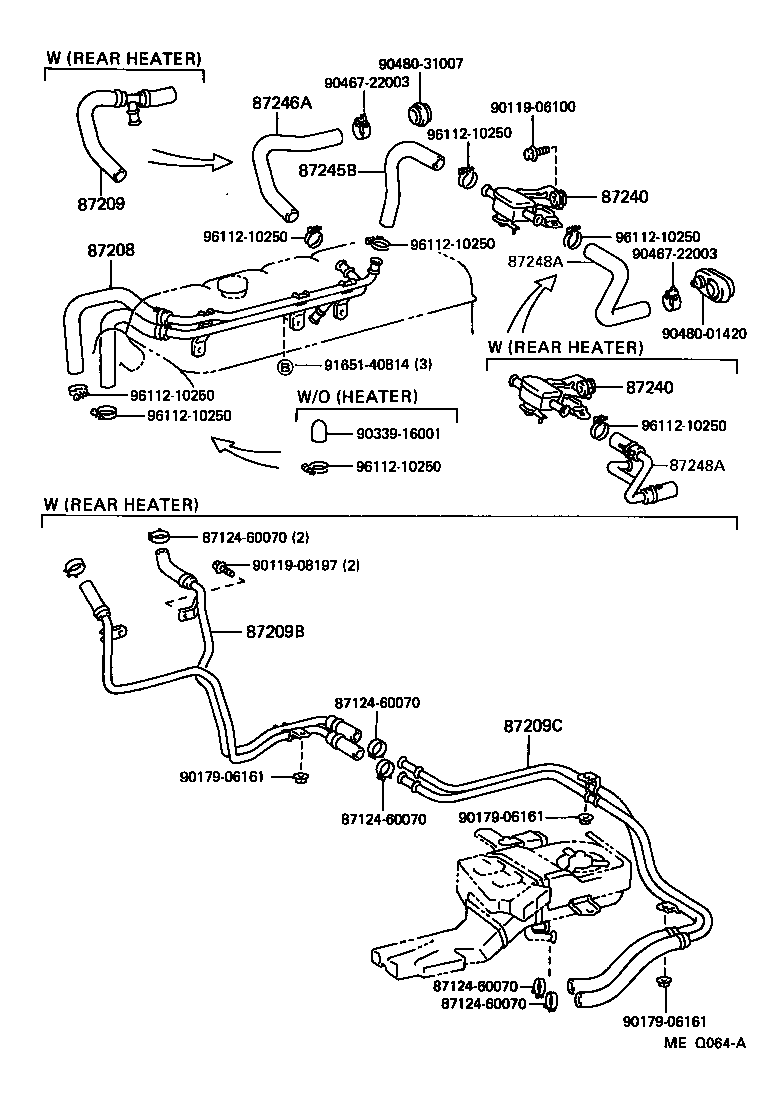

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87208 - PIPE SUB-ASSY, HEATER WATER
87209-60130	FJ80	01/1990 - 08/1992	1
87209 - HOSE SUB-ASSY, WATER
87209-60160	FJ80..ARL,GEN	01/1990 - 08/1992	1
87209B - HOSE SUB-ASSY, WATER, B
87209-60260	FJ80,HDJ80,HZJ80..ARL,GEN	01/1990 - 01/1992	1
87209C - HOSE SUB-ASSY, WATER, C
87209-60270	FJ80,HDJ80,HZJ80..ARL,GEN	01/1990 - 01/1992	1
87240 - VALVE ASSY, HEATER WATER
87240-60070	FJ80..LHD	01/1990 - 01/1992	1
87240 - VALVE ASSY, HEATER WATER
87240-60070	FJ80..LHD	01/1990 - 01/1992	1
87245B - HOSE, HEATER WATER, INLET B
87245-60100	FJ80	01/1990 - 08/1992	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60130	FJ80	01/1990 - 08/1992	1
87248A - PIPE, HEATER WATER INLET, A
87209-60590	FJ80 W(REAR HEATER)	01/1990 - 08/1992	1
87245-60890	FJ80	01/1990 - 01/1992	1
87248A - PIPE, HEATER WATER INLET, A
87209-60590	FJ80 W(REAR HEATER)	01/1990 - 08/1992	1
87245-60890	FJ80	01/1990 - 01/1992	1
Common parts
87124-60070
90119-06100
90119-08197
90179-06161
90339-16001
90467-22003
90480-01420
90480-31007
91651-40814
96112-10250
