FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

FRONT(MAKER OPTION)

diagram 8271122270 8712860050 8712860060 88501 88510 88515 88539 88605 88605 88625 88630 88645G 88645G 88650 8868860430 88688A 88716F 9009914122 9011906373 9015960198 9017906274 9161160812 9165140616
Part # Description Qty Price
Common parts
82711-22270
87128-60050
87128-60060
88688-60430
90099-14122
90119-06373
90159-60198
90179-06274
91611-60812
91651-40616

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

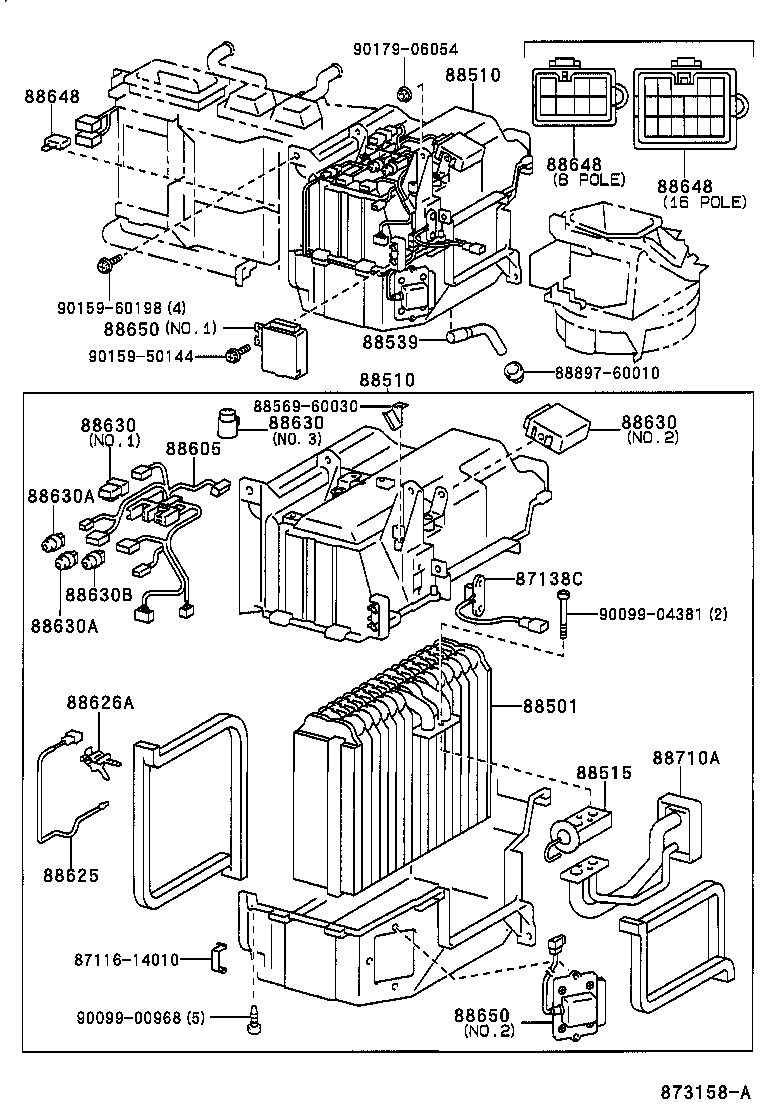

ILLUST NO. 1 OF 3(9001- )LHD

Click highlighted areas on diagram

FRONT---MAKER OPT

diagram 8711614010 87138C 88501 88510 88510 88515 88539 8856960030 88605 88625 88626A 88630 88630 88630 88630A 88630A 88630B 88648 88648 88648 88650 88650 88710A 8889760010 9009900968 9009904381 9015950144 9015960198 9017906054
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-60220

FJ80..STD..GEN;FJ80..(GX,STD)..GCC;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60030

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
88510 - UNIT ASSY, COOLER
88510-60360

FJ80..LHD..(GX,STD)..GEN

COLD SPEC & SINGLE AIR CONDITIONER OR W(HEATER) & SINGLE AIR CONDITIONER

 1
88510-60380

FJ80..STD..GCC;FZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HZJ80..LHD..(GX,STD)..GEN

SINGLE AIR CONDITIONER

 1
88510 - UNIT ASSY, COOLER
88510-60360

FJ80..LHD..(GX,STD)..GEN

COLD SPEC & SINGLE AIR CONDITIONER OR W(HEATER) & SINGLE AIR CONDITIONER

 1
88510-60380

FJ80..STD..GCC;FZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HZJ80..LHD..(GX,STD)..GEN

SINGLE AIR CONDITIONER

 1
88515 - VALVE, COOLER EXPANSION
88515-14062

FJ80,FZJ80..STD..GEN

SINGLE AIR CONDITIONER

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-60060

FJ80..GCC,GEN;FJ80..GX..EFI;HZJ80..RHD..GEN;HDJ80,HZJ80..(GX,VX)..(ARL,GCC)

 1
88539-60060

FJ80..GCC,GEN;FJ80..GX..EFI;HZJ80..RHD..GEN;HDJ80,HZJ80..LUB..ARL

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60490

FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN

SINGLE AIR CONDITIONER

 1
88605-60480

FJ80..(GX,STD)..GEN

COLD SPEC & SINGLE AIR CONDITIONER OR W(HEATER) & SINGLE AIR CONDITIONER

 1
88625 - THERMISTOR, COOLER, NO.1
88626-60010

HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,HDJ80..GX,VX;FJ80..STD..(GCC,GEN)

 1
88626A - HOLDER, THERMISTOR
88626-28010

FJ80,FZJ80,HDJ80,HZJ80

 1
88630B - RELAY ASSY, COOLER
90987-03001

FJ80,HDJ80..GEN;FJ80..(GX,STD)..GCC;FZJ80,HZJ80..LHD..VX..GEN;FZJ80,HZJ80..(GX,STD)..(GCC,GEN);FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60050

FJ80..STD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60050

FJ80..STD

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-60230

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
Common parts
87116-14010
88569-60030
88897-60010
90099-00968
90099-04381
90159-50144
90159-60198
90179-06054
