FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

FRONT HEATER

diagram 87104 87105 87107 87126 87126 87126 87130 87138 87150 87201D 87248E 87249E 9011906373 9011906373 9017906115 9017906115
Part # Description Qty Price
Common parts
90119-06373
90179-06115

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 88910 9011906373 9017906115
Part # Description Qty Price
Common parts
90119-06373
90179-06115

ILLUST NO. 1 OF 2(9001- )GX,STD

Click highlighted areas on diagram

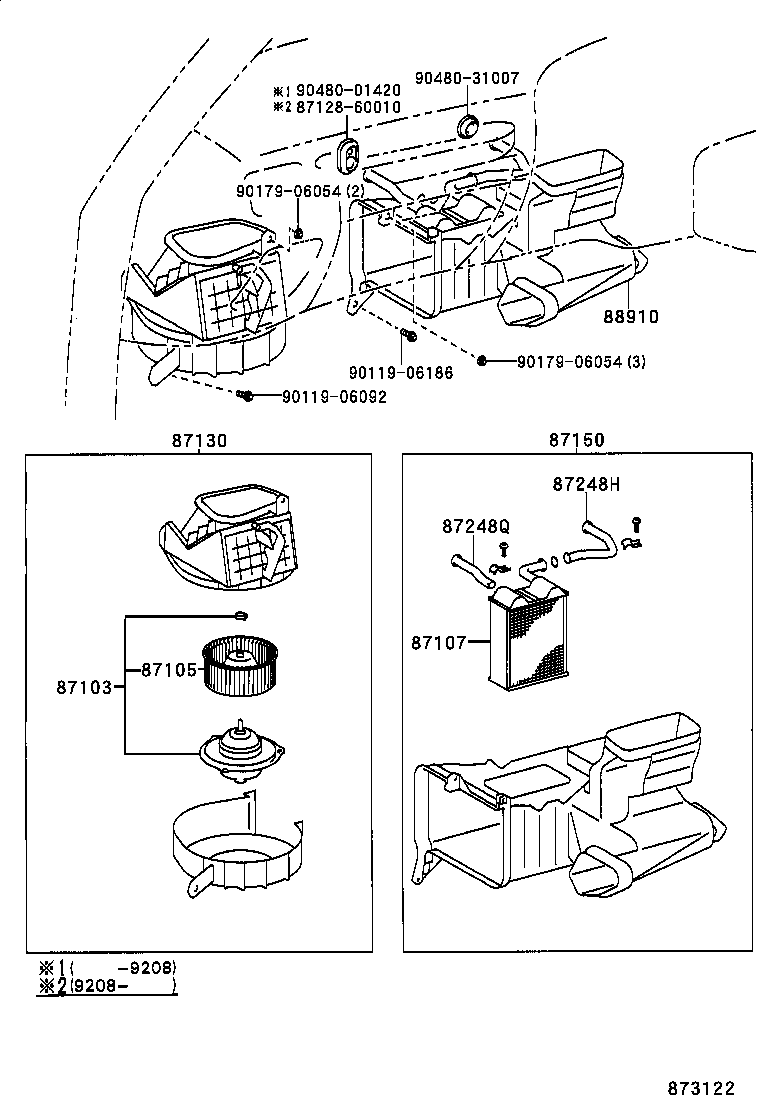

FRONT---W(HEATER)

diagram 87103 87105 87107 8712860010 87130 87150 87248H 87248Q 88910 9011906092 9011906186 9017906054 9017906054 9048001420 9048031007
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-26020

FJ80..(GX,STD)..GCC;FJ80,HDJ80..LHD..GEN;FZJ80,HZJ80..LHD..VX..GEN;FZJ80,HZJ80..LHD..(GX,STD)

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20110

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-60130

FJ80,HDJ80..LHD..VX;FZJ80,HZJ80..VX..GCC;FZJ80,HZJ80..LHD..GEN;FJ80..LHD..(GX,STD)..GEN

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-60230

FJ80,FZJ80,HZJ80..LHD..(GX,STD)

 1
87150 - RADIATOR ASSY, HEATER
87150-60170

FJ80,HZJ80..LHD..(GX,STD)..GEN

 1
87248H - PIPE, HEATER WATER INLET
87248-60420

FJ80,HDJ80,HZJ80..LHD

 1
88910 - VENTILATOR ASSY, BOOST
88910-60080

FJ80..STD..GCC;FZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HZJ80..LHD..(GX,STD)..GEN

 1
Common parts
87128-60010
90119-06092
90119-06186
90179-06054
90480-01420
90480-31007

ILLUST NO. 1 OF 2(9001-9201)STD..GCC ; (9001- )FJ80,FZJ80..GX,STD..GEN

Click highlighted areas on diagram

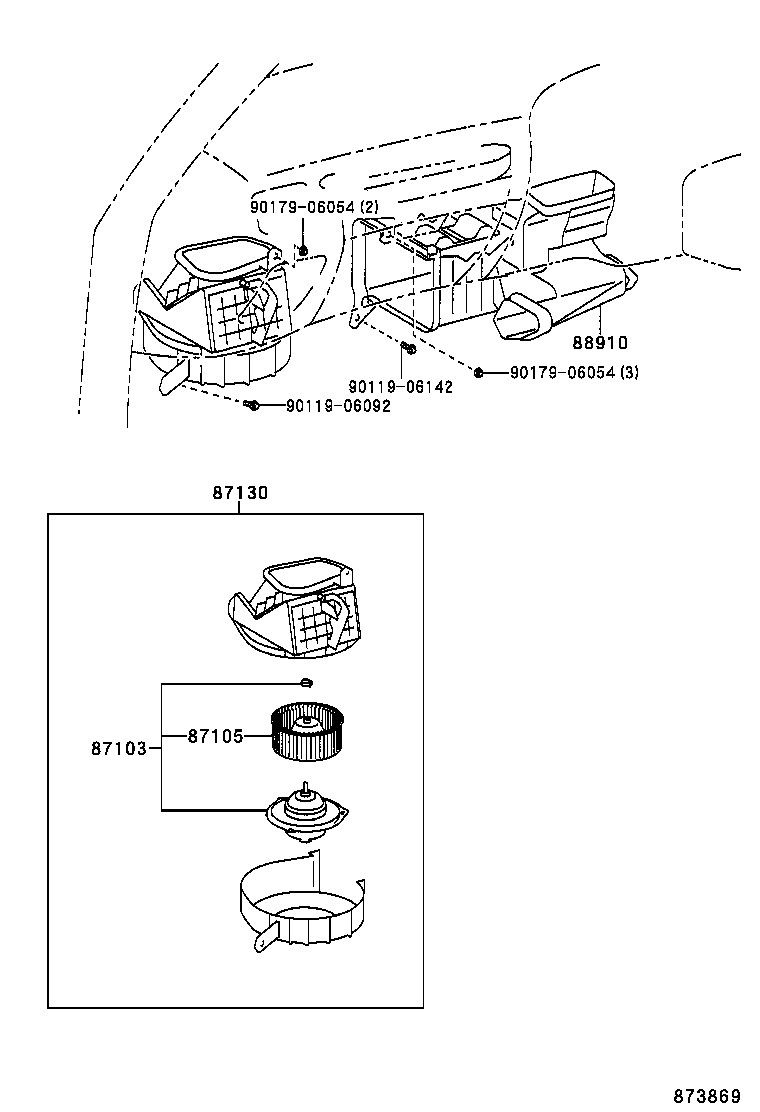

FRONT---W(BOOST VENTILATOR)

diagram 87103 87105 87130 88910 9011906092 9011906142 9017906054 9017906054
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-26020

FJ80..(GX,STD)..GCC;FJ80,HDJ80..LHD..GEN;FZJ80,HZJ80..LHD..VX..GEN;FZJ80,HZJ80..LHD..(GX,STD)

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20110

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-60230

FJ80,FZJ80,HZJ80..LHD..(GX,STD)

 1
88910 - VENTILATOR ASSY, BOOST
88910-60080

FJ80..STD..GCC;FZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HZJ80..LHD..(GX,STD)..GEN

 1
Common parts
90119-06092
90119-06142
90179-06054

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

REAR

diagram 87104R 87105R 87107R 87110 87138R 9011906092 9017906054
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-60250

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60160

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87110 - HEATER ASSY
87110-60110

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-90K02

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
Common parts
90119-06092
90179-06054
