FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

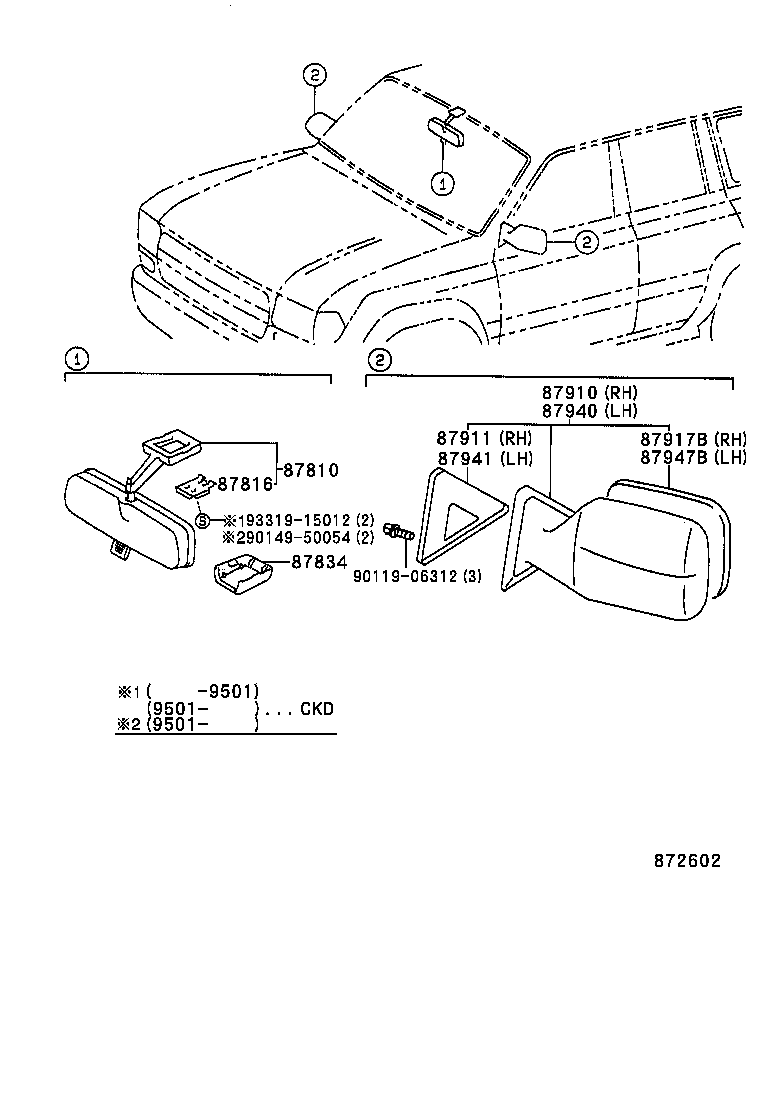

Click highlighted areas on diagram

diagram 87810 87816 87834 87910 87911 87917B 87940 87941 87947B 9011906312 9014950054 9331915012
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-6008006

FJ80..LHD..4F;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC,LIGHT SABLE,TRIM4#

 1
87810-6008003

FJ80..LHD..4F;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC,LIGHT GRAY,TRIM1#

 1
87810-6007003

FJ80,FZJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 1
87810-6007006

FJ80,FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

FJ80,FZJ80,HDJ80,HZJ80

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008059

FJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 1
87834-2008026

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-60250

FJ80,FZJ80,HZJ80..LHD..STD

 1
87910-60220

FJ80..LHD..4F;FZJ80..LHD..SOB..GEN;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-60250

FJ80,FZJ80,HZJ80..LHD..SOB..STD..GEN

PLATED MIRROR

 1
87917-60260

FJ80..LHD..4F;FZJ80..LHD..SOB..GEN;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-60160

FJ80..LHD..4F;FZJ80..LHD..SOB..GEN;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC

 1
87940-60190

FJ80,FZJ80,HZJ80..LHD..STD

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-60210

HZJ80..STD;HZJ80..LHD..GX;HZJ80..GX..ARL;FJ80,HDJ80..(GX,STD)..ARL;FJ80,FZJ80..LHD..(GX,STD);FJ80,FZJ80..RHD..STD..GEN

 1
87947-60200

FJ80..LHD..4F;FZJ80..LHD..SOB..GEN;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC

 1
Common parts
90119-06312
90149-50054
93319-15012
