FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

Click highlighted areas on diagram

diagram 85110R 85168R 85169R 85178R 85190R 85192R 85214R 85220R 85221R 85224E 85224F 9009900913 9111150616
Part # Description Qty Price
Common parts
90099-00913
91111-50616

(9001- )SOB

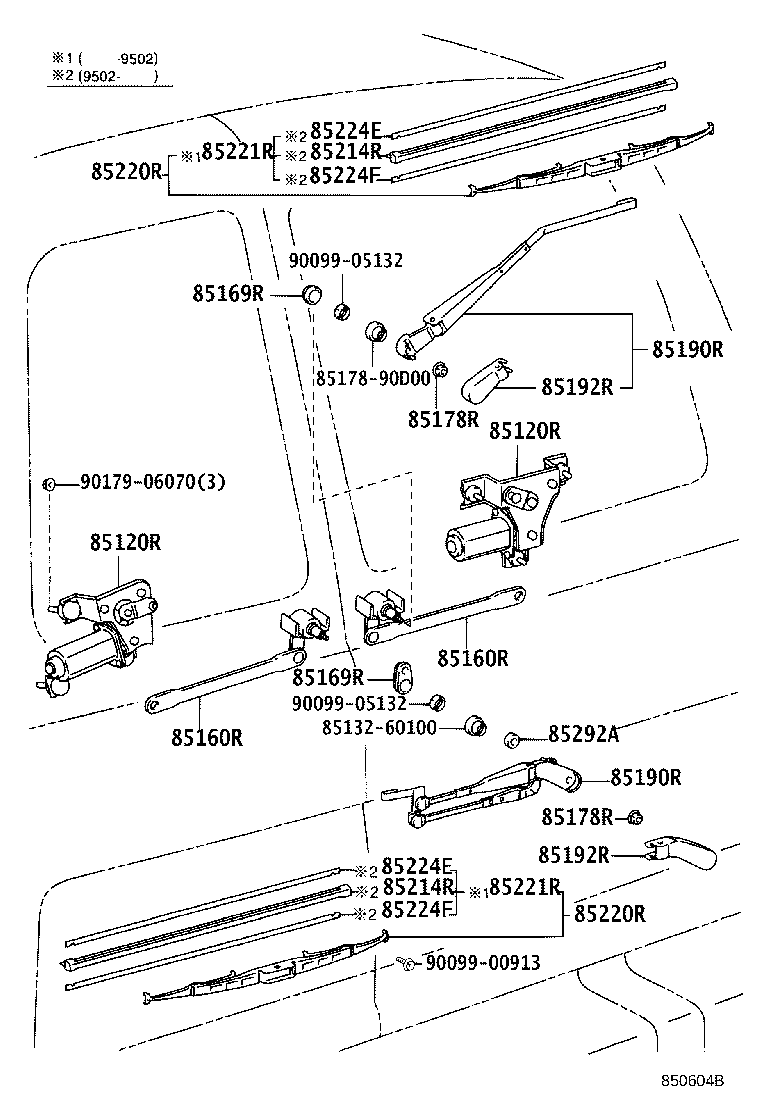

Click highlighted areas on diagram

diagram 85120R 85120R 8513260100 85160R 85160R 85169R 85169R 8517890D00 85178R 85178R 85190R 85190R 85192R 85192R 85214R 85214R 85220R 85220R 85221R 85221R 85224E 85224E 85224F 85224F 85292A 9009900913 9009905132 9009905132 9017906070
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-60140

FJ80,FZJ80,HZJ80..SOB

LH

 1
85080-60160

FJ80,FZJ80,HZJ80..SOB

RH

 1
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-60140

FJ80,FZJ80,HZJ80..SOB

LH

 1
85080-60160

FJ80,FZJ80,HZJ80..SOB

RH

 1
85160R - LINK ASSY, REAR WIPER
85170-60080

FJ80,FZJ80,HZJ80..SOB

RH

 1
85170-60060

FJ80,FZJ80,HZJ80..SOB

LH

 1
85160R - LINK ASSY, REAR WIPER
85170-60080

FJ80,FZJ80,HZJ80..SOB

RH

 1
85170-60060

FJ80,FZJ80,HZJ80..SOB

LH

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-90P80

FJ80,FZJ80,HZJ80..SOB

RH

 1
85134-60100

FJ80,FZJ80,HZJ80..SOB

LH

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-90P80

FJ80,FZJ80,HZJ80..SOB

RH

 1
85134-60100

FJ80,FZJ80,HZJ80..SOB

LH

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06070

FJ80,FZJ80,HZJ80..SOB

 2
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06070

FJ80,FZJ80,HZJ80..SOB

 2
85190R - ARM ASSY, REAR WIPER
85241-60020

FJ80,FZJ80,HZJ80..SOB

LH

 1
85241-60010

FJ80,FZJ80,HZJ80..SOB

RH

 1
85190R - ARM ASSY, REAR WIPER
85241-60020

FJ80,FZJ80,HZJ80..SOB

LH

 1
85241-60010

FJ80,FZJ80,HZJ80..SOB

RH

 1
85192R - COVER, REAR WIPER ARM
85192-28020

FJ80,FZJ80,HZJ80..SOB

LH

 1
85192-13060

FJ80,FZJ80,HZJ80..SOB

RH

 1
85192R - COVER, REAR WIPER ARM
85192-28020

FJ80,FZJ80,HZJ80..SOB

LH

 1
85192-13060

FJ80,FZJ80,HZJ80..SOB

RH

 1
85220R - BLADE ASSY, REAR WIPER
85242-60020

FJ80,FZJ80,HZJ80..SOB

LH

 1
85242-60010

FJ80,FZJ80,HZJ80..SOB

RH

 1
85220R - BLADE ASSY, REAR WIPER
85242-60020

FJ80,FZJ80,HZJ80..SOB

LH

 1
85242-60010

FJ80,FZJ80,HZJ80..SOB

RH

 1
85221R - BLADE, REAR WIPER
85221-13010

FJ80,FZJ80,HZJ80..SOB

LH

 1
85221-16070

FJ80,FZJ80,HZJ80..SOB

RH

 1
85221R - BLADE, REAR WIPER
85221-13010

FJ80,FZJ80,HZJ80..SOB

LH

 1
85221-16070

FJ80,FZJ80,HZJ80..SOB

RH

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-60010

FJ80,FZJ80,HZJ80..SOB

 1
Common parts
85132-60100
85178-90D00
90099-00913
90099-05132
90179-06070
