FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

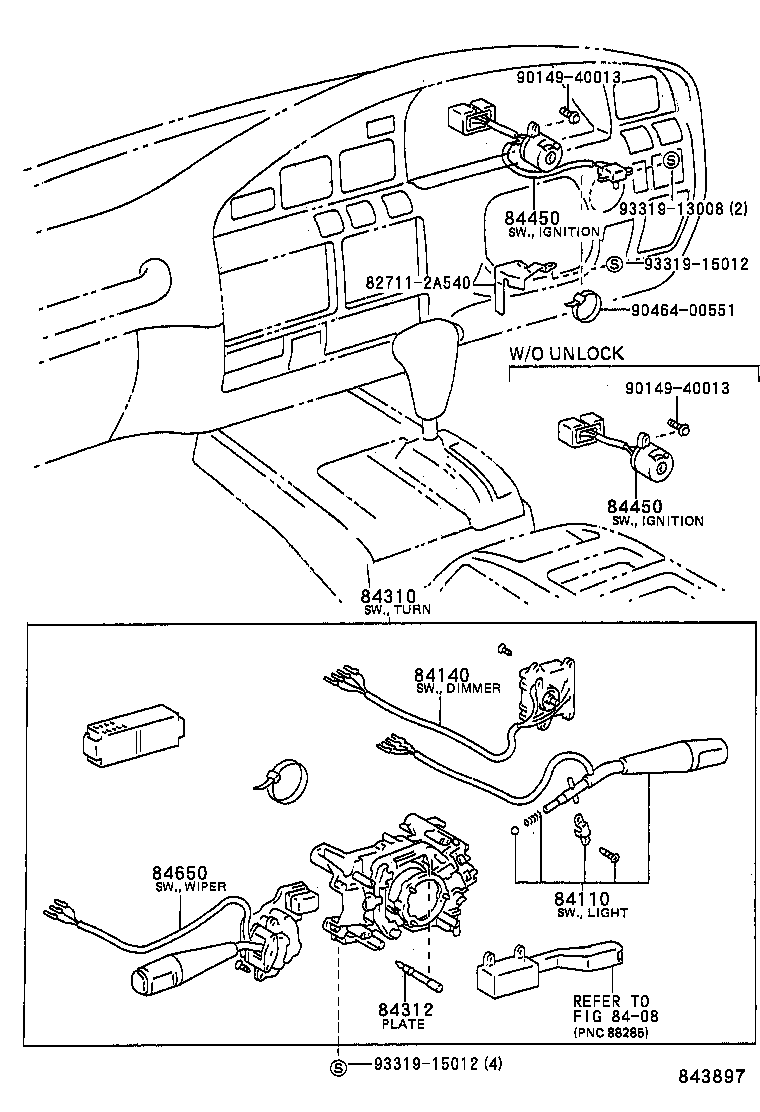

ILLUST NO. 5 OF 7(9001-0808)

Click highlighted areas on diagram

COMBINATION SWITCH

diagram 4501 8271114550 8271116110 84110 84110 84140 84140 84310 84310 84312 84312 84330 84330 84333 84333 84450 84650 84650 9046108549 9046112206 9046312570 9046312570 9046313003 9046315402 9046315402 9046400537 9046400551 9331514010 9331514010 9331913008 9331914012 9331915012 9331915012
Part # Description Qty Price
Common parts
82711-14550
82711-16110
90461-08549
90461-12206
90463-12570
90463-13003
90463-15402
90464-00537
90464-00551
93315-14010
93319-13008
93319-14012
93319-15012
Linked diagrams
4501

ILLUST NO. 4 OF 7(9001-0808)

Click highlighted areas on diagram

COWL RELAY

diagram 28371A 81980 82600F 82600G 82600M 82616 85910C 85916 85916 85916M 85917 85940A 85999E 86650C 86650C 86659A 91511B0614 9151260614 9165140616
Part # Description Qty Price
Common parts
91511-B0614
91512-60614
91651-40616

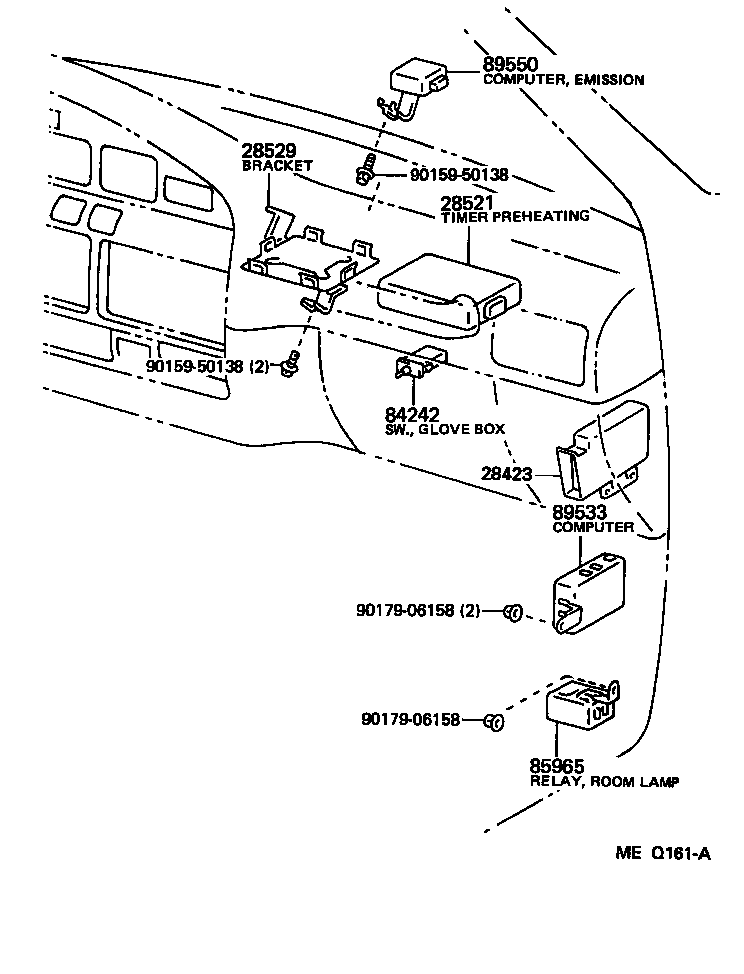

ILLUST NO. 4 OF 7(9001-0808)

Click highlighted areas on diagram

COWL RELAY

diagram 27790 28521 28521 28521 28529 28529 28529A 85910Y 85914A 85916L 85940 85991 85999A 85999D 85999E 85999H 86530 86690 89531A 89533A 89550 89551 89559A 89559B 89590 89668B 9151260614 9165140612 9165140612 9165140612 9165140616 9165140616 9165140616 9165140616 9165140616 9165160616 9165160616 9165260616 9331915010 9356055016 9356855014 9433215000
Part # Description Qty Price
Common parts
91512-60614
91651-40612
91651-40616
91651-60616
91652-60616
93319-15010
93560-55016
93568-55014
94332-15000

ILLUST NO. 3 OF 7(9001-0808)LHD

Click highlighted areas on diagram

INSTRUMENT PANEL SW

diagram 84152 84162 84162A 84162A 84162C 84162C 84560A 84560A 84560B 84560B 84653A 84660C 84660E 84722F 84722K 84725 84730 84731 84790 84790 84790B 84870A 85500 85500B 85520 88604G 88611C 88611C 88619C 9016450025 9017011206 9020611012
Part # Description Qty Price
Common parts
90164-50025
90170-11206
90206-11012

ILLUST NO. 6 OF 7(9001-0808)

Click highlighted areas on diagram

DOOR,FLOOR SW

diagram 83320 83361 83482 84222D 84222D 84233 84233 84233 84233 84234 84234 84235 84290 84340 84550 84732A 84810 84810 84810 84820 84930 84931B 85921 85930 85940B 85980 86650H 9011906390 9011906390 9011906390 9015940155 9015960081 9015960081 9018906043 9018906043 9043018008 9043018008 9046713030 9162140612 9162640818 9165140614 9165140614 9165160614 9331314012 9331514014 93319A4010 9354014012 9412041000
Part # Description Qty Price
Common parts
90119-06390
90159-40155
90159-60081
90189-06043
90430-18008
90467-13030
91621-40612
91626-40818
91651-40614
91651-60614
93313-14012
93315-14014
93319-A4010
93540-14012
94120-41000

ILLUST NO. 7 OF 7(9001-9908)

Click highlighted areas on diagram

AMBIENT SENSOR & COVER

diagram 8271112120 83481 83481 83481 83481 83481 89437 9016440074 9354024020
Part # Description Qty Price
Common parts
82711-12120
90164-40074
93540-24020

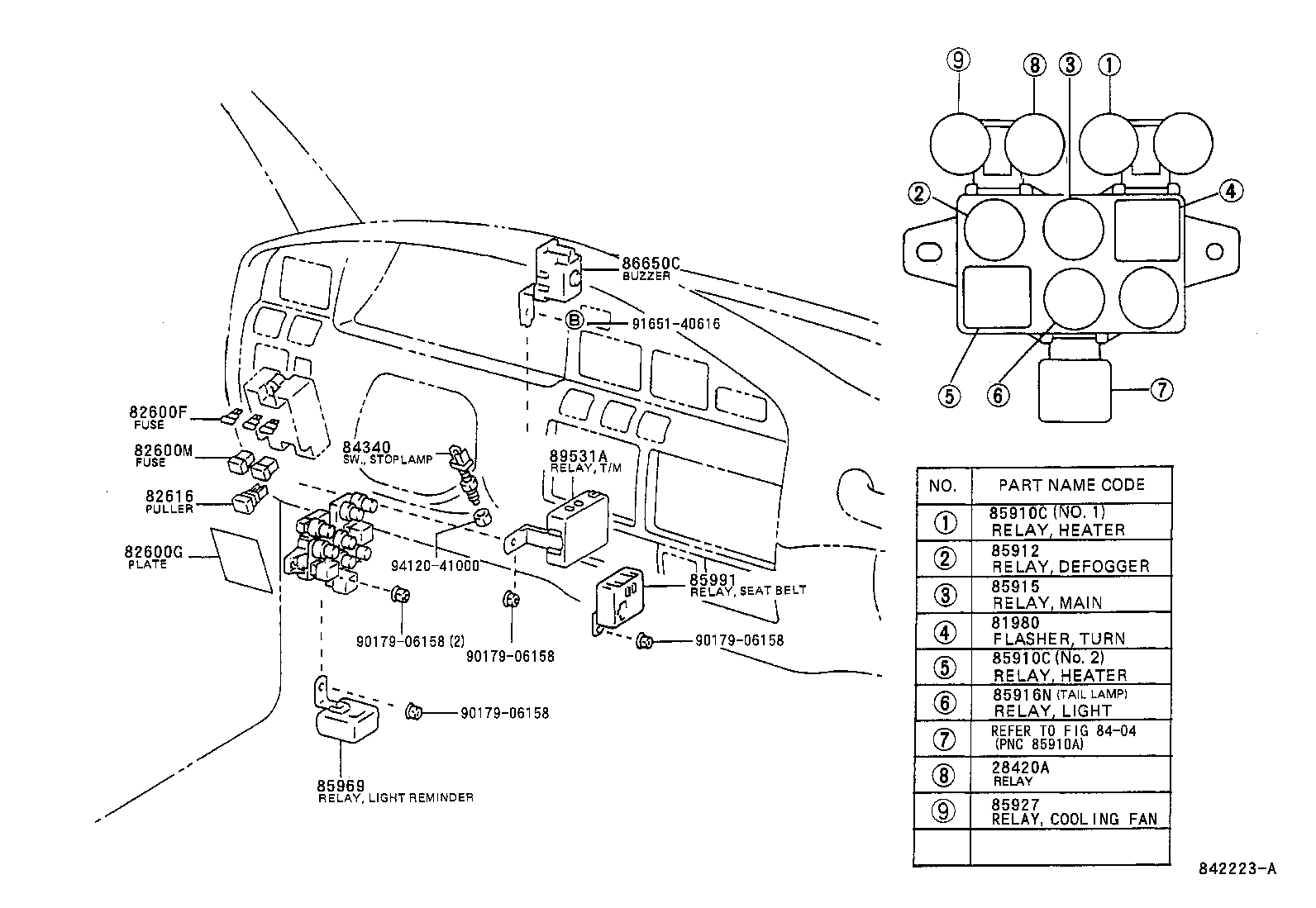

ILLUST NO. 4 OF 9(9001- )LHD

Click highlighted areas on diagram

LH COWL RELAY

diagram 28420A 81980 82600F 82600G 82600M 82616 8404 84340 85910C 85910C 85912 85915 85916N 85927 85969 85991 86650C 89531A 9017906158 9017906158 9017906158 9017906158 9165140616 9412041000
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070

FJ80,FZJ80,HDJ80,HZJ80

 1
82600F - FUSE, FUSE BLOCK
90982-09004

FJ80..VX;HDJ80,HZJ80;FJ80..4FC..GX..GCC;FJ80..(GX,STD)..(ARL,GEN)

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09003

FJ80..LHD;HZJ80..LHD..(GX,STD)

15A,COWL RELAY BLOCK

 7
90982-09002

FJ80,HDJ80,HZJ80

10A,COWL RELAY BLOCK

 3
90982-09004

FJ80..VX..CBR;HDJ80,HZJ80..LHD;FJ80..4FC..GX..GCC;FJ80..LHD..(GX,STD)..GEN

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09002

HDJ80..GEN;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2)

10A,COWL RELAY BLOCK

 3
90982-09002

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80

10A,E/G ROOM RELAY BLOCK

 1
90982-09004

FJ80..VX..CBR;HDJ80,HZJ80..LHD;FJ80..LHD..(GX,STD)..GEN;FJ80..4FC..GX..(ARL,GCC)

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09003

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

15A,E/G ROOM RELAY BLOCK

 3
90982-09005

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80

7.5A,E/G ROOM RELAY BLOCK

 1
90982-07011

FJ80,FZJ80,HDJ80,HZJ80

30A,GREEN,COWL RELAY BLOCK

 1
90982-09004

FJ80;FZJ80..GX,STD;FZJ80..VX..GEN

20A,YELLOW,E/G ROOM RELAY BLOCK

 1
90982-09005

FJ80,FZJ80,HDJ80,HZJ80

7.5A,COWL RELAY BLOCK

 3
82600G - PLATE, CAUTION(FOR FUSE)
82683-60010

FJ80,FZJ80,HDJ80,HZJ80

COWL PANEL SIDE

 1
82600M - FUSE, MEDIUM CURRENT
90982-10001

FJ80,FZJ80,HDJ80,HZJ80

30A,PINK

 2
82616 - PULLER, FUSE
82616-12010

FJ80,FZJ80,HDJ80,HZJ80

 1
84340 - SWITCH ASSY, STOP LAMP
84340-32050

FJ80,HDJ80,HZJ80

 1
84340-30030

FJ80,HDJ80,HZJ80

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

HDJ80,HZJ80;FJ80..ARL,GEN;FJ80..(GX,STD)..GCC

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

HDJ80,HZJ80;FJ80..ARL,GEN;FJ80..(GX,STD)..GCC

 1
85912 - RELAY, DEFOGGER
90987-02004

HZJ80..LUB;HZJ80..LHD..STD;FJ80,FZJ80,HDJ80;HZJ80..SOB..(ARL,GCC)

 1
85916N - RELAY, TAIL LAMP
90987-01003

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90179-06158
91651-40616
94120-41000
Linked diagrams
8404

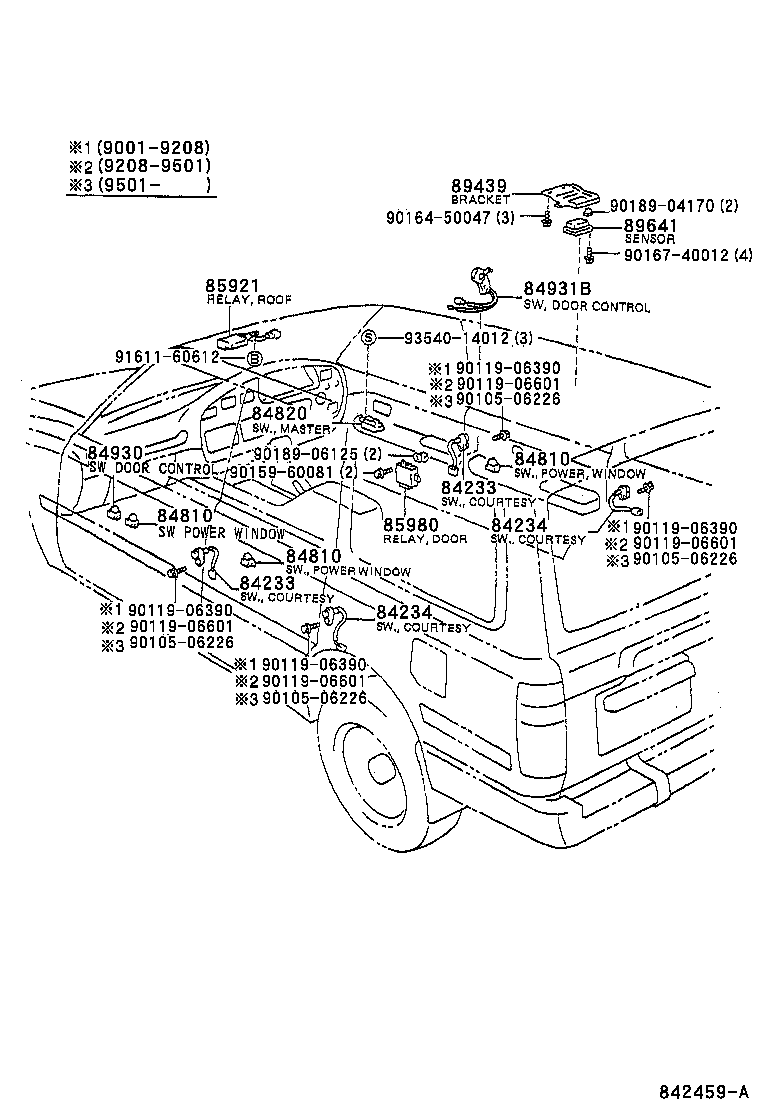

ILLUST NO. 7 OF 9(9001- )

Click highlighted areas on diagram

DOOR,ROOF SW.

diagram 84233 84233 84234 84234 84810 84810 84810 84820 84930 84931B 85921 85980 89439 89641 9010506226 9010506226 9010506226 9010506226 9011906390 9011906390 9011906390 9011906390 9011906601 9011906601 9011906601 9011906601 9015960081 9016450047 9016740012 9018904170 9018906125 9161160612 9354014012
Part # Description Qty Price
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-24010

FJ80,FZJ80,HDJ80,HZJ80

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-24010

FJ80,FZJ80,HDJ80,HZJ80

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-24010

FJ80,FZJ80,HDJ80,HZJ80

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-24010

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90105-06226
90119-06390
90119-06601
90159-60081
90164-50047
90167-40012
90189-04170
90189-06125
91611-60612
93540-14012

ILLUST NO. 5 OF 9(9001-9501)LHD ; (9711- )FZJ80..LHD

Click highlighted areas on diagram

INSTRUMENT PANEL SW.

diagram 84118 84119 84330 84330B 84560A 84560B 84560C 84660C 84660D 84660G 84660R 84724 84724B 84725 84725A 84725B 84730 84730R 84760 84760B 84760B 84790 84790B 84790E 84870A 84920 85500 85500B 85500F 85515 85520 9017009002
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-60190

FJ80,HDJ80,HZJ80

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320

FJ80,FZJ80,HDJ80,HZJ80

14V 0.84W

 1
84560A - SWITCH ASSY, FUEL CONTROL
84560-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
84560B - BULB, FUEL CONTROL SWITCH
84999-10320

FJ80,FZJ80,HDJ80,HZJ80

 1
84660C - SWITCH, COOLER
84660-60030

FJ80,FZJ80,HZJ80..STD..(GCC,GEN)

 1
84660D - BULB(FOR COOLER SWITCH)
88607-16010

FZJ80,HDJ80..GX,STD;FJ80,HZJ80..(GX,STD)..(GCC,GEN)

14V 0.065A

 1
84660G - BULB(FOR REAR COOLER SWITCH)
88607-16010

FJ80,FZJ80,HDJ80,HZJ80

14V 0.065A

 1
84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH
84999-10320

FJ80,FZJ80,HDJ80,HZJ80

 1
84725A - SWITCH, DIFFERENTIAL LOCK
84725-60020

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 1
84725B - BLUB, DIFFERENTIAL LOCK SWITCH
84999-10320

FJ80,FZJ80,HDJ80,HZJ80

14V 0.84W

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-60020

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
84730R - SWITCH ASSY, HEATER BLOWER
84730-60030

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
84790-60020

FJ80,FZJ80..GEN

W(TIMER)

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320

FJ80,FZJ80..GEN

14V 0.84W

 1
84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84998-10290

FJ80,FZJ80..GEN

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-30440

FJ80,FZJ80,HDJ80,HZJ80

 1
85500B - BULB, CIGARETTE LIGHTER
84999-10250

FJ80,FZJ80,HDJ80,HZJ80

14V 1.4W

 1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10550

FJ80,FZJ80,HDJ80,HZJ80

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-22010

FJ80,FZJ80,HDJ80,HZJ80

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-30190

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90170-09002

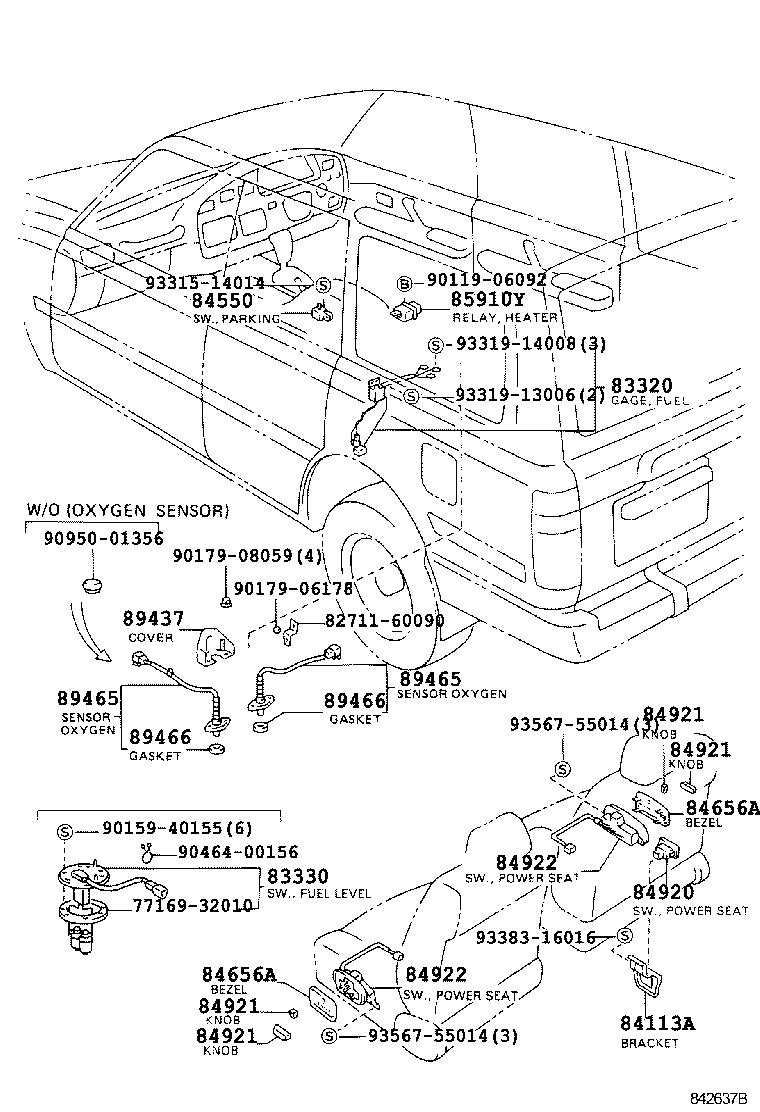

ILLUST NO. 8 OF 9(9001- )

Click highlighted areas on diagram

FLOOR SW.

diagram 7716932010 8271160090 83320 83330 84113A 84550 84656A 84656A 84920 84921 84921 84921 84921 84922 84922 85910Y 89437 89465 89465 89466 89466 9011906092 9015940155 9017906178 9017908059 9046400156 9095001356 9331514014 9331913006 9331914008 9338316016 9356755014 9356755014
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-69045

FJ80,FZJ80,HZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-12060

FJ80,FZJ80,HDJ80,HZJ80

 1
85910Y - RELAY, REAR HEATER
88630-14010

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
Common parts
77169-32010
82711-60090
90119-06092
90159-40155
90179-06178
90179-08059
90464-00156
90950-01356
93315-14014
93319-13006
93319-14008
93383-16016
93567-55014

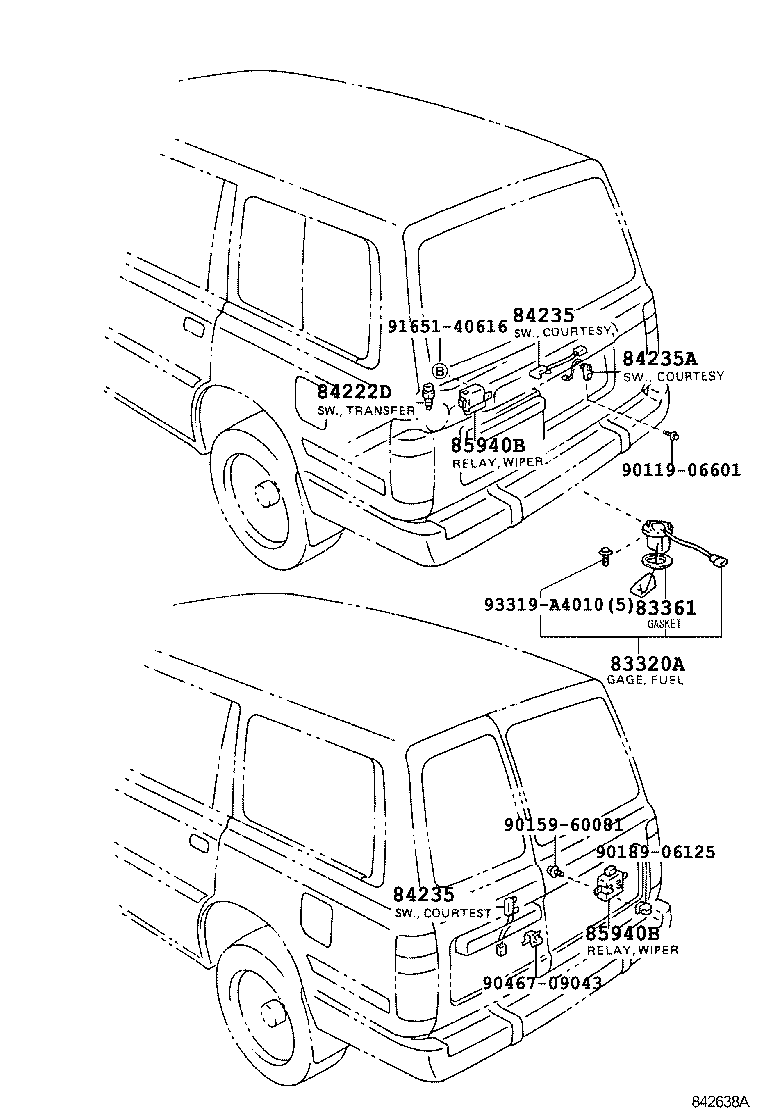

ILLUST NO. 9 OF 9(9001- )

Click highlighted areas on diagram

BACK DOOR SW.

diagram 83320A 83361 84222D 84235 84235 84235A 85940B 85940B 9011906601 9015960081 9018906125 9046709043 9165140616 93319A4010
Part # Description Qty Price
83320A - GAGE ASSY, FUEL SENDER (FOR FUEL SUB-TANK)
83320-69095

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-12010

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 2
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84535-22080

HZJ80..GX..GCC;FJ80,FZJ80..SOB;HZJ80..SOB..(STD,VX)

 1
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84535-22080

HZJ80..GX..GCC;FJ80,FZJ80..SOB;HZJ80..SOB..(STD,VX)

 1
85940B - RELAY ASSY, REAR WIPER
85940-60010

FJ80,FZJ80,HZJ80..SOB

 1
85940B - RELAY ASSY, REAR WIPER
85940-60010

FJ80,FZJ80,HZJ80..SOB

 1
Common parts
90119-06601
90159-60081
90189-06125
90467-09043
91651-40616
93319-A4010

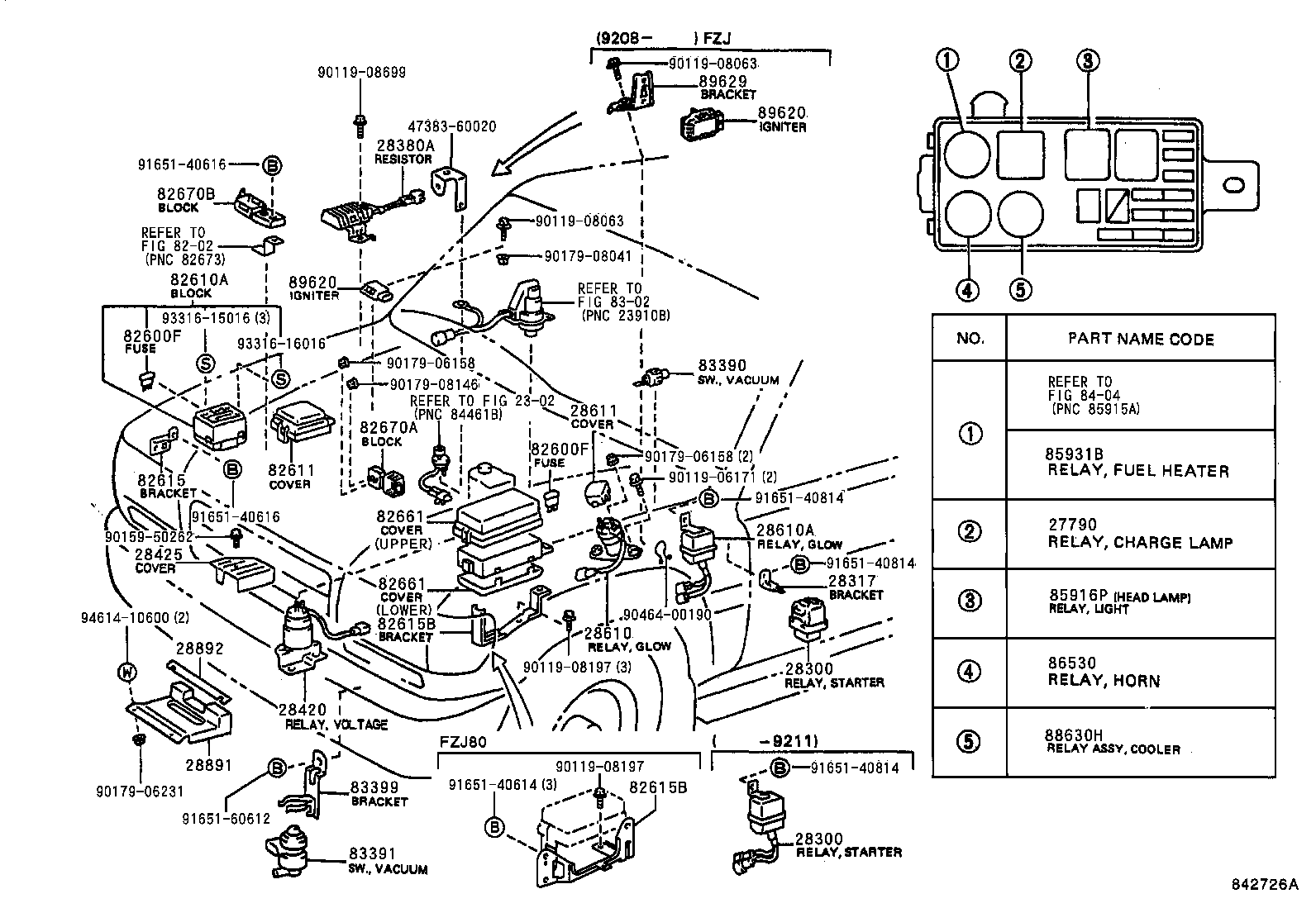

ILLUST NO. 2 OF 9(9001- )

Click highlighted areas on diagram

E/G ROOM RELAY

diagram 2302 27790 28300 28300 28317 28380A 28420 28425 28610 28610A 28611 28891 28892 4738360020 8202 82600F 82600F 82610A 82611 82615 82615B 82615B 82661 82661 82670A 82670B 8302 83390 83391 83399 8404 85916P 85931B 86530 88630H 89620 89620 89629 9011906171 9011908063 9011908063 9011908197 9011908197 9011908699 9015950262 9017906158 9017906158 9017906231 9017908041 9017908146 9046400190 9165140614 9165140616 9165140616 9165140814 9165140814 9165140814 9165160612 9331615016 9331616016 9461410600
Part # Description Qty Price
27790 - RELAY ASSY, CHARGE LAMP
27790-13010

3F#..FJ80

 1
82600F - FUSE, FUSE BLOCK
90982-09004

FJ80..VX;HDJ80,HZJ80;FJ80..4FC..GX..GCC;FJ80..(GX,STD)..(ARL,GEN)

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09003

FJ80..LHD;HZJ80..LHD..(GX,STD)

15A,COWL RELAY BLOCK

 7
90982-09002

FJ80,HDJ80,HZJ80

10A,COWL RELAY BLOCK

 3
90982-09004

FJ80..VX..CBR;HDJ80,HZJ80..LHD;FJ80..4FC..GX..GCC;FJ80..LHD..(GX,STD)..GEN

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09002

HDJ80..GEN;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2)

10A,COWL RELAY BLOCK

 3
90982-09002

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80

10A,E/G ROOM RELAY BLOCK

 1
90982-09004

FJ80..VX..CBR;HDJ80,HZJ80..LHD;FJ80..LHD..(GX,STD)..GEN;FJ80..4FC..GX..(ARL,GCC)

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09003

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

15A,E/G ROOM RELAY BLOCK

 3
90982-09005

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80

7.5A,E/G ROOM RELAY BLOCK

 1
90982-07011

FJ80,FZJ80,HDJ80,HZJ80

30A,GREEN,COWL RELAY BLOCK

 1
90982-09004

FJ80;FZJ80..GX,STD;FZJ80..VX..GEN

20A,YELLOW,E/G ROOM RELAY BLOCK

 1
90982-09005

FJ80,FZJ80,HDJ80,HZJ80

7.5A,COWL RELAY BLOCK

 3
82600F - FUSE, FUSE BLOCK
90982-09004

FJ80..VX;HDJ80,HZJ80;FJ80..4FC..GX..GCC;FJ80..(GX,STD)..(ARL,GEN)

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09003

FJ80..LHD;HZJ80..LHD..(GX,STD)

15A,COWL RELAY BLOCK

 7
90982-09002

FJ80,HDJ80,HZJ80

10A,COWL RELAY BLOCK

 3
90982-09004

FJ80..VX..CBR;HDJ80,HZJ80..LHD;FJ80..4FC..GX..GCC;FJ80..LHD..(GX,STD)..GEN

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09002

HDJ80..GEN;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2)

10A,COWL RELAY BLOCK

 3
90982-09002

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80

10A,E/G ROOM RELAY BLOCK

 1
90982-09004

FJ80..VX..CBR;HDJ80,HZJ80..LHD;FJ80..LHD..(GX,STD)..GEN;FJ80..4FC..GX..(ARL,GCC)

20A,YELLOW,COWL RELAY BLOCK

 2
90982-09003

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

15A,E/G ROOM RELAY BLOCK

 3
90982-09005

FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80

7.5A,E/G ROOM RELAY BLOCK

 1
90982-07011

FJ80,FZJ80,HDJ80,HZJ80

30A,GREEN,COWL RELAY BLOCK

 1
90982-09004

FJ80;FZJ80..GX,STD;FZJ80..VX..GEN

20A,YELLOW,E/G ROOM RELAY BLOCK

 1
90982-09005

FJ80,FZJ80,HDJ80,HZJ80

7.5A,COWL RELAY BLOCK

 3
82615B - BRACKET, FUSE NO.2
82615-60010

FJ80,HDJ80,HZJ80

 1
82615B - BRACKET, FUSE NO.2
82615-60010

FJ80,HDJ80,HZJ80

 1
82661 - COVER, RELAY BLOCK, NO.1
82662-60010

FJ80,FZJ80

UPPER

 1
82663-60010

FJ80,FZJ80,HDJ80,HZJ80

LOWER

 1
82661 - COVER, RELAY BLOCK, NO.1
82662-60010

FJ80,FZJ80

UPPER

 1
82663-60010

FJ80,FZJ80,HDJ80,HZJ80

LOWER

 1
82670A - BLOCK ASSY, JUNCTION, NO.1
82670-90800

FJ80,FZJ80..CBR

 1
82670B - BLOCK ASSY, JUNCTION, NO.2
82670-60030

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
85916P - RELAY, HEADLAMP
90987-02006

FJ80,FZJ80,HDJ80,HZJ80

 1
86530 - RELAY ASSY, HORN
90987-01003

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
47383-60020
90119-06171
90119-08063
90119-08197
90119-08699
90159-50262
90179-06158
90179-06231
90179-08041
90179-08146
90464-00190
91651-40614
91651-40616
91651-40814
91651-60612
93316-15016
93316-16016
94614-10600
Linked diagrams
2302
8202
8302
8404

ILLUST NO. 6 OF 9(9001- )

Click highlighted areas on diagram

IGNITION & COMBINATION SW.

diagram 827112A540 8408 84110 84140 84310 84312 84450 84450 84650 9014940013 9014940013 9046400551 9331913008 9331915012 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-69395

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-60160

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-60890

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(*RWD)

 1
84310-60880

FJ80,FZJ80,HZJ80..LHD..STD..GEN

 1
84312 - PLATE, HORN CONTACT
84312-12040

FJ80,FZJ80,HDJ80,HZJ80

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-60170

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-60170

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-60670

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(REAR WINDOW WIPER)

 1
84652-60660

FJ80,FZJ80,HZJ80..LHD..STD..GEN

 1
Common parts
82711-2A540
90149-40013
90464-00551
93319-13008
93319-15012
Linked diagrams
8408

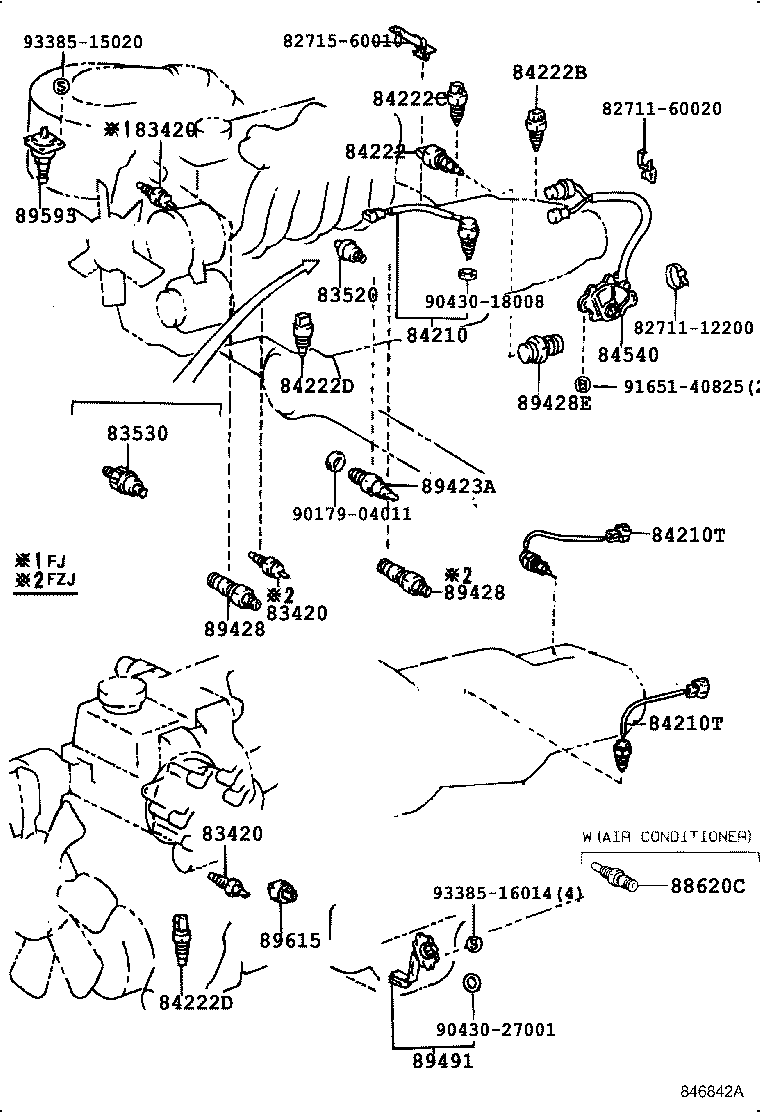

ILLUST NO. 1 OF 9(9001- )FJ80,FZJ80

Click highlighted areas on diagram

E/G,T/M,T/F & FR DIFF

diagram 8271112200 8271160020 8271560010 83420 83420 83420 83520 83530 84210 84210T 84210T 84222 84222B 84222C 84222D 84222D 84540 88620C 89423A 89428 89428 89428E 89491 89593 89615 9017904011 9043018008 9043027001 9165140825 9338515020 9338516014
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

FJ80,FZJ80,HDJ80,HZJ80

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

FJ80,FZJ80,HDJ80,HZJ80

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

FJ80,FZJ80,HDJ80,HZJ80

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060

FJ80..RHD..GEN;FJ80..STD..ARL;FJ80..LHD..STD..GEN;FZJ80,HZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60030

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-12010

FJ80,FZJ80,HDJ80,HZJ80

 1
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-12010

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 2
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-12010

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 2
89593 - SENSOR, AIR CLEANER WARNING
89593-60010

FJ80,FZJ80;HZJ80..GX..GCC

 1
Common parts
82711-12200
82711-60020
82715-60010
90179-04011
90430-18008
90430-27001
91651-40825
93385-15020
93385-16014

ILLUST NO. 3 OF 9(9001- )LHD

Click highlighted areas on diagram

RH COWL RELAY

diagram 28423 28521 28529 84242 85965 89533 89550 9015950138 9015950138 9017906158 9017906158
Part # Description Qty Price
89533 - COMPUTER, 4 WHEEL DRIVE CONTROL
89533-60030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD

 1
Common parts
90159-50138
90179-06158
