FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0907)

Click highlighted areas on diagram

diagram 3312 3312 3312 5551 5551 55538A 81850 81850 81850B 81850B 81850B 81850B 81850B 81850K 81850P 81850Q 81930 81930B 81942 81942 8202 8202 82143A 82143A 8712 9356855012
Part # Description Qty Price
Common parts
93568-55012
Linked diagrams
3312
5551
8202
8712

(9001- )

Click highlighted areas on diagram

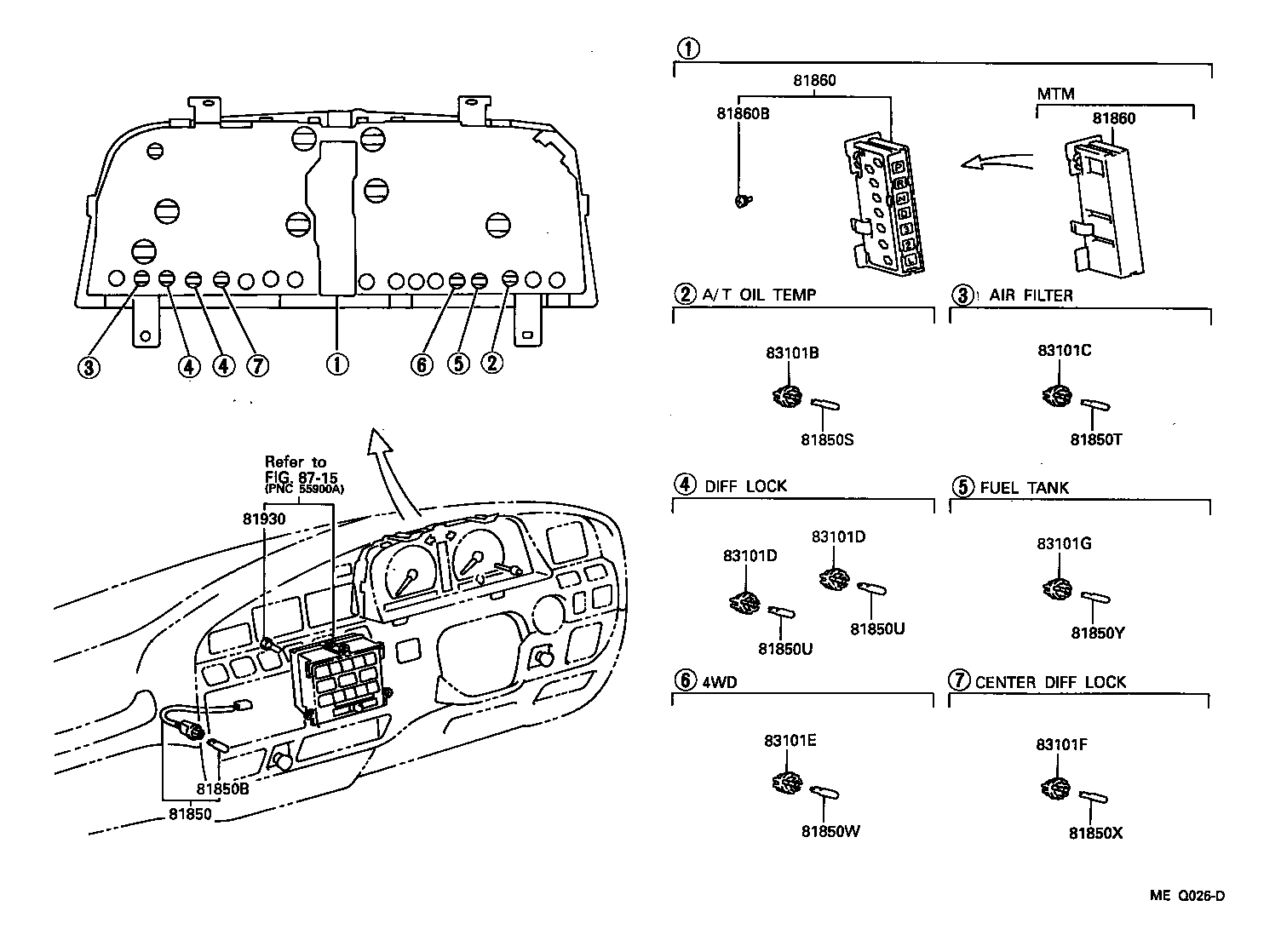

diagram 81850 81850B 81850S 81850T 81850U 81850U 81850W 81850X 81850Y 81860 81860 81860B 81930 83101B 83101C 83101D 83101D 83101E 83101F 83101G 8715
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-60480

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
81850B - BULB, INDICATOR LAMP
90981-11014

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

14V 1.4W

 1
81850T - BULB(FOR AIR FILTER INDICATOR LAMP)
90981-11018

FJ80,FZJ80,HDJ80,HZJ80

 1
81850U - BULB(FOR DIFFERENTIAL LOCK INDICATOR LAMP)
90981-11018

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 2
81850U - BULB(FOR DIFFERENTIAL LOCK INDICATOR LAMP)
90981-11018

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 2
83101C - SOCKET SUB-ASSY, AIR FILTER INDICATOR
83101-14040

FJ80,FZJ80,HDJ80,HZJ80

 1
83101D - SOCKET SUB-ASSY, DIFFERENTIAL LOCK INDICATOR LAMP
83101-14040

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 2
83101D - SOCKET SUB-ASSY, DIFFERENTIAL LOCK INDICATOR LAMP
83101-14040

FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80

 2
Linked diagrams
8715
