FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

Click highlighted areas on diagram

diagram 81610 81610B 81611 81615 81620 81621 9015940211 9018904014 9018906111 9151204126
Part # Description Qty Price
Common parts
90159-40211
90189-04014
90189-06111
91512-04126

(9001- )

Click highlighted areas on diagram

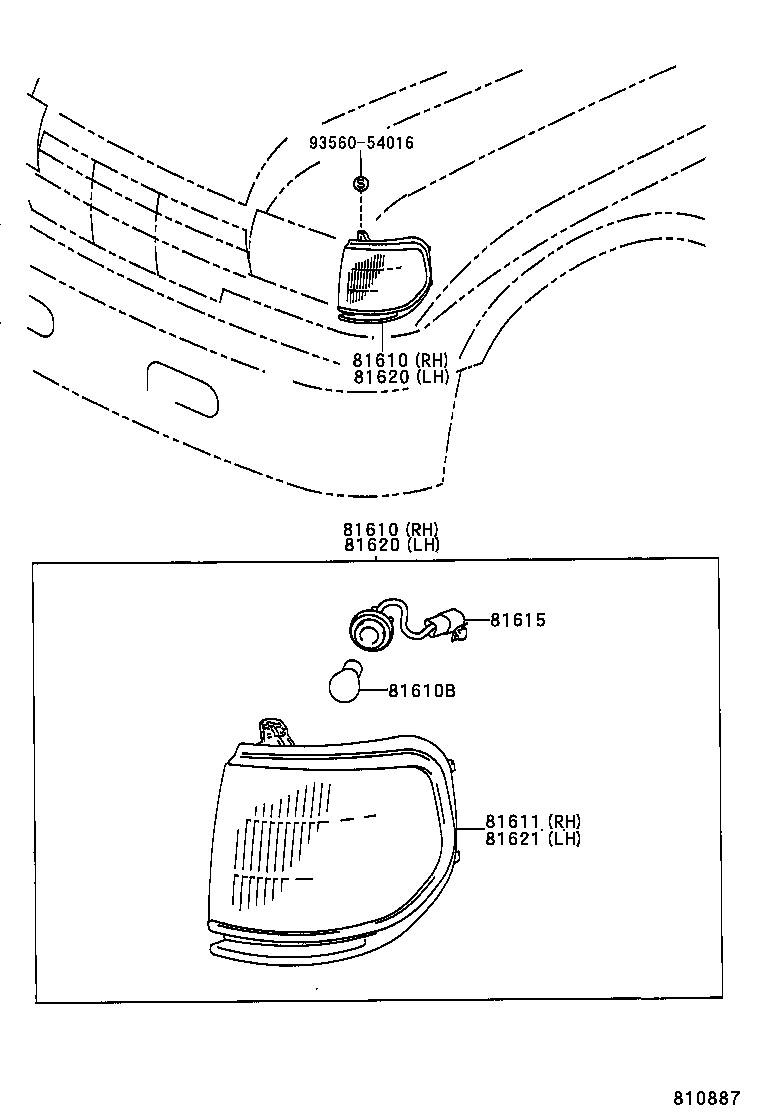

HEADLAMP:2-RECTANGULAR TYPE

diagram 81610 81610 81610B 81611 81615 81620 81620 81621 9356054016
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-60070

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-60070

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

FJ80,FZJ80,HDJ80,HZJ80

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-60070

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-60060

HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(ARL,GEN)..(CBR,DSL)

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-60050

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-60050

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-60050

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
Common parts
93560-54016

(9001- )

Click highlighted areas on diagram

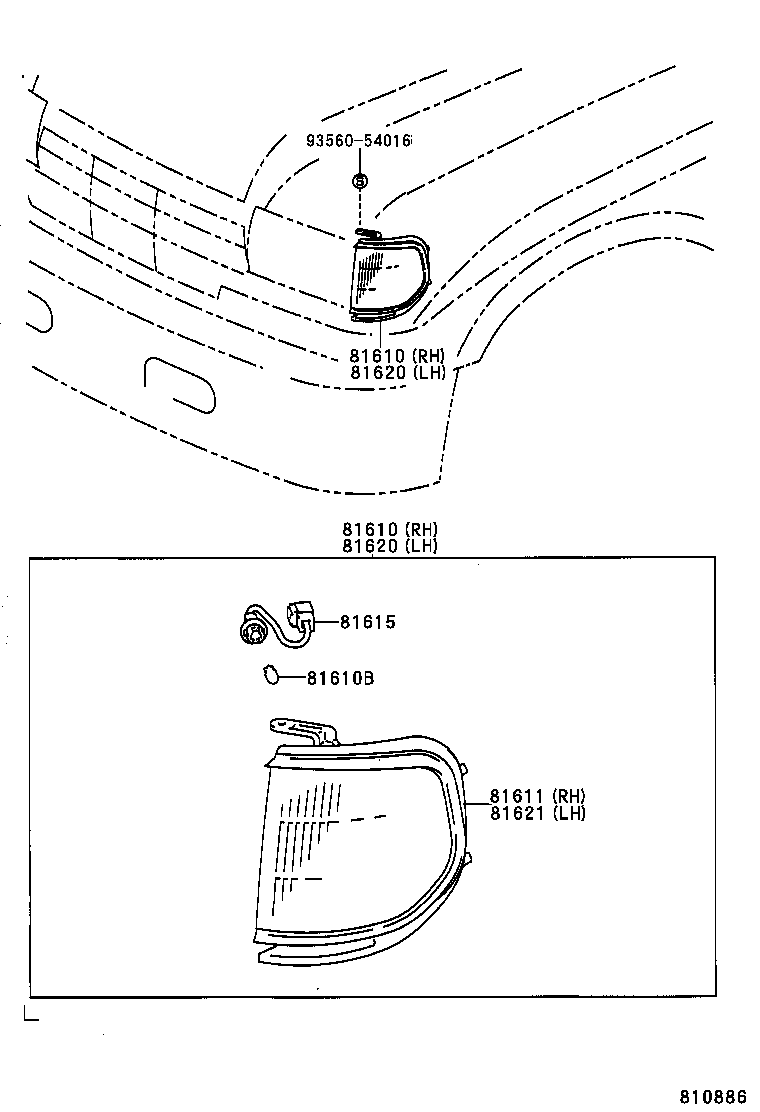

HEADLAMP:4-SEALED BEAM UNIT TYPE

diagram 81610 81610 81610B 81611 81615 81620 81620 81621 9356054016
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-60070

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-60070

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

FJ80,FZJ80,HDJ80,HZJ80

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-60070

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-60060

HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(ARL,GEN)..(CBR,DSL)

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-60050

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-60050

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-60050

FJ80,FZJ80,HZJ80..STD..(ARL,GEN)

 1
Common parts
93560-54016
