Toyota Land cruiser FJ80 FUEL TANK & TUBE

FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992

Engine 3F

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

Click highlighted areas on diagram

FUEL SUB TANK

Part #	Description	Period	Qty	Price
Common parts
90119-06621
90119-08701
90119-10153
90119-10539
90119-10556
90159-40155
90460-65002
90461-06174
90461-12296
90464-00239
90467-20134
91626-B0818
91651-40614
91651-60814
91651-60820
91665-40616
93383-15014
93383-A6014
96132-41100
Linked diagrams
8401

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

AUXILIARY FUEL TANK

Part #	Description	Period	Qty	Price
Common parts
90119-08277
90202-11006
90950-01088
90950-01555

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-60030	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-60100	FJ80..CBR W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77017-60130	FJ80..STD..(ARL,GEN);FJ80..5F..(GX,STD)..GCC	01/1990 - 08/1992	1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-60030	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32010	FJ80..STD..(ARL,GEN);FJ80..5F..(GX,STD)..GCC W(SUB TANK),MAIN TANK	01/1990 - 08/1992	1
77023-32010	FJ80..CBR	01/1990 - 08/1992	1
77023-12031	FJ80..STD..(ARL,GEN);FJ80..5F..(GX,STD)..GCC W(SUB TANK),SUB TANK	01/1990 - 08/1992	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60020	FJ80,FZJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-3006003	FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1#	01/1990 - 08/1992	1
77051-3006006	FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4#	01/1990 - 08/1992	1
77100 - TANK ASSY, FUEL
77001-69055	FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1991	1
77001-69015	FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1991	1
77001-69055	HZJ80..ARL,GEN;FJ80,HDJ80..CBR,TD2 W(SUB TANK),SUB-TANK	08/1991 - 01/1992	1
77001-69015	FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77110 - TANK ASSY, AUXILIARY FUEL
77110-60011	FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN	01/1990 - 08/1992	1
77110-60011	FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN W(SUB FUEL TANK)	01/1990 - 08/1992	2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-60010	FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77169-14020	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77169-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-60010	FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77169-14020	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77169-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-35030	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60310	HDJ80,HZJ80;FJ80..GCC,GEN W(SUB TANK)	01/1990 - 01/1992	1
77201-60330	HDJ80,HZJ80;FJ80..GCC,GEN	01/1990 - 01/1992	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213-60090	FJ80,FZJ80,HDJ80,HZJ80 MARK=TANK	01/1990 - 08/1992	1
95311-13013	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 *H,L=130,W(SUB TANK)	01/1990 - 08/1992	1
77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
95311-13022	FJ80,FZJ80,HDJ80,HZJ80 L=220	01/1990 - 08/1992	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60020	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77290-60020	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK)	01/1990 - 08/1992	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-60050	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77310A - CAP ASSY, FUEL TANK
77310-12100	FJ80	01/1990 - 01/1992	1
77310A - CAP ASSY, FUEL TANK
77310-12100	FJ80	01/1990 - 01/1992	1
77316 - GASKET, FUEL TANK CAP
77316-12050	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
77316 - GASKET, FUEL TANK CAP
77316-12050	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-22020	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77378A - COVER, FUEL FILLER OPENING LID LOCK
77378-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77391 - RING, FUEL INLET BOX
77391-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77399 - HANGER, FUEL TANK CAP
77399-22010	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-60150	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77601-60140	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77601-60150	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-60050	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77602-60060	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77602-60060	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH
77603-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH
77604-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-60050	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77651A - CUSHION, FUEL TANK, NO.1
77651-60080	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77651-60090	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77651-60090	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77652A - CUSHION, FUEL TANK, NO.2
77652-60040	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77652-60050	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77652-60050	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77653A - CUSHION, FUEL TANK, NO.3
77653-60040	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77653-60050	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77653-60040	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77656A - CUSHION, FUEL TANK, NO.4
77654-60030	FJ80,FZJ80,HDJ80,HZJ80 80X262	01/1990 - 08/1992	1
77655-60010	FJ80,FZJ80,HDJ80,HZJ80 80X330	01/1990 - 08/1992	1
77656A - CUSHION, FUEL TANK, NO.4
77654-60030	FJ80,FZJ80,HDJ80,HZJ80 80X262	01/1990 - 08/1992	1
77655-60010	FJ80,FZJ80,HDJ80,HZJ80 80X330	01/1990 - 08/1992	1
77658 - MOULDING, FUEL TANK EDGE
77658-60040	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
Common parts
90119-10477
90159-50153
90159-50217
90159-50219
90159-60266
90179-05020
90179-06178
90179-10074
90189-05072
90189-06048
90460-55003
90461-06177
90467-09049
90467-1207801
90467-20134
91611-60830
91651-61025
93319-13006
93319-A4010
93567-55016
Linked diagrams
2211
8401

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

W(SUB-TANK)

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-60100	FJ80..CBR W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77017-60130	FJ80..STD..(ARL,GEN);FJ80..5F..(GX,STD)..GCC	01/1990 - 08/1992	1
77100 - TANK ASSY, FUEL
77001-69055	FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1991	1
77001-69015	FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1991	1
77001-69055	HZJ80..ARL,GEN;FJ80,HDJ80..CBR,TD2 W(SUB TANK),SUB-TANK	08/1991 - 01/1992	1
77001-69015	FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77101 - PLUG(FOR FUEL SUB-TANK)
90105-12116	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77101A - GASKET(FOR FUEL SUB-TANK)
90430-12245	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77109A - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77109-60050	FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 01/1992	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-60010	FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77169-14020	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77169-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60310	HDJ80,HZJ80;FJ80..GCC,GEN W(SUB TANK)	01/1990 - 01/1992	1
77201-60330	HDJ80,HZJ80;FJ80..GCC,GEN	01/1990 - 01/1992	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213-60090	FJ80,FZJ80,HDJ80,HZJ80 MARK=TANK	01/1990 - 08/1992	1
95311-13013	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 *H,L=130,W(SUB TANK)	01/1990 - 08/1992	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213-60090	FJ80,FZJ80,HDJ80,HZJ80 MARK=TANK	01/1990 - 08/1992	1
95311-13013	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 *H,L=130,W(SUB TANK)	01/1990 - 08/1992	1
77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
95311-13022	FJ80,FZJ80,HDJ80,HZJ80 L=220	01/1990 - 08/1992	1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-60110	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=215	01/1990 - 08/1992	1
95311-13017	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=170	01/1990 - 08/1992	1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-60110	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=215	01/1990 - 08/1992	1
95311-13017	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 L=170	01/1990 - 08/1992	1
77259C - HOSE, FUEL
77259-60120	FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 01/1992	1
77324A - KNOB, FUEL LID LOCK OPEN LEVER
77324-60011	FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 01/1992	1
77334 - SHAFT, FUEL TANK CAP LOCK
77334-60010	FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 01/1992	1
77372 - ARM, FUEL FILLER OPENING LID LOCK
77372-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77374A - PIN, FUEL FILLER OPENING LID LOCK
77374-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77376 - ROD, FUEL LOCK CONTROL
77376-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-60150	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77601-60140	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77601-60150	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-60050	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77602-60060	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77602-60060	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77651A - CUSHION, FUEL TANK, NO.1
77651-60080	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77651-60090	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77651-60090	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77652A - CUSHION, FUEL TANK, NO.2
77652-60040	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77652-60050	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77652-60050	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77653A - CUSHION, FUEL TANK, NO.3
77653-60040	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
77653-60050	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),SUB-TANK	01/1990 - 08/1992	1
77653-60040	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB TANK),MAIN-TANK	01/1990 - 08/1992	1
77730 - VALVE ASSY, FUEL INLET
77730-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
Common parts
21539-60150
21791-13010
21885-44010
90201-04006
90301-49005
90460-55003
90467-20134
90480-14016
90506-14056
91611-60830
91651-40614
91651-61025
91651-61040
93319-A4010
94130-60500
94531-00500
95333-08020
96132-30800
96712-24053
Linked diagrams
8401

ILLUST NO. 3 OF 3(9001-9201)FJ80..GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-60060	HDJ80,HZJ80;FJ80,FZJ80..GEN	01/1990 - 08/1992	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-60030	FJ80..GEN	01/1990 - 01/1992	1
77241J - HOSE, FUEL, NO.8
90445-14164	FJ80..CBR	01/1990 - 08/1992	1
77250 - HOSE ASSY, FUEL RETURN
77250-60100	FJ80..CBR	01/1990 - 08/1992	1
77251B - TUBE, FUEL MAIN
77205-60401	FJ80..GEN	01/1990 - 01/1992	1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08030	FJ80..CBR *H,L=240	01/1990 - 08/1992	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95333-08030	FJ80..CBR	01/1990 - 08/1992	1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
90445-12244	HDJ80,HZJ80;FJ80,FZJ80..GEN L=600	01/1990 - 08/1992	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77250-60120	FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD L=220,W(SUB TANK)	01/1990 - 08/1992	1
95333-06030	FJ80,FZJ80 *H,L=220	01/1990 - 08/1992	1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06020	FJ80	01/1990 - 08/1992	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-60130	FJ80..(ARL,GEN)..CBR	01/1990 - 08/1992	1
77263A - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
95333-06020	HDJ80,HZJ80;FJ80,FZJ80..GEN	01/1990 - 08/1992	1
77276 - PROTECTOR, FUEL HOSE
77276-60040	FJ80..CBR	01/1990 - 08/1992	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06030	FJ80..GEN *H,L=260	01/1990 - 01/1992	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069	HDJ80,HZJ80;FJ80,FZJ80..GEN	01/1990 - 08/1992	1
77750 - CANISTER ASSY, CHARCOAL
77740-60220	FJ80..CBR	01/1990 - 08/1992	1
77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2
77754-60080	FJ80..CBR	01/1990 - 08/1992	1
Common parts
90119-06374
90119-08701
90179-06161
90179-08041
90445-14163
90461-10616
90461-12373
90467-13007
90480-01265
90480-26004
90925-09039
90949-02029
91616-40616
91616-40816
91621-40816
91651-40612
96132-30600
96132-30800
Linked diagrams
1708

ILLUST NO. 3 OF 3(9001-9201)FJ80..GEN

Click highlighted areas on diagram

W(SUB-TNK)

Part #	Description	Period	Qty
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06020	FJ80..GEN;HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=130	01/1990 - 08/1992	1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-60050	FJ80..GEN	01/1990 - 01/1992	1
77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR
77025-60060	FJ80..CBR	01/1990 - 08/1992	1
77027A - TUBE SUB-ASSY, FUEL MAIN & RETURN, NO.3
77027-60040	FJ80..CBR	01/1990 - 08/1992	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-60030	FJ80..GEN	01/1990 - 01/1992	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-08020	FJ80..CBR *H,L=150	01/1990 - 08/1992	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-08020	FJ80..CBR *H,L=150	01/1990 - 08/1992	1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95333-08020	FJ80..CBR *H,L=180	01/1990 - 08/1992	1
77241J - HOSE, FUEL, NO.8
90445-14164	FJ80..CBR	01/1990 - 08/1992	1
77250 - HOSE ASSY, FUEL RETURN
77250-60100	FJ80..CBR	01/1990 - 08/1992	1
77251B - TUBE, FUEL MAIN
77205-60401	FJ80..GEN	01/1990 - 01/1992	1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08030	FJ80..CBR *H,L=240	01/1990 - 08/1992	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95333-08030	FJ80..CBR	01/1990 - 08/1992	1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
90445-12244	HDJ80,HZJ80;FJ80,FZJ80..GEN L=600	01/1990 - 08/1992	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77250-60120	FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD L=220,W(SUB TANK)	01/1990 - 08/1992	1
95333-06030	FJ80,FZJ80 *H,L=220	01/1990 - 08/1992	1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06020	FJ80	01/1990 - 08/1992	1
77260 - HOSE ASSY, FUEL MAIN
77260-60130	FJ80..CBR	01/1990 - 08/1992	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06020	FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD *H,L=130	01/1990 - 08/1992	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06020	FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD *H,L=130	01/1990 - 08/1992	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06030	FJ80..CBR *H,L=240	01/1990 - 08/1992	1
77296 - PLATE, FUEL TUBE GROMMET SUPPORT
77296-60091	FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77296A - PLATE, FUEL TUBE SUPPORT, NO.2
77297-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77433 - HOSE, FUEL MAIN, NO.1
77433-60010	FJ80..CBR	01/1990 - 08/1992	1
77439 - HOSE, FUEL RETURN
77439-60010	FJ80..CBR	01/1990 - 08/1992	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069	HDJ80,HZJ80;FJ80,FZJ80..GEN	01/1990 - 08/1992	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06020	HDJ80,HZJ80;FJ80,FZJ80..GEN *H,L=160	01/1990 - 08/1992	1
77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN
77710-60050	FJ80..CBR	01/1990 - 08/1992	1
77716 - BRACKET, FUEL SOLENOID VALVE MAIN
77716-60030	FJ80..CBR	01/1990 - 08/1992	1
77717 - BRACKET, FUEL SOLENOID VALVE RETURN
77717-60010	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN
77720-60020	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2	01/1990 - 08/1992	1
Common parts
90119-06374
90119-08701
90179-06161
90461-10616
90461-12894
90480-01265
90480-26004
90949-02029
91616-40616
91616-40816
94110-40800
96132-30600
96132-30800

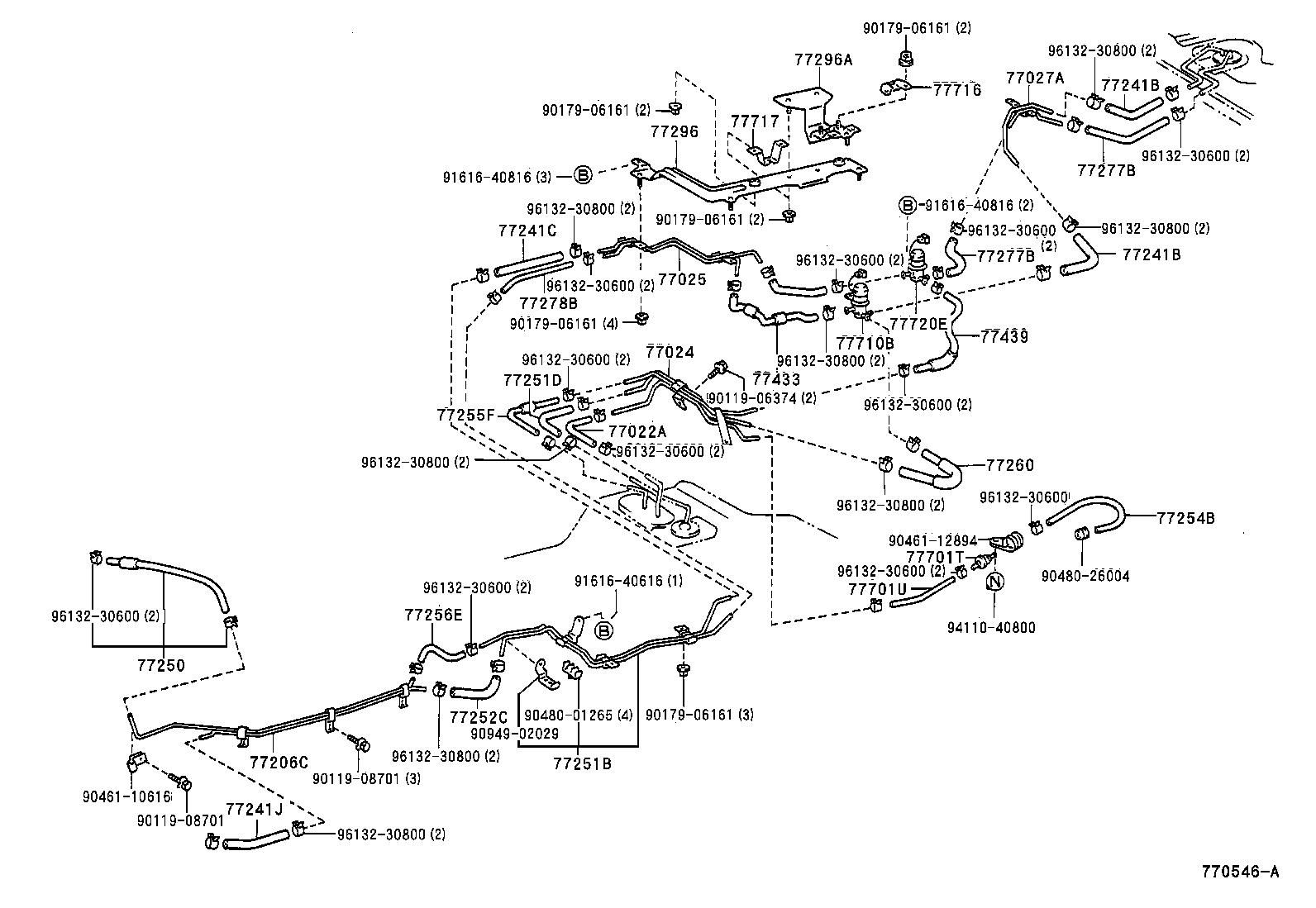

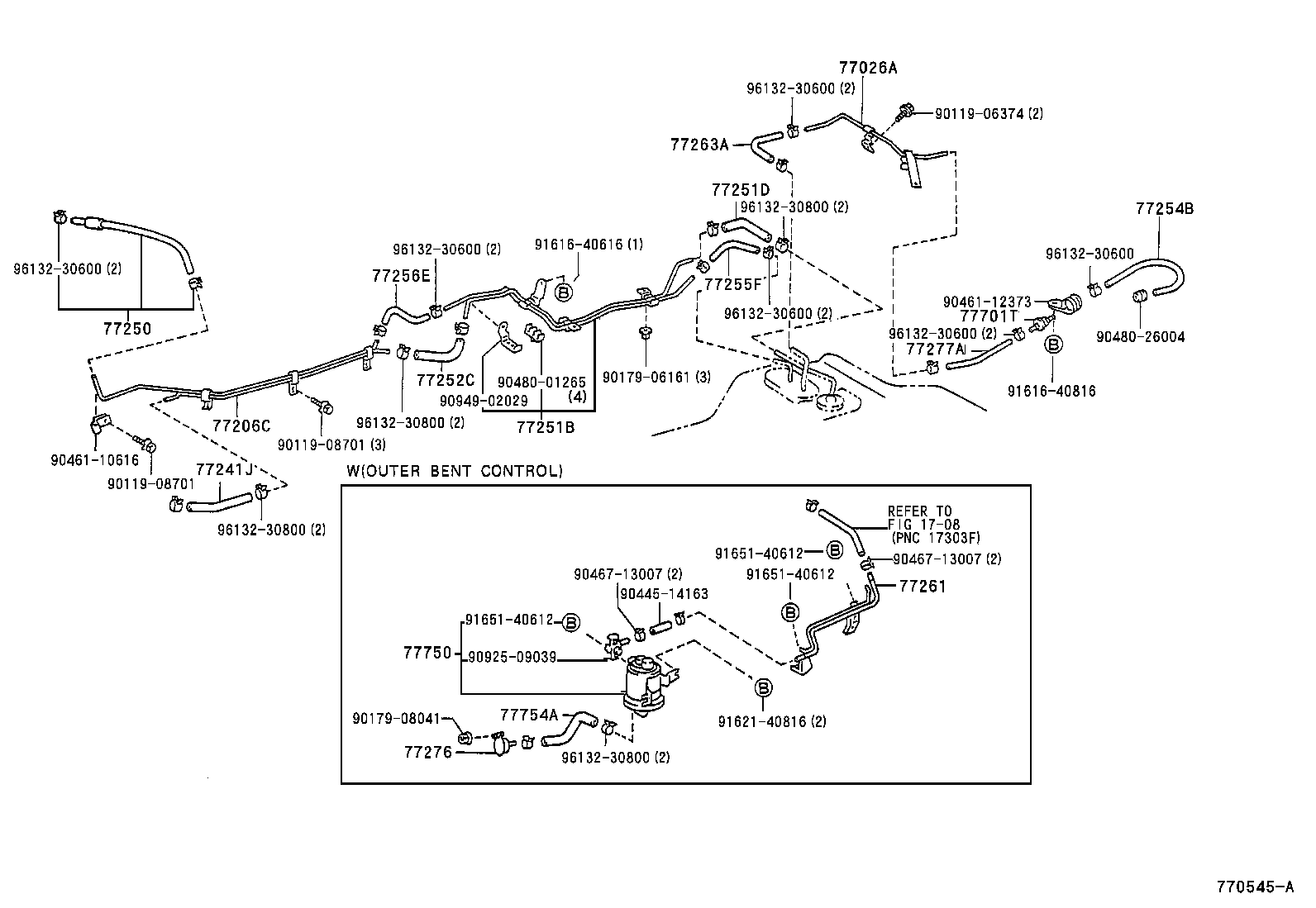

FJ80L-GCKRS (1990)

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

ILLUST NO. 3 OF 3(9001- )

ILLUST NO. 1 OF 3(9001- )

ILLUST NO. 2 OF 3(9001- )

ILLUST NO. 3 OF 3(9001-9201)FJ80..GEN

ILLUST NO. 3 OF 3(9001-9201)FJ80..GEN

Part Price Details
