FJ80L-GCKRS (1990)
Toyota Land Cruiser

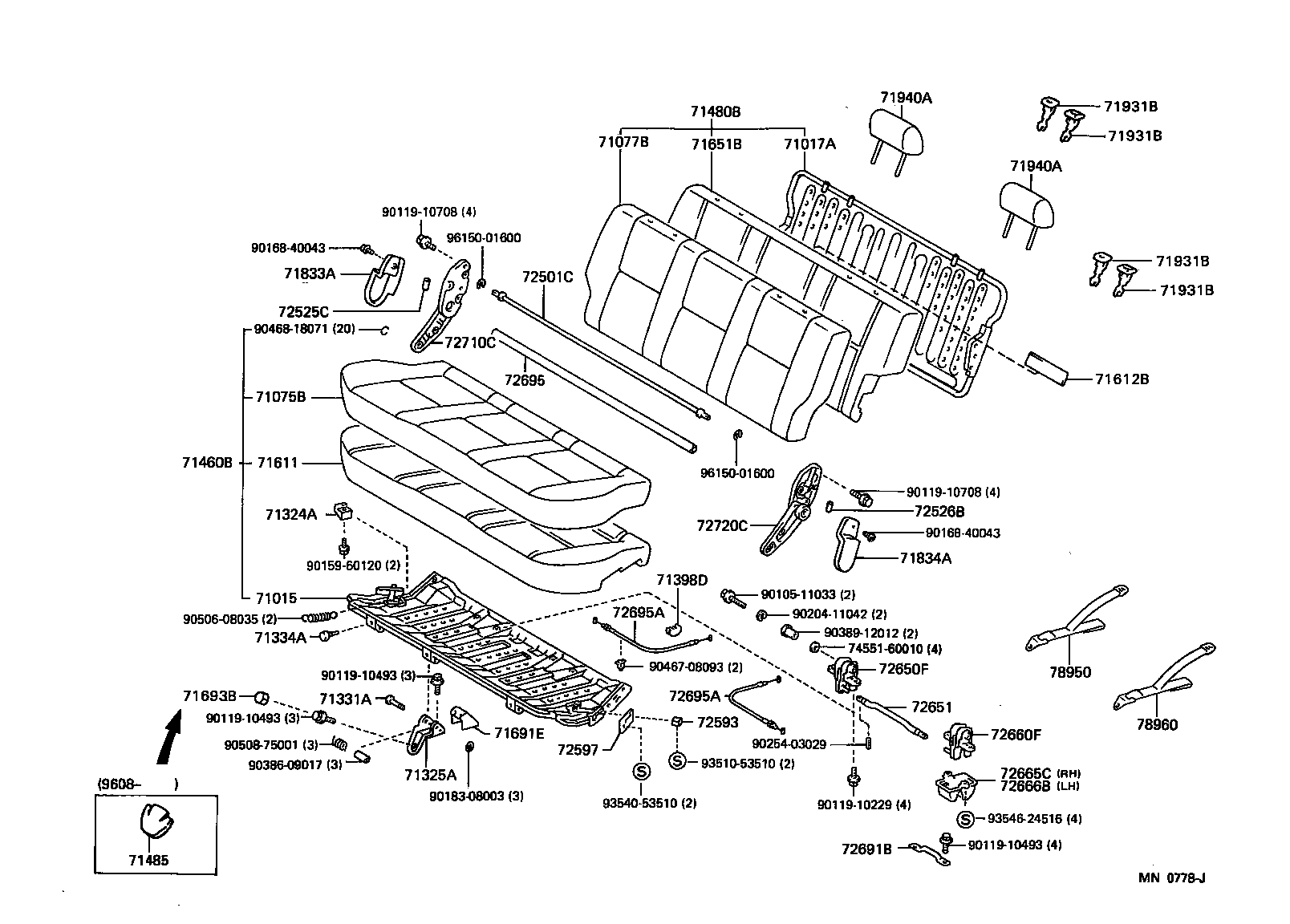

ILLUST NO. 1 OF 3(9001-9908)LHD..HT,SOT ; (9908-0701)FZJ70,71,73,74,75,HZJ71..LHD..CBU ; (0701-0808)
BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10560 | ||||
| 90119-10619 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90159-40206 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90387-08053 | ||||
| 90389-08104 | ||||
| 90467-07032 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||

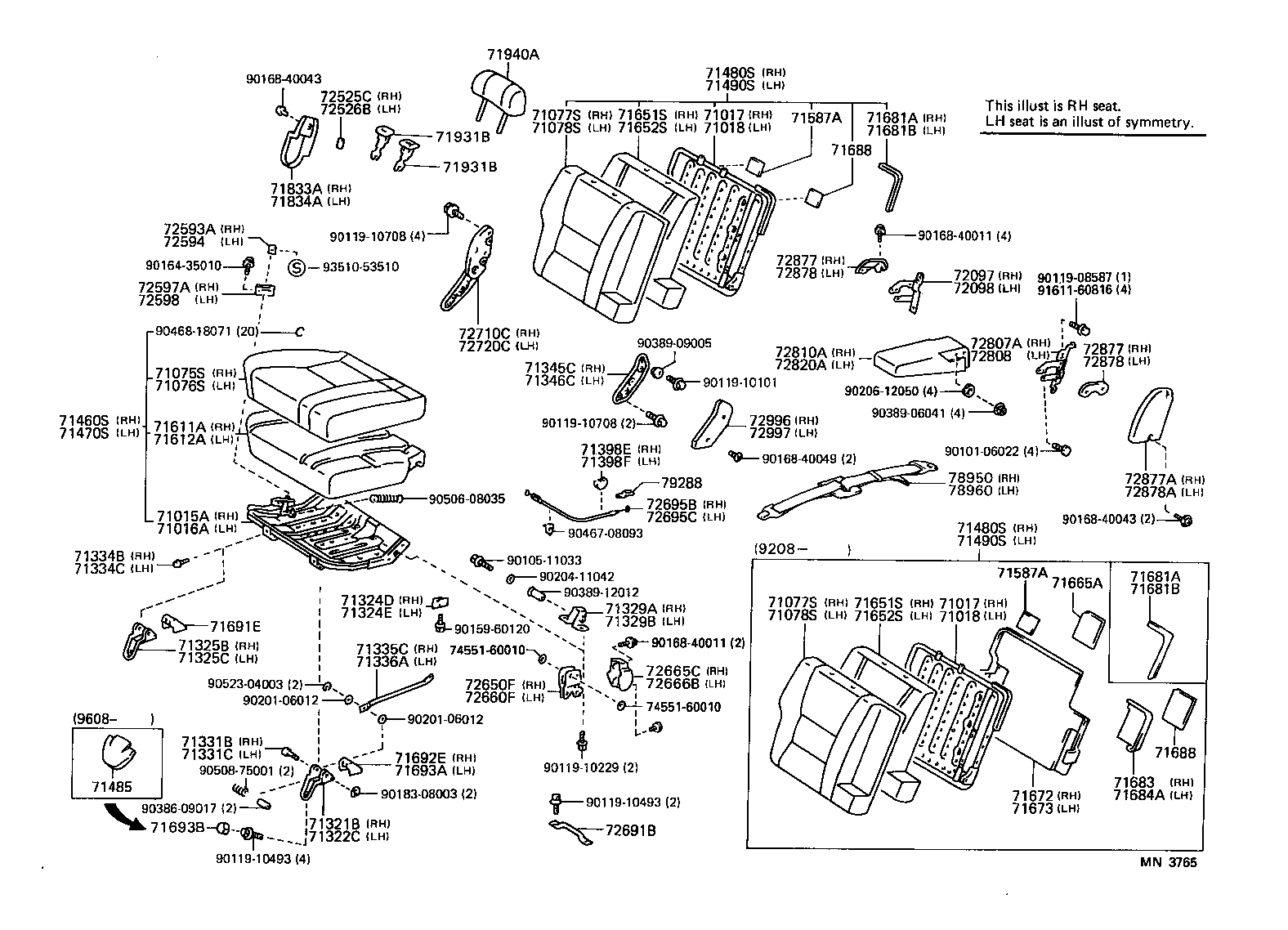

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90159-60108 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||
(9001- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14018 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

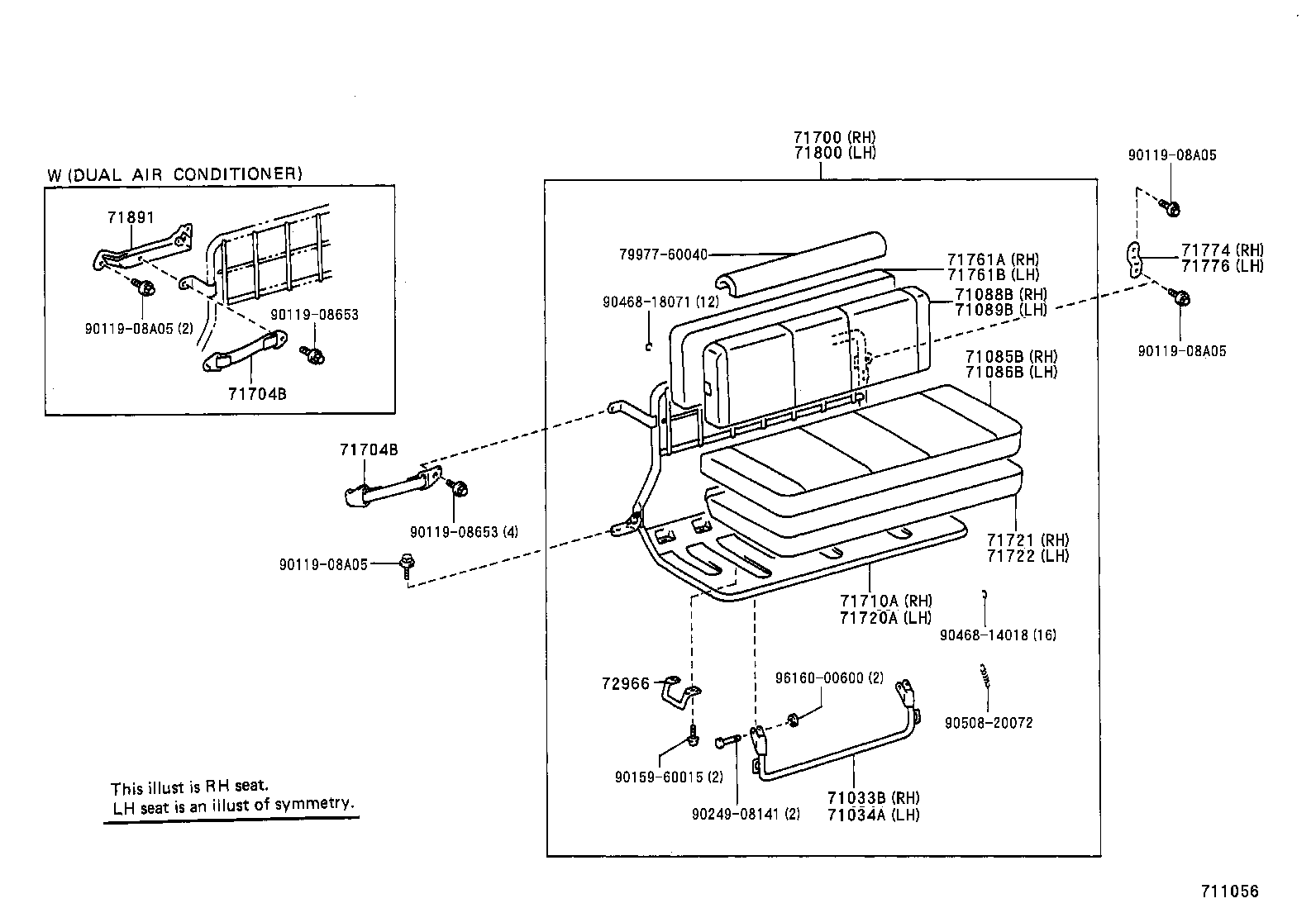

ILLUST NO. 3 OF 4(9001- )
OPPOSING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH | ||||
| 71033-6003003 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71033-6003006 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) SABLE,TRIM4# |
1 | ||
| 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH | ||||
| 71033-6003006 |
FJ80,FZJ80,HZJ80..SOB..(STD,VX)..(GCC,GEN) SABLE,TRIM4# |
1 | ||
| 71033-6003003 |
FJ80,FZJ80,HZJ80..SOB..(STD,VX)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71085-6001006 |
FJ80,HZJ80..STD..GEN SABLE,TRIM4# |
1 | ||
| 71085-6001003 |
FJ80,HZJ80..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71086-6001003 |
FJ80,HZJ80..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71086-6001006 |
FJ80,HZJ80..STD..GEN SABLE,TRIM4# |
1 | ||
| 71088B - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-6001003 |
FJ80,HZJ80..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71088-6001006 |
FJ80,HZJ80..STD..GEN SABLE,TRIM4# |
1 | ||
| 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-6001006 |
FJ80,HZJ80..STD..GEN SABLE,TRIM4# |
1 | ||
| 71089-6001003 |
FJ80,HZJ80..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71700 - SEAT ASSY, REAR SIDE, RH | ||||
| 71700-6009003 |
FJ80,HZJ80..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71700-6009006 |
FJ80,HZJ80..STD..GEN SABLE,TRIM4# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-6001003 |
FZJ80..STD;FZJ80..SOB..(GX,VX);FJ80,HZJ80..SOB..(GCC,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 71704-6001006 |
FZJ80..STD;FZJ80..SOB..(GX,VX);FJ80,HZJ80..SOB..(GCC,GEN) SABLE,TRIM4# |
2 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-6001003 |
FZJ80..STD;FZJ80..SOB..(GX,VX);FJ80,HZJ80..SOB..(GCC,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 71704-6001006 |
FZJ80..STD;FZJ80..SOB..(GX,VX);FJ80,HZJ80..SOB..(GCC,GEN) SABLE,TRIM4# |
2 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-6001006 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) SABLE,TRIM4# |
1 | ||
| 71710-6001003 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-6002003 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71720-6002006 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) SABLE,TRIM4# |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-60030 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71722-60020 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) |
1 | ||
| 71761A - PAD, REAR SIDE SEAT BACK, RH | ||||
| 71761-60010 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) |
1 | ||
| 71761B - PAD, REAR SIDE SEAT BACK, LH | ||||
| 71761-60010 |
FJ80,FZJ80,HZJ80..SOB..(GCC,GEN) |
1 | ||
| 71774 - PLATE, REAR SIDE SEAT HINGE | ||||
| 71774-60010 |
FJ80,HZJ80..SOB..(GCC,GEN) |
1 | ||
| 71776 - COVER, FRONT SEAT BACK BOARD, NO.1 | ||||
| 71776-60010 |
FJ80,HZJ80..SOB..(GCC,GEN) |
1 | ||
| 71800 - SEAT ASSY, REAR SIDE, LH | ||||
| 71800-6010006 |
FJ80,HZJ80..STD..GEN SABLE,TRIM4# |
1 | ||
| 71800-6010003 |
FJ80,HZJ80..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 72966 - BRACKET, REAR SEAT TURN LOCK | ||||
| 72966-90P80 |
HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX,VX;FJ80,FZJ80..SOB..STD..(GCC,GEN) |
2 | ||
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08653 | ||||
| 90119-08A05 | ||||
| 90159-60015 | ||||
| 90249-08141 | ||||
| 90468-14018 | ||||
| 90468-18071 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||

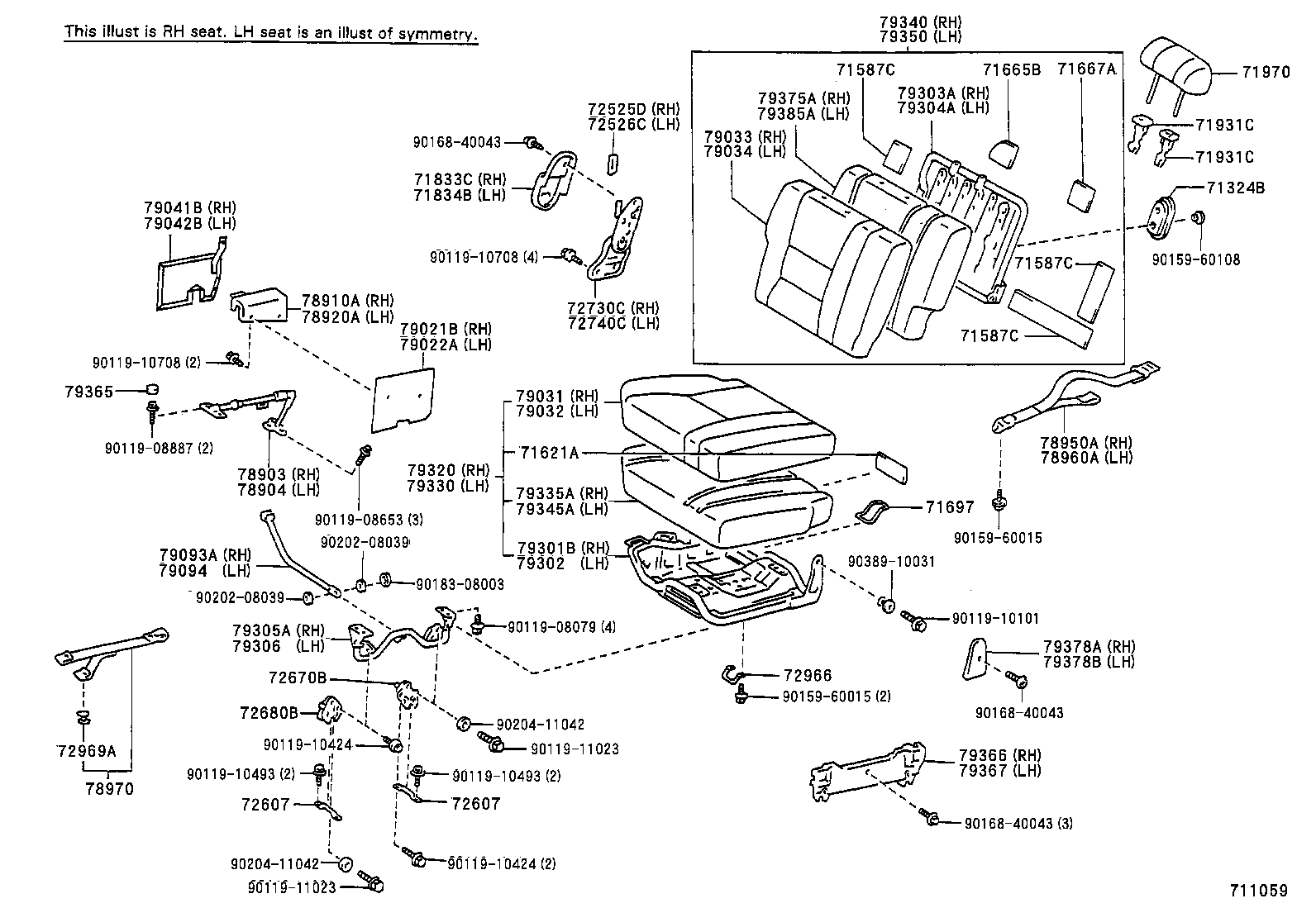

ILLUST NO. 3 OF 4(9001- )
SPLIT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72966 - BRACKET, REAR SEAT TURN LOCK | ||||
| 72966-90P80 |
HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX,VX;FJ80,FZJ80..SOB..STD..(GCC,GEN) |
2 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08653 | ||||
| 90119-08887 | ||||
| 90119-10101 | ||||
| 90119-10424 | ||||
| 90119-10493 | ||||
| 90119-10708 | ||||
| 90119-11023 | ||||
| 90159-60015 | ||||
| 90159-60108 | ||||
| 90168-40043 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90389-10031 | ||||

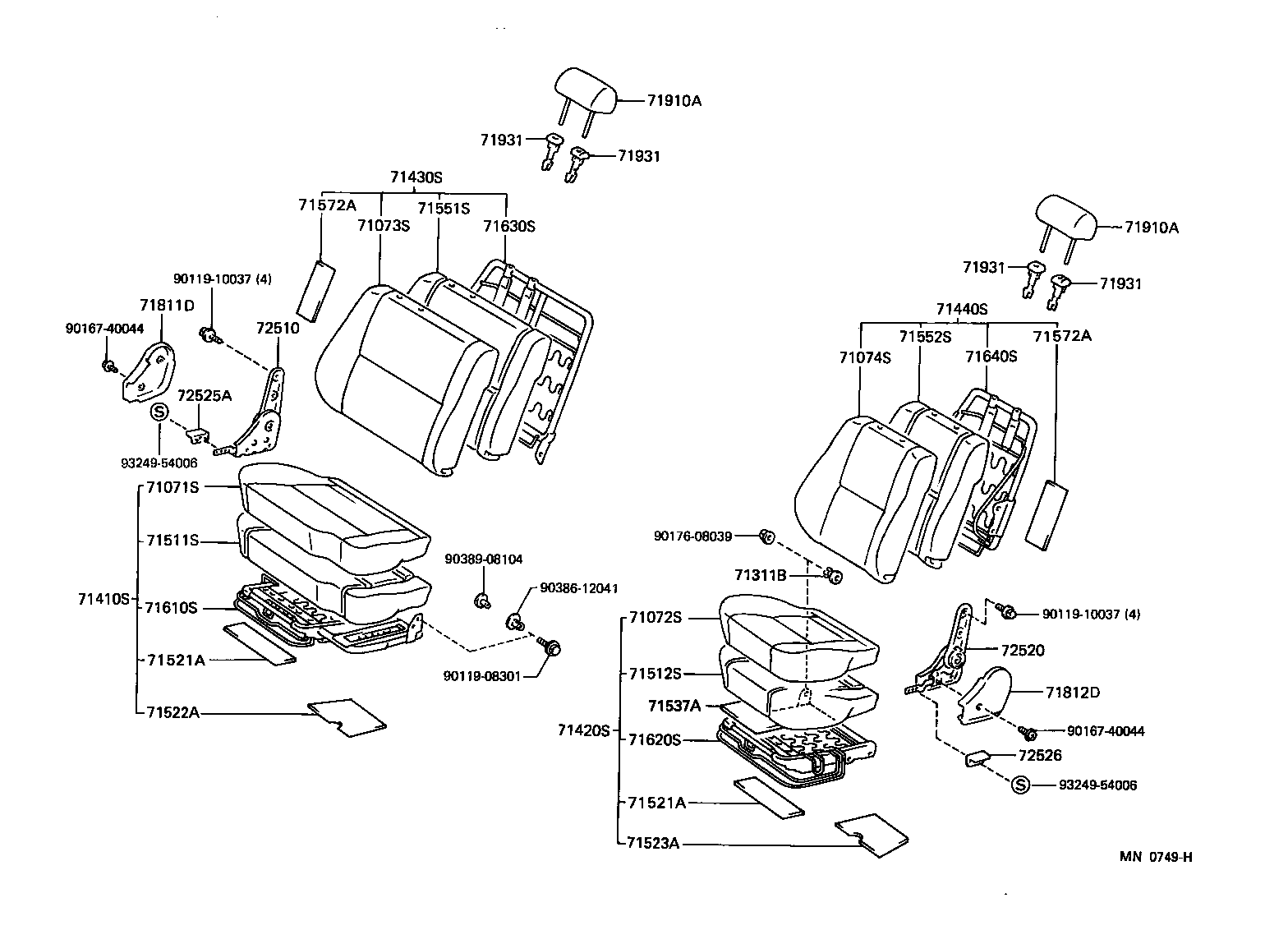

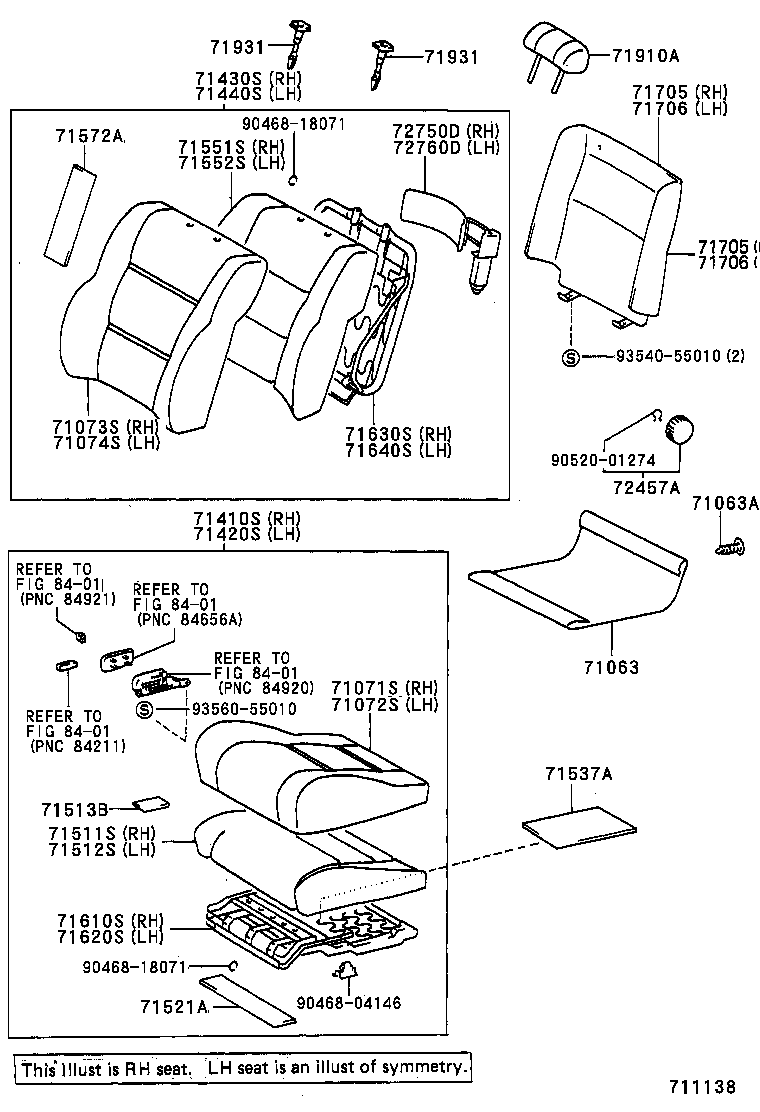

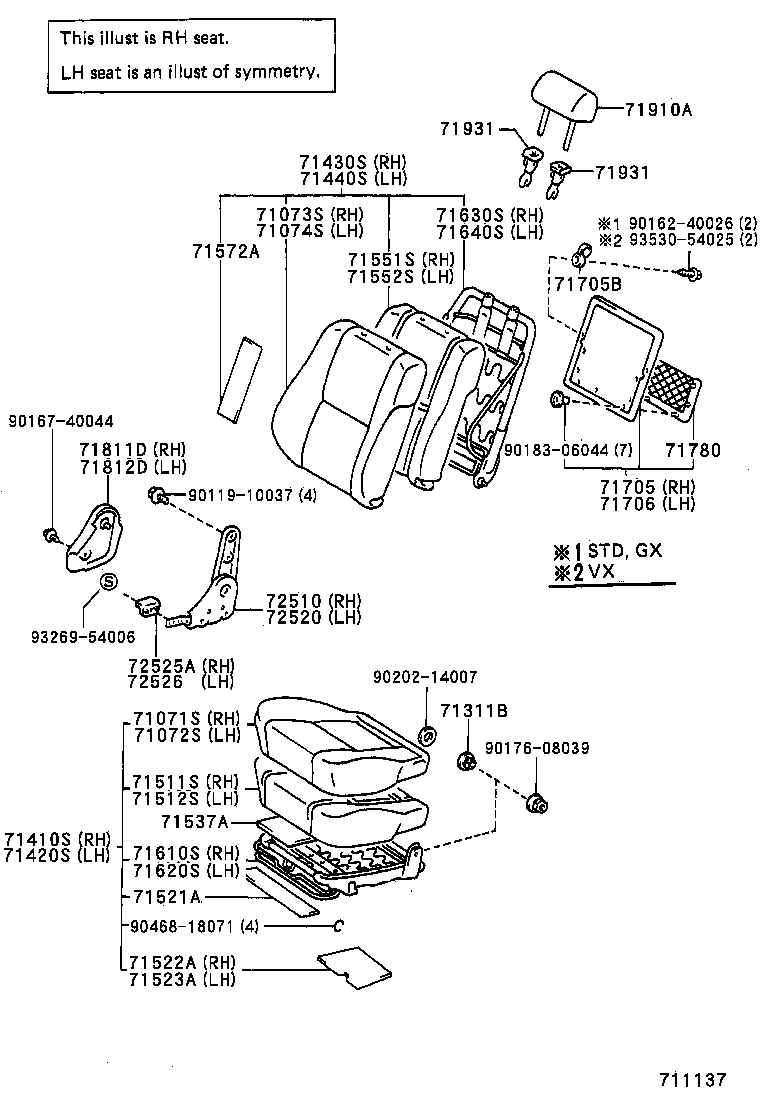

ILLUST NO. 1 OF 4(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6013003 |
FJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6013006 |
FJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6008006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71071-6008003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6013006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6014003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6014006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6010003 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6010006 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71072-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6009006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71073-6009003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6011003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6011006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71073-6011006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71073-6011003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6013003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6013006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6009003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6009006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
FJ80..STD..GEN;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,HDJ80..GX,VX W(SEPARATE SEAT) |
2 | ||
| 90386-12027 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6020006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71410-6021006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT),SABLE,TRIM4# |
1 | ||
| 71410-6021003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6020003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6006003 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6006006 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71420-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-6007003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6007006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71430-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71430-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6003006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71430-6003003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6016003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6016006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-6002003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6002006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-60050 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71511-60050 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71511-60040 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;FZJ80..SOB..GX..GCC;FZJ80..LHD..SOB..GEN;FZJ80..LHD..LUB..(GX,STD);HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-60020 |
HDJ80..5F..VX;FZJ80..RHD..VX;FJ80,FZJ80,HZJ80..LHD;FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60060 |
FJ80..LHD..4F..STD;FJ80..LHD..MTM..GX..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN W(SEPARATE SEAT) |
1 | ||
| 71551-60070 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC |
1 | ||
| 71551-60070 |
FJ80,HZJ80..LHD..MTM..(GX,STD)..GEN |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60060 |
HDJ80..5F..VX;FJ80,HZJ80..LHD..GEN;FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71610-60030 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71610-60030 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;FZJ80..SOB..GX..GCC;FZJ80..LHD..SOB..GEN;FZJ80..LHD..LUB..(GX,STD);HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71630-60020 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71630-60020 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-60010 |
FJ80,HDJ80..4FC..GX..ARL;FJ80,FZJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71811-2016006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2011006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812-2011013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-6004003 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6004006 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209016 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-1209043 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203016 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72526-1203043 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10037 | ||||
| 90162-40026 | ||||
| 90167-40044 | ||||
| 90176-08039 | ||||
| 90183-06044 | ||||
| 90202-14007 | ||||
| 90468-18071 | ||||
| 93269-54006 | ||||
| 93530-54025 | ||||
ILLUST NO. 1 OF 4(9001- )FZJ80..5F ; (9001- )FJ80,HDJ80,HZJ80 ; (9001- )FZJ80..4FC..GX,VX
POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6013003 |
FJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6013006 |
FJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6008006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71071-6008003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6013006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6014003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6014006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6010003 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6010006 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71072-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6009006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71073-6009003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6011003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6011006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71073-6011006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71073-6011003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6013003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6013006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6009003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6009006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6020006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71410-6021006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT),SABLE,TRIM4# |
1 | ||
| 71410-6021003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6020003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6006003 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6006006 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71420-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-6007003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6007006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71430-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71430-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6003006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71430-6003003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6016003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6016006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-6002003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6002006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-60050 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71511-60050 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71511-60040 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;FZJ80..SOB..GX..GCC;FZJ80..LHD..SOB..GEN;FZJ80..LHD..LUB..(GX,STD);HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-60020 |
HDJ80..5F..VX;FZJ80..RHD..VX;FJ80,FZJ80,HZJ80..LHD;FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60060 |
FJ80..LHD..4F..STD;FJ80..LHD..MTM..GX..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN W(SEPARATE SEAT) |
1 | ||
| 71551-60070 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC |
1 | ||
| 71551-60070 |
FJ80,HZJ80..LHD..MTM..(GX,STD)..GEN |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60060 |
HDJ80..5F..VX;FJ80,HZJ80..LHD..GEN;FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71610-60030 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71610-60030 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;FZJ80..SOB..GX..GCC;FZJ80..LHD..SOB..GEN;FZJ80..LHD..LUB..(GX,STD);HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71630-60020 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71630-60020 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-60010 |
FJ80,HDJ80..4FC..GX..ARL;FJ80,FZJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-6004003 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6004006 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-04146 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 93540-55010 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 4(9001- )LHD..MTM..GX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6013003 |
FJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6013006 |
FJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6008006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71071-6008003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6013006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6013003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6014003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6014006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71071-6010003 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6010006 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71072-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6009006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71073-6009003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6011003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6011006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71073-6011006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71073-6011003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6013003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6013006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6009003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6009006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
FJ80..STD..GEN;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,HDJ80..GX,VX W(SEPARATE SEAT) |
2 | ||
| 90386-12027 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6020006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71410-6021006 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT),SABLE,TRIM4# |
1 | ||
| 71410-6021003 |
FJ80,HZJ80..LHD..STD..GEN W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6020003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6006003 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6006006 |
FJ80,FZJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71420-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-6007003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6007006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71430-6007006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71430-6007003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6003006 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71430-6003003 |
FJ80,HZJ80..LHD..4F..STD W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6016003 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6016006 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC & W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-6002003 |
FJ80,HZJ80..LHD..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6002006 |
FJ80,HZJ80..LHD..STD..GEN SABLE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-60050 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71511-60050 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71511-60040 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;FZJ80..SOB..GX..GCC;FZJ80..LHD..SOB..GEN;FZJ80..LHD..LUB..(GX,STD);HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-60020 |
HDJ80..5F..VX;FZJ80..RHD..VX;FJ80,FZJ80,HZJ80..LHD;FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60060 |
FJ80..LHD..4F..STD;FJ80..LHD..MTM..GX..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN W(SEPARATE SEAT) |
1 | ||
| 71551-60070 |
FJ80,HZJ80..LHD..4F..STD IVORY COAST SPEC |
1 | ||
| 71551-60070 |
FJ80,HZJ80..LHD..MTM..(GX,STD)..GEN |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60060 |
HDJ80..5F..VX;FJ80,HZJ80..LHD..GEN;FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71610-60030 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71610-60030 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..4F..STD;FZJ80..SOB..GX..GCC;FZJ80..LHD..SOB..GEN;FZJ80..LHD..LUB..(GX,STD);HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 71630-60020 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 71630-60020 |
FJ80..LHD..4F..STD;FZJ80,HZJ80..LHD..SOB..STD..GEN IVORY COAST SPEC |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-60010 |
FJ80,HDJ80..4FC..GX..ARL;FJ80,FZJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71811-2016006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2011006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812-2011013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-6004003 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6004006 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) SABLE,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-6004003 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6004006 |
FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209016 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-1209043 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203016 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72526-1203043 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90167-40044 | ||||
| 90176-08039 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 93249-54006 | ||||
ILLUST NO. 2 OF 4(9001- )
BENCH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-60040 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-60020 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-6003006 |
FJ80,HZJ80..STD..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 71075-6003003 |
FJ80,HZJ80..STD..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-6014003 |
FJ80,HZJ80..STD..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6014006 |
FJ80,HZJ80..STD..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-60030 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
2 | ||
| 71325A - HINGE, REAR SEAT CUSHION LEG | ||||
| 71325-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
3 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
3 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
3 | ||
| 71398D - GUIDE, REAR SEAT CUSHION SUPPORT | ||||
| 71398-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-6009003 |
FJ80,HZJ80..STD..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71460-6009006 |
FJ80,HZJ80..STD..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-6013006 |
FJ80,HZJ80..STD..(ARL,GEN) SABLE,TRIM4# |
1 | ||
| 71480-6013003 |
FJ80,HZJ80..STD..(ARL,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-60060 |
FJ80,HDJ80,HZJ80..(GX,STD)..(ARL,GEN) |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71833-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-9570003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72525-9570003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
2 | ||
| 72593-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
2 | ||
| 72597 - BEZEL, RECLINING REMOTE CONTROL | ||||
| 72597-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
2 | ||
| 72597-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 72651 - ROD, REAR SEAT BACK LOCK | ||||
| 72651-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-6002003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72665-6002006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-6002006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72666-6002003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72695-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
2 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
2 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72630-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72630-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72640-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72640-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 78950-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 74551-60010 | ||||
| 90105-11033 | ||||
| 90119-10229 | ||||
| 90119-10493 | ||||
| 90119-10708 | ||||
| 90159-60120 | ||||
| 90168-40043 | ||||
| 90183-08003 | ||||
| 90204-11042 | ||||
| 90254-03029 | ||||
| 90386-09017 | ||||
| 90389-12012 | ||||
| 90467-08093 | ||||
| 90468-18071 | ||||
| 90506-08035 | ||||
| 90508-75001 | ||||
| 93510-53510 | ||||
| 93540-53510 | ||||
| 93546-24516 | ||||
| 96150-01600 | ||||
ILLUST NO. 4 OF 4(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60020 |
FJ80..LHD..MTM..GX;FJ80..LHD..STD..GEN;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 72110-60050 |
FJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 72110-60020 |
FJ80..LHD..MTM..GX;FJ80..LHD..STD..GEN;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 72110-60020 |
FJ80..STD..GEN;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60020 |
FJ80..LHD..MTM..GX;FJ80..LHD..STD..GEN;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 72110-60050 |
FJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 72110-60020 |
FJ80..LHD..MTM..GX;FJ80..LHD..STD..GEN;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 72110-60020 |
FJ80..STD..GEN;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 72120-60010 |
FJ80,HZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 72120-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 72120-60010 |
FJ80,HZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 72120-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60010 |
FJ80..STD..GEN;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 72130-60010 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 72130-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..STD..GEN;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60010 |
FJ80..STD..GEN;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 72130-60010 |
FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 72130-60010 |
FJ80..LHD..MTM..GX;FJ80..LHD..STD..GEN;HZJ80..LHD..MTM..(GX,STD) W(SEPARATE SEAT) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60010 |
FJ80,HZJ80..LHD..(GX,STD);FJ80,HDJ80,HZJ80..5F..(GX,STD)..ARL |
1 | ||
| 72140-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 72140-60010 |
HDJ80..5F..GX;FJ80,HZJ80..(GX,STD)..(CBR,DSL) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60010 |
FJ80,HZJ80..LHD..(GX,STD);FJ80,HDJ80,HZJ80..5F..(GX,STD)..ARL |
1 | ||
| 72140-60010 |
FJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 72140-60010 |
HDJ80..5F..GX;FJ80,HZJ80..(GX,STD)..(CBR,DSL) |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-60020 |
FJ80,HZJ80..MTM..(GX,STD);FJ80,HDJ80..ARL..(EFI,TD2) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-60020 |
FJ80,HZJ80..MTM..(GX,STD);FJ80,HDJ80..ARL..(EFI,TD2) |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10605 | ||||
| 90523-08001 | ||||
ILLUST NO. 2 OF 4(9001- )
SPLIT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71833-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-9570003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72525-9570003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-6002003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72665-6002006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-6002006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72666-6002003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72630-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72630-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72640-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 72640-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 78950-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 74551-60010 | ||||
| 90101-06022 | ||||
| 90105-11033 | ||||
| 90119-08587 | ||||
| 90119-10101 | ||||
| 90119-10229 | ||||
| 90119-10493 | ||||
| 90119-10708 | ||||
| 90159-60120 | ||||
| 90164-35010 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90183-08003 | ||||
| 90201-06012 | ||||
| 90204-11042 | ||||
| 90206-12050 | ||||
| 90386-09017 | ||||
| 90389-06041 | ||||
| 90389-09005 | ||||
| 90389-12012 | ||||
| 90467-08093 | ||||
| 90468-18071 | ||||
| 90506-08035 | ||||
| 90508-75001 | ||||
| 90523-04003 | ||||
| 91611-60816 | ||||
| 93510-53510 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
