FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )LHD..SOB

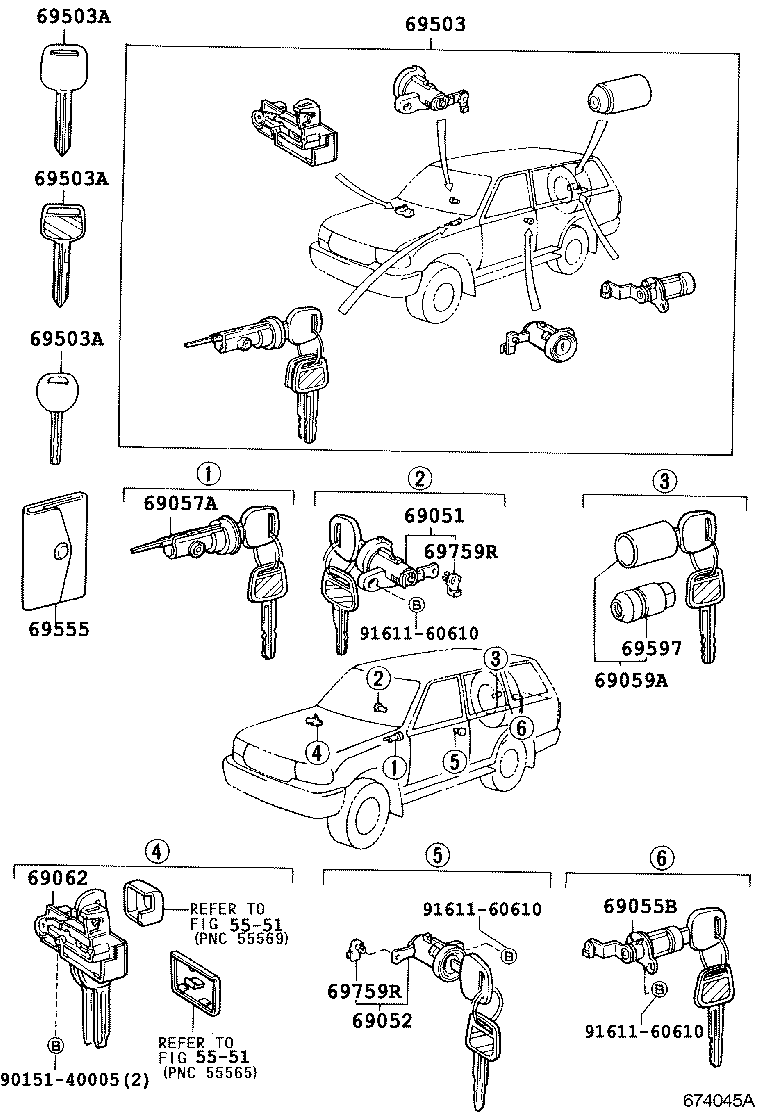

Click highlighted areas on diagram

diagram 5551 5551 69051 69052 69055B 69057A 69059A 69062 69503 69503A 69503A 69503A 69555 69597 69759R 69759R 9015140005 9161160610 9161160610 9161160610
Part # Description Qty Price
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-60030

FJ80,FZJ80,HZJ80..SOB..(GCC,GEN)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-60020

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
69059A - CYLINDER & KEY SET, SPARE WHEEL LOCK
69059-60010

FZJ80..LUB;FZJ80..LHD..SOB;FJ80,HZJ80..LHD..STD;FJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN)

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-60010

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
69503 - CYLINDER SET, LOCK
69005-60300

FJ80,FZJ80,HZJ80..SOB..(GCC,GEN)

 1
69005-60320

FJ80,FZJ80,HZJ80..SOB..(GCC,GEN)

W(SPARE WHEEL CARRIER(BACK DOOR))

 1
69503A - KEY, BLANK
90999-00163

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

MASTER KEY

 1
90999-00165

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

SUB KEY

 1
90999-00164

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00163

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

MASTER KEY

 1
90999-00165

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

SUB KEY

 1
90999-00164

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00163

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

MASTER KEY

 1
90999-00165

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

SUB KEY

 1
90999-00164

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

MASTER KEY,W(*68)

 1
69555 - COVER, KEY
69555-20010

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
Common parts
90151-40005
91611-60610
Linked diagrams
5551
