FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

Click highlighted areas on diagram

diagram 64749B 67206A 67207C 67208 67209C 67209C 6729360010 6729360010 68801 68802 68803A 68804A 68851D 68851D 68852B 68852B 68861C 68861C 68861C 68861C 69041A 69212 69212B 69291 6929322020 69350 69350 69350Q 69377C 69380C 69410C 69430A 69470C 69470C 69470C 69690 69706A 69751D 6975920070 69759J 69759J 69789 9011908093 9011908093 9011908511 9011908538 9011908892 9011908892 9011910351 9011910351 9014860022 9014880028 9014950064 9015180016 9015960010 9015960542 9016250008 9016750023 9018905003 9038616007 9054107023 9056509003 9153160608 91641H0820 91641H0820 9165140616 91673A0818 91673A0818 91673A0818 91673A0818 91673A0818 91673A0818 91673A0818 9418560800 9418560800
Part # Description Qty Price
Common parts
67293-60010
69293-22020
69759-20070
90119-08093
90119-08511
90119-08538
90119-08892
90119-10351
90148-60022
90148-80028
90149-50064
90151-80016
90159-60010
90159-60542
90162-50008
90167-50023
90189-05003
90386-16007
90541-07023
90565-09003
91531-60608
91641-H0820
91651-40616
91673-A0818
94185-60800

(9001- )SOB ; (9510-9607)HDJ80..LHD..5F

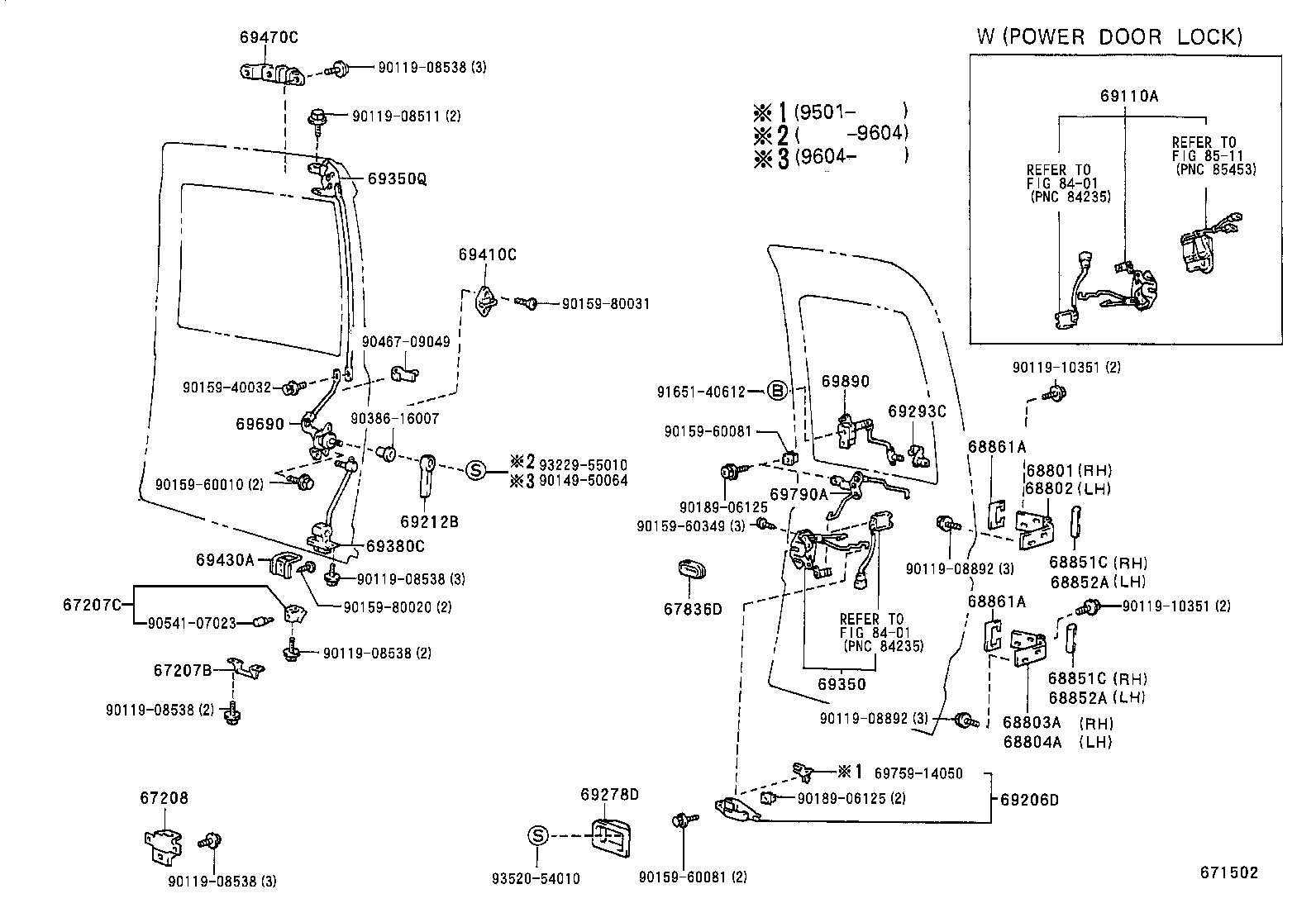

Click highlighted areas on diagram

diagram 67207B 67207C 67208 67836D 68801 68802 68803A 68804A 68851C 68851C 68852A 68852A 68861A 68861A 69110A 69206D 69212B 69278D 69293C 69350 69350Q 69380C 69410C 69430A 69470C 69690 6975914050 69790A 69890 8401 8401 8511 9011908511 9011908538 9011908538 9011908538 9011908538 9011908538 9011908892 9011908892 9011910351 9011910351 9014950064 9015940032 9015960010 9015960081 9015960081 9015960349 9015980020 9015980031 9018906125 9018906125 9038616007 9046709049 9054107023 9165140612 9322955010 9352054010
Part # Description Qty Price
67207B - STOPPER SUB-ASSY, BACK DOOR, UPPER
67206-90K00

FJ80,FZJ80,HZJ80..SOB

 1
67207C - STOPPER SUB-ASSY, BACK DOOR
67207-90K00

FJ80,FZJ80,HZJ80..SOB

 1
67208 - STOPPER SUB-ASSY, BACK DOOR, NO.2
67208-90K00

FJ80,FZJ80,HZJ80..SOB

 1
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-14010

FJ80..4FC..SOB..VX;FJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)

 1
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-60020

FJ80,FZJ80,HZJ80..SOB

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68802-60020

FJ80,FZJ80,HZJ80..SOB

 1
68803A - HINGE SUB-ASSY, BACK DOOR, LOWER RH
68803-60020

FJ80,FZJ80,HZJ80..SOB

 1
68804A - HINGE SUB-ASSY, BACK DOOR, LOWER LH
68804-60020

FJ80,FZJ80,HZJ80..SOB

 1
68851C - COVER, BACK DOOR HINGE, RH
68851-60010

FJ80,FZJ80,HZJ80..SOB

 2
68851C - COVER, BACK DOOR HINGE, RH
68851-60010

FJ80,FZJ80,HZJ80..SOB

 2
68852A - COVER, BACK DOOR HINGE, LH
68852-60010

FJ80,FZJ80,HZJ80..SOB

 2
68852A - COVER, BACK DOOR HINGE, LH
68852-60010

FJ80,FZJ80,HZJ80..SOB

 2
68861A - PAD, BACK DOOR HINGE
68861-60010

FJ80,FZJ80,HZJ80..SOB

 4
68861A - PAD, BACK DOOR HINGE
68861-60010

FJ80,FZJ80,HZJ80..SOB

 4
69206D - HANDLE SUB-ASSY, BACK DOOR INSIDE, LH
69206-6003006

FJ80,FZJ80,HZJ80..SOB

SABLE,TRIM4#

 1
69206-6003003

FJ80,FZJ80,HZJ80..SOB

GRAY,TRIM1#

 1
69212B - HANDLE, BACK DOOR INSIDE
69212-90K00

FJ80,FZJ80,HDJ80,HZJ80

 1
69278D - BEZEL, DOOR INSIDE HANDLE, LH
69278-6001006

FJ80,FZJ80,HZJ80..SOB

SABLE,TRIM4#

 1
69278-6001003

FJ80,FZJ80,HZJ80..SOB

BLUISH GRAY,TRIM1#

 1
69293C - SNAP, BACK DOOR HANDLE
69293-12020

FJ80,FZJ80,HZJ80..SOB

 1
69350 - LOCK ASSY, BACK DOOR
69350-60090

FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN

W(3RD SEAT)

 1
69350-60050

FJ80,FZJ80..STD..GCC;HZJ80..SOB..(GX,STD);FJ80,FZJ80..SOB..(ARL,GEN)

 1
69350Q - LOCK ASSY, BACK DOOR, UPPER
69350-60060

FJ80,FZJ80,HZJ80..SOB

 1
69380C - LOCK ASSY, BACK DOOR, LOWER
69380-60030

FJ80,FZJ80,HZJ80..SOB

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-87001

FJ80,FZJ80,HZJ80..SOB

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-60010

FJ80,FZJ80,HZJ80..SOB

 1
69470C - STRIKER ASSY, BACK DOOR UPPER LOCK
69470-60010

FJ80,FZJ80,HZJ80..SOB

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-60021

FJ80,HZJ80..SOB

 1
69690-60020

FJ80,HZJ80..SOB

 1
69790A - LINK ASSY, BACK DOOR LOCK CONTROL
69790-60040

FJ80,FZJ80,HZJ80..SOB

 1
69890 - LINK ASSY, BACK DOOR CONTROL HANDLE
69890-60010

FJ80,FZJ80,HZJ80..SOB

 1
Common parts
69759-14050
90119-08511
90119-08538
90119-08892
90119-10351
90149-50064
90159-40032
90159-60010
90159-60081
90159-60349
90159-80020
90159-80031
90189-06125
90386-16007
90467-09049
90541-07023
91651-40612
93229-55010
93520-54010
Linked diagrams
8401
8511
