FJ80L-GCKRS (1990)
Toyota Land Cruiser

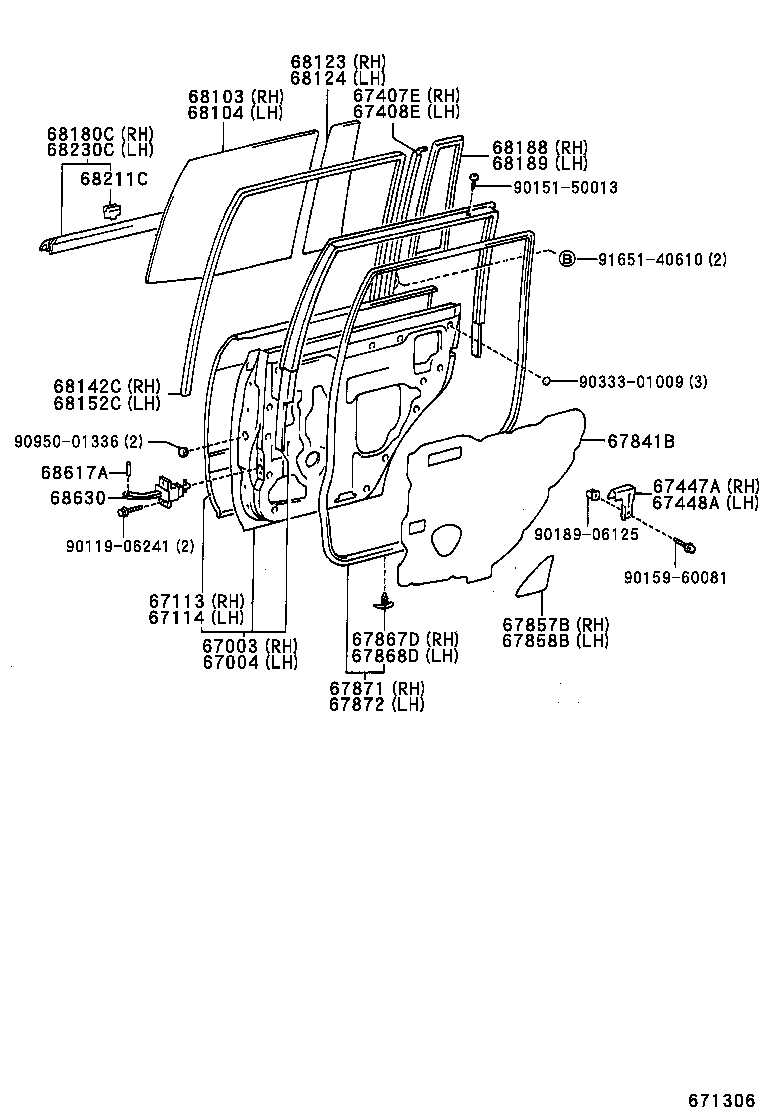

ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 67447A - PLATE, REAR DOOR INSIDE PANEL, RH | ||||
| 67447-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 67448A - PLATE, REAR DOOR INSIDE PANEL, LH | ||||
| 67448-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-60010 |
HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL |
2 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-60010 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-60010 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
FJ80,FZJ80,HDJ80,HZJ80 |
19 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
FJ80,FZJ80,HDJ80,HZJ80 |
19 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 67871-60040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-60040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 67872-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-60020 |
FZJ80,HDJ80;FJ80..GX,VX;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80..STD..(GCC,GEN) *TT,T=4.0 |
1 | ||
| 68113-60010 |
HZJ80..STD;HZJ80..GX..ARL;FJ80,FZJ80..STD..GEN;FJ80,HDJ80..(GX,STD)..ARL *TEM,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-60010 |
HZJ80..STD;HZJ80..GX..ARL;FJ80,FZJ80..STD..GEN;FJ80,HDJ80..(GX,STD)..ARL *TEM,T=4.0 |
1 | ||
| 68114-60020 |
FZJ80,HDJ80;FJ80..GX,VX;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80..STD..(GCC,GEN) *TT,T=4.0 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-60010 |
HZJ80..STD;HZJ80..GX..ARL;FJ80,FZJ80..STD..GEN;FJ80,HDJ80..(GX,STD)..ARL *TEM,T=3.5 |
1 | ||
| 68123-60020 |
FZJ80,HDJ80;FJ80..GX,VX;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80..STD..(GCC,GEN) *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-60010 |
HZJ80..STD;HZJ80..GX..ARL;FJ80,FZJ80..STD..GEN;FJ80,HDJ80..(GX,STD)..ARL *TEM,T=3.5 |
1 | ||
| 68124-60020 |
FZJ80,HDJ80;FJ80..GX,VX;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80..STD..(GCC,GEN) *TT,T=3.5 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-60010 |
FJ80,FZJ80,HZJ80..STD |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 68211C - CLIP(FOR REAR DOOR GLASS WEATHERSTRIP) | ||||
| 68211-12160 |
FJ80,FZJ80,HZJ80..STD |
12 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-60010 |
FJ80,FZJ80,HZJ80..STD |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90119-06241 | ||||
| 90151-50013 | ||||
| 90159-60081 | ||||
| 90189-06125 | ||||
| 90333-01009 | ||||
| 90950-01336 | ||||
| 91651-40610 | ||||

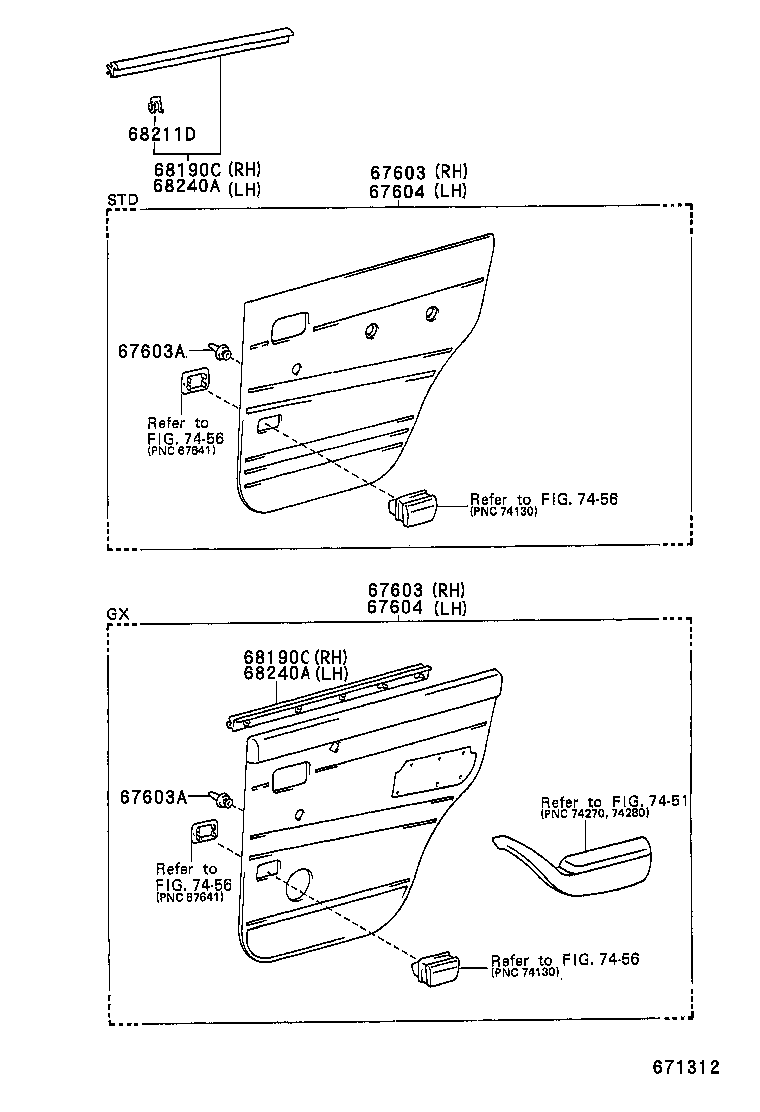

ILLUST NO. 1 OF 2(9001- )GX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-6001003 |
FJ80,FZJ80,HZJ80..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67630-6001006 |
FJ80,FZJ80,HZJ80..STD SABLE,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-6001003 |
FJ80,FZJ80,HZJ80..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67630-6001006 |
FJ80,FZJ80,HZJ80..STD SABLE,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12040 |
FJ80,HZJ80..STD GRAY |
28 | ||
| 67771-12050 |
FJ80,HZJ80..STD |
28 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12040 |
FJ80,HZJ80..STD GRAY |
28 | ||
| 67771-12050 |
FJ80,HZJ80..STD |
28 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-6001003 |
FJ80,FZJ80,HZJ80..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67640-6001006 |
FJ80,FZJ80,HZJ80..STD SABLE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-6001003 |
FJ80,FZJ80,HZJ80..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67640-6001006 |
FJ80,FZJ80,HZJ80..STD SABLE,TRIM4# |
1 | ||
| 68190C - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH | ||||
| 68190-60020 |
FJ80,FZJ80,HZJ80..STD |
1 | ||
| 68190C - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH | ||||
| 68190-60020 |
FJ80,FZJ80,HZJ80..STD |
1 | ||
| 68211D - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 68211-10030 |
FJ80,FZJ80,HZJ80..STD |
8 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-60010 |
FJ80,FZJ80,HZJ80..STD |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-60010 |
FJ80,FZJ80,HZJ80..STD |
1 | ||
