FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(9001- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67601 67602 67701 67702 68170A 68170F 68220A 69751E 9018904042 9354054014
Part # Description Qty Price
Common parts
90189-04042
93540-54014

ILLUST NO. 1 OF 4(9001- )

Click highlighted areas on diagram

DOOR PANEL

diagram 62367C 67001 67002 67041 67042 67111 67112 67118B 67119 67401F 67401F 67402F 67402F 67403F 67403F 67404F 67404F 67481A 67482A 6754 6754 67831 67832 67861 67861 67862 67862 67863B 67864B 67867C 67867C 67868C 67868C 68101 68102 68141 68141 68142A 68143A 68143A 68160C 68160C 68161A 68161A 68192C 68193C 68194B 68194B 68195B 68195B 68210C 68210C 68610 68617 68621 68649 68696 9011906307 9011906307 9015140018 9018904042 9046706002 9054109006 9095001061 9095001437 9095001639 9095001639 9095006030 9153160608 9153160608 9153160608 9153160608 9153160608 9165140610 9165140610 9165140610 9165140610 9165140610 9165160818 9165160818 9165160855 91673A0614 9356054014 9356054014
Part # Description Qty Price
Common parts
90119-06307
90151-40018
90189-04042
90467-06002
90541-09006
90950-01061
90950-01437
90950-01639
90950-06030
91531-60608
91651-40610
91651-60818
91651-60855
91673-A0614
93560-54014
Linked diagrams
6754

ILLUST NO. 4 OF 4(9001- )

Click highlighted areas on diagram

GRIP TYPE

diagram 67601 67601 67601 67601 67601 67601A 67601A 67601A 67601A 67601A 67601A 67602 67602 67602 67602 67602 67777 67777 67777 67778 67778 67778 8401 8401 8401 8401 8401 9016840068 9016840068 9016840068 9016840068
Part # Description Qty Price
Common parts
90168-40068
Linked diagrams
8401

ILLUST NO. 4 OF 4(9001- )

Click highlighted areas on diagram

ARMREST TYPE

diagram 67601 67601 67601 67601 67601 67601 67601A 67601A 67601A 67601A 67601A 67601A 67601A 67601A 67602 67602 67602 67602 67602 67602 67777 67777 67777 67778 67778 67778 7451 7451 8401 8401 9016840068 9016840068 9016840068 9016840068
Part # Description Qty Price
Common parts
90168-40068
Linked diagrams
7451
8401

ILLUST NO. 4 OF 4(9001- )

Click highlighted areas on diagram

ARMREST TYPE

diagram 67601 67601 67601A 67601A 67602 67602 7451 7451 9016840068 9016840068
Part # Description Qty Price
Common parts
90168-40068
Linked diagrams
7451

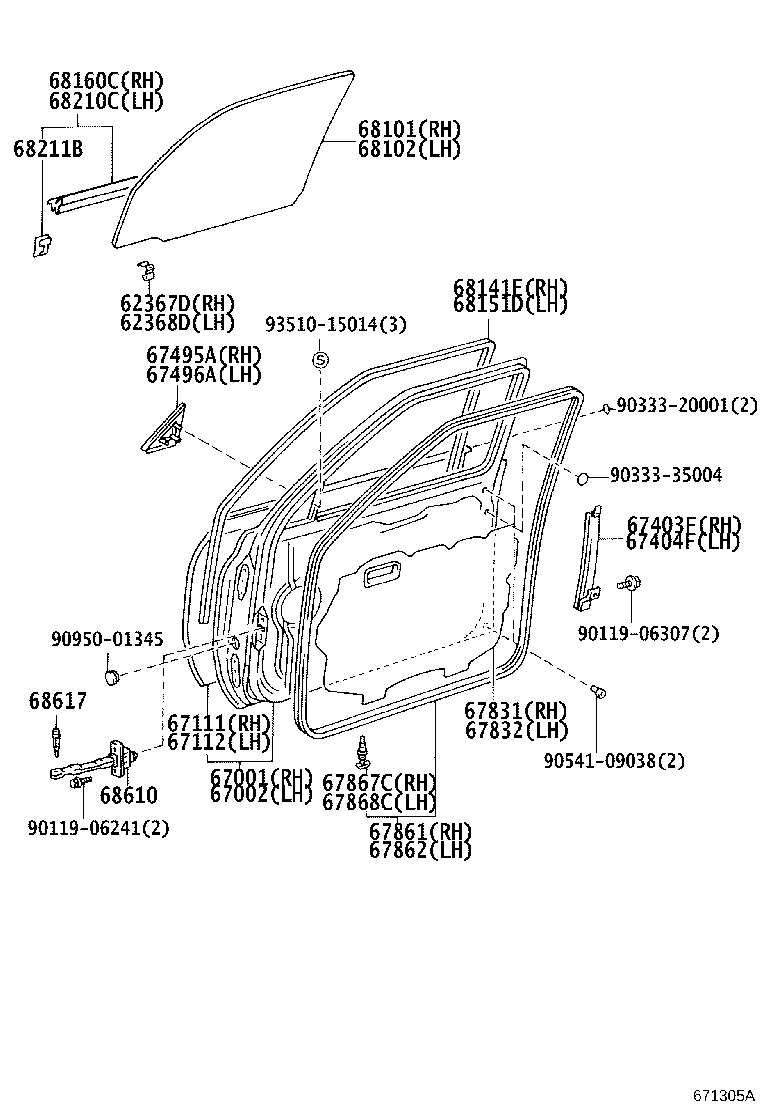

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

DOOR PANEL

diagram 62367D 62368D 67001 67002 67111 67112 67403F 67404F 67495A 67496A 67831 67832 67861 67862 67867C 67868C 68101 68102 68141E 68151D 68160C 68210C 68211B 68610 68617 9011906241 9011906307 9033320001 9033335004 9054109038 9095001345 9351015014
Part # Description Qty Price
62367D - CLIP, DOOR WINDOW GLASS, RH
62367-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
62368D - CLIP, DOOR WINDOW GLASS, LH
62367-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-60340

FJ80,HDJ80,HZJ80..GX,STD

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-60340

FJ80,HDJ80,HZJ80..GX,STD

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-60230

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-60230

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-60020

FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-60020

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-60020

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-60070

FJ80,HDJ80,HZJ80

 1
67861-60010

FJ80,HDJ80,HZJ80

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-60070

FJ80,HDJ80,HZJ80

 1
67862-60010

FJ80,HDJ80,HZJ80

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-22020

FJ80,FZJ80,HDJ80,HZJ80

 21
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-22020

FJ80,FZJ80,HDJ80,HZJ80

 21
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-60060

FZJ80,HDJ80;FJ80..GX,VX;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80..STD..(GCC,GEN)

*TT,T=4.0

 1
68111-60050

HZJ80..STD;HZJ80..GX..ARL;FJ80,FZJ80..STD..GEN;FJ80,HDJ80..(GX,STD)..ARL

*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-60040

HZJ80..STD;HZJ80..GX..ARL;FJ80,FZJ80..STD..GEN;FJ80,HDJ80..(GX,STD)..ARL

*TEM,T=4.0

 1
68112-60050

FZJ80,HDJ80;FJ80..GX,VX;HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80..STD..(GCC,GEN)

*TT,T=4.0

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-60010

FJ80,FZJ80,HZJ80..STD

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-60010

FJ80,FZJ80,HZJ80..STD

 1
68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)
68211-12160

FJ80,FZJ80,HZJ80..STD

 14
68610 - CHECK ASSY, FRONT DOOR
68610-60010

FJ80,HDJ80,HZJ80

 2
68617 - PIN, FRONT DOOR CHECK
68617-20011

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90119-06241
90119-06307
90333-20001
90333-35004
90541-09038
90950-01345
93510-15014

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67492A 67499 67601 67601 67601A 67601A 67602 67602 67777 67778 68170 68170 68170A 7451 9016840068
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-60030

FJ80,FZJ80,HZJ80..STD

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-60030

FJ80,FZJ80,HZJ80..STD

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30020

FJ80,FZJ80,HDJ80,HZJ80

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6002003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
67610-6002006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6002003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
67610-6002006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040

FJ80,HZJ80..STD

GRAY

 32
67771-12050

FJ80,HZJ80..STD

 32
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040

FJ80,HZJ80..STD

GRAY

 32
67771-12050

FJ80,HZJ80..STD

 32
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6002003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
67620-6002006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6002003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
67620-6002006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60040

FJ80,FZJ80,HZJ80..STD

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60040

FJ80,FZJ80,HZJ80..STD

 2
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

FJ80,FZJ80,HZJ80..STD

 24
Common parts
90168-40068
Linked diagrams
7451

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

DOOR TRIM,W(POWER WINDOW)

diagram 67601 67601A 67602 67777 67778 68170 7451 8602 9016840068
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6002003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
67610-6002006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040

FJ80,HZJ80..STD

GRAY

 32
67771-12050

FJ80,HZJ80..STD

 32
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6002003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
67620-6002006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60040

FJ80,FZJ80,HZJ80..STD

 2
Common parts
90168-40068
Linked diagrams
7451
8602
