FJ80L-GCKRS (1990)
Toyota Land Cruiser

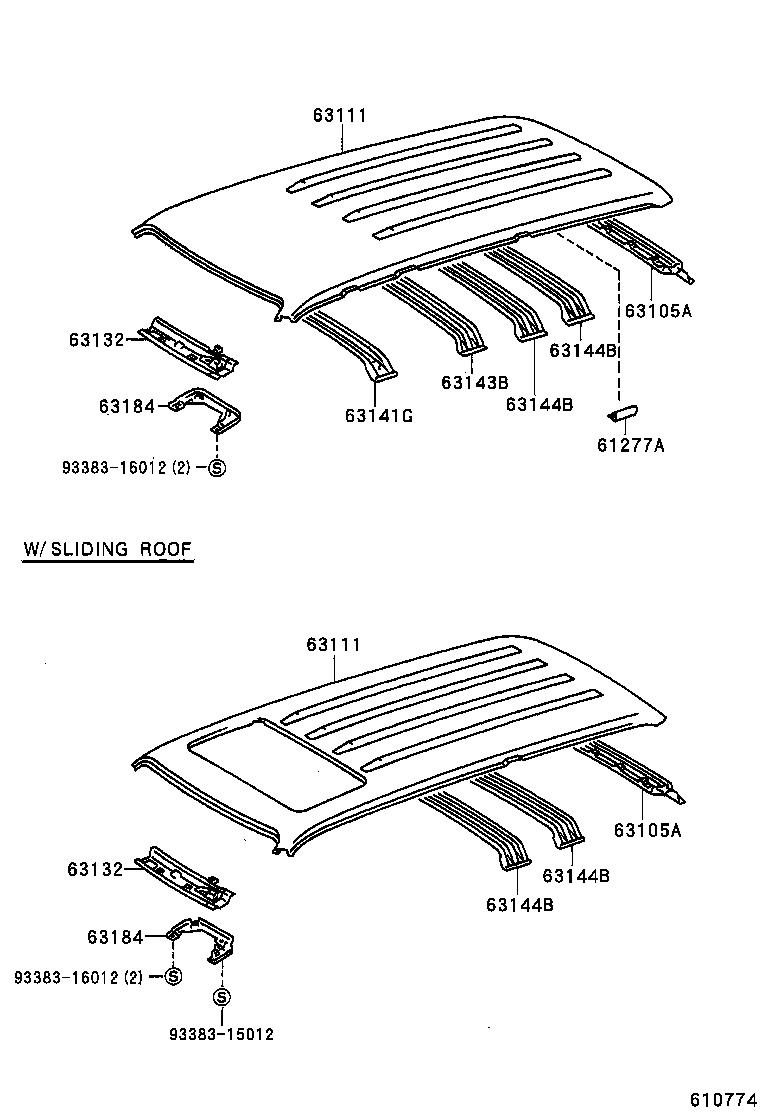

ILLUST NO. 1 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-60010 |
FJ80,HZJ80..STD |
2 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60100 |
HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60100 |
HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60110 |
FJ80,FZJ80,HZJ80..SOB..GEN W(ROOF CARRIER) |
1 | ||
| 63111-60200 |
FJ80,FZJ80,HZJ80..SOB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60110 |
FJ80,FZJ80,HZJ80..SOB..GEN W(ROOF CARRIER) |
1 | ||
| 63111-60200 |
FJ80,FZJ80,HZJ80..SOB |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(ROOF CARRIER) |
2 | ||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(ROOF CARRIER) |
2 | ||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(ROOF CARRIER) |
2 | ||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(ROOF CARRIER) |
2 | ||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 93383-15012 | ||||
| 93383-16012 | ||||

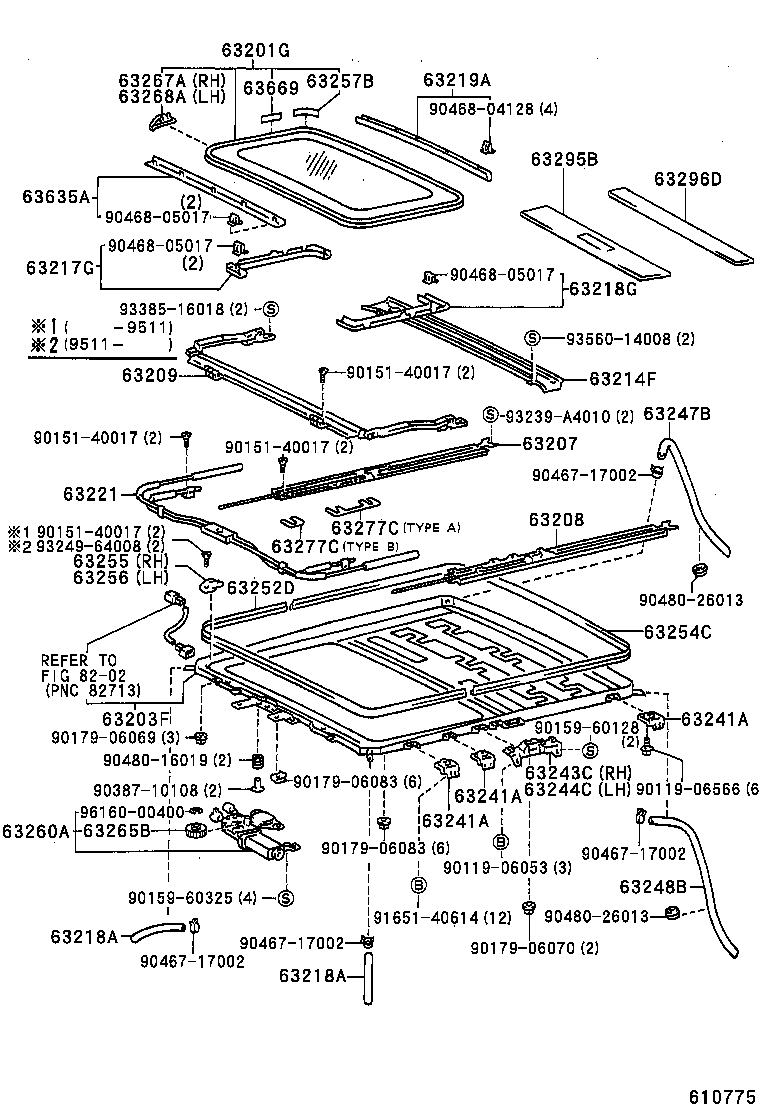

ILLUST NO. 2 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06053 | ||||
| 90119-06566 | ||||
| 90151-40017 | ||||
| 90159-60128 | ||||
| 90159-60325 | ||||
| 90179-06069 | ||||
| 90179-06070 | ||||
| 90179-06083 | ||||
| 90387-10108 | ||||
| 90467-17002 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90480-16019 | ||||
| 90480-26013 | ||||
| 91651-40614 | ||||
| 93239-A4010 | ||||
| 93249-64008 | ||||
| 93385-16018 | ||||
| 93560-14008 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 8202 | ||||

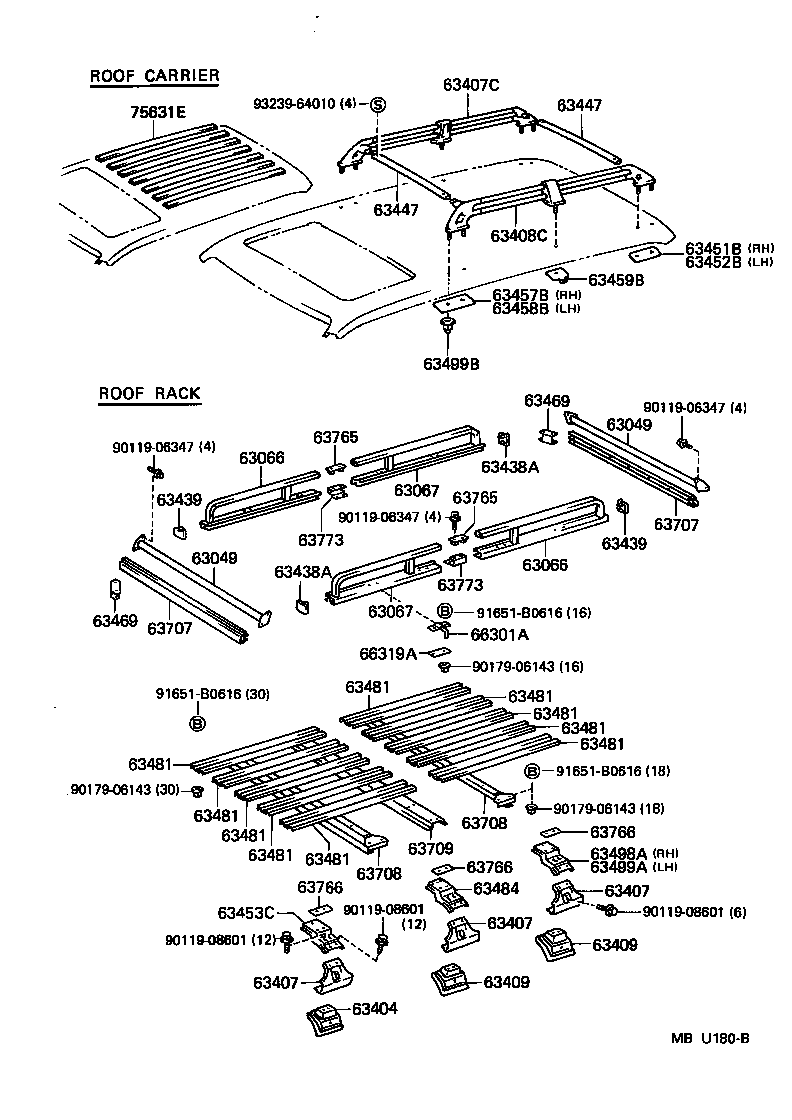

ILLUST NO. 3 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63404 - LEG SUB-ASSY, ROOF RACK, FRONT | ||||
| 63404-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-60010 |
FJ80,HDJ80,HZJ80..GCC,GEN |
6 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-60010 |
FJ80,HDJ80,HZJ80..GCC,GEN |
6 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-60010 |
FJ80,HDJ80,HZJ80..GCC,GEN |
6 | ||
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63447 - BAR, ROOF CARRIER, FRONT | ||||
| 63447-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
2 | ||
| 63447 - BAR, ROOF CARRIER, FRONT | ||||
| 63447-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
2 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 63452B - REINFORCEMENT, ROOF RACK, NO.2 | ||||
| 63452-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 63453C - STAY, ROOF RACK, FRONT RH | ||||
| 63453-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 63457B - RETAINER, ROOF CARRIER, NO.1 RH | ||||
| 63457-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 63458B - RETAINER, ROOF CARRIER, NO.1 LH | ||||
| 63458-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 63459B - RETAINER, ROOF CARRIER, NO.2 | ||||
| 63459-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
2 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
4 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
10 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63498A - STAY, ROOF RACK, REAR RH | ||||
| 63498-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 63499A - STAY, ROOF RACK, REAR LH | ||||
| 63499-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 63499B - NUT, ROOF CARRIER | ||||
| 90176-06035 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
10 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
8 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
7 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-08601 | ||||
| 90179-06143 | ||||
| 91651-B0616 | ||||
| 93239-64010 | ||||
