FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )STD

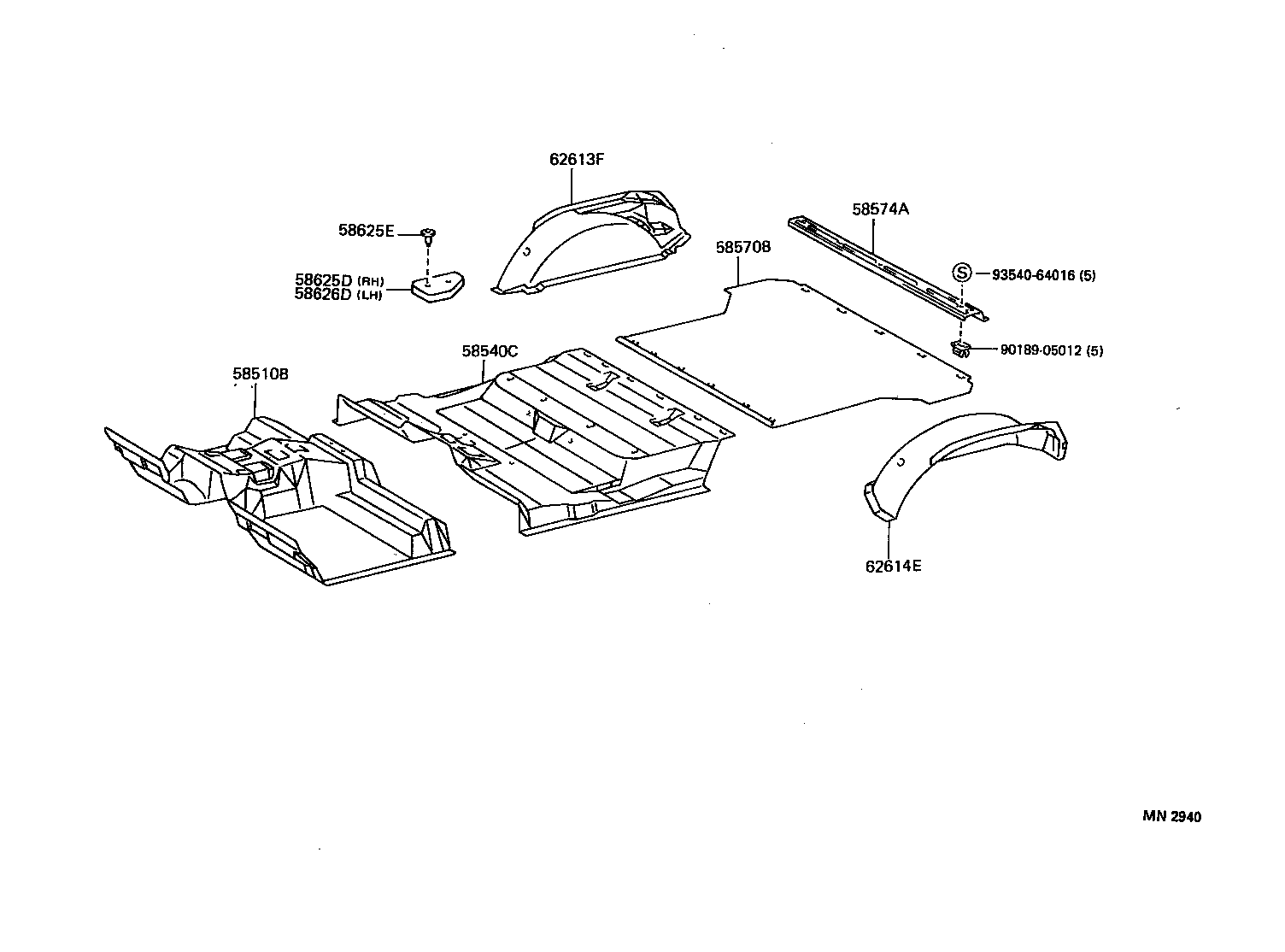

Click highlighted areas on diagram

diagram 58510B 58540C 58570B 58574A 58625D 58625E 58626D 62613F 62614E 9018905012 9354064016
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-6026006

FJ80,FZJ80,HZJ80..LHD..STD

SABLE,TRIM4#

 1
58510-6026003

FJ80,FZJ80,HZJ80..LHD..STD

BLUISH GRAY,TRIM1#

 1
58540C - MAT ASSY, FLOOR, REAR
58540-6001003

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(FRONT SEPARATE SEAT) & W/O(REAR SEAT),BLUISH GRAY,TRIM1#

 1
58540-6001006

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(FRONT SEPARATE SEAT) & W/O(REAR SEAT),SABLE,TRIM4#

 1
58540-6006006

FJ80,FZJ80,HZJ80..LHD..STD

SABLE,TRIM4#

 1
58540-6005006

FJ80,FZJ80,HZJ80..LHD..STD

W/O(REAR SEAT),SABLE,TRIM4#

 1
58540-6005003

FJ80,FZJ80,HZJ80..LHD..STD

W/O(REAR SEAT),BLUISH GRAY,TRIM1#

 1
58540-6006003

FJ80,FZJ80,HZJ80..LHD..STD

BLUISH GRAY,TRIM1#

 1
58540-6011006

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(REAR HEATER),SABLE,TRIM4#

 1
58540-6012006

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(FRONT SEPARATE SEAT & REAR HEATER),SABLE,TRIM4#

 1
58540-6007006

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(FRONT SEPARATE SEAT),SABLE,TRIM4#

 1
58540-6012003

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(FRONT SEPARATE SEAT & REAR HEATER),BLUISH GRAY,TRIM1#

 1
58540-6011003

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(REAR HEATER),BLUISH GRAY,TRIM1#

 1
58540-6007003

FJ80,FZJ80,HZJ80..LHD..STD..GEN

W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#

 1
58570B - MAT ASSY, REAR FLOOR
58570-6002006

FJ80,FZJ80,HZJ80..SOB..STD..(GCC,GEN)

W(PARALLEL FIXED 3RD SEAT),SABLE,TRIM4#

 1
58570-6004006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
58570-6002003

FJ80,FZJ80,HZJ80..SOB..STD..(GCC,GEN)

W(PARALLEL FIXED 3RD SEAT),BLUISH GRAY,TRIM1#

 1
58570-6004003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
58574-60020

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

W(SPARE WHEEL CARRIER LOCK)

 1
62613F - COVER, QUARTER WHEEL HOUSE, RH
62613-6001003

FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN

W(PARALLEL FIXED 3RD SEAT),BLUISH GRAY,TRIM1#

 1
62613-6001006

FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN

W(PARALLEL FIXED 3RD SEAT),SABLE,TRIM4#

 1
62613-6011006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
62613-6011003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
62614E - COVER, QUARTER WHEEL HOUSE, LH
62614-6003003

FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN

W(PARALLEL FIXED 3RD SEAT),BLUISH GRAY,TRIM1#

 1
62614-6003006

FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN

W(PARALLEL FIXED 3RD SEAT),SABLE,TRIM4#

 1
62614-6013003

FJ80,FZJ80,HZJ80..STD

BLUISH GRAY,TRIM1#

 1
62614-6013006

FJ80,FZJ80,HZJ80..STD

SABLE,TRIM4#

 1
Common parts
90189-05012
93540-64016
