FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

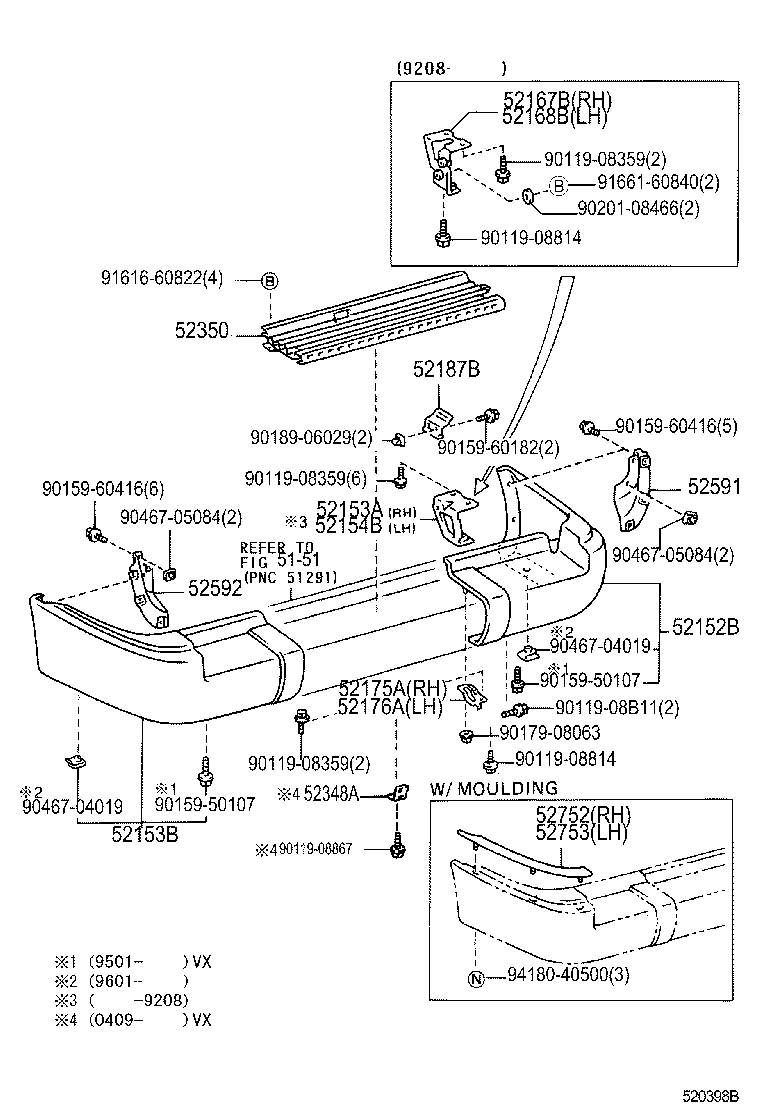

Click highlighted areas on diagram

diagram 5151 52152B 52153A 52153B 52154B 52167B 52168B 52175A 52176A 52187B 52348A 52350 52591 52592 52752 52753 9011908359 9011908359 9011908359 9011908814 9011908814 9011908867 9011908B11 9015950107 9015950107 9015960182 9015960416 9015960416 9017908063 9018906029 9020108466 9046704019 9046704019 9046705084 9046705084 9161660822 9166160840 9418040500
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52106-60090

FJ80,FZJ80,HZJ80..STD

 1
52153A - STAY, REAR BUMPER SIDE, RH
52153-60140

FJ80,FZJ80,HDJ80,HZJ80

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-60060

FJ80,FZJ80,HZJ80..STD

 1
52154B - STAY, REAR BUMPER SIDE, LH
52154-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
52175A - BRACKET, REAR BUMPER ARM MOUNTING, RH
52175-60010

FJ80..LUB;FJ80..MTM..SOB;FZJ80,HDJ80,HZJ80;FJ80..4FC..GX..GCC

 1
52176A - BRACKET, REAR BUMPER ARM MOUNTING, LH
52176-60010

FJ80,FZJ80,HZJ80..STD

 2
52187B - GUIDE, REAR BUMPER LOCATION
52187-60010

FJ80..LUB;FJ80..MTM..SOB;FZJ80,HDJ80,HZJ80;FJ80..4FC..GX..GCC

 2
52350 - STEP ASSY, REAR BUMPER
52351-60030

FJ80,HZJ80..SOB..(ARL,GEN)

 1
52351-60040

FJ80,HZJ80..SOB..GEN

W(SPARE WHEEL CARRIER)

 1
52351-60040

FJ80,HZJ80..SOB..(ARL,GEN)

W(SPARE WHEEL CARRIER)

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-60010

FJ80..LUB;FJ80..MTM..SOB;FZJ80,HDJ80,HZJ80;FJ80..4FC..GX..GCC

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-60010

FJ80..LUB;FJ80..MTM..SOB;FZJ80,HDJ80,HZJ80;FJ80..4FC..GX..GCC

 1
Common parts
90119-08359
90119-08814
90119-08867
90119-08B11
90159-50107
90159-60182
90159-60416
90179-08063
90189-06029
90201-08466
90467-04019
90467-05084
91616-60822
91661-60840
94180-40500
Linked diagrams
5151
