FJ80L-GCKRS (1990)
Toyota Land Cruiser

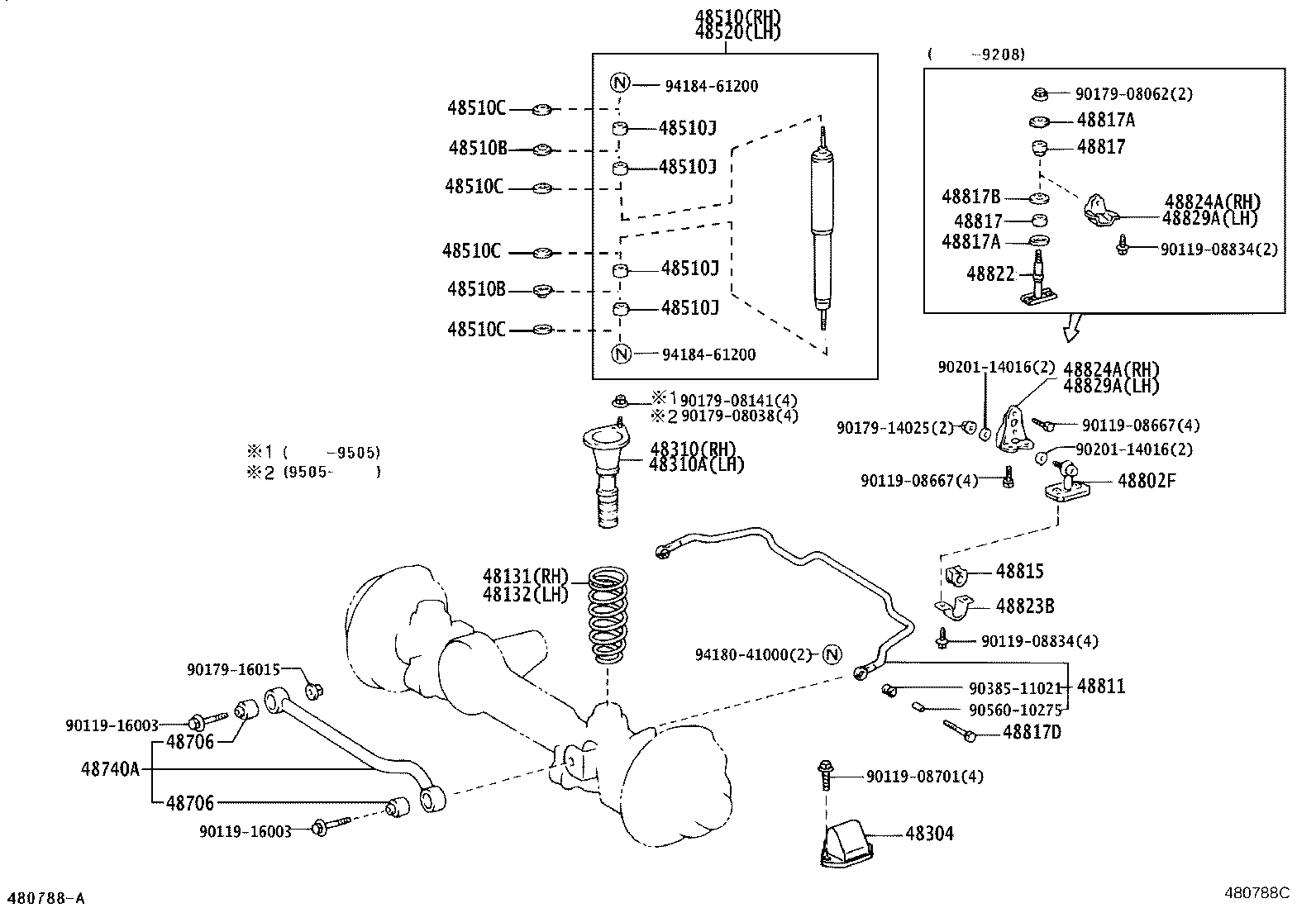

ILLUST NO. 3 OF 3(9001- )FZJ75..CBR ; (9001- )FZJ75..ARL..IV ; (9001- )FZJ75..CBU..EFI ; (9
| Part # | Description | Qty | Price |
|---|
(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60190 |
FJ80..LHD..STD W(WINCH & 5.50FX15 DISC WHEEL) |
1 | ||
| 48131-60190 |
FJ80..LHD..STD..GEN W(WINCH & 5.50FX15 DISC WHEEL) |
1 | ||
| 48131-6A080 |
FJ80..LHD..STD W(WINCH) |
1 | ||
| 48131-6A080 |
FJ80..LHD..STD..GEN W(WINCH) |
1 | ||
| 48131-60180 |
FJ80..LHD..STD W(5.50FX15 DISC WHEEL) |
1 | ||
| 48131-6A070 |
FJ80..LHD..STD |
1 | ||
| 48131-6A080 |
FJ80..LHD..STD W(WINCH) |
1 | ||
| 48131-60190 |
FJ80..LHD..STD H=487.5 |
1 | ||
| 48131-60180 |
FJ80..LHD..STD..GEN W(5.50FX15 DISC WHEEL) |
1 | ||
| 48131-60190 |
FJ80..LHD..STD..GEN W(WINCH & 5.50FX15 DISC WHEEL) |
1 | ||
| 48131-6A070 |
FJ80..LHD..STD..GEN |
1 | ||
| 48131-6A080 |
FJ80..LHD..STD..GEN W(WINCH) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60560 |
FJ80..STD..(GCC,GEN) W(WINCH) |
1 | ||
| 48131-60570 |
FJ80..STD..(GCC,GEN) W(WINCH & 5.50FX15 DISC WHEEL) |
1 | ||
| 48131-60560 |
FJ80..STD..GEN W(WINCH) |
1 | ||
| 48131-60570 |
FJ80..STD..GEN W(WINCH & 5.50FX15 DISC WHEEL) |
1 | ||
| 48131-60230 |
FJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48131-60220 |
FJ80..STD..(GCC,GEN) |
1 | ||
| 48131-60230 |
FJ80..STD..GEN W(5.50FX15 DISC WHEEL) |
1 | ||
| 48131-60560 |
FJ80..STD..(GCC,GEN) H=474 |
1 | ||
| 48131-60570 |
FJ80..STD..(GCC,GEN) H=494 |
1 | ||
| 48131-60560 |
FJ80..STD..GEN W(WINCH) |
1 | ||
| 48131-60220 |
FJ80..STD..GEN |
1 | ||
| 48131-60570 |
FJ80..STD..GEN W(WINCH & 5.50FX15 DISC WHEEL) |
1 | ||
| 48310 - SPRING ASSY, FRONT SUSPENSION HOLLOW, RH | ||||
| 48310-60020 |
FJ80,HZJ80..GCC;FJ80,HZJ80..STD..GEN W(5.50FX15 DISC WHEEL) |
1 | ||
| 48310-60020 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48310-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48310-60020 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48310A - SPRING ASSY, FRONT SUSPENSION HOLLOW, LH | ||||
| 48310-60020 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48310-60020 |
FJ80,HZJ80..GCC;FJ80,HZJ80..STD..GEN W(5.50FX15 DISC WHEEL) |
1 | ||
| 48310-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48310-60020 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-69205 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48511-69185 |
FJ80..VX..EFI;FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 48511-69205 |
FJ80,HZJ80..STD..GEN W(5.50FX15 DISC WHEEL) |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02141 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02141 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02144 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02144 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02144 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02144 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01004 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01004 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01004 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01004 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-69185 |
FJ80..VX..EFI;FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 48511-69205 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48511-69205 |
FJ80,HZJ80..STD..GEN W(5.50FX15 DISC WHEEL) |
1 | ||
| 48706 - BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD | ||||
| 48706-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 48706 - BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD | ||||
| 48706-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 48740A - ROD ASSY, FRONT LATERAL CONTROL | ||||
| 48740-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60010 |
FJ80..VX..EFI;FJ80,HDJ80,HZJ80..GCC,GEN W(FRONT DIFFERENTIAL LOCK) |
1 | ||
| 48804-60041 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48804-60020 |
FJ80..GX..EFI;FJ80..RHD..STD;HZJ80..STD..ARL;FJ80..LHD..4F..STD;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) W(*FDL & 5.50FX15 DISC WHEEL) OR W(*FDL & 7JJX15 DISC WHEEL) |
1 | ||
| 48804-60030 |
FJ80..VX..EFI;FJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 48804-60040 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30080 |
FJ80..VX..EFI;FJ80,HDJ80,HZJ80..GCC,GEN |
2 | ||
| 48815-30100 |
FJ80,HZJ80..STD..(GCC,GEN) W(5.50FX15 DISC WHEEL) |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02126 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02126 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02127 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-10172 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 48822 - ROD, STABILIZER LINK | ||||
| 48822-60040 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 48823B - COVER, FRONT STABILIZER BRACKET | ||||
| 48824-30050 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48824-60051 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48824-60051 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48829-60031 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 48829-60031 |
FJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08701 | ||||
| 90119-08834 | ||||
| 90119-16003 | ||||
| 90179-08038 | ||||
| 90179-08062 | ||||
| 90179-08141 | ||||
| 90179-14025 | ||||
| 90179-16015 | ||||
| 90201-14016 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
