FJ80L-GCKRS (1990)
Toyota Land Cruiser

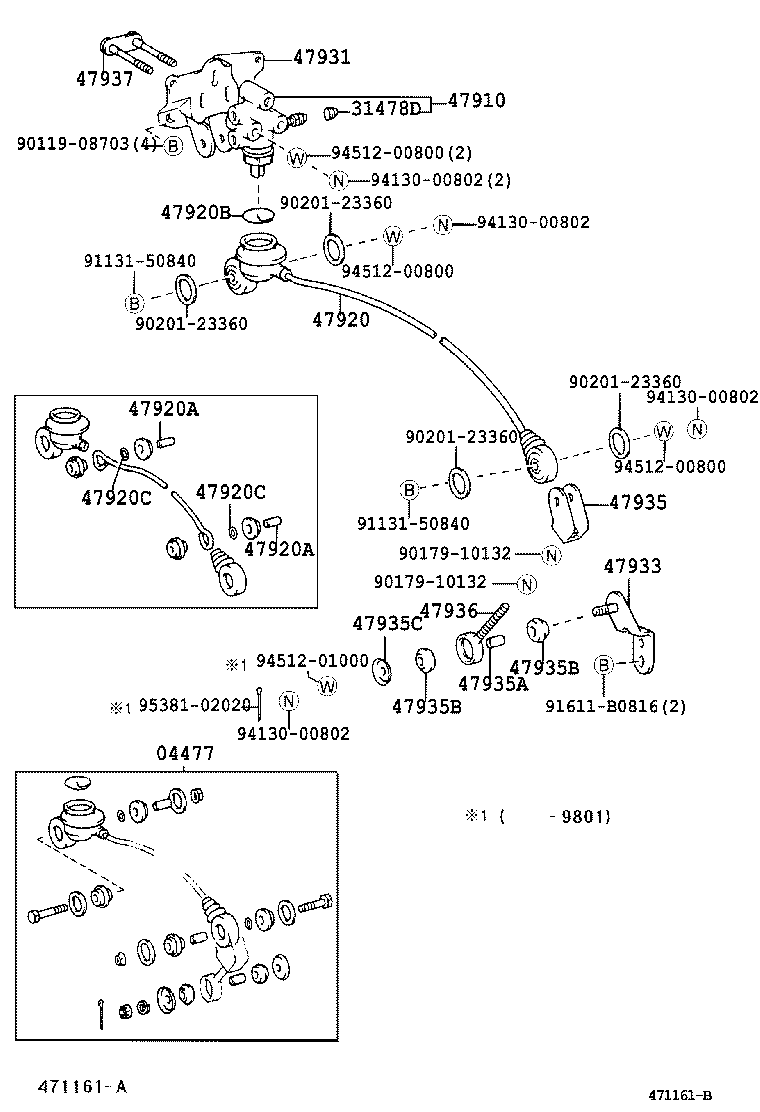

ILLUST NO. 3 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 47548-60010 |
FJ80..LHD;FJ80..ARL;FZJ80..VX..GCC;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,STD) |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-60070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60080 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90179-10132 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 1 OF 3(9001-9208)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159B - BRACKET, PROPORTIONING & BY-PASS VALVE | ||||
| 47159-30150 |
FZJ80..SOB..STD;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-60040 |
FZJ80..SOB..STD;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60460 |
FZJ80..SOB..STD;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60720 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD W(LSPV) |
1 | ||
| 47312-60710 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-34006 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02613 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 90947-02612 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02613 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 90947-02612 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33406 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60020 |
FJ80..CBR;FJ80..GX..EFI W(LSPV) |
1 | ||
| 47317-60010 |
FJ80..CBR;FJ80..GX..EFI |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60080 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-60140 |
FZJ80..SOB..STD;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..(GCC,GEN) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60600 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD W(REAR DISC BRAKE) |
1 | ||
| 47322-60590 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60130 |
FJ80..CBR;FJ80..GX..EFI W(LSPV) |
1 | ||
| 47324-60120 |
FJ80..CBR;FJ80..GX..EFI |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60131 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
1 | ||
| 47326-60121 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60041 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
1 | ||
| 47327-60031 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60170 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 47351-60180 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60111 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60021 |
FJ80 |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47395-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47396-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10041 | ||||
| 90461-06112 | ||||
| 90464-00519 | ||||
| 90480-01069 | ||||
| 90480-01441 | ||||
| 90949-01184 | ||||
| 90949-01611 | ||||
| 90949-01612 | ||||
| 90949-01613 | ||||
| 90949-02027 | ||||
| 91611-60640 | ||||
| 91611-B0816 | ||||
| 91651-B0814 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||
ILLUST NO. 1 OF 3(9001-9208)LHD
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60720 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD W(LSPV) |
1 | ||
| 47312-60710 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-34006 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02613 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 90947-02612 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02613 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 90947-02612 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33406 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60020 |
FJ80..CBR;FJ80..GX..EFI W(LSPV) |
1 | ||
| 47317-60010 |
FJ80..CBR;FJ80..GX..EFI |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60080 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60600 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD W(REAR DISC BRAKE) |
1 | ||
| 47322-60590 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60130 |
FJ80..CBR;FJ80..GX..EFI W(LSPV) |
1 | ||
| 47324-60120 |
FJ80..CBR;FJ80..GX..EFI |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60110 |
FJ80..LHD;FJ80..ARL;FZJ80..VX..GCC;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,STD) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60131 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
1 | ||
| 47326-60121 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60041 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80..GCC,GEN W(FULL FLOATING AXLE) |
1 | ||
| 47327-60031 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60170 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 47351-60180 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60111 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-60030 |
FJ80..LHD;FJ80..ARL;FZJ80..VX..GCC;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,STD) |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-60011 |
FJ80..LHD;FJ80..ARL;FZJ80..VX..GCC;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,STD) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60010 |
FJ80..LHD;FJ80..ARL;FZJ80..VX..GCC;HZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,STD) |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60021 |
FJ80 |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47395-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47396-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10041 | ||||
| 90461-06112 | ||||
| 90464-00519 | ||||
| 90480-01069 | ||||
| 90480-01441 | ||||
| 90949-01184 | ||||
| 90949-01611 | ||||
| 90949-01612 | ||||
| 90949-01613 | ||||
| 90949-02027 | ||||
| 91611-B0816 | ||||
| 91651-B0814 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||
