FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

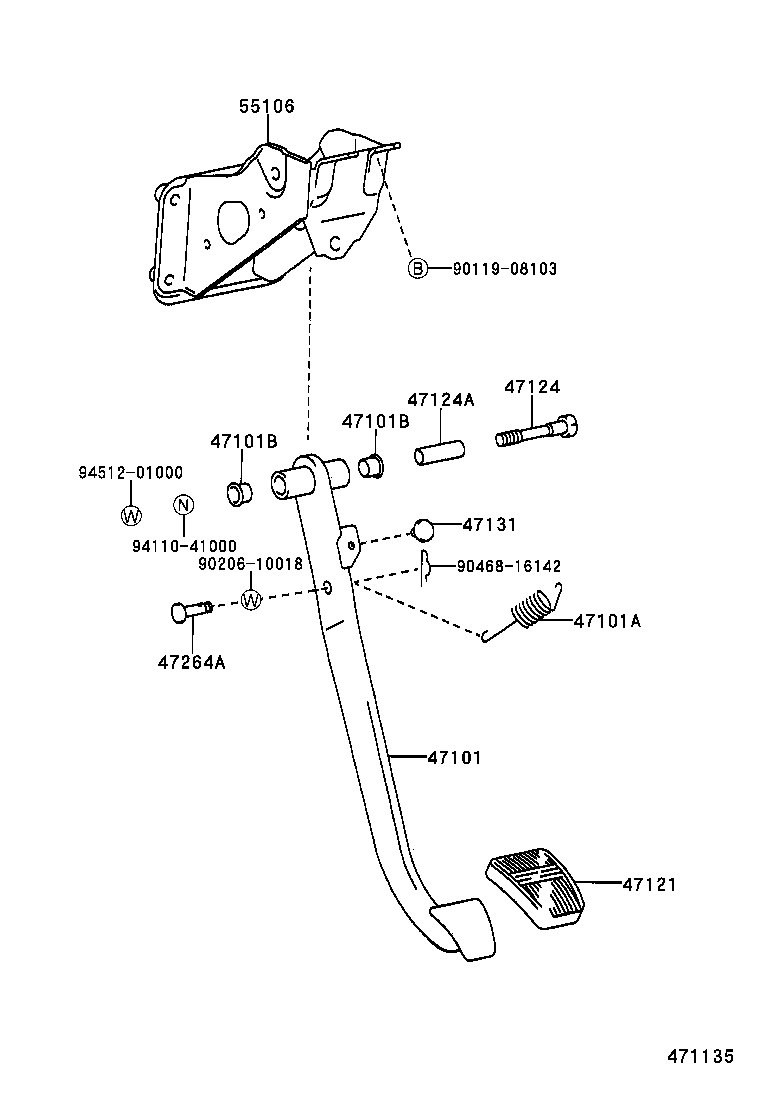

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9011908103 9020610018 9046816142 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-60170

FJ80,FZJ80,HDJ80,HZJ80..LHD..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12022

FJ80,HDJ80,HZJ80

 1
90507-14034

HDJ80..5F;HDJ80..4FC..GEN;FJ80,HZJ80..CBR,DSL

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

FJ80,FZJ80,HDJ80,HZJ80

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

FJ80,FZJ80,HDJ80,HZJ80

 2
47121 - PAD, BRAKE PEDAL
31321-14020

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
47124 - SHAFT, BRAKE PEDAL
91121-51080

FJ80,FZJ80,HDJ80,HZJ80

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10116

FJ80,FZJ80,HDJ80,HZJ80

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06032

FJ80,FZJ80,HDJ80,HZJ80

 1
47264A - PIN(FOR PUSH ROD)
90249-10017

FJ80,FZJ80,HDJ80,HZJ80

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-60030

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90119-08103
90206-10018
90468-16142
94110-41000
94512-01000
