FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )FZJ80..5F ; (9001- )FJ80,HDJ80,HZJ80 ; (9001- )FZJ80..4FC..GX,VX

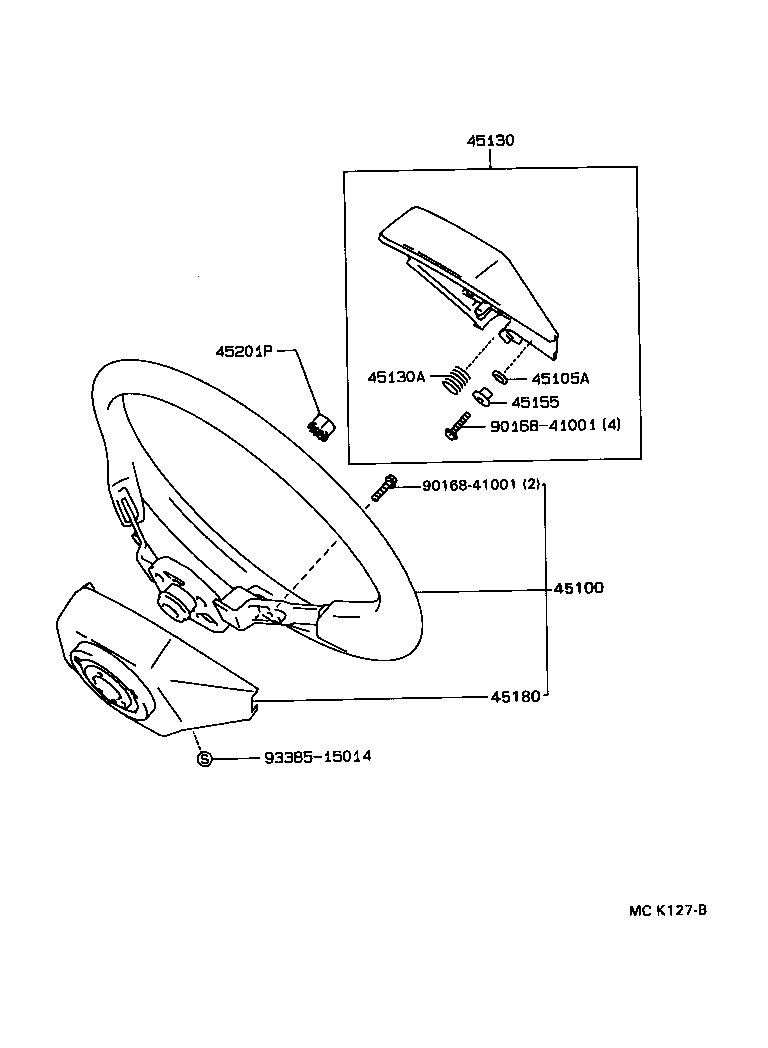

Click highlighted areas on diagram

3-SPOKE, PP

diagram 45100 45105A 45130 45130A 45155 45180 45201P 9016841001 9016841001 9338515014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-6016001

FJ80,FZJ80,HZJ80..STD

3SPOKE,POLYPROPYLENE,BLACK,TRIM1#,4#

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

FJ80,FZJ80,HZJ80..STD

 4
45130 - BUTTON ASSY, HORN
45130-6015001

FJ80,FZJ80,HZJ80..STD

BLACK,TRIM1#,4#

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-10104

FJ80,FZJ80,HZJ80..STD

 4
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-22040

FJ80,FZJ80,HZJ80..STD

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-6003001

FJ80,FZJ80,HZJ80..STD

BLACK,TRIM1#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90168-41001
93385-15014

(9001- )FZJ80..5F ; (9001- )FJ80,HDJ80,HZJ80 ; (9001- )FZJ80..4FC..GX,VX

Click highlighted areas on diagram

3-SPOKE, URETHANE OR LEATHER

diagram 45100 45105 45105A 45105B 45130 45142E 45142E 45180 45201P 9331513012 9331914010 9338515014 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-6016001

FJ80,FZJ80,HZJ80..STD

3SPOKE,POLYPROPYLENE,BLACK,TRIM1#,4#

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

FJ80,FZJ80,HZJ80..STD

 4
45130 - BUTTON ASSY, HORN
45130-6015001

FJ80,FZJ80,HZJ80..STD

BLACK,TRIM1#,4#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-6003001

FJ80,FZJ80,HZJ80..STD

BLACK,TRIM1#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
93315-13012
93319-14010
93385-15014
93510-13010
