FJ80L-GCKRS (1990)
Toyota Land Cruiser
(9001-0405)FZJ70,75..ARL ; (9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 93319-14010 | ||||
| 94612-11001 | ||||

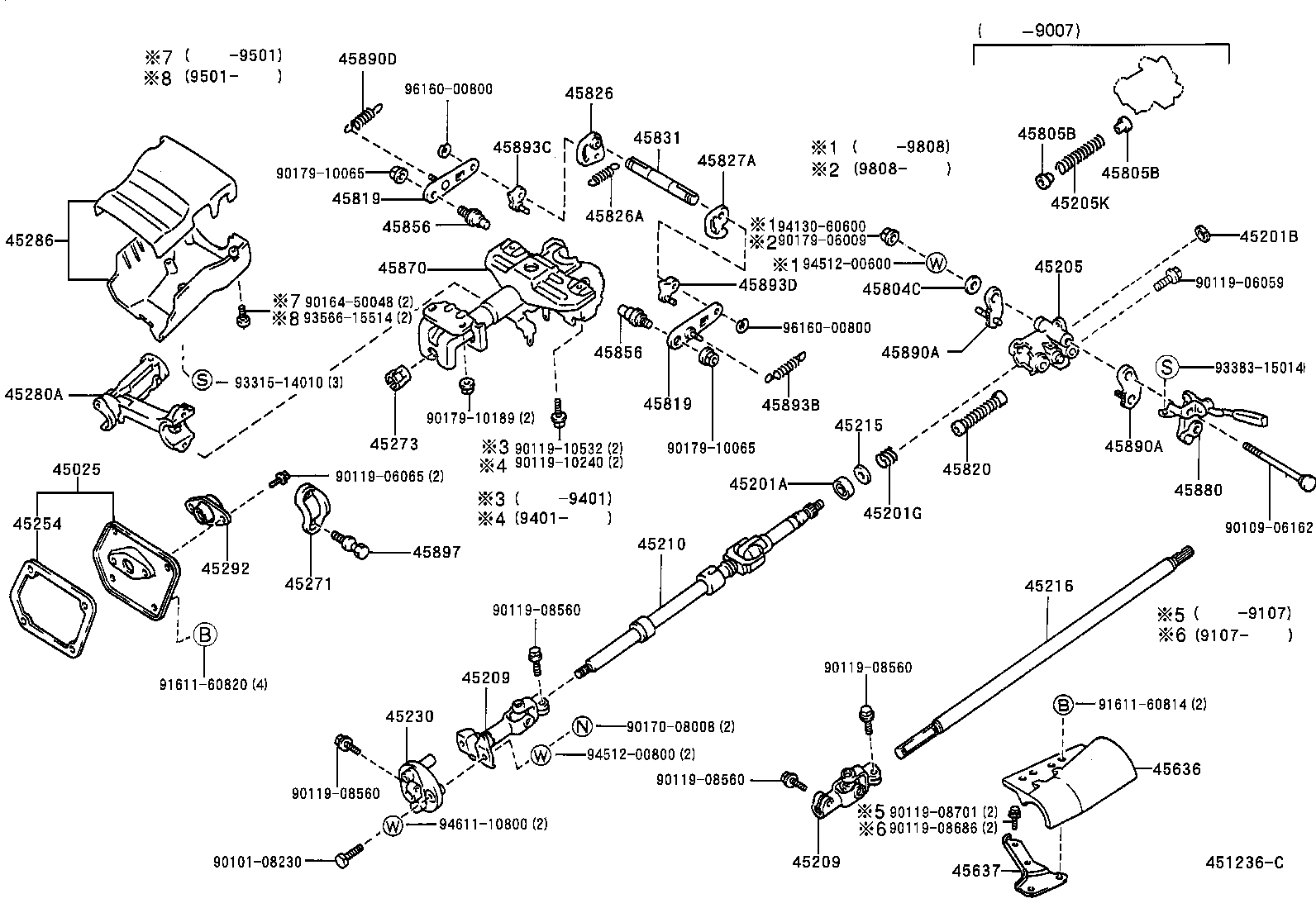

ILLUST NO. 2 OF 2(9001-0907)
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06029 | ||||
| 90119-08165 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90980-07195 | ||||
| 91611-60840 | ||||
| 91651-60616 | ||||
| 93315-14010 | ||||
| 94130-00802 | ||||
| 94182-10800 | ||||
| 94183-60601 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||

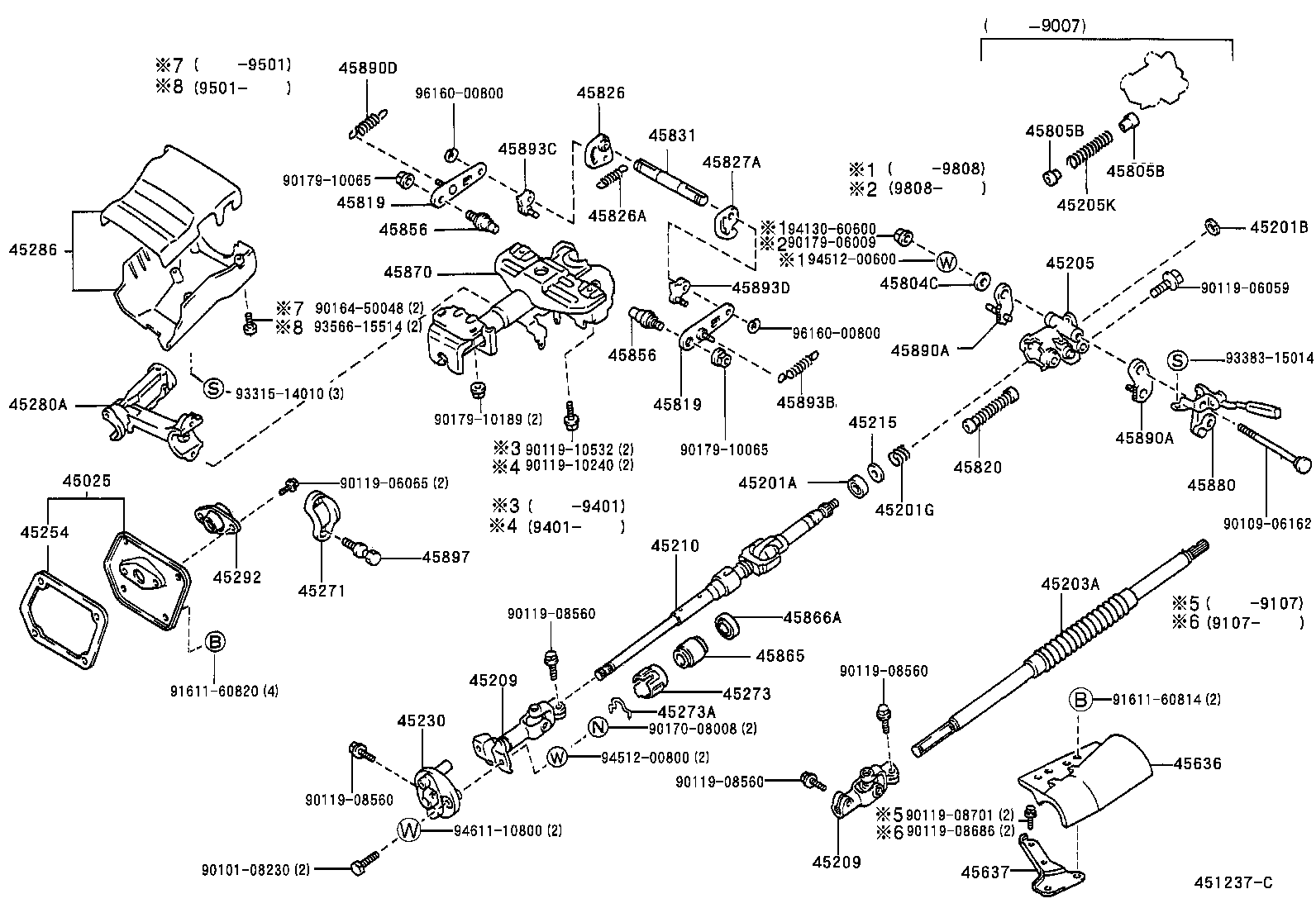

ILLUST NO. 1 OF 2(9001-0907)
TILT STEERING(COLLAPSIBLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 91611-60618 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 93319-14012 | ||||

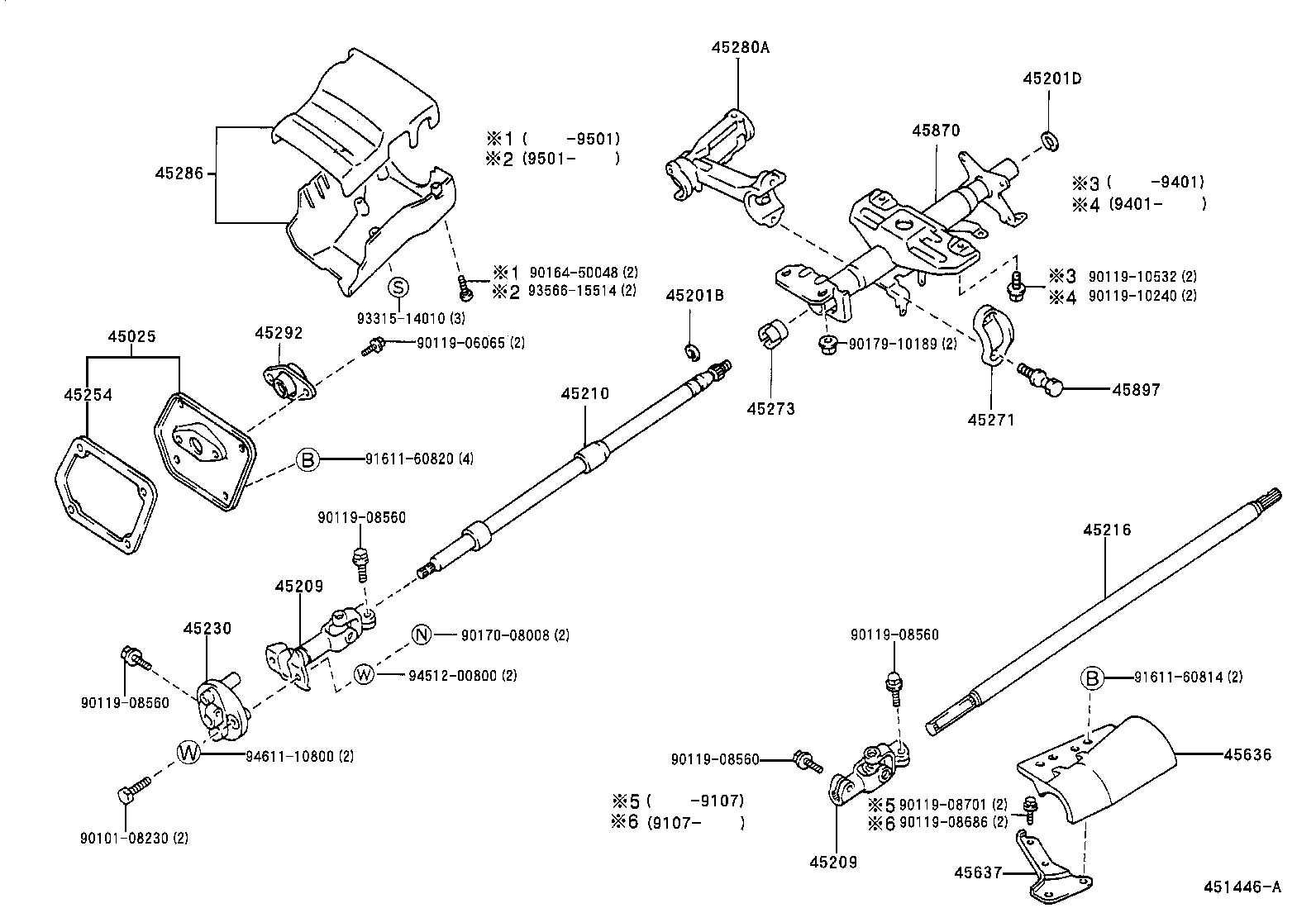

(9001- )FZJ80..5F ; (9001- )FJ80,HDJ80,HZJ80 ; (9001- )FZJ80..4FC..GX,VX
W(TILT STEERING(RIGID)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-60080 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60160 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..LHD..(STD,VX);FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25002 |
HDJ80,HZJ80;FJ80..STD,VX;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60070 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 45209-60060 |
FJ80,FZJ80,HDJ80,HZJ80 UPPER |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60070 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 45209-60060 |
FJ80,FZJ80,HDJ80,HZJ80 UPPER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60080 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45210-35170 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45210-60110 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45216 - SHAFT, STEERING SLIDING | ||||
| 45216-60080 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12050 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45271-12060 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60320 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45280-60330 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-6094101 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN W(TILT STEERING),BLACK,TRIM1#,4# |
1 | ||
| 45286-6093701 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN BLACK,TRIM1#,4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60100 |
FJ80,FZJ80..LHD |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60070 |
FJ80..LHD |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06019 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45805B - BUSH(FOR TILT STEERING SUPPORT) | ||||
| 90386-06031 |
HDJ80,HZJ80;FJ80..STD,VX;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45805B - BUSH(FOR TILT STEERING SUPPORT) | ||||
| 90386-06031 |
HDJ80,HZJ80;FJ80..STD,VX;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-22020 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) OD=9.989-9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) OD=9.989-9.998 |
2 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-60090 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN |
1 | ||
| 45870-60060 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45870-60070 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) RH |
1 | ||
| 45890-22090 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) RH |
1 | ||
| 45890-22090 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) LH |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-07003 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-12035 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22030 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 1 |
1 | ||
| 45893-22060 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 4 |
1 | ||
| 45893-22070 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 5 |
1 | ||
| 45893-22050 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 3 |
1 | ||
| 45893-22040 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 2 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-22110 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK D |
1 | ||
| 45893-22120 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK E |
1 | ||
| 45893-22100 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK C |
1 | ||
| 45893-22090 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK B |
1 | ||
| 45893-22080 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK A |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90109-06162 | ||||
| 90119-06059 | ||||
| 90119-06065 | ||||
| 90119-08560 | ||||
| 90119-08686 | ||||
| 90119-08701 | ||||
| 90119-10240 | ||||
| 90119-10532 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 90179-06009 | ||||
| 90179-10065 | ||||
| 90179-10189 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 93315-14010 | ||||
| 93383-15014 | ||||
| 93566-15514 | ||||
| 94130-60600 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 96160-00800 | ||||
(9001- )
W(TILT STEERING(COLLAPSIBLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-60080 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45203A - SHAFT, STEERING INTERMEDIATE, NO.2 | ||||
| 45203-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60160 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..LHD..(STD,VX);FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25002 |
HDJ80,HZJ80;FJ80..STD,VX;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60070 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 45209-60060 |
FJ80,FZJ80,HDJ80,HZJ80 UPPER |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60070 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 45209-60060 |
FJ80,FZJ80,HDJ80,HZJ80 UPPER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60080 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45210-35170 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45210-60110 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12050 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45271-12060 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45273A - RING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH) | ||||
| 90521-01005 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60320 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45280-60330 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-6094101 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN W(TILT STEERING),BLACK,TRIM1#,4# |
1 | ||
| 45286-6093701 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN BLACK,TRIM1#,4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60100 |
FJ80,FZJ80..LHD |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60070 |
FJ80..LHD |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06019 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45805B - BUSH(FOR TILT STEERING SUPPORT) | ||||
| 90386-06031 |
HDJ80,HZJ80;FJ80..STD,VX;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45805B - BUSH(FOR TILT STEERING SUPPORT) | ||||
| 90386-06031 |
HDJ80,HZJ80;FJ80..STD,VX;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-22020 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) OD=9.989-9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) OD=9.989-9.998 |
2 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-12010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-60090 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN |
1 | ||
| 45870-60060 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45870-60070 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) RH |
1 | ||
| 45890-22090 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) RH |
1 | ||
| 45890-22090 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) LH |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-07003 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-12035 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22030 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 1 |
1 | ||
| 45893-22060 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 4 |
1 | ||
| 45893-22070 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 5 |
1 | ||
| 45893-22050 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 3 |
1 | ||
| 45893-22040 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK 2 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-22110 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK D |
1 | ||
| 45893-22120 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK E |
1 | ||
| 45893-22100 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK C |
1 | ||
| 45893-22090 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK B |
1 | ||
| 45893-22080 |
FJ80..STD,VX;FJ80..4F..LUB;FZJ80,HDJ80,HZJ80;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..GX..(ARL,GCC) MARK A |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90109-06162 | ||||
| 90119-06059 | ||||
| 90119-06065 | ||||
| 90119-08560 | ||||
| 90119-08686 | ||||
| 90119-08701 | ||||
| 90119-10240 | ||||
| 90119-10532 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 90179-06009 | ||||
| 90179-10065 | ||||
| 90179-10189 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 93315-14010 | ||||
| 93383-15014 | ||||
| 93566-15514 | ||||
| 94130-60600 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 96160-00800 | ||||
(9001- )FZJ80..5F ; (9001- )FJ80,HDJ80,HZJ80 ; (9001- )FZJ80..4FC..GX,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-60080 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60070 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 45209-60060 |
FJ80,FZJ80,HDJ80,HZJ80 UPPER |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60070 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 45209-60060 |
FJ80,FZJ80,HDJ80,HZJ80 UPPER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60080 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45210-35170 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45210-60110 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45216 - SHAFT, STEERING SLIDING | ||||
| 45216-60080 |
FJ80,FZJ80,HDJ80,HZJ80..GEN |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12050 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45271-12060 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60320 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45280-60330 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-6094101 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN W(TILT STEERING),BLACK,TRIM1#,4# |
1 | ||
| 45286-6093701 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN BLACK,TRIM1#,4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60100 |
FJ80,FZJ80..LHD |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60070 |
FJ80..LHD |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-60090 |
FJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN |
1 | ||
| 45870-60060 |
FJ80,FZJ80,HZJ80..(GX,STD)..GEN W(TILT STEERING) |
1 | ||
| 45870-60070 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90119-06065 | ||||
| 90119-08560 | ||||
| 90119-08686 | ||||
| 90119-08701 | ||||
| 90119-10240 | ||||
| 90119-10532 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 90179-10189 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 93315-14010 | ||||
| 93566-15514 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
