FJ80L-GCKRS (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
3F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9208)FJ80..MTM

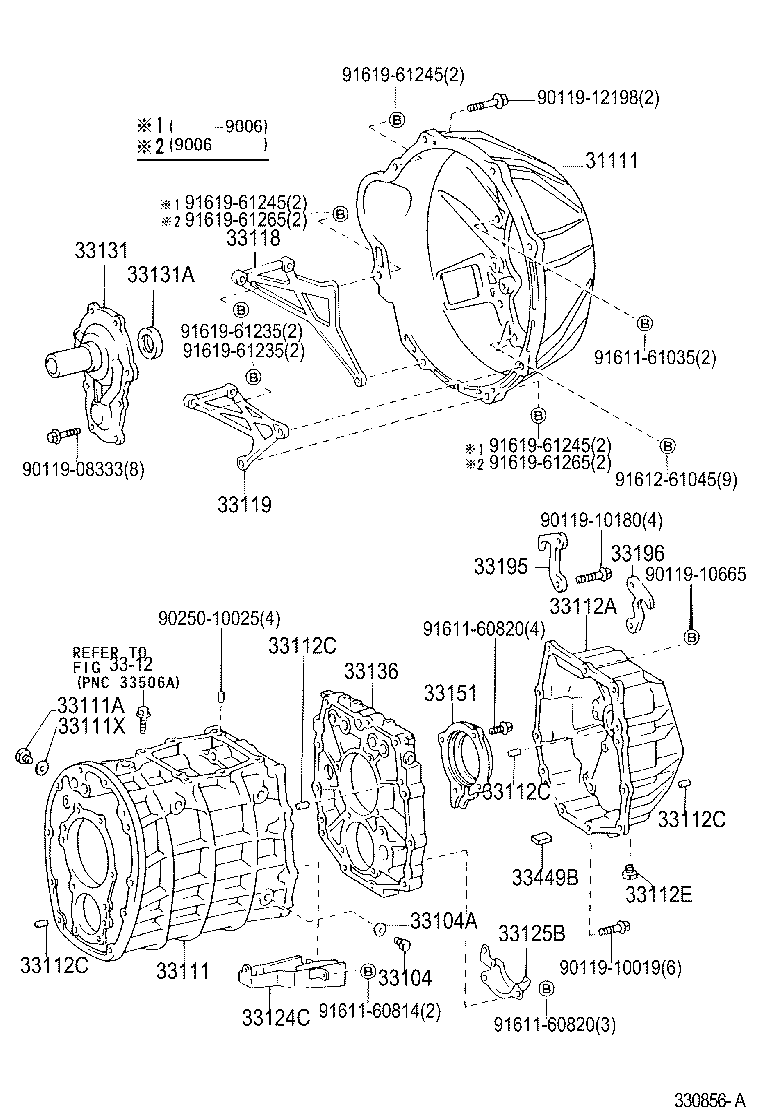

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-60200 |
FJ80..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
HZJ80..MTM;FJ80..MTM..(ARL,GEN) |
2 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
HZJ80..MTM;FJ80..MTM..(ARL,GEN) |
2 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-60120 |
FJ80,HZJ80..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
HZJ80..MTM;FJ80..MTM..(ARL,GEN) |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
HZJ80..MTM;FJ80..MTM..(ARL,GEN) |
2 | ||
| 33112A - ADAPTER, TRANSFER | ||||
| 36117-60070 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
8 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
8 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
8 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
8 | ||
| 33112E - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-60020 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-60010 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-60060 |
FJ80,HZJ80..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33136-60010 |
FJ80,HZJ80..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-60020 |
FJ80,HZJ80..MTM |
1 | ||
| 33195 - HANGER, TRANSMISSION CASE, NO.1 | ||||
| 33195-60010 |
FJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33196 - HANGER, TRANSMISSION CASE, NO.2 | ||||
| 33196-60010 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35010 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-10019 | ||||
| 90119-10180 | ||||
| 90119-10665 | ||||
| 90119-12198 | ||||
| 90250-10025 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-61035 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61265 | ||||
| Linked diagrams | ||||
| 3312 | ||||
