FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)MTM..GX,STD

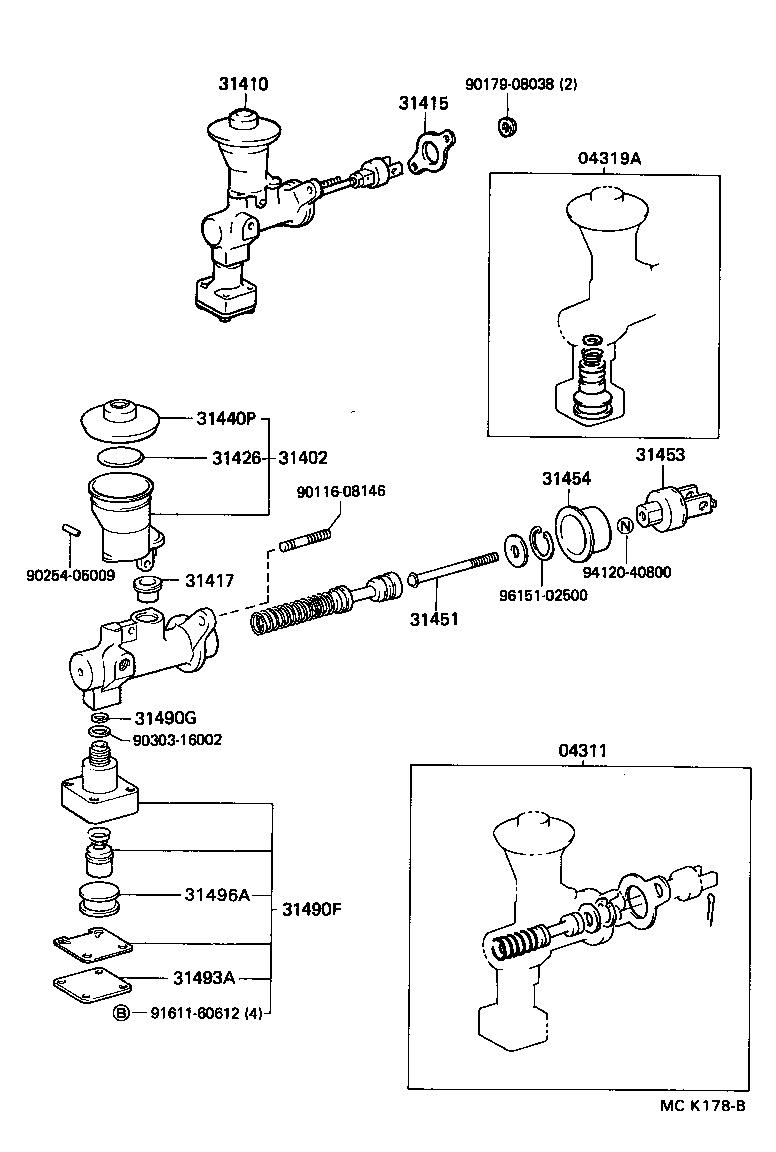

Click highlighted areas on diagram

diagram 04311 04319A 31402 31410 31415 31417 31426 31440P 31451 31453 31454 31490F 31490G 31493A 31496A 9011608146 9017908038 9025405009 9030316002 9161160612 9412040800 9615102500
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60100

FZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35030

FZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-60350

FZJ80..RHD..VX;FJ80,FZJ80..MTM..(GX,STD)

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-60020

FZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)

 1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-60080

FZJ80..RHD..VX;FJ80,FZJ80..MTM..(GX,STD)

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-35010

FZJ80..RHD..VX;FJ80,FZJ80..MTM..(GX,STD)

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-60020

FZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)

 1
Common parts
90116-08146
90179-08038
90254-05009
90303-16002
91611-60612
94120-40800
96151-02500
