FJ80L-GCKRS (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(9001-9501)MTM..GX,STD ; (9501-9608)5F ; (9608-)HDJ80,HZJ80..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-60020 |
FJ80,FZJ80..LHD..MTM..(GX,STD) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-26008 |
FZJ80..RHD..VX;FJ80,FZJ80,HDJ80..MTM..(GX,STD) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-40800 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51080 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10116 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-10019 |
FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD) |
1 | ||
| 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90249-10127 |
FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD) |
1 | ||
| 31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1 | ||||
| 31356-60010 |
FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD) |
1 | ||
| 31356G - PIN(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE) | ||||
| 90249-09019 |
FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD) |
1 | ||
| 31356H - PIN, NO.2(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE) | ||||
| 90245-12005 |
FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD) |
1 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90507-32005 |
FJ80,FZJ80..MTM..(GX,STD) |
2 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90507-32005 |
FJ80,FZJ80..MTM..(GX,STD) |
2 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
FJ80,FZJ80,HDJ80,HZJ80..MTM L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55180-60020 |
FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD) |
1 | ||
| Common parts | ||||
| 90119-08786 | ||||
| 90468-16142 | ||||
| 90561-09017 | ||||
| 90561-09018 | ||||
| 91651-B0814 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||

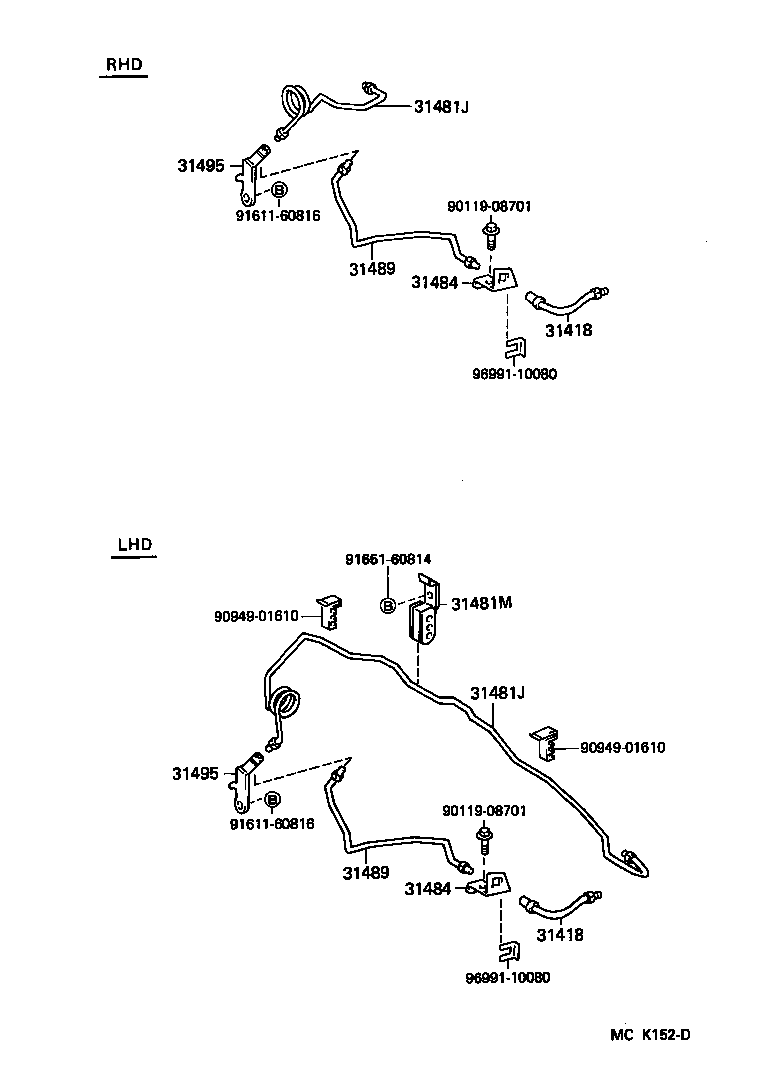

ILLUST NO. 2 OF 2(9001-9208)FJ80..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 96812-50250 |
FJ80..MTM |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 96812-50250 |
FJ80..MTM |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-60520 |
FJ80..LHD..MTM..(GX,STD) |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-60520 |
FJ80..LHD..MTM..(GX,STD) |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 47371-60050 |
FJ80..LHD..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60090 |
FJ80..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60090 |
FJ80..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60020 |
FJ80..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60020 |
FJ80..MTM |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-60020 |
FJ80..MTM |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-60020 |
FJ80..MTM |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90949-01610 | ||||
| 91611-60816 | ||||
| 91651-60814 | ||||
| 96991-10080 | ||||
