FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )MTM

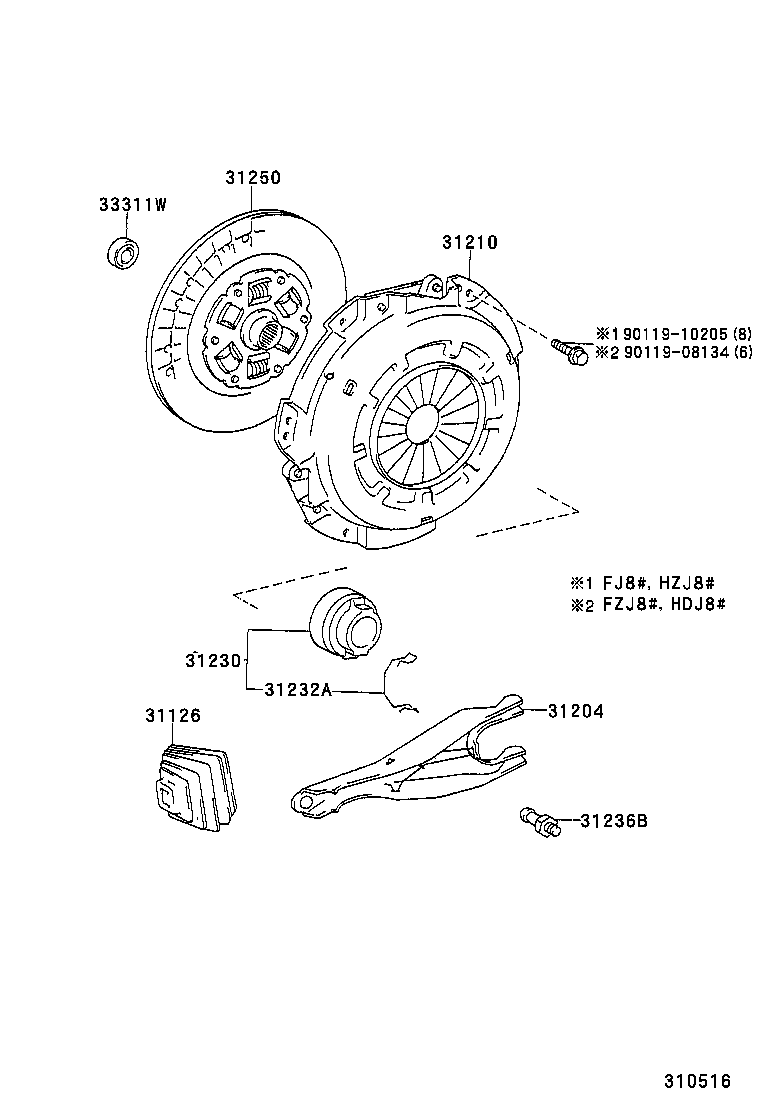

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011908134 9011910205
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60050

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-36110

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-60100

FJ80..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36160

FJ80..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36020

FJ80,FZJ80,HDJ80..MTM

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-60270

FJ80..MTM

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-15004

FJ80..MTM

 1
Common parts
90119-08134
90119-10205
