Toyota Land cruiser FJ80 CARBURETOR ASSEMBLY

Home Blog About Contact Search

FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992

Engine 3F

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

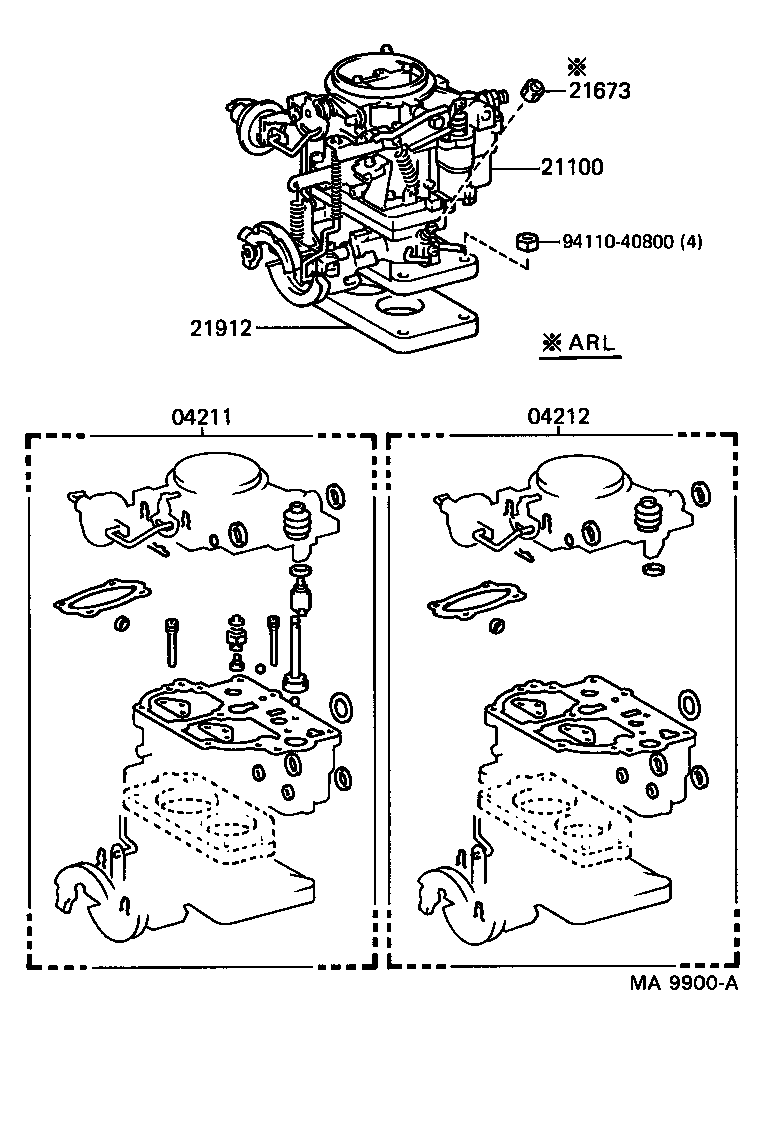

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
94110-40800

Click highlighted areas on diagram

Part #	Description	Period	Qty
04211 - CARBURETOR KIT
04211-61251	3F..FJ80..GEN	01/1990 - 02/1990	1
04211-61253	3F..FJ80..GEN	02/1990 - 01/1992	1
04212 - GASKET KIT, CARBURETOR
04212-61030	3F..FJ80	01/1990 - 02/1990	1
21100 - CARBURETOR ASSY
21100-61271	3F..FJ80..GEN W(OUTER BENT CONTROL)	01/1990 - 01/1992	1
21100-61191	3F..FJ80..MTM..GEN	01/1990 - 01/1992	1
21912 - INSULATOR, CARBURETOR HEAT
21912-61070	3F..FJ80	01/1990 - 08/1992	1
Common parts
94110-40800
