FJ80L-GCKRS (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
3F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9208)3F

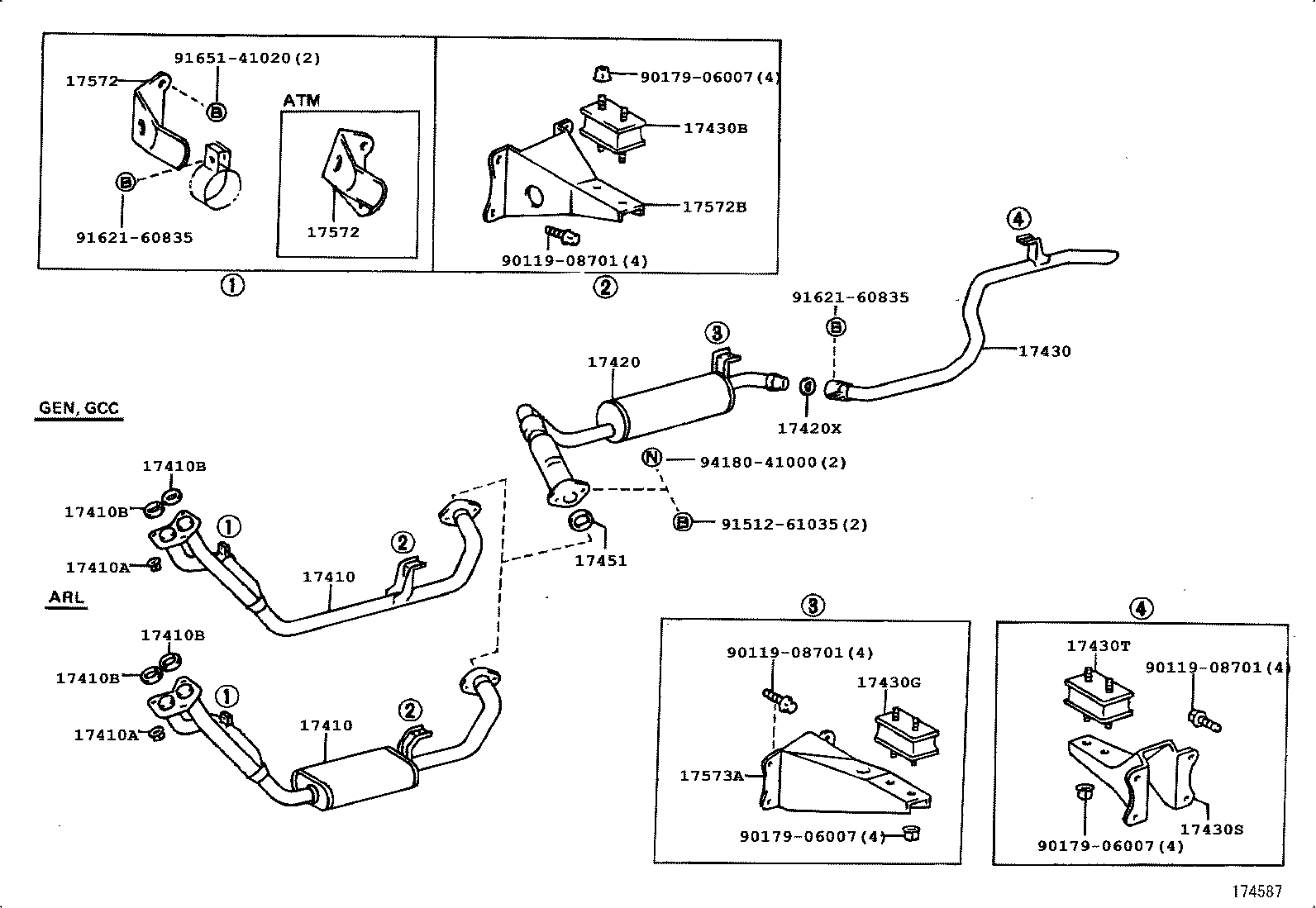

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-61240 |
3F..FJ80..GCC,GEN |
1 | ||
| 17401-61250 |
3F..FJ80 |
1 | ||
| 17401-61251 |
3F..FJ80..GCC,GEN |
1 | ||
| 17401-61251 |
3F..FJ80 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-61240 |
3F..FJ80..GCC,GEN |
1 | ||
| 17401-61250 |
3F..FJ80 |
1 | ||
| 17401-61251 |
3F..FJ80..GCC,GEN |
1 | ||
| 17401-61251 |
3F..FJ80 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
3F,1H#..FJ80,HDJ80,HZJ80 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
3F,1H#..FJ80,HDJ80,HZJ80 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
3F#..FJ80 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
3F#..FJ80 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
3F#..FJ80 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
3F#..FJ80 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-61110 |
3F..FJ80..GCC,GEN |
1 | ||
| 17420-61120 |
3F..FJ80 |
1 | ||
| 17420-61120 |
3F..FJ80..GCC,GEN |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-61010 |
3F..FJ80 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-61290 |
3F..FJ80 |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17567-61030 |
3F#..FJ80 |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
3F#..FJ80 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-61080 |
1FZF,3F#,1H#..FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
3F#..FJ80 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06049 |
3F..FJ80 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-61170 |
3F..FJ80..MTM |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-61170 |
3F..FJ80..MTM |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-61060 |
3F#..FJ80 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-61060 |
1FZF,3F#,1H#..FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90179-06007 | ||||
| 91512-61035 | ||||
| 91621-60835 | ||||
| 91651-41020 | ||||
| 94180-41000 | ||||
