FJ80L-GCKRS (1990)
Toyota Land Cruiser
(9001- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08344 | ||||
| 90119-08801 | ||||
| 90179-06070 | ||||
| 90179-08041 | ||||
| 90179-08195 | ||||
| 90201-08036 | ||||
| 90339-16001 | ||||
| 91611-60825 | ||||
| 91611-60845 | ||||
| 91611-61025 | ||||
| 91621-40812 | ||||
| 91651-40840 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||

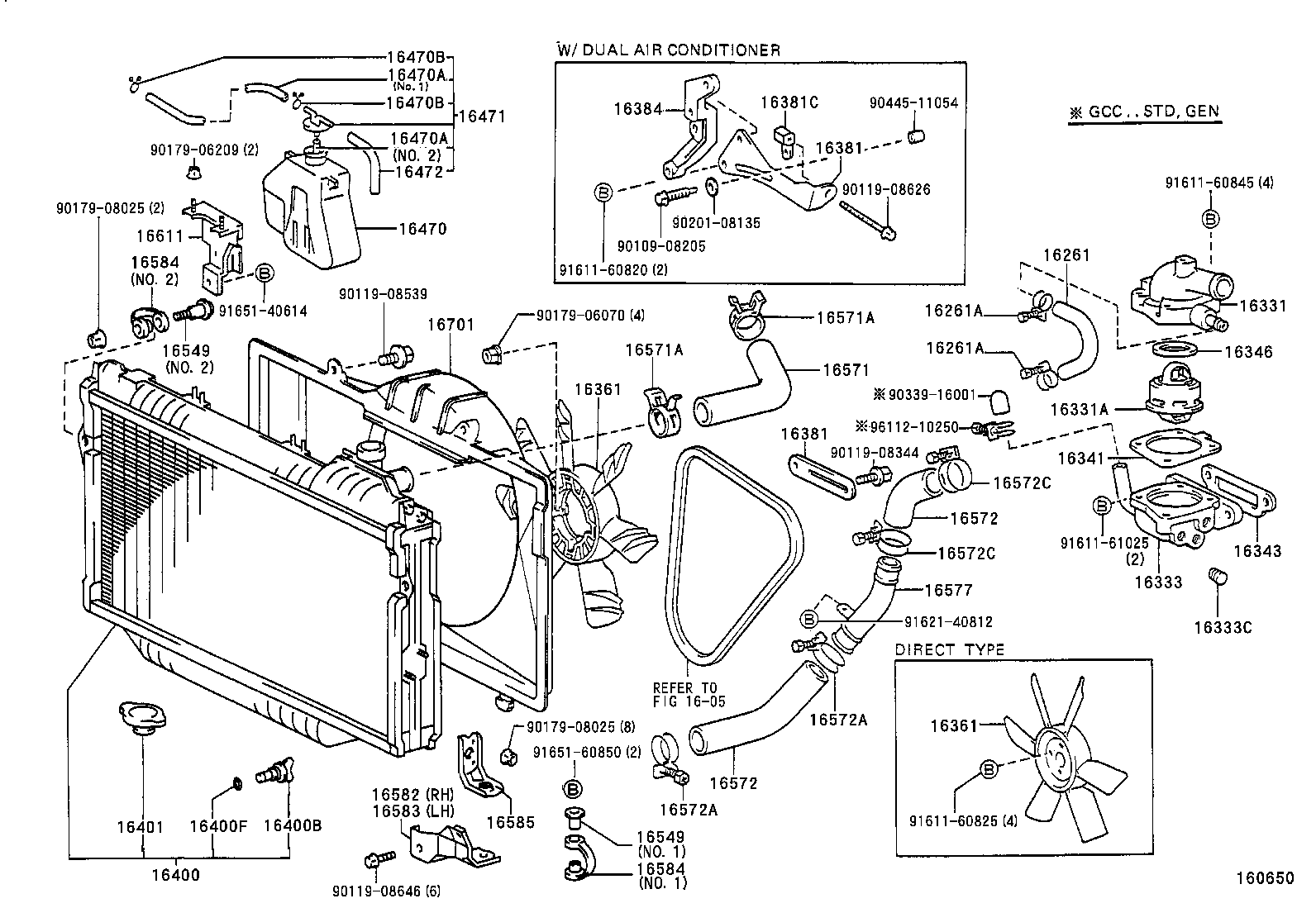

ILLUST NO. 1 OF 2(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-61020 |
3F#..FJ80 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
3F#..FJ80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
3F#..FJ80 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16303-61010 |
3F..FJ80 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03052 |
3F#..FJ80 *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16304-61010 |
3F..FJ80..4F,4FC;3F..FJ80..5F..(ARL,GEN) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-61030 |
3F#..FJ80 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-61020 |
3F#..FJ80 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-43002 |
3F#..FJ80 |
1 | ||
| 16361 - FAN | ||||
| 16361-61050 |
3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER) |
1 | ||
| 16361-60090 |
3F..FJ80..STD..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-61050 |
3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER) |
1 | ||
| 16361-60090 |
3F..FJ80..STD..GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-61020 |
3F..FJ80 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-61020 |
3F..FJ80 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17040 |
3F..FJ80..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
3F#..FJ80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-61060 |
3F#..FJ80 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12781 |
3F#..FJ80 *H,L=750,NO.1 |
1 | ||
| 90445-12078 |
3F#..FJ80 *H,L=210,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12781 |
3F#..FJ80 *H,L=750,NO.1 |
1 | ||
| 90445-12078 |
3F#..FJ80 *H,L=210,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-61040 |
3F#..FJ80 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
3F#..FJ80 |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61020 |
1FZF,3F#..FJ80,FZJ80 NO.2 |
2 | ||
| 16549-61010 |
1FZF,3F#..FJ80,FZJ80 NO.1 |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61020 |
1FZF,3F#..FJ80,FZJ80 NO.2 |
2 | ||
| 16549-61010 |
1FZF,3F#..FJ80,FZJ80 NO.1 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-61140 |
3F#..FJ80 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
3F#..FJ80 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
3F#..FJ80 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-61030 |
3F#..FJ80 WATER PUMP SIDE |
1 | ||
| 16573-61060 |
3F#..FJ80 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-61030 |
3F#..FJ80 WATER PUMP SIDE |
1 | ||
| 16573-61060 |
3F#..FJ80 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
3F#..FJ80 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
3F#..FJ80 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10500 |
3F#..FJ80 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10500 |
3F#..FJ80 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-61150 |
3F#..FJ80 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-61030 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-61030 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61030 |
1FZF,3F#..FJ80,FZJ80 NO.2 |
2 | ||
| 16584-61020 |
1FZF,3F#..FJ80,FZJ80 NO.1 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61030 |
1FZF,3F#..FJ80,FZJ80 NO.2 |
2 | ||
| 16584-61020 |
1FZF,3F#..FJ80,FZJ80 NO.1 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61020 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-61040 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-61260 |
3F#..FJ80 |
1 | ||
| Common parts | ||||
| 90109-08205 | ||||
| 90119-08344 | ||||
| 90119-08539 | ||||
| 90119-08626 | ||||
| 90119-08646 | ||||
| 90179-06070 | ||||
| 90179-06209 | ||||
| 90179-08025 | ||||
| 90201-08135 | ||||
| 90339-16001 | ||||
| 90445-11054 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60845 | ||||
| 91611-61025 | ||||
| 91621-40812 | ||||
| 91651-40614 | ||||
| 91651-60850 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 2(9001-9208)3F#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-17040 |
3F..FJ80..MTM |
1 | ||
| 16400-17040 |
3F..FJ80..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16417-15210 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
3F#..FJ80 |
1 | ||
| 16418-24200 |
3F#..FJ80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16401-71010 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-61170 |
3F..FJ80 |
1 | ||
| 16403-61170 |
3F..FJ80 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-61160 |
3F#..FJ80 |
1 | ||
| 16441-61160 |
3F#..FJ80 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-61160 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16442-61160 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-61160 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 16443-61160 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-61160 |
3F#..FJ80 |
1 | ||
| 16453-61160 |
3F#..FJ80 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-61160 |
3F#..FJ80 |
1 | ||
| 16454-61160 |
3F#..FJ80 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-61160 |
3F..FJ80..MTM |
1 | ||
| 16461-61160 |
3F..FJ80..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-61160 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16442-61160 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16443-61160 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 16443-61160 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
