Toyota Land cruiser FJ80 WATER PUMP

FJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992

Engine 3F

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

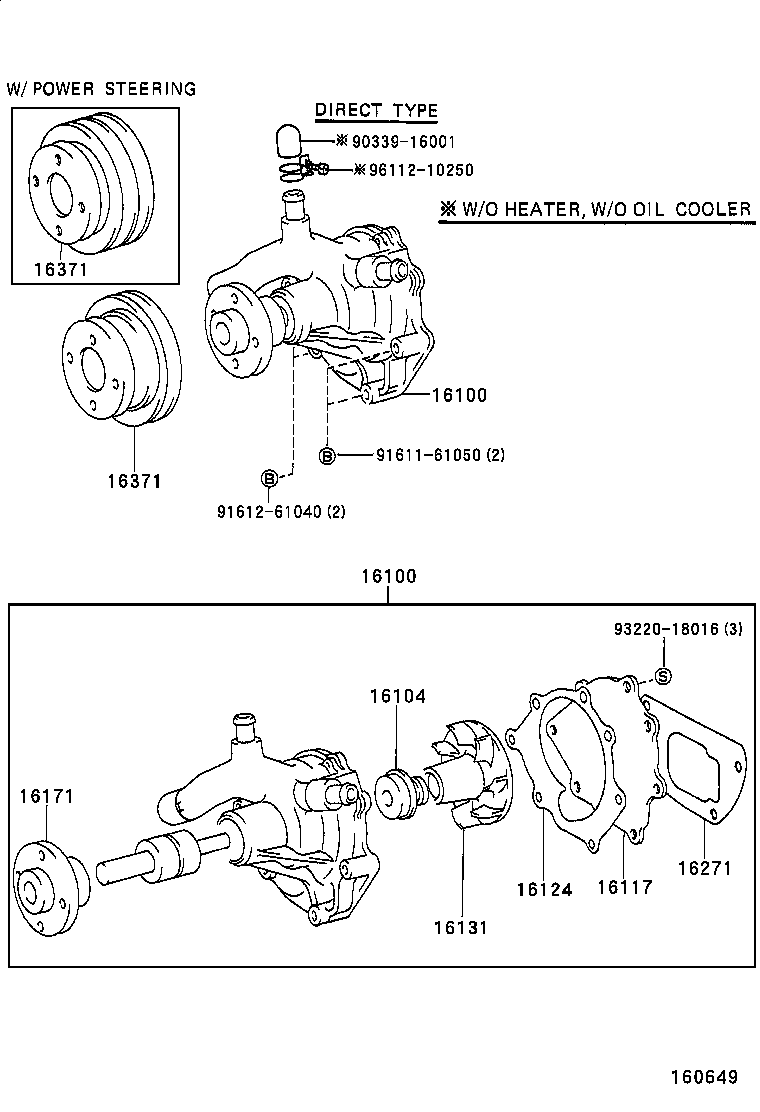

(9001-9208)3F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90339-16001
91611-61050
91612-61040
93220-18016
96112-10250

(9001-9208)3F

Click highlighted areas on diagram

W/FLUID COUPLING

Part #	Description	Period	Qty	Price
Common parts
90179-08123
91611-61050
91612-61040
93220-18016

(9001-9208)3F

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-69245	3F..FJ80..STD..GEN W(ENGINE OIL COOLER)	01/1990 - 01/1992	1
16100-69255	3F..FJ80..LHD..STD..GEN W(ENGINE OIL COOLER) & W(AIR CONDITIONER)	01/1990 - 01/1992	1
16100-69265	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16100-69235	3F..FJ80..STD..GEN	01/1990 - 01/1992	1
16100 - PUMP ASSY, ENGINE WATER
16100-69245	3F..FJ80..STD..GEN W(ENGINE OIL COOLER)	01/1990 - 01/1992	1
16100-69255	3F..FJ80..LHD..STD..GEN W(ENGINE OIL COOLER) & W(AIR CONDITIONER)	01/1990 - 01/1992	1
16100-69265	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16100-69235	3F..FJ80..STD..GEN	01/1990 - 01/1992	1
16104 - SEAL SET, WATER PUMP
16104-70010	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16117 - PLATE, WATER PUMP
16117-61110	3F#..FJ80	01/1990 - 08/1992	1
16124 - GASKET, WATER PUMP COVER
16124-61250	3F#..FJ80	01/1990 - 08/1992	1
16131 - ROTOR, WATER PUMP
16131-61110	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16171 - SEAT, WATER PUMP PULLEY
16171-61071	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16271 - GASKET, WATER PUMP
16271-61020	3F#..FJ80	01/1990 - 08/1992	1
16371 - PULLEY, FAN
16371-61020	3F..FJ80..STD..GEN	01/1990 - 01/1992	1
16371-61030	3F..FJ80..STD..GEN W(POWER STEERING)	01/1990 - 01/1992	1
16173-61070	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16371 - PULLEY, FAN
16371-61020	3F..FJ80..STD..GEN	01/1990 - 01/1992	1
16371-61030	3F..FJ80..STD..GEN W(POWER STEERING)	01/1990 - 01/1992	1
16173-61070	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
Common parts
90339-16001
91611-61050
91612-61040
93220-18016
96112-10250

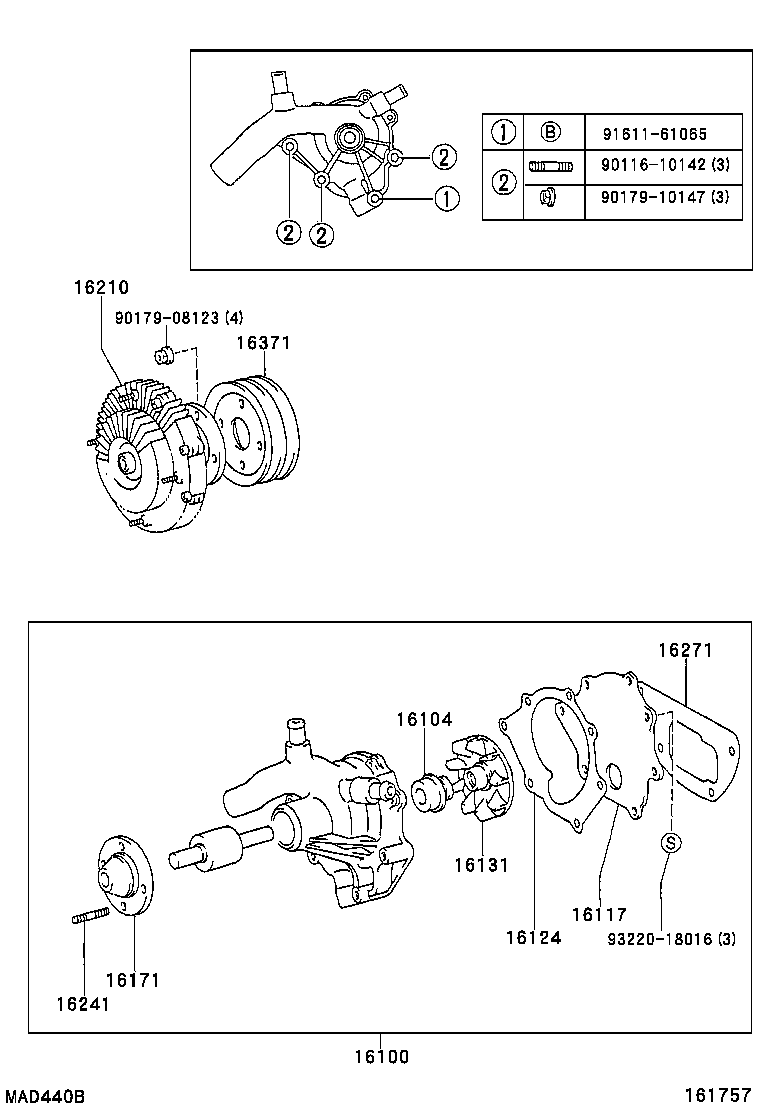

(9001-9208)3F#

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-69245	3F..FJ80..STD..GEN W(ENGINE OIL COOLER)	01/1990 - 01/1992	1
16100-69255	3F..FJ80..LHD..STD..GEN W(ENGINE OIL COOLER) & W(AIR CONDITIONER)	01/1990 - 01/1992	1
16100-69265	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16100-69235	3F..FJ80..STD..GEN	01/1990 - 01/1992	1
16104 - SEAL SET, WATER PUMP
16104-70010	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16117 - PLATE, WATER PUMP
16117-61110	3F#..FJ80	01/1990 - 08/1992	1
16124 - GASKET, WATER PUMP COVER
16124-61250	3F#..FJ80	01/1990 - 08/1992	1
16131 - ROTOR, WATER PUMP
16131-61110	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16171 - SEAT, WATER PUMP PULLEY
16171-61071	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16210 - COUPLING ASSY, FLUID
16210-61150	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-41050	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	4
16198-41050	3F..FJ80..LHD..STD..GEN W(ENGINE OIL COOLER) & W(AIR CONDITIONER)	01/1990 - 01/1992	3
16271 - GASKET, WATER PUMP
16271-61020	3F#..FJ80	01/1990 - 08/1992	1
16371 - PULLEY, FAN
16371-61020	3F..FJ80..STD..GEN	01/1990 - 01/1992	1
16371-61030	3F..FJ80..STD..GEN W(POWER STEERING)	01/1990 - 01/1992	1
16173-61070	3F..FJ80..LHD..STD..GEN W(AIR CONDITIONER)	01/1990 - 01/1992	1
Common parts
90116-10142
90179-08123
90179-10147
91611-61065
93220-18016
