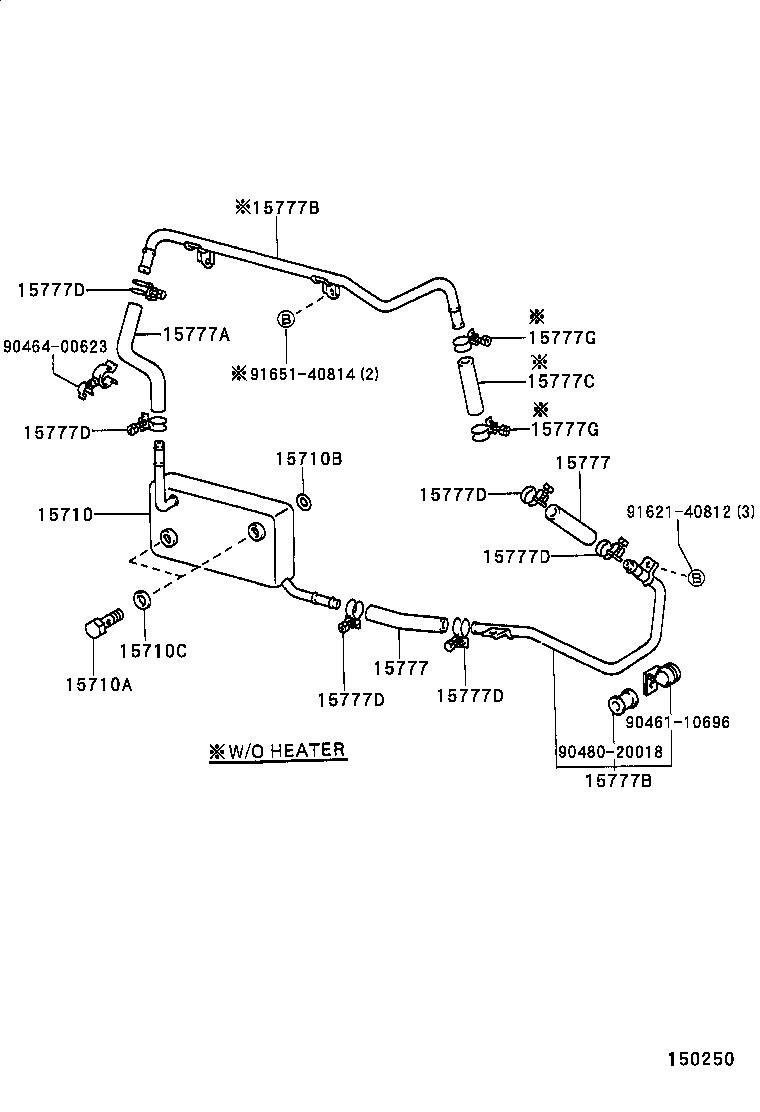

FJ80L-GCKRS (1990)
Toyota Land Cruiser
(9001-9208)3F..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-10696 | ||||
| 90480-20018 | ||||
| 91621-40812 | ||||
| 91651-40814 | ||||
(9001-9208)3F#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-61010 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18083 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) |
2 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) |
2 | ||
| 90430-18027 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) |
2 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 99556-30210 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN *H,L=210,W(ENGINE OIL COOLER),PIPE TO WATER PUMP |
1 | ||
| 90445-24039 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN *H,L=105,W(ENGINE OIL COOLER),PIPE TO WATER PUMP |
1 | ||
| 99556-30210 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN *H,L=160,W(ENGINE OIL COOLER),PIPE TO OIL COOLER |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 99556-30210 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN *H,L=210,W(ENGINE OIL COOLER),PIPE TO WATER PUMP |
1 | ||
| 90445-24039 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN *H,L=105,W(ENGINE OIL COOLER),PIPE TO WATER PUMP |
1 | ||
| 99556-30210 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN *H,L=160,W(ENGINE OIL COOLER),PIPE TO OIL COOLER |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15777-61030 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15770-61030 |
3F..FJ80..4F..LUB;3F..FJ80..SOB..GX..GEN;3F..FJ80..RHD..GX..GEN;3F..FJ80..(STD,VX)..GEN W(ENGINE OIL COOLER),LWR |
1 | ||
| 15772-61010 |
3F..FJ80..4F..LUB;3F..FJ80..SOB..GX..GEN;3F..FJ80..RHD..GX..GEN;3F..FJ80..(STD,VX)..GEN W(ENGINE OIL COOLER),UPR |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15770-61030 |
3F..FJ80..4F..LUB;3F..FJ80..SOB..GX..GEN;3F..FJ80..RHD..GX..GEN;3F..FJ80..(STD,VX)..GEN W(ENGINE OIL COOLER),LWR |
1 | ||
| 15772-61010 |
3F..FJ80..4F..LUB;3F..FJ80..SOB..GX..GEN;3F..FJ80..RHD..GX..GEN;3F..FJ80..(STD,VX)..GEN W(ENGINE OIL COOLER),UPR |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 99556-30100 |
3F..FJ80..4F..LUB;3F..FJ80..SOB..GX..GEN;3F..FJ80..RHD..GX..GEN;3F..FJ80..(STD,VX)..GEN W(ENGINE OIL COOLER) |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) & W/O HEATER |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) & W/O HEATER |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) & W/O HEATER |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) & W/O HEATER |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) & W/O HEATER |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..5F..VX..GEN;3F..FJ80..LHD..SOB..GEN W(ENGINE OIL COOLER) & W/O HEATER |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..STD..GCC;3F..FJ80..RHD..GX..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(STD,VX)..GEN |
2 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 96112-10250 |
3F..FJ80..4F..LUB;3F..FJ80..STD..GCC;3F..FJ80..RHD..GX..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(STD,VX)..GEN |
2 | ||
| Common parts | ||||
| 90461-10696 | ||||
| 90464-00623 | ||||
| 90480-20018 | ||||
| 91621-40812 | ||||
| 91651-40814 | ||||
