FJ80L-GCKRS (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
3F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9208)3F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10041 | ||||
| 90119-12118 | ||||
| 90149-10001 | ||||
| 90149-60081 | ||||
| 90149-60082 | ||||
| 91611-61020 | ||||
| 91615-60816 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 1105 | ||||

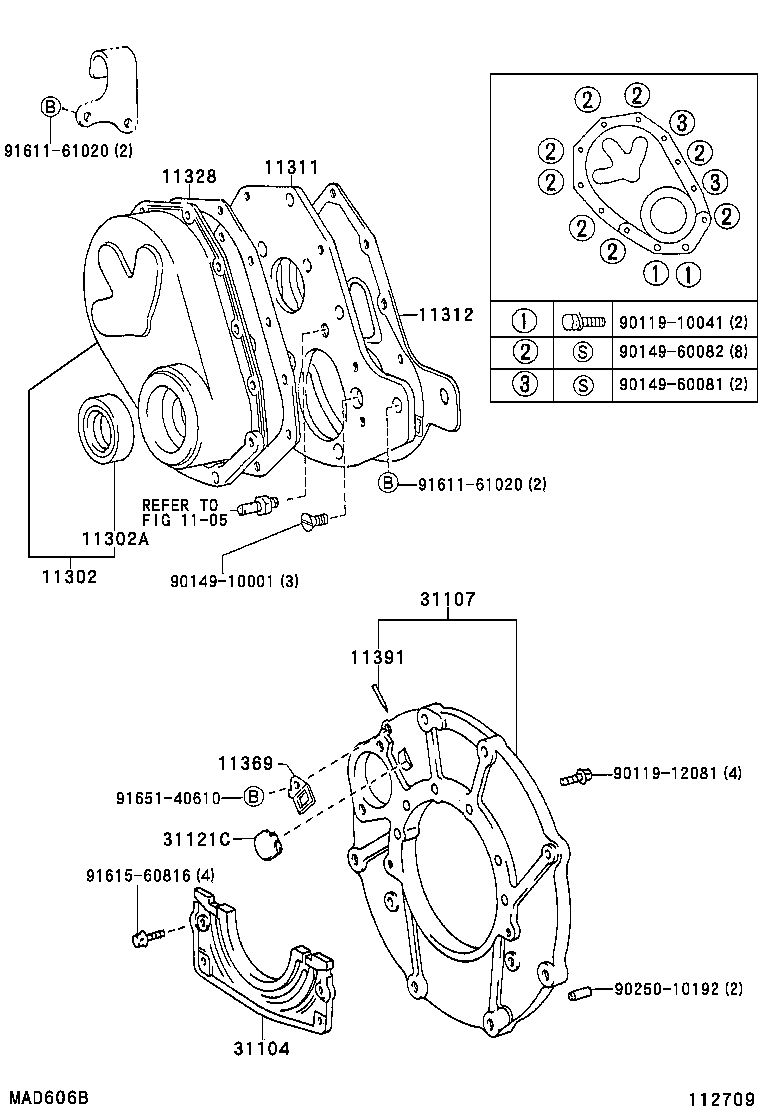

(9001-9208)3F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-61031 |
3F#..FJ80 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-45008 |
3F#..FJ80 |
1 | ||
| 11311 - PLATE, FRONT END | ||||
| 11311-61020 |
3F#..FJ80 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-61021 |
3F#..FJ80 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-61010 |
3F#..FJ80 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-60040 |
3F..FJ80..MTM |
1 | ||
| 31104 - COVER SUB-ASSY, CLUTCH HOUSING UNDER | ||||
| 31104-60040 |
FJ80..MTM |
1 | ||
| 31107 - PLATE SUB-ASSY, CLUTCH HOUSING ADAPTER | ||||
| 31107-60010 |
FJ80..MTM |
1 | ||
| 31121C - COVER, CLUTCH HOUSING ADAPTER PLATE | ||||
| 31121-60030 |
FJ80..MTM |
1 | ||
| Common parts | ||||
| 90119-10041 | ||||
| 90119-12081 | ||||
| 90149-10001 | ||||
| 90149-60081 | ||||
| 90149-60082 | ||||
| 90250-10192 | ||||
| 91611-61020 | ||||
| 91615-60816 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 1105 | ||||
