FJ75RV-KR (1984)
Toyota Land Cruiser

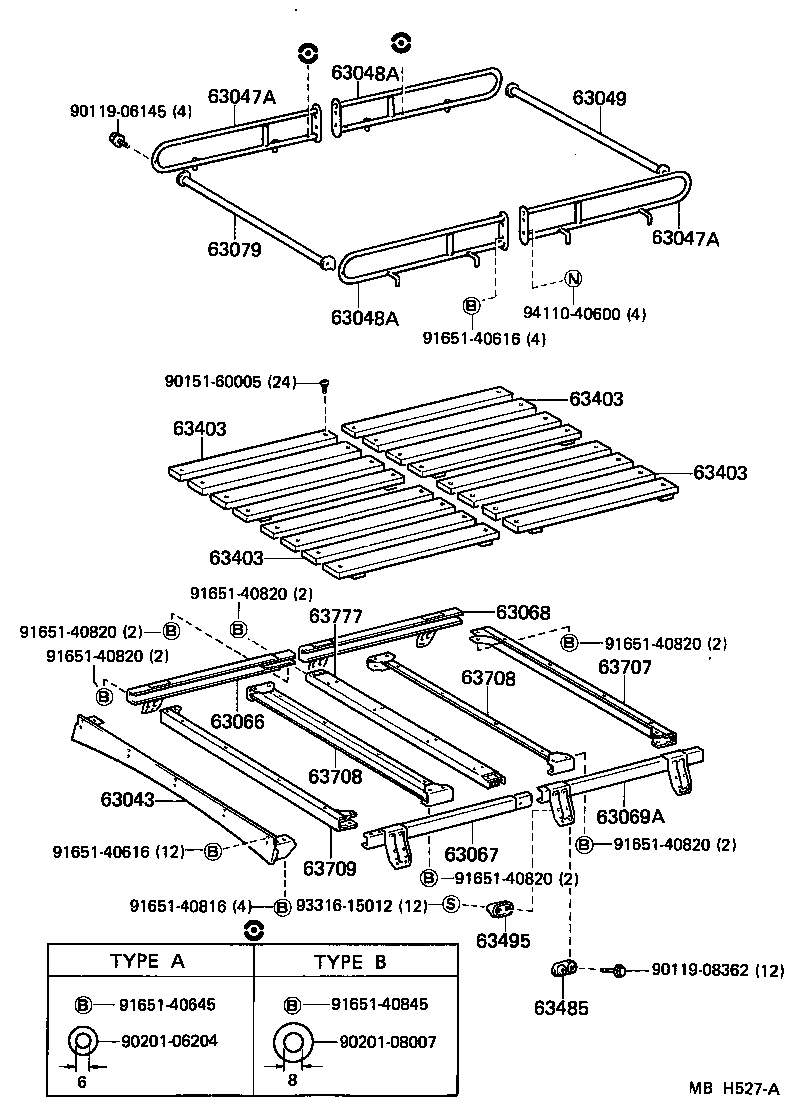

ILLUST NO. 2 OF 2(8411-8608)BJ75,FJ75,HJ75..HT..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63043 - PANEL SUB-ASSY, ROOF RACK WIND DEFLECTOR | ||||
| 63043-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63047A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.1 | ||||
| 63047-90A00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63047A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.1 | ||||
| 63047-90A00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63048A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.2 | ||||
| 63048-90A00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63048A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.2 | ||||
| 63048-90A00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63049-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63066-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63067-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63068-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63069-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63079-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63049-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
4 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
4 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
4 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
4 | ||
| 63485 - CUSHION, ROOF RACK LEG, CENTER | ||||
| 63485-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| 63495 - SPACER, ROOF RACK SUPPORT | ||||
| 63495-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63707-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63463-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90K04 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63709-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63777 - FRAME, ROOF RACK, LOWER CENTER | ||||
| 63706-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| Common parts | ||||
| 90119-06145 | ||||
| 90119-08362 | ||||
| 90151-60005 | ||||
| 90201-06204 | ||||
| 90201-08007 | ||||
| 91651-40616 | ||||
| 91651-40645 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-40845 | ||||
| 93316-15012 | ||||
| 94110-40600 | ||||

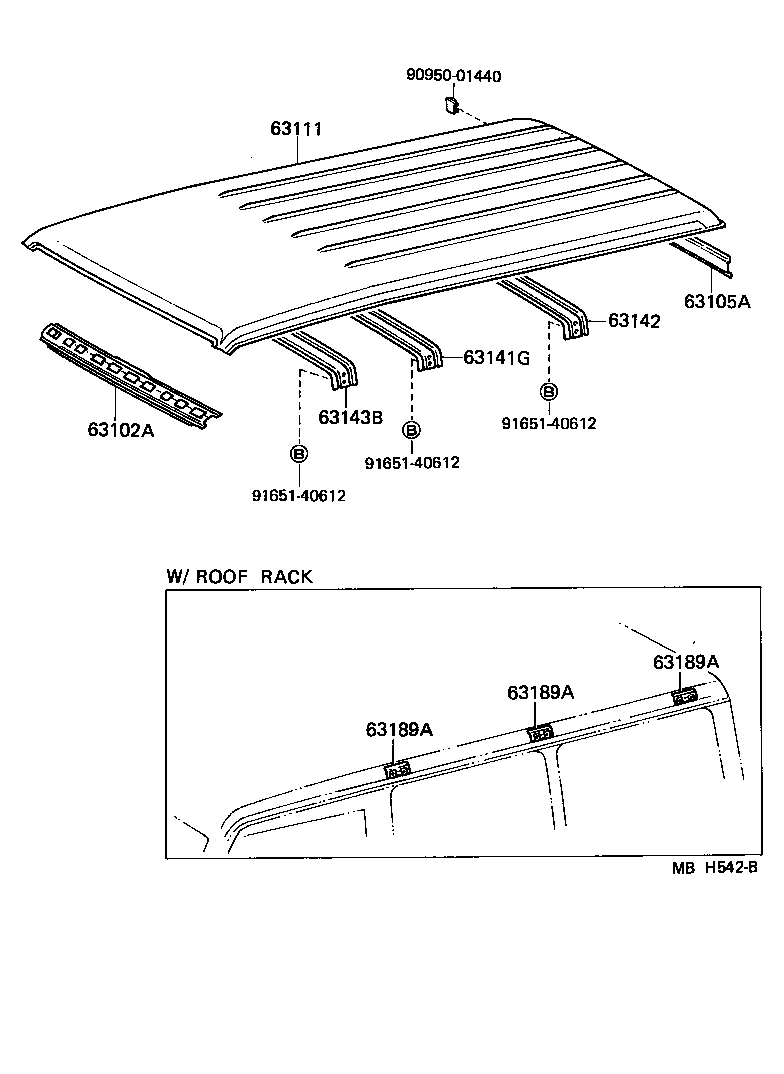

ILLUST NO. 1 OF 2(8411- )BJ75,FJ75,HJ75..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT |
1 | ||
| 63102-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT |
1 | ||
| 63105-90K02 |
FJ75,HJ75..HT W/*ODAC |
1 | ||
| 63105-90K06 |
FJ75,HJ75..HT W/*ODAC |
1 | ||
| 63105-90K05 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| Common parts | ||||
| 90950-01440 | ||||
| 91651-40612 | ||||

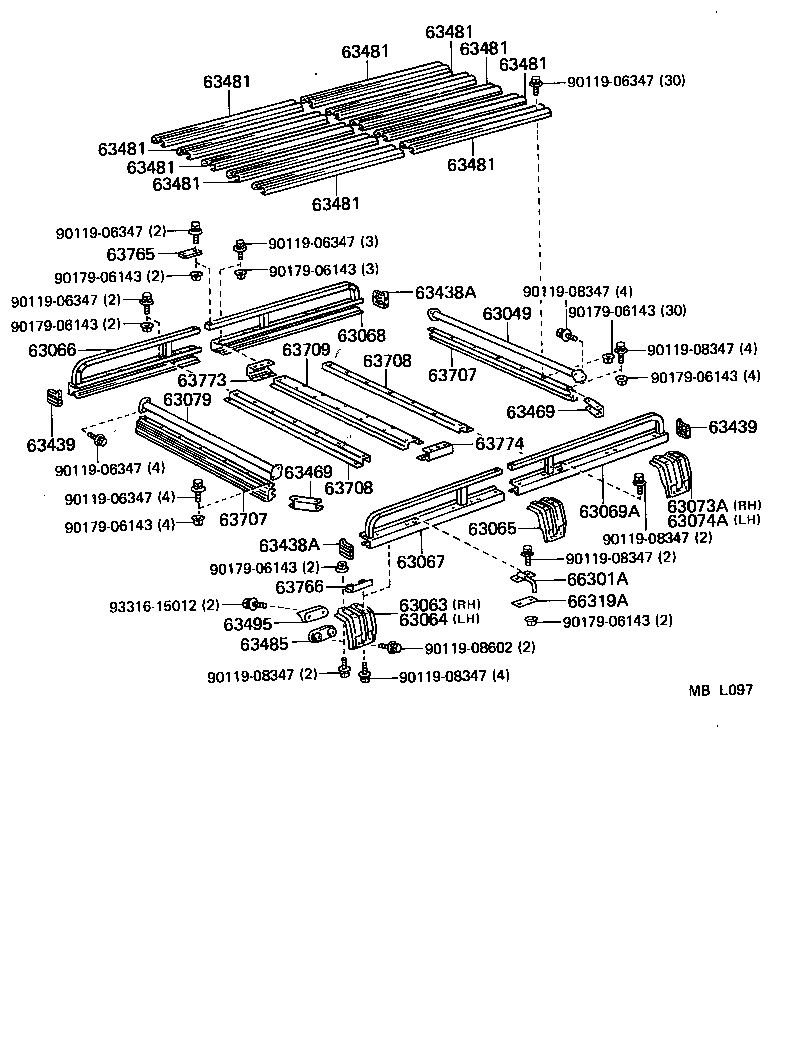

ILLUST NO. 2 OF 2(8608- )BJ75,FJ75,HJ75..HT..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63049-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63063 - STAY SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63063-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63064 - STAY SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63063-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63065 - STAY SUB-ASSY, ROOF RACK, CENTER | ||||
| 63065-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63066-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63067-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63068-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63069-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63073A - STAY SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63064-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63074A - STAY SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63064-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63079-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63049-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
10 | ||
| 63485 - CUSHION, ROOF RACK LEG, CENTER | ||||
| 63485-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| 63495 - SPACER, ROOF RACK SUPPORT | ||||
| 63495-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63707-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63463-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63707-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63463-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90K00 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63708-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90K04 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63709-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K05 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K02 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 63774 - GUSSET, ROOF RACK CENTER FRAME, LH | ||||
| 63774-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
8 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-08347 | ||||
| 90119-08602 | ||||
| 90179-06143 | ||||
| 93316-15012 | ||||
ILLUST NO. 1 OF 3(9001-0106)FZJ71..LHD..STD..GEN ; (9001-0106)FJ70,73,FZJ70,73,HZJ70,73,KZJ70,LJ70,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67868-3003001 | ||||
| 67868-30040 | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
