FJ75RP-MR3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

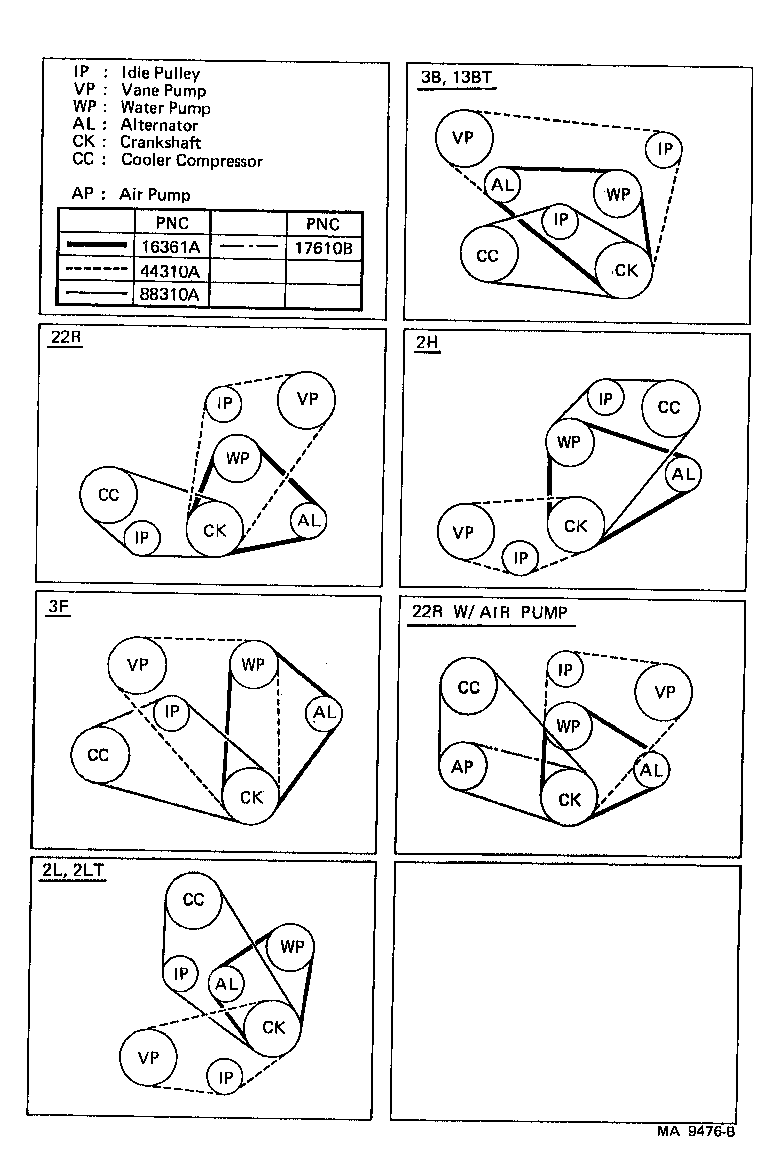

Click highlighted areas on diagram

diagram 16361A 17610B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02141

3F..FJ7#

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02137

FJ7#..ARL,GEN,ME

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-11180

FJ7#..ARL,GEN,ME

L=1180

 1
99332-01030

BJ70,73,75..GEN,ME

 1
99332-11175

FJ7#..GEN,ME

 1
