FJ75LV-MRV (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )3F..GEN,ME,SA

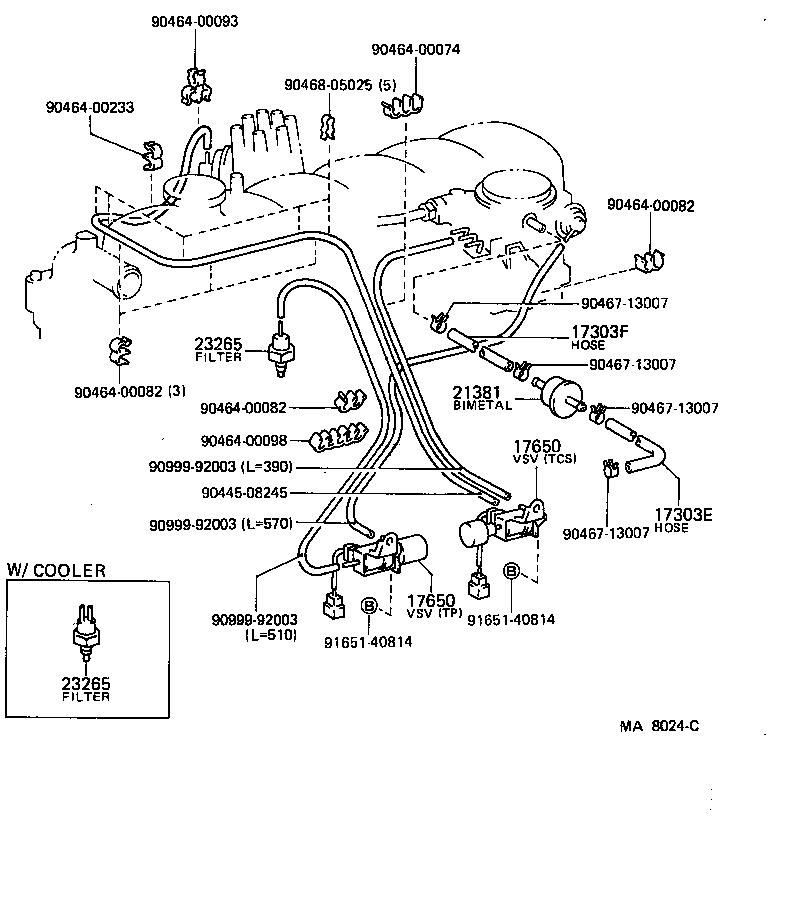

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90910-05173 |
3F..FJ7#..ME |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90445-14102 |
3F..FJ7#..ARL,ME |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71040 |
3F..FJ7#..ARL,ME |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
3F..FJ7#..5F..ME *47,W/COOLER |
1 | ||
| 90917-11023 |
3F..FJ7#..5F..ME W/COOLER |
1 | ||
| 90917-11022 |
3F..FJ7#..5F..ME |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
3F..FJ7#..5F..ME *47,W/COOLER |
1 | ||
| 90917-11023 |
3F..FJ7#..5F..ME W/COOLER |
1 | ||
| 90917-11022 |
3F..FJ7#..5F..ME |
1 | ||
| Common parts | ||||
| 90445-08207 | ||||
| 90447-13007 | ||||
| 90464-00082 | ||||
| 90464-00211 | ||||
| 90464-00233 | ||||
| 90467-13007 | ||||
| 90468-05025 | ||||
| 90999-92004 | ||||
(8411- )3F..5F..ME
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90910-05173 |
3F..FJ7#..ME |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90445-14102 |
3F..FJ7#..ARL,ME |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12120 |
3F..FJ7#..5F..ME TP |
1 | ||
| 89570-12170 |
3F..FJ7#..5F..ME TCS |
1 | ||
| 89570-12180 |
3F..FJ7#..5F..ME TP |
1 | ||
| 89570-35200 |
3F..FJ7#..5F..ME TCS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12120 |
3F..FJ7#..5F..ME TP |
1 | ||
| 89570-12170 |
3F..FJ7#..5F..ME TCS |
1 | ||
| 89570-12180 |
3F..FJ7#..5F..ME TP |
1 | ||
| 89570-35200 |
3F..FJ7#..5F..ME TCS |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71040 |
3F..FJ7#..ARL,ME |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
3F..FJ7#..5F..ME *47,W/COOLER |
1 | ||
| 90917-11023 |
3F..FJ7#..5F..ME W/COOLER |
1 | ||
| 90917-11022 |
3F..FJ7#..5F..ME |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
3F..FJ7#..5F..ME *47,W/COOLER |
1 | ||
| 90917-11023 |
3F..FJ7#..5F..ME W/COOLER |
1 | ||
| 90917-11022 |
3F..FJ7#..5F..ME |
1 | ||
| Common parts | ||||
| 90445-08245 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00093 | ||||
| 90464-00098 | ||||
| 90464-00233 | ||||
| 90467-13007 | ||||
| 90468-05025 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8411- )3F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
