FJ75LP-MRV (1984)
Toyota Land Cruiser

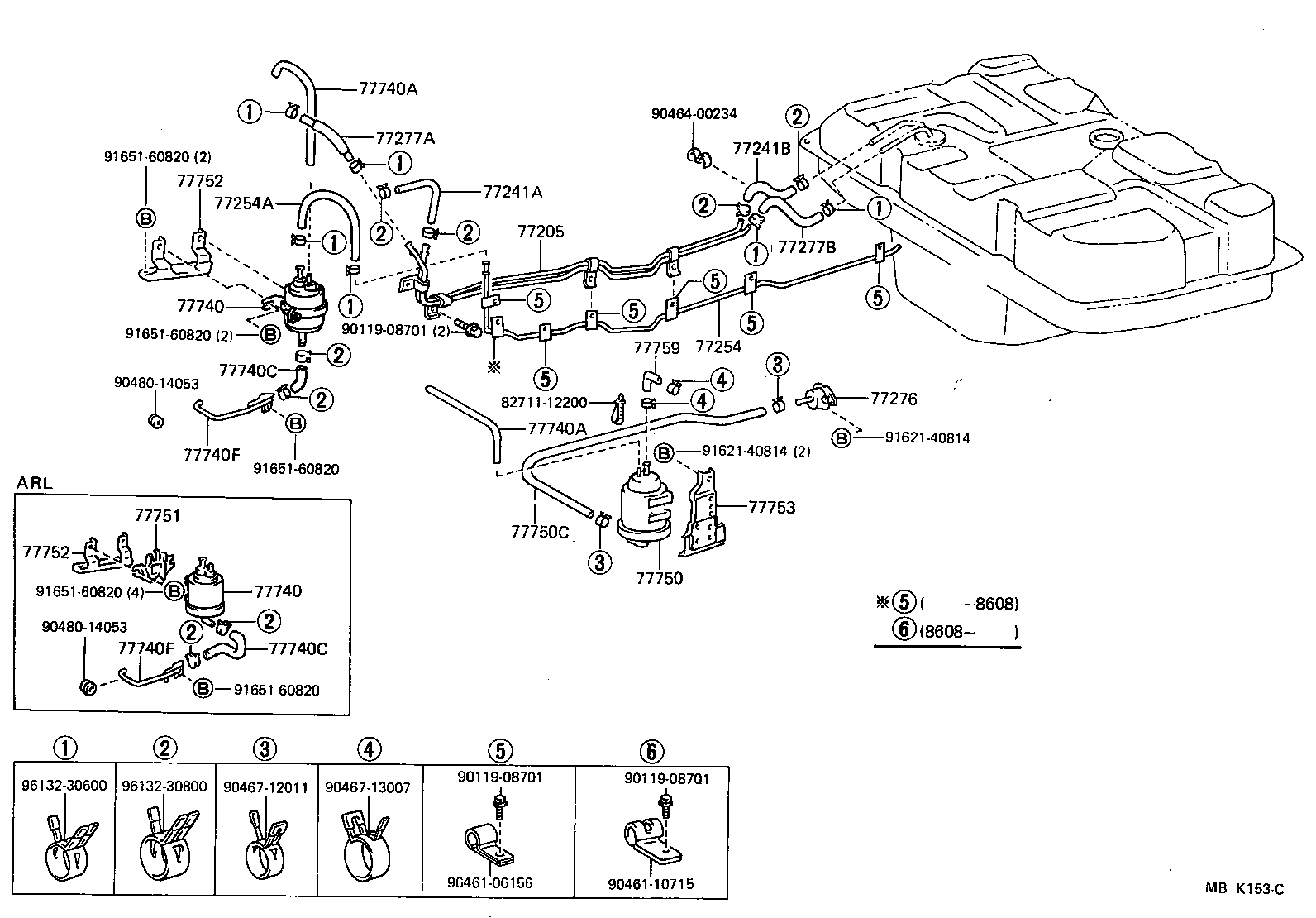

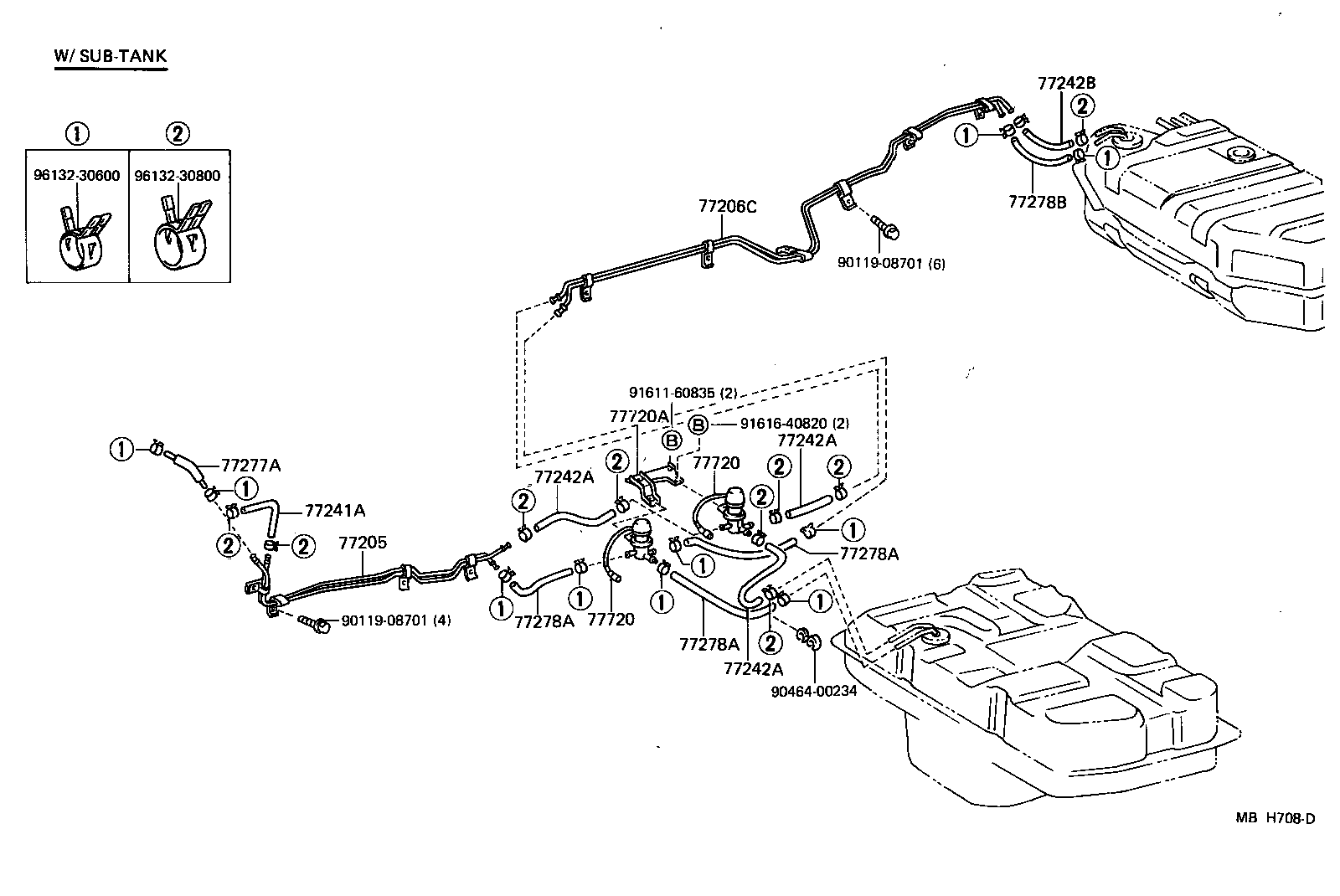

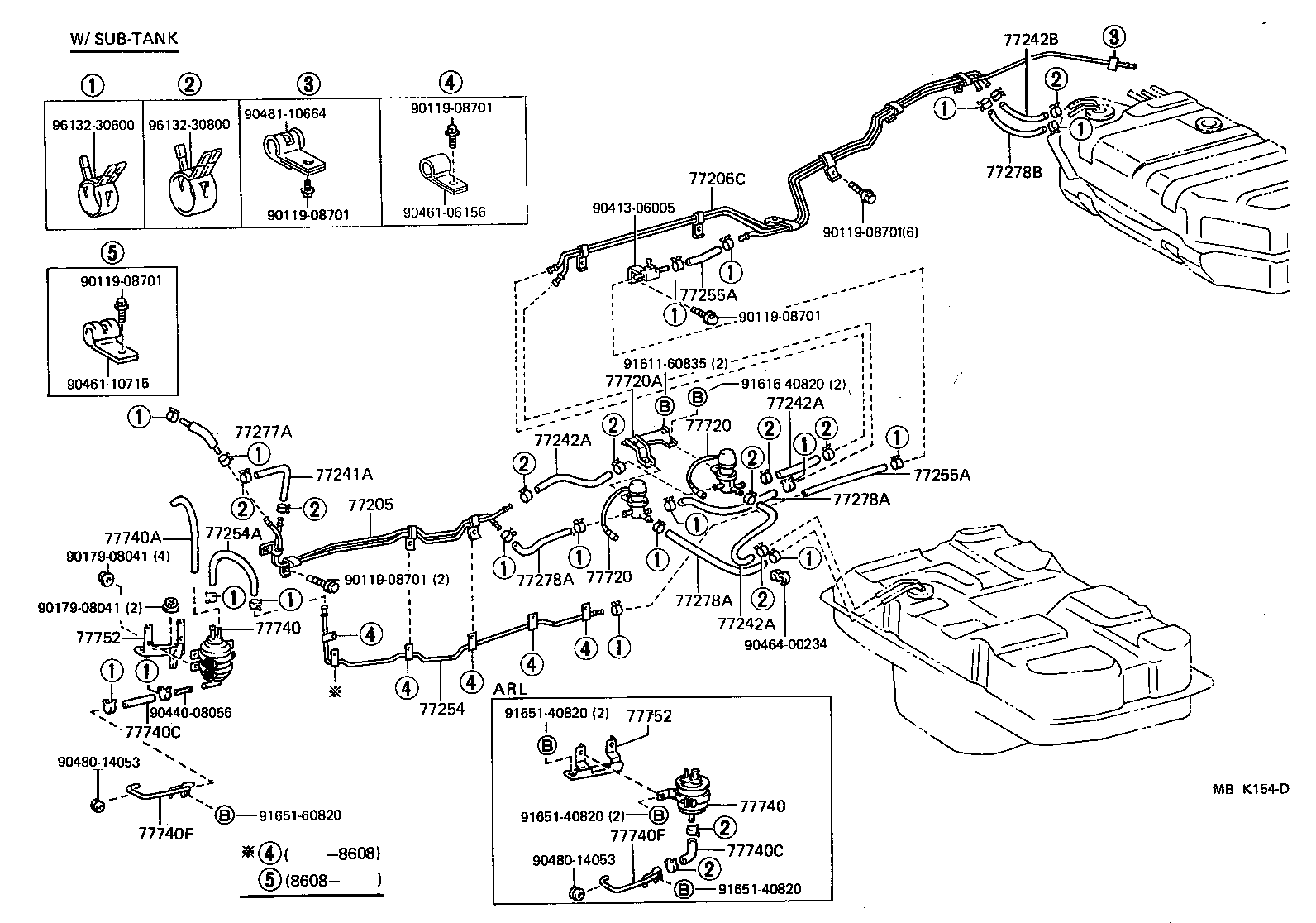

ILLUST NO. 1 OF 2(8411- )BJ75,FJ75,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
BJ7#,FJ7#,HJ75,LJ70 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-90K08 |
FJ75..PIC W/KEY |
2 | ||
| 77310-60051 |
FJ75..PIC W/O KEY |
2 | ||
| 69058-90K08 |
FJ75..PIC..(ARL,GEN,ME) W/KEY |
2 | ||
| 77310-60051 |
FJ75..PIC..(ARL,GEN,ME) W/O KEY |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
2 | ||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
BJ75,FJ75,HJ75 |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100-60240 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90341-20003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.5 |
2 | ||
| 90430-20006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.0 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ75,FJ75,HJ75 L=200 |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) L=385,SUB TANK |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC L=385,SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60190 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60191 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
FJ75..PIC..(GEN,ME,SA) |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60140 |
FJ75 |
1 | ||
| 77240-60120 |
FJ75 SUB TANK |
1 | ||
| 77240-60120 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77213-60070 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77213-60081 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75 |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60040 |
BJ75,FJ75,HJ75 |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77606-60041 |
BJ75,FJ75,HJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
BJ75,FJ75,HJ75 |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77133-60020 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77133-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77616-60050 |
BJ75,FJ75,HJ75 |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
BJ75,FJ75,HJ75 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ75,FJ75,HJ75 |
2 | ||
| Common parts | ||||
| 90119-10153 | ||||
| 90405-06007 | ||||
| 90460-62033 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-12011 | ||||
| 90467-20134 | ||||
| 90468-14011 | ||||
| 91611-61020 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-41030 | ||||
| 93319-14010 | ||||
| 93382-16014 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8411-8808)BJ75,FJ75,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
BJ7#,FJ7#,HJ75,LJ70 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-90K08 |
FJ75..PIC W/KEY |
2 | ||
| 77310-60051 |
FJ75..PIC W/O KEY |
2 | ||
| 69058-90K08 |
FJ75..PIC..(ARL,GEN,ME) W/KEY |
2 | ||
| 77310-60051 |
FJ75..PIC..(ARL,GEN,ME) W/O KEY |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
2 | ||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
BJ75,FJ75,HJ75 |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100-60240 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90341-20003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.5 |
2 | ||
| 90430-20006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.0 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ75,FJ75,HJ75 L=200 |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) L=385,SUB TANK |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC L=385,SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60190 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60191 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
FJ75..PIC..(GEN,ME,SA) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60190 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60191 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
FJ75..PIC..(GEN,ME,SA) |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60140 |
FJ75 |
1 | ||
| 77240-60120 |
FJ75 SUB TANK |
1 | ||
| 77240-60120 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77213-60070 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77213-60081 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75 |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77276-60020 |
FJ7# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60040 |
BJ75,FJ75,HJ75 |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77606-60041 |
BJ75,FJ75,HJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
BJ75,FJ75,HJ75 |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77133-60020 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77133-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77616-60050 |
BJ75,FJ75,HJ75 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77133-60020 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77133-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77616-60050 |
BJ75,FJ75,HJ75 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ75,FJ75,HJ75 |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90119-10153 | ||||
| 90460-62033 | ||||
| 90461-10664 | ||||
| 90461-12296 | ||||
| 90467-20134 | ||||
| 90480-14053 | ||||
| 91616-40820 | ||||
| 91621-40614 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91656-61025 | ||||
| 91661-40614 | ||||
| 93319-14010 | ||||
| 93382-16014 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8411-8510)FJ75..GEN,ME ; (8510- )FJ75..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60260 |
FJ75 |
1 | ||
| 77205-60170 |
FJ75 SUB TANK |
1 | ||
| 77205-60170 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77205-60261 |
FJ75 |
1 | ||
| 77205-60171 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-60180 |
FJ75..ME *47 |
1 | ||
| 77205-60190 |
FJ75..ARL,ME |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
FJ7# *H,L=150,ID=7.6 |
1 | ||
| 95333-08015 |
FJ7# *H,L=150 |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95333-08020 |
FJ7# *H,L=150 |
1 | ||
| 77259-60100 |
FJ7# L=150 |
1 | ||
| 95333-08030 |
BJ70,73,75..LHD *H,L=300 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 90447-14031 |
BJ70,73,75..LHD L=300 |
1 | ||
| 90447-14030 |
BJ70,73,75..LHD L=280 |
1 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 90447-14031 |
BJ70,73,75..LHD L=300 |
1 | ||
| 90447-14030 |
BJ70,73,75..LHD L=280 |
1 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 90447-14031 |
BJ70,73,75..LHD L=300 |
1 | ||
| 90447-14030 |
BJ70,73,75..LHD L=280 |
1 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08030 |
FJ75,HJ75 *H,L=260,ID=7.6 |
1 | ||
| 95332-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=260,ID=7.6 |
1 | ||
| 95333-08028 |
FJ75,HJ75..ARL,GEN,ME *H,L=280 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-61010 |
FJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
BJ70,73,75 *H,L=200 |
1 | ||
| 95332-06020 |
FJ75 *H,L=200 |
2 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
BJ70,73,75 *H,L=200 |
1 | ||
| 95332-06020 |
FJ75 *H,L=200 |
2 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
BJ70,73,75 *H,L=200 |
1 | ||
| 95332-06020 |
FJ75 *H,L=200 |
2 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06030 |
FJ75 *H,L=260 |
1 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=260 |
1 | ||
| 95333-06026 |
FJ75..ARL,GEN,ME *H,L=260 |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77720-60010 |
FJ75 RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME MAIN |
1 | ||
| 77720-60010 |
FJ75..ARL,GEN,ME RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75 MAIN |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77720-60010 |
FJ75 RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME MAIN |
1 | ||
| 77720-60010 |
FJ75..ARL,GEN,ME RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75 MAIN |
1 | ||
| 77720A - BRACKET, SAFETY VALVE | ||||
| 77716-60010 |
FJ75..ARL,GEN,ME |
1 | ||
| 77716-60010 |
FJ75 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90464-00234 | ||||
| 91611-60835 | ||||
| 91616-40820 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
ILLUST NO. 2 OF 2(8411- )FJ75..ARL,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60260 |
FJ75 |
1 | ||
| 77205-60170 |
FJ75 SUB TANK |
1 | ||
| 77205-60170 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77205-60261 |
FJ75 |
1 | ||
| 77205-60171 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
FJ7# *H,L=150,ID=7.6 |
1 | ||
| 95333-08015 |
FJ7# *H,L=150 |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95333-08020 |
FJ7# *H,L=150 |
1 | ||
| 77259-60100 |
FJ7# L=150 |
1 | ||
| 95333-08030 |
BJ70,73,75..LHD *H,L=300 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
FJ75 *H,L=340,ID=7.6 |
1 | ||
| 95333-08030 |
FJ75 *H,L=300 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77262-60060 |
FJ75..ARL,ME SUB TANK |
1 | ||
| 77262-60071 |
FJ75..ARL,ME |
1 | ||
| 77262-60070 |
FJ75..ARL,ME |
1 | ||
| 77262-60061 |
FJ75..ARL,ME SUB TANK |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06040 |
FJ75..ME *H,L=400,L=400 |
1 | ||
| 95333-06030 |
FJ75..ME *H,L=300 |
1 | ||
| 95332-06040 |
FJ75..ME *H,L=400 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77276-60020 |
FJ7# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-61010 |
FJ7# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06040 |
FJ75 *H,L=360 |
1 | ||
| 95333-06036 |
FJ75 *H,L=360 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60080 |
FJ7#..ME |
1 | ||
| 77740-60110 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60080 |
FJ7#..ME |
1 | ||
| 77740-60110 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
FJ7#..ME *H,L=540,MARK=#*,*47 |
1 | ||
| 90445-08244 |
FJ7#..ARL,ME L=1130 |
1 | ||
| 95411-10760 |
FJ7#..ARL,ME *H,L=420 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
FJ7#..ME *H,L=540,MARK=#*,*47 |
1 | ||
| 90445-08244 |
FJ7#..ARL,ME L=1130 |
1 | ||
| 95411-10760 |
FJ7#..ARL,ME *H,L=420 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77759-60010 |
FJ7#..ME |
1 | ||
| 90910-05179 |
FJ75..ME W/SUB TANK |
1 | ||
| 90910-05172 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77759-60010 |
FJ7#..ME |
1 | ||
| 90910-05179 |
FJ75..ME W/SUB TANK |
1 | ||
| 90910-05172 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-60050 |
FJ7#..ARL,ME |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-60050 |
FJ7#..ARL,ME |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60060 |
FJ7# |
1 | ||
| 77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER) | ||||
| 90445-12116 |
FJ7# L=500 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77751-60040 |
FJ7#..ARL,ME |
1 | ||
| 77751-60090 |
FJ75..ME W/SUB TANK |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77751-60040 |
FJ7#..ARL,ME |
1 | ||
| 77751-60090 |
FJ75..ME W/SUB TANK |
1 | ||
| 77753 - BRACKET, CHARCOAL CANISTER, NO.3 | ||||
| 77751-60070 |
FJ7# |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-60030 |
FJ7# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08701 | ||||
| 90461-06156 | ||||
| 90461-10715 | ||||
| 90464-00234 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90480-14053 | ||||
| 91621-40814 | ||||
| 91651-60820 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
ILLUST NO. 2 OF 2(8411- )FJ75..ARL,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60260 |
FJ75 |
1 | ||
| 77205-60170 |
FJ75 SUB TANK |
1 | ||
| 77205-60170 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77205-60261 |
FJ75 |
1 | ||
| 77205-60171 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-60180 |
FJ75..ME *47 |
1 | ||
| 77205-60190 |
FJ75..ARL,ME |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
FJ7# *H,L=150,ID=7.6 |
1 | ||
| 95333-08015 |
FJ7# *H,L=150 |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95333-08020 |
FJ7# *H,L=150 |
1 | ||
| 77259-60100 |
FJ7# L=150 |
1 | ||
| 95333-08030 |
BJ70,73,75..LHD *H,L=300 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 90447-14031 |
BJ70,73,75..LHD L=300 |
1 | ||
| 90447-14030 |
BJ70,73,75..LHD L=280 |
1 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 90447-14031 |
BJ70,73,75..LHD L=300 |
1 | ||
| 90447-14030 |
BJ70,73,75..LHD L=280 |
1 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 90447-14031 |
BJ70,73,75..LHD L=300 |
1 | ||
| 90447-14030 |
BJ70,73,75..LHD L=280 |
1 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08030 |
FJ75,HJ75 *H,L=260,ID=7.6 |
1 | ||
| 95332-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=260,ID=7.6 |
1 | ||
| 95333-08028 |
FJ75,HJ75..ARL,GEN,ME *H,L=280 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77262-60060 |
FJ75..ARL,ME SUB TANK |
1 | ||
| 77262-60071 |
FJ75..ARL,ME |
1 | ||
| 77262-60070 |
FJ75..ARL,ME |
1 | ||
| 77262-60061 |
FJ75..ARL,ME SUB TANK |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06040 |
FJ75..ME *H,L=400,L=400 |
1 | ||
| 95333-06030 |
FJ75..ME *H,L=300 |
1 | ||
| 95332-06040 |
FJ75..ME *H,L=400 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,ME *H,L=200 |
2 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=200 |
2 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,ME *H,L=200 |
2 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=200 |
2 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-61010 |
FJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
BJ70,73,75 *H,L=200 |
1 | ||
| 95332-06020 |
FJ75 *H,L=200 |
2 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
BJ70,73,75 *H,L=200 |
1 | ||
| 95332-06020 |
FJ75 *H,L=200 |
2 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75 *H,L=300 |
1 | ||
| 95333-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
FJ75..ARL,GEN,ME *H,L=200 |
2 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-06020 |
BJ70,73,75 *H,L=200 |
1 | ||
| 95332-06020 |
FJ75 *H,L=200 |
2 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06030 |
FJ75 *H,L=260 |
1 | ||
| 95332-06030 |
FJ75..ARL,GEN,ME *H,L=260 |
1 | ||
| 95333-06026 |
FJ75..ARL,GEN,ME *H,L=260 |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77720-60010 |
FJ75 RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME MAIN |
1 | ||
| 77720-60010 |
FJ75..ARL,GEN,ME RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75 MAIN |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77720-60010 |
FJ75 RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME MAIN |
1 | ||
| 77720-60010 |
FJ75..ARL,GEN,ME RETURN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75 MAIN |
1 | ||
| 77720A - BRACKET, SAFETY VALVE | ||||
| 77716-60010 |
FJ75..ARL,GEN,ME |
1 | ||
| 77716-60010 |
FJ75 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60080 |
FJ7#..ME |
1 | ||
| 77740-60110 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60080 |
FJ7#..ME |
1 | ||
| 77740-60110 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
FJ7#..ME *H,L=540,MARK=#*,*47 |
1 | ||
| 90445-08244 |
FJ7#..ARL,ME L=1130 |
1 | ||
| 95411-10760 |
FJ7#..ARL,ME *H,L=420 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77759-60010 |
FJ7#..ME |
1 | ||
| 90910-05179 |
FJ75..ME W/SUB TANK |
1 | ||
| 90910-05172 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77759-60010 |
FJ7#..ME |
1 | ||
| 90910-05179 |
FJ75..ME W/SUB TANK |
1 | ||
| 90910-05172 |
FJ75..ME W/SUB TANK |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-60050 |
FJ7#..ARL,ME |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-60050 |
FJ7#..ARL,ME |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77751-60040 |
FJ7#..ARL,ME |
1 | ||
| 77751-60090 |
FJ75..ME W/SUB TANK |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77751-60040 |
FJ7#..ARL,ME |
1 | ||
| 77751-60090 |
FJ75..ME W/SUB TANK |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90179-08041 | ||||
| 90413-06005 | ||||
| 90440-08056 | ||||
| 90461-06156 | ||||
| 90461-10664 | ||||
| 90461-10715 | ||||
| 90464-00234 | ||||
| 90480-14053 | ||||
| 91611-60835 | ||||
| 91616-40820 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
(8411- )GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

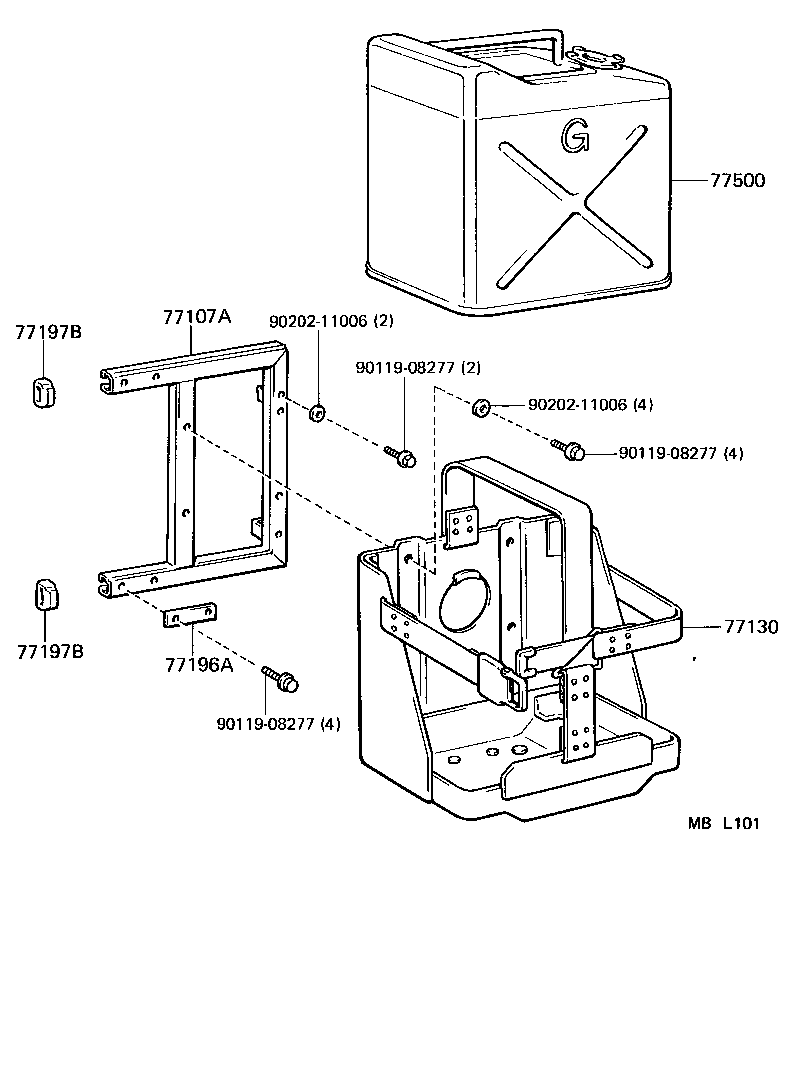

| 77500 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
5 | ||
| 77110-60010 |
BJ7#,FJ75,HJ75,LJ70,RJ70 |
5 | ||
| 77110-60011 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
5 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 98119-08277 | ||||
ILLUST NO. 2 OF 2(8808- )BJ75,FJ75,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
FJ75..ME *H,L=550,*47 |
1 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 90447-12040 |
FJ75..ARL,ME |
1 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
FJ75..ARL,ME *H,L=130,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
BJ7#,FJ7#,HJ75,LJ70 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-90K08 |
FJ75..PIC W/KEY |
2 | ||
| 77310-60051 |
FJ75..PIC W/O KEY |
2 | ||
| 69058-90K08 |
FJ75..PIC..(ARL,GEN,ME) W/KEY |
2 | ||
| 77310-60051 |
FJ75..PIC..(ARL,GEN,ME) W/O KEY |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
2 | ||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
BJ75,FJ75,HJ75 |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100-60240 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90341-20003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.5 |
2 | ||
| 90430-20006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.0 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ75,FJ75,HJ75 L=200 |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) L=385,SUB TANK |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC L=385,SUB TANK |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77134-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60190 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60191 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
FJ75..PIC..(GEN,ME,SA) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60190 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60191 |
FJ75..PIC..(GEN,ME) SUB TANK |
1 | ||
| 77201-60180 |
FJ75..PIC..(GEN,ME,SA) |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60140 |
FJ75 |
1 | ||
| 77240-60120 |
FJ75 SUB TANK |
1 | ||
| 77240-60120 |
FJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77213-60070 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77213-60081 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77222A - TUBE, FUEL VAPOR LIQUID SEPARATOR, NO.1 | ||||
| 77222-60150 |
BJ75,FJ75,HJ75 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75 |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-60060 |
BJ75,FJ75,HJ75 |
2 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-60060 |
BJ75,FJ75,HJ75 |
2 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77276-60020 |
FJ7# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60040 |
BJ75,FJ75,HJ75 |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77606-60041 |
BJ75,FJ75,HJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
BJ75,FJ75,HJ75 |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ75,FJ75,HJ75 |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90119-10153 | ||||
| 90119-10539 | ||||
| 90460-62033 | ||||
| 90461-06174 | ||||
| 90461-10664 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-12011 | ||||
| 90467-20134 | ||||
| 90480-14053 | ||||
| 91616-60820 | ||||
| 91621-40614 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91661-40614 | ||||
| 93319-14010 | ||||
| 93382-16014 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(9001-9201)FJ75,HJ75,HZJ75,PZJ75 ; (9201-9208)FJ75
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10153 | ||||
| 90159-40155 | ||||
| 90405-06007 | ||||
| 90460-65002 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 91611-61020 | ||||
| 91651-40614 | ||||
| 91651-41030 | ||||
| 91651-60814 | ||||
| 91651-61022 | ||||
| 91661-40614 | ||||
| 93382-16014 | ||||
| 93383-15014 | ||||
| 96132-30600 | ||||
ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06621 | ||||
| 90119-08701 | ||||
| 90119-10153 | ||||
| 90119-10539 | ||||
| 90119-10556 | ||||
| 90159-40155 | ||||
| 90460-65002 | ||||
| 90461-06174 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
| 91665-40616 | ||||
| 93383-15014 | ||||
| 93383-A6014 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
