FJ75LP-MR3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

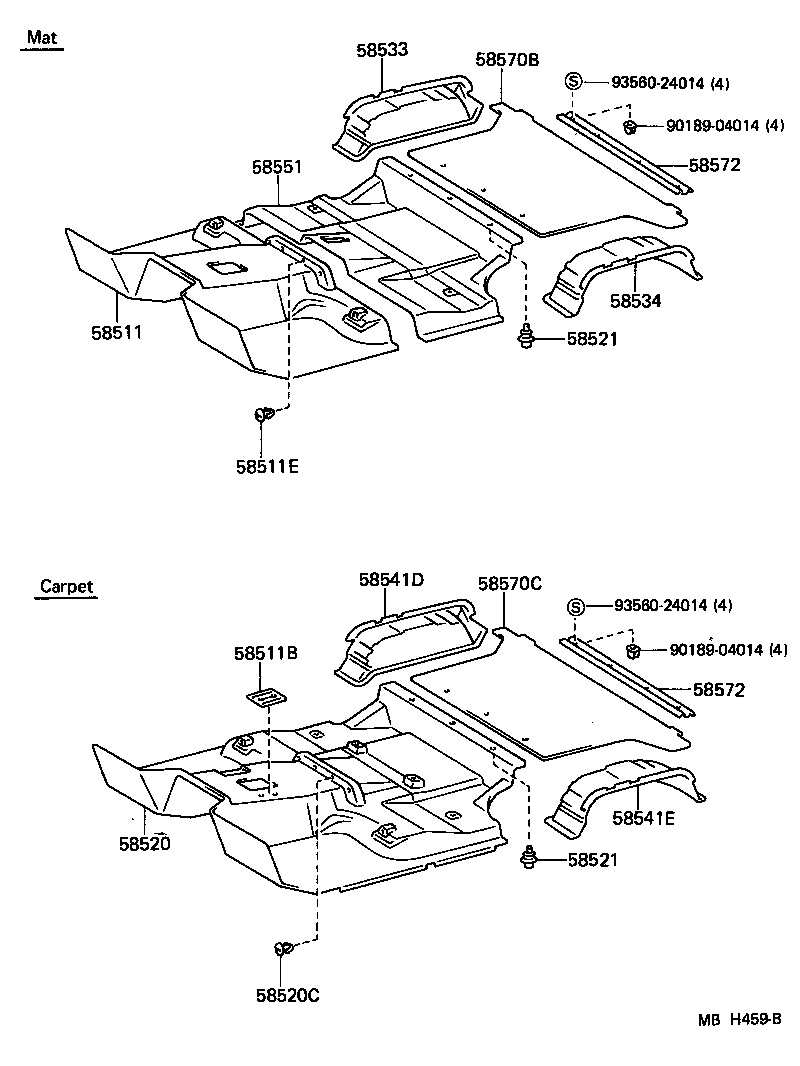

Click highlighted areas on diagram

diagram 58511 58511B 58511E 58520 58520C 58521 58521 58533 58534 58541D 58541E 58551 58570B 58570C 58572 58572 9018904014 9018904014 9356024014 9356024014
Part # Description Qty Price
58511 - MAT, FLOOR, FRONT
58510-90K4206

BJ75,FJ75,HJ75

BROWN,SEPIA BROWN

 1
58510-90K4203

BJ75,FJ75,HJ75

GRAY,SHADOW GRAY

 1
58510-90L0106

BJ75,FJ75,HJ75

BROWN,SEPIA BROWN

 1
58510-90L0103

BJ75,FJ75,HJ75

GRAY,SHADOW GRAY

 1
58551 - MAT, FLOOR, REAR
58540-90K1106

BJ75,FJ75,HJ75..LHD..PIC

BROWN,SEPIA BROWN

 1
58540-90K1103

BJ75,FJ75,HJ75..LHD..PIC

GRAY,SHADOW GRAY

 1
58540-90K4306

BJ75,FJ75,HJ75..LHD..PIC

BROWN,SEPIA BROWN

 1
58540-90K4303

BJ75,FJ75,HJ75..LHD..PIC

GRAY,SHADOW GRAY

 1
Common parts
90189-04014
93560-24014
