FJ75LP-MR3 (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )BJ70,73,75..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60030 |
BJ70,73,75 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-60081 |
FJ7#..LHD |
1 | ||
| 44410-60082 |
FJ7#..LHD |
1 | ||
| 44410-60090 |
BJ70,75..LHD |
1 | ||
| 44410-60180 |
BJ70,73,75..LHD |
1 | ||
| 44410-60091 |
BJ70,73,75..LHD |
1 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
4 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
4 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-60070 |
FJ7#..ARL,GEN,ME |
1 | ||
| 44412-60030 |
BJ70,73,75 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-60090 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60100 |
BJ70,73,75,FJ7#,HJ75..LHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60050 |
FJ7#..ARL,GEN,ME |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-60010 |
BJ70,73,75 |
1 | ||
| 44444-60030 |
BJ70,73,75 |
1 | ||
| Common parts | ||||
| 90105-10089 | ||||
| 90119-08207 | ||||
| 90119-08700 | ||||
| 90119-10105 | ||||
| 90119-10311 | ||||
| 90119-10326 | ||||
| 91112-51025 | ||||
| 91112-51030 | ||||
| 91611-60850 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8411- )FJ7#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-60081 |
FJ7#..LHD |
1 | ||
| 44410-60082 |
FJ7#..LHD |
1 | ||
| 44410-60090 |
BJ70,75..LHD |
1 | ||
| 44410-60180 |
BJ70,73,75..LHD |
1 | ||
| 44410-60091 |
BJ70,73,75..LHD |
1 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
4 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
4 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-60070 |
FJ7#..ARL,GEN,ME |
1 | ||
| 44412-60030 |
BJ70,73,75 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-60090 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60100 |
BJ70,73,75,FJ7#,HJ75..LHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60050 |
FJ7#..ARL,GEN,ME |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-60020 |
FJ7#..ARL,GEN,ME |
1 | ||
| Common parts | ||||
| 90105-10089 | ||||
| 90119-08700 | ||||
| 90119-10079 | ||||
| 90119-10326 | ||||
| 90464-00408 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1605 | ||||

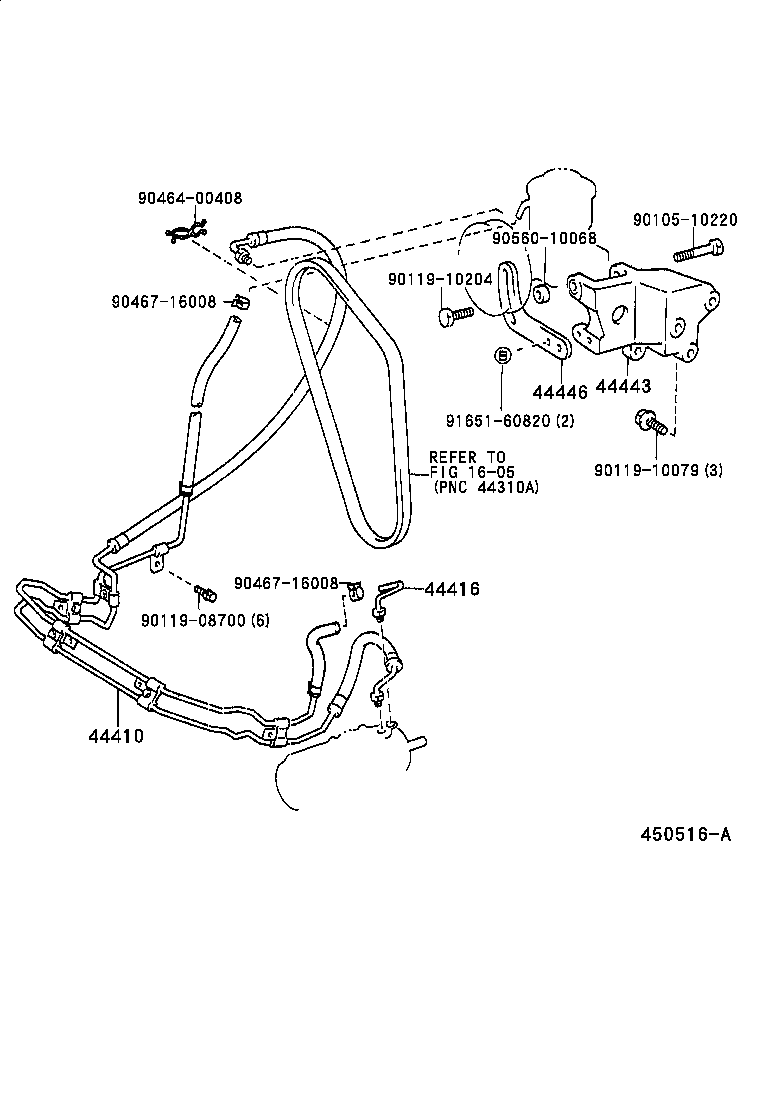

(9001-9208)FJ7#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10220 | ||||
| 90119-08700 | ||||
| 90119-10079 | ||||
| 90119-10204 | ||||
| 90464-00408 | ||||
| 90467-16008 | ||||
| 90560-10068 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(9001-9401)HZJ75,PZJ70,75..LHD ; (9401-0701)HZJ7#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08700 | ||||
| 90464-00408 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 90949-01993 | ||||
