FJ75LP-MR3 (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )FJ7#..MTM

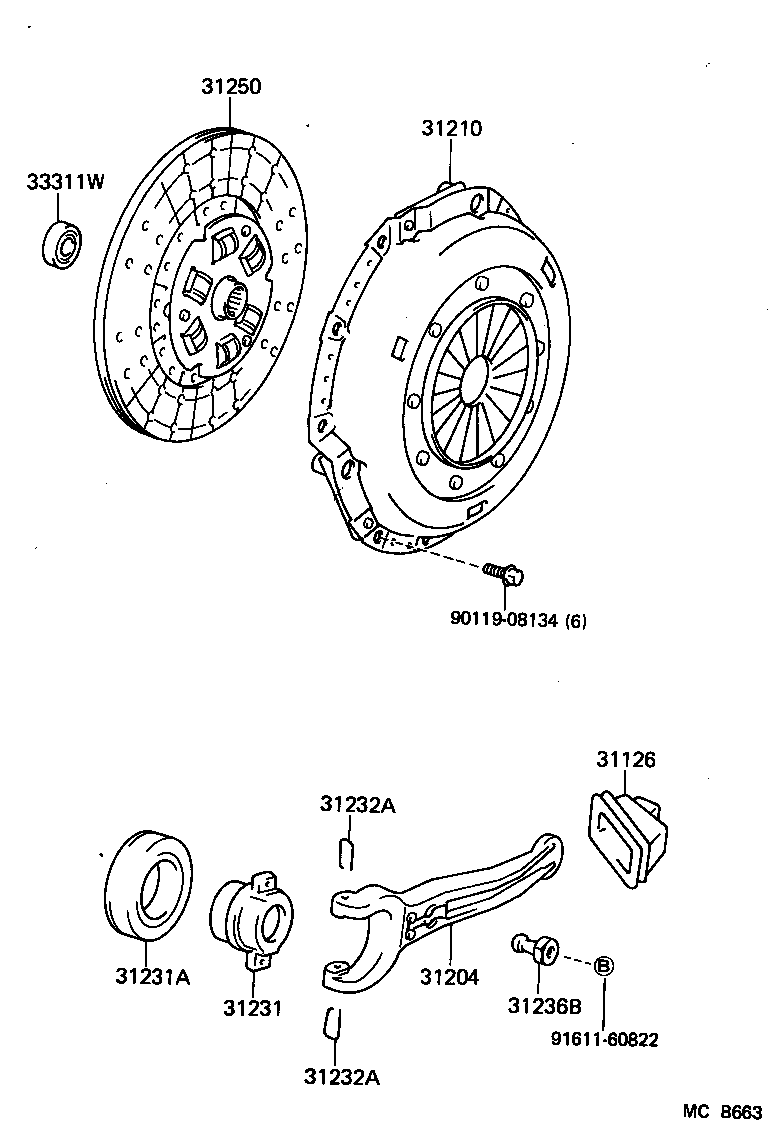

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-60021 |
FJ7#,HJ75..MTM |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-60060 |
FJ7#..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-60070 |
HJ75;FJ7#..MTM..(GEN,ME,SA) |
1 | ||
| 31210-36100 |
BJ70,73,75 |
1 | ||
| 31210-60071 |
HJ75;FJ7#..MTM..(GEN,ME,SA) |
1 | ||
| 31210-36140 |
FJ7#..MTM..(GEN,ME,SA) |
1 | ||
| 31210-36160 |
FJ7#..MTM..(GEN,ME,SA) |
1 | ||
| 31210-60130 |
BJ70,73,75 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-60070 |
FJ7#..MTM |
1 | ||
| 31231-60080 |
BJ70,73,75 |
1 | ||
| 31231-60071 |
FJ7#..MTM |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-45002 |
BJ70,73,75 |
1 | ||
| 90363-52001 |
FJ7#,HJ75..MTM |
1 | ||
| 90363-45013 |
FJ7#,HJ75..MTM |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-60020 |
BJ7#,FJ7#,HJ75..MTM |
2 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-60020 |
BJ7#,FJ7#,HJ75..MTM |
2 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-60020 |
FJ7#..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-36280 |
BJ70,73,75 |
1 | ||
| 31250-36281 |
BJ70,73,75 |
1 | ||
| 31250-60090 |
BJ70,73,75 |
1 | ||
| 31250-36301 |
BJ70,73,75 |
1 | ||
| 31250-60180 |
BJ70,73,75 |
1 | ||
| 31250-60080 |
FJ7#..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-15004 |
FJ7#,HJ75..MTM |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 91611-60822 | ||||
(9001-9208)FJ7#..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08134 | ||||
| 91611-60825 | ||||
