FJ75LP-MR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

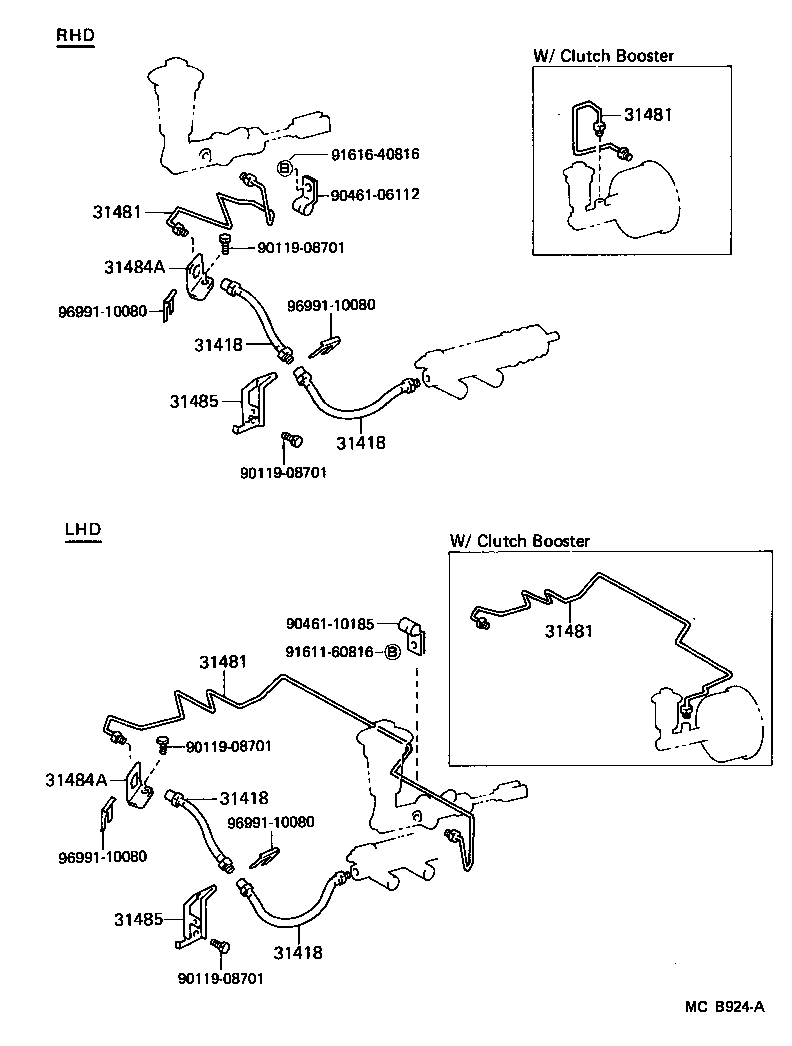

ILLUST NO. 2 OF 2(8411- )FJ7#,HJ75..MTM

Click highlighted areas on diagram

diagram 31418 31418 31418 31418 31481 31481 31481 31481 31484A 31484A 31485 31485 9011908701 9011908701 9011908701 9011908701 9046106112 9046110185 9161160816 9161640816 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
96812-50290

FJ7#,HJ75..MTM..(ARL,GEN,ME)

TUBE SIDE

 1
96812-50320

FJ7#,HJ75..MTM..(ARL,GEN,ME)

RELEASE CYLINDER SIDE

 1
31418 - HOSE, CLUTCH
96812-50290

FJ7#,HJ75..MTM..(ARL,GEN,ME)

TUBE SIDE

 1
96812-50320

FJ7#,HJ75..MTM..(ARL,GEN,ME)

RELEASE CYLINDER SIDE

 1
31418 - HOSE, CLUTCH
96812-50290

FJ7#,HJ75..MTM..(ARL,GEN,ME)

TUBE SIDE

 1
96812-50320

FJ7#,HJ75..MTM..(ARL,GEN,ME)

RELEASE CYLINDER SIDE

 1
31418 - HOSE, CLUTCH
96812-50290

FJ7#,HJ75..MTM..(ARL,GEN,ME)

TUBE SIDE

 1
96812-50320

FJ7#,HJ75..MTM..(ARL,GEN,ME)

RELEASE CYLINDER SIDE

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31481-60400

FJ7#,HJ75..LHD..MTM

W/CLUTCH BOOSTER

 1
31481-60460

FJ7#,HJ75..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31481-60400

FJ7#,HJ75..LHD..MTM

W/CLUTCH BOOSTER

 1
31481-60460

FJ7#,HJ75..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31481-60400

FJ7#,HJ75..LHD..MTM

W/CLUTCH BOOSTER

 1
31481-60460

FJ7#,HJ75..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31481-60400

FJ7#,HJ75..LHD..MTM

W/CLUTCH BOOSTER

 1
31481-60460

FJ7#,HJ75..LHD..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60040

FJ7#,HJ75,LJ70,RJ70..MTM

 1
31484-60040

FJ7#,HJ75,LJ70..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60040

FJ7#,HJ75,LJ70,RJ70..MTM

 1
31484-60040

FJ7#,HJ75,LJ70..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-60060

FJ7#,HJ75..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-60060

FJ7#,HJ75..MTM

 1
Common parts
90119-08701
90461-06112
90461-10185
91611-60816
91616-40816
96991-10080

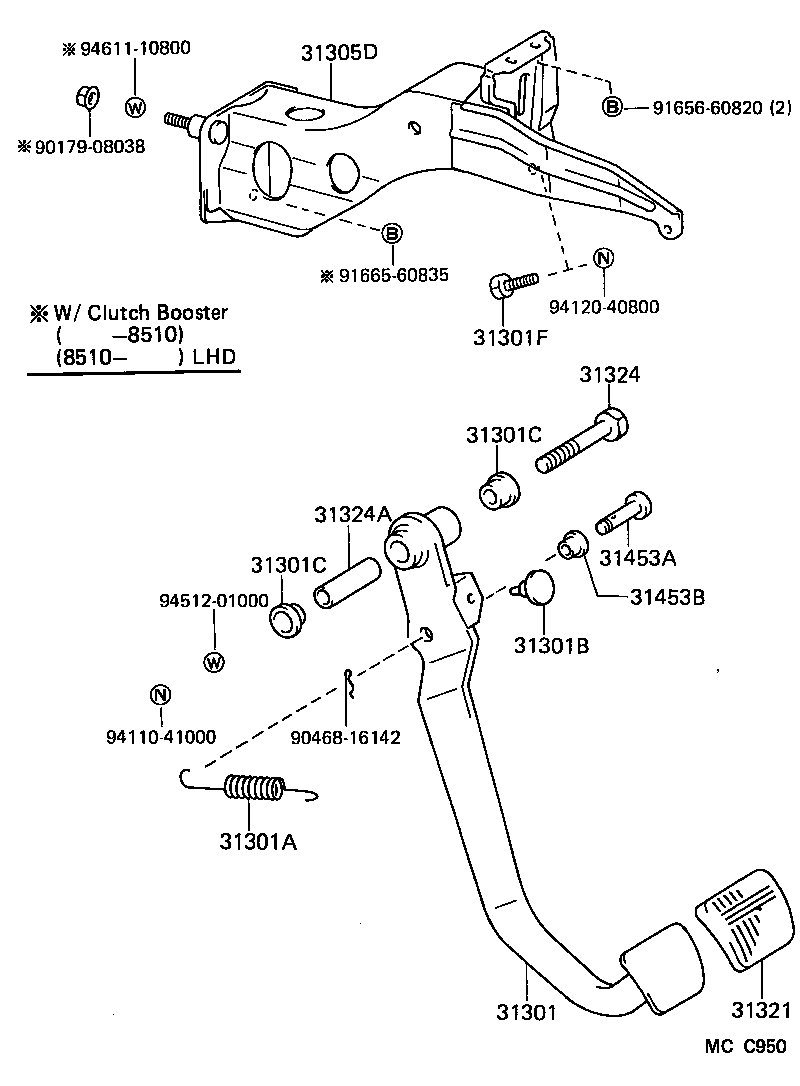

ILLUST NO. 1 OF 2(8411- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305D 31321 31324 31324A 31453A 31453B 9017908038 9046816142 9165660820 9166560835 9411041000 9412040800 9451201000 9461110800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60101

BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..MTM

 1
31301-60100

BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14015

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50828

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-90K01

BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
Common parts
90179-08038
90468-16142
91656-60820
91665-60835
94110-41000
94120-40800
94512-01000
94611-10800

ILLUST NO. 2 OF 2(9001-0007)HZJ70,75,PZJ70,75..LHD

Click highlighted areas on diagram

diagram 31418 31481 31481K 31484A 31489 31495 4737160020 9011908701 9046808034 9161160816
Part # Description Qty Price
Common parts
47371-60020
90119-08701
90468-08034
91611-60816

ILLUST NO. 2 OF 2(9001-9208)FJ7#..LHD..MTM

Click highlighted areas on diagram

diagram 31418 31481 31481A 31484A 31485 9011908701 9046110185 9046808034 9046808034 9161160816 9161160816
Part # Description Qty Price
Common parts
90119-08701
90461-10185
90468-08034
91611-60816

ILLUST NO. 1 OF 2(9001-0007)FJ7#,HJ75,HZJ70,73,75,LJ7#,PZJ7#,RJ7#..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9011908681 9017908038 9046816142 9165160816 9166560835 9411041000 9412040800 9451201000 9461110800 9462210800
Part # Description Qty Price
Common parts
90119-08681
90179-08038
90468-16142
91651-60816
91665-60835
94110-41000
94120-40800
94512-01000
94611-10800
94622-10800
