FJ75LP-KR (1984)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89110 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 DEF-VENT & WARM-COOL |
2 | ||
| 55905-95J01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 FRESH-RECIRC |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-90K03 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55909-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/HEATER |
1 | ||
| 55910-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/HEATER |
1 | ||
| 55910-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME W/*BV |
1 | ||
| 55910-90K03 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME W/*BV |
1 | ||
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

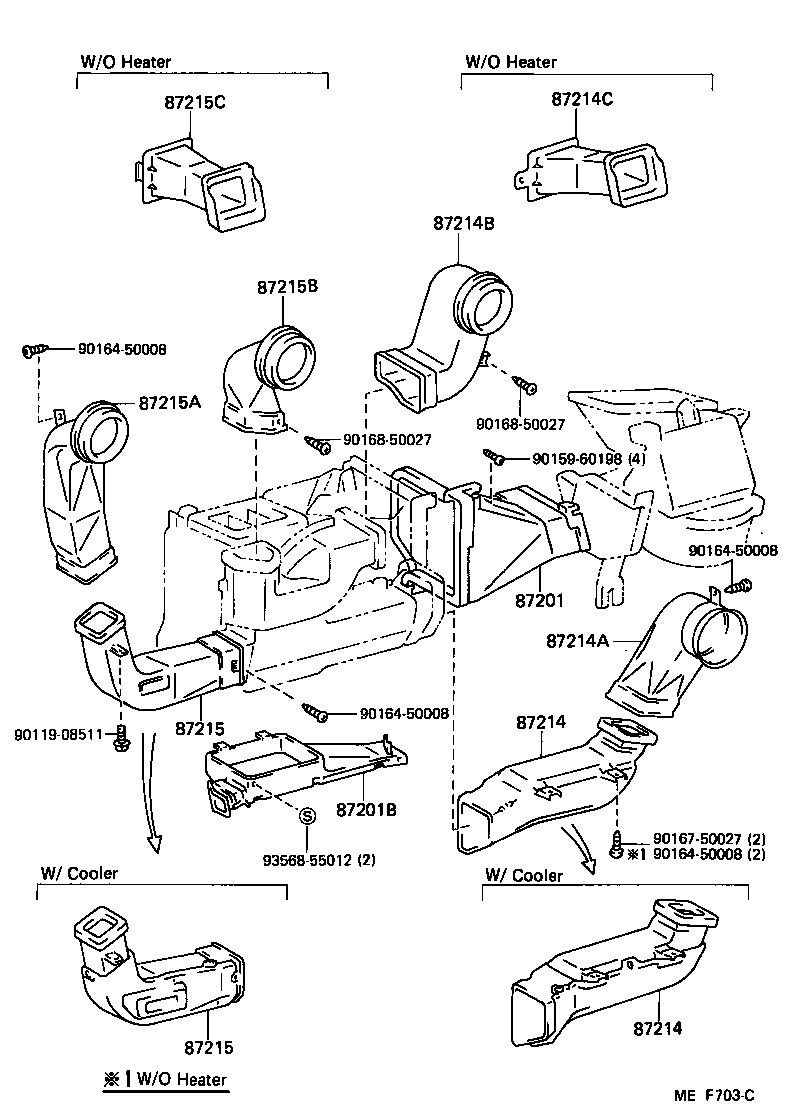

ILLUST NO. 2 OF 3(8411- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-90K03 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 87201-90K06 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55082-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55088-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER,W/O COOLER |
1 | ||
| 55088-90K03 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/COOLER |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55082-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55088-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER,W/O COOLER |
1 | ||
| 55088-90K03 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/COOLER |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55848-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER OR COOLER |
1 | ||
| 87214B - DUCT, AIR, SIDE NO.3 RH | ||||
| 55087-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER OR COOLER |
1 | ||
| 87214C - DUCT, AIR, SIDE NO.4 RH | ||||
| 55831-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55081-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55085-90K03 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD W/COOLER |
1 | ||
| 55844-90K09 |
BJ70,73,75,FJ7#,LJ70,RJ70..LHD W/HEATER,W/O COOLER |
1 | ||
| 55085-90K09 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/COOLER |
1 | ||
| 55085-90K01 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER,W/O COOLER |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55081-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 55085-90K03 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD W/COOLER |
1 | ||
| 55844-90K09 |
BJ70,73,75,FJ7#,LJ70,RJ70..LHD W/HEATER,W/O COOLER |
1 | ||
| 55085-90K09 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/COOLER |
1 | ||
| 55085-90K01 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER,W/O COOLER |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55084-90K01 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER OR COOLER |
1 | ||
| 55084-90K05 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER OR COOLER |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 55086-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/HEATER OR COOLER |
1 | ||
| 87215C - DUCT, AIR, SIDE NO.4 LH | ||||
| 55832-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| Common parts | ||||
| 90119-08511 | ||||
| 90159-60198 | ||||
| 90164-50008 | ||||
| 90167-50027 | ||||
| 90168-50027 | ||||
| 93568-55012 | ||||
